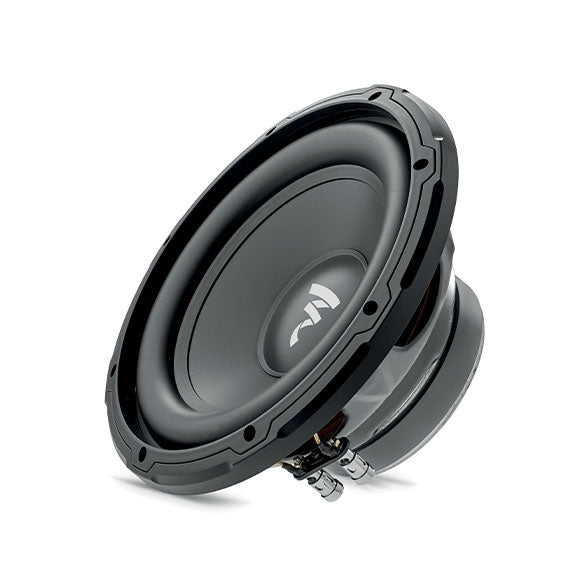

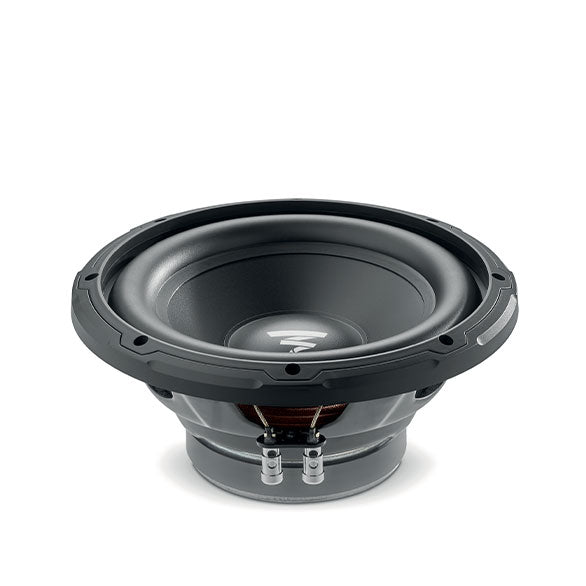

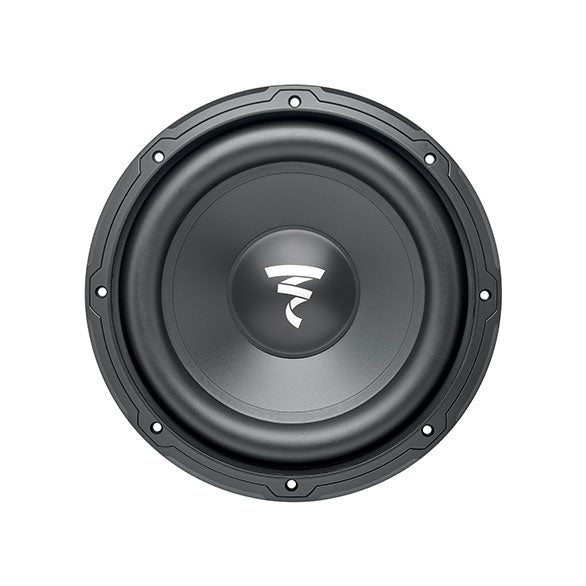

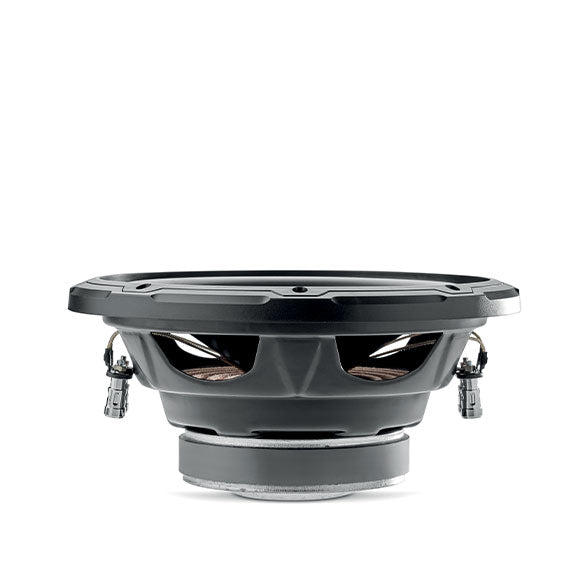

FOCAL DOUBLE VOICE COIL 10" SUBWOOFER

SUB10DUAL

Designed and developed in France, the Sub 10 Dual benefits from Focal’s sound savoir-faire. With its 10” (25 cm) polypropylene cone, this subwoofer provides an excellent bass boost for any on-board audio system. Its double voice coil architecture offers the option to fit it in parallel with a 2-Ohm operation, allowing the amplifier’s maximum power to be exploited.

Key points
• A deep and powerful bass
• Effective as bass-reflex or sealed box
• Sealed box from 10L
• Bass-reflex box from 25L
• Parallel voice coil connection for more SPL
• Robust design; steel chassis
• Excellent power handling

Specifications:

• Type = For sealed and bass-reflex enclosure
• Diameter = 25cm
• Cone = Polypropylene
• Magnet = Ferrite
• Surround = Butyl
• Max. power = 500W
• Nominal power = 250W RMS
• Sensitivity (2.83V/1m) = 85dB
• Impedance = 4 Ω + 4 Ω
