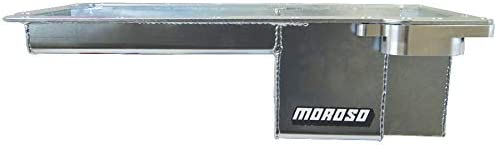

GM LS SERIES, REAR SUMP SWAPWet Sump, 5 Quart Capacity, 6” Deep, 8.295” Wide, 8.375” LongEngine Application: GM LS Series Fits: LS Engine Conversions that require a narrower Rear Sump (Check Measurements) for “Block Hugger” headers ; Oil pan has a thick precision laser cut steel rail with a durable fabricated steel sump plated with a clear zinc finish; Fabricated, durable steel construction is more adaptable to add fittings, change finishes and weighs less than cast aluminum construction ; Clears 4.25” stroke with most steel rods ; Front of the oil pan is 1.813 ” deep to the beginning of the 6” Deep, 8.295” Wide, and 8.375” Long sump ; Anti-climb baffle; Features a detachable, remote oil filter adapter constructed out of billet aluminum with two straight
- Wet Rear Sump
- Magnetic drain plug
- Use stock dipstick
- Fabricated Steel
- Anti-Climb Baffle
- 5qt
- 6 Deep
- 8.25W, 8-3/8L
- GM LS Series/Conversions with Rear Sumps for Block Hugger headers
- Clears 4.25” stroke w/ steel rods
- 1-7/8-6 Deep
Additional Information:
