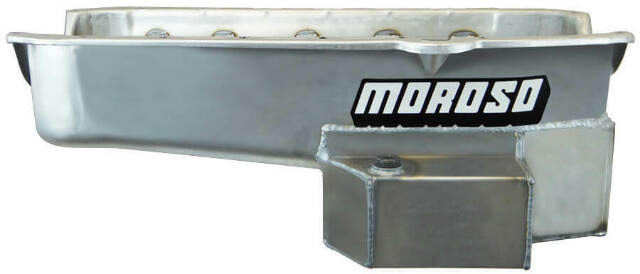

One of the biggest weapons in oil-control technology is the trap-door baffle within an oil pan. Unlike static baffles, trap-door baffles open and close to allow almost unrestricted one-way fluid flow, while effectively limiting flow in the opposite direction. The baffle assemblies are arranged in a way that allows oil to move from non-pickup areas to the sump pickup area, through the use of baffle doors that have wire hinges that open approximately 1/3 of the way (so the door can close quickly without allowing too much oil to pass through).
- Wet Rear Sump
- Windage Tray
- Steel
- 7qt. Capacity
- 7.5 Deep, 12W, 10.5L
- Anti-slosh 3 Trap Door Baffle
- GM chassis (NOT '62-'67 Chevy II/V8 Vega/Monza)
- Clears 4.125 stroke (steel rods)
- 4-bolt Dart/GM/Merlin main caps
- Crank scraper
