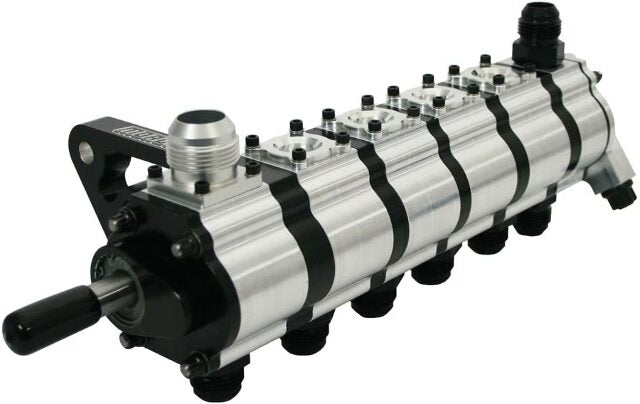

Dry Sump Oiling Systems are the safest, most dependable oiling systems available. They're popular in all forms of racing, especially where low chassis height is important for good handling. Horsepower gain is maximized because there is virtually no oil in the pan and no internal pump, allowing the windage tray or screen to run the full length of the pan. Other advantages of a dry sump system include a remotely mounted oil tank for increased capacity, the ability to easily add remote oil coolers, more consistent oil pressure, adjustable oil pressure, improved scavenging, and increased ring seal due to greater pan vacuum. These dry sump pumps have been developed with decades of oiling system expertise to give a lighter, better performing oil pump that will save weight and make more crankcase vacuum!
- Tri-Lobe
- External Dry Sump Pump
- Six Stage
- Driver/Left Side
- 1.200 Pressure/1.700 Scavenge
- Individual timing gears
- Variable spring rates
- Pressure: -12AN Inlet/Outlet, Scavenge: Inlets -12AN/Return -16AN
- Custom pressure section sizes.
