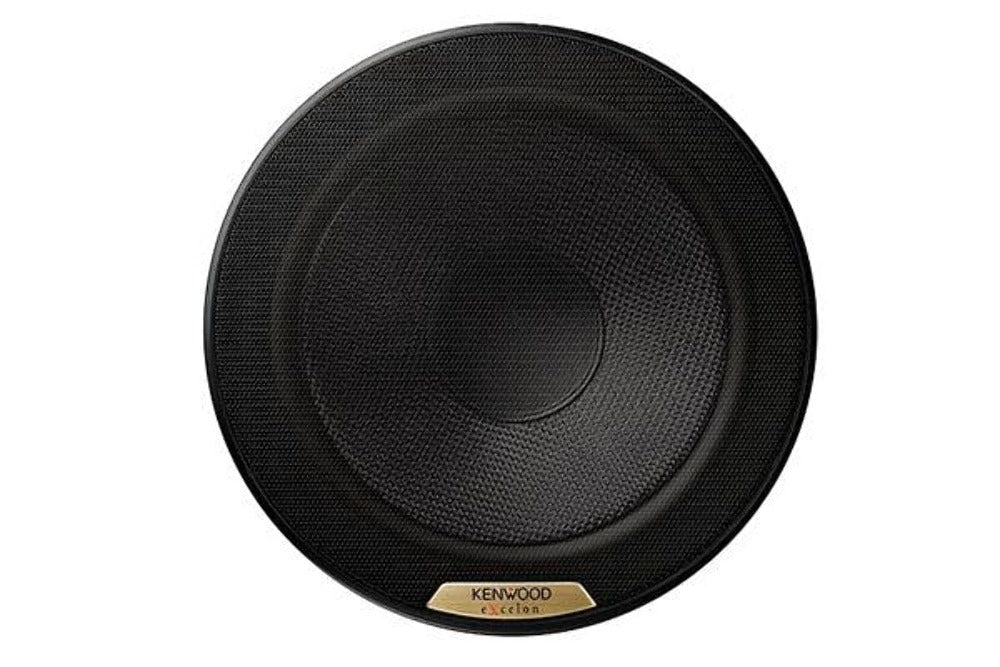

Kenwood Excelon Shallow-mount 10" 4-ohm subwoofer
XR-W10F
Product highlights:
- 10" 4-ohm shallow-mount subwoofer
- carbon-glass fiber composite cone with butyl rubber surround
- spring post terminals handle up to 8-gauge wire
- cast aluminum basket
- power range: 50-350 watts RMS
- peak power: 1,200 watts
- frequency response: 41-200 Hz
- sensitivity: 83.5 dB
- mounting depth: 3-1/8"
- grille not included
- warranty: 2 years
- MFR # XR-W10F
What's in the box:
- One 10" SVC Woofer
- Eight 1-1/8" Self-tapping screws
- Cardboard template
- Instruction manual (English/ French/ Spanish/ Portuguese)
- Warranty information
Features and amp; specs
| Size | 10 -inch | |
| Impedance | 4 ohms | |
| Cone Material | Carbon-glass fiber | |
| Surround Material | Rubber | |
| Ideal Sealed Box Volume (cubic feet) | 0.6 | |
| Ideal Ported Box Volume (cubic feet) | N/A | |
| Port diameter (inches) | N/A | |
| Port length (inches) | N/A | |
| Free-Air | No | |
| Dual Voice Coil | No | |
| Sensitivity | 83.5 dB at 1 watt | |
| Frequency Response | 41 - 200 Hz | |
| Max RMS Power Handling | 350 | |
| Peak Power Handling (Watts) | 1200 | |
| Top Mount Depth (inches) | 3 3/16 | |
| Bottom Mount Depth (inches) | N/A | |
| Cutout Diameter or Length (inches) | 9 3/16 | |
| Vas (liters) | 32.9 | |
| Fs (Hz) | 36 | |
| Qts | 0.783 | |
| Xmax (millimeters) | 7.5 | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
