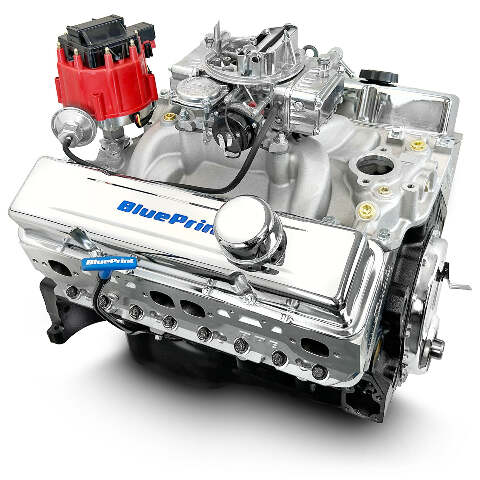

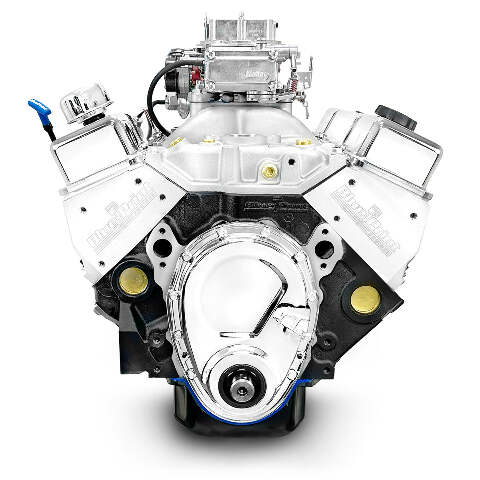

BluePrint Engines 350 ci Small Block GM style engine - dressed long block w/ carb
SKU: BPEBP350CTC

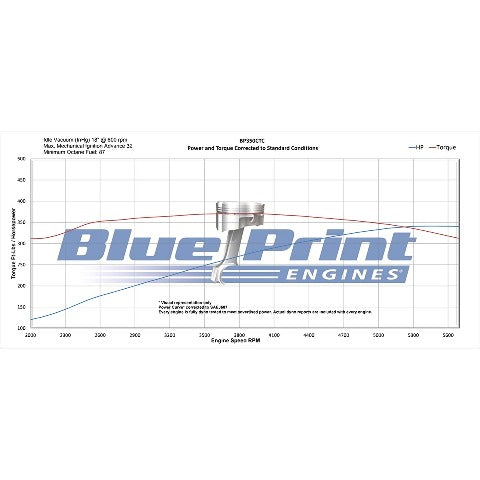

Horsepower & Torque: 341 Horsepower / 371 ft. lbs. Torque
Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads
Compression Ratio: 9.2:1
Camshaft: Hydraulic Roller Cam - .477 Intake / .471 Exhaust Lift and 202 Intake / 212 Exhaust Duration @.050-115° LSA
Pistons: Hypereutectic
Crankshaft: Cast Crank - 3.480" Stroke and 5.700" Rods
Description:
- Horsepower & Torque: 341 Horsepower / 371 ft. lbs. Torque
- Compression Ratio: 9.2:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Cast Crankshaft
- BluePrint Engines Hypereutectic Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- Drilled and Tapped for Clutch Linkage
- Mech Fuel Pump Provision: Yes
- Passenger Side Dipstick
- 1-Piece Rear Main Seal
- 4-Bolt Main
- 4.000" Bore
Rotating Assembly:
- Cast Crankshaft
- 3.480" Stroke
- Forged 5.700" Connecting Rods
- Hypereutectic Pistons
- Internally Balanced Front - Externally Balanced Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - H8002K
- 64cc Chamber
- 2.02" Intake / 1.60" Exhaust Valves
- 195cc Intake / 75cc Exhaust Runners
Cam Specs:
- Cam Type: Roller
- .477 Intake / .471 Exhaust Lift
- 202 Intake / 212 Exhaust Duration
- @ .050-115 Degree Lobe Separation
Ignition Timing:
- 32 Degrees Total at 3500 RPM
Also Includes:
- Holley Street Warrior 600cfm Vacuum Secondary Carburetor w/ Electric Choke - BPP080457SA
- Aluminum Intake - BPP350VINT
- HEI Distributor - BPP350RBK
- Valve Covers - BPP9518
- Rear Sump Oil Pan
- Timing Cover
- Dipstick
Notes:
- This engine is an excellent cruiser and a daily driver engine. This engine makes up to 18 inches of vacuum, and is designed to work excellently with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel
- The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
