ICON Vehicle Dynamics 93500 Install Kit

93500

2015-2023 FORD F-150 & 2017-2022 FORD SUPERDUTY ICON INTELLIGENT CONTROL INSTALL KIT


The IIC App brings all of this technology together by offering a user-friendly interface to monitor, record, and adjust the systems performance via Bluetooth connection. Users can easily alter the shocks baseline settings for firmness, as well as adjust the sensitivity of vertical “G-Boost†and lateral “Corner Boost†with a few simple taps from their favorite iOS device. The App includes several preconfigured ‘Drive Modes (Normal, Desert, and Haul) but also offers the ability for users to create an unlimited number of unique presets using their own custom settings. To top it all off, you can record data from your trip including time, speed, distance and G-Forces for your very own ICONIC Overview.
  • Offers selectable active shock damping adjustment as well as manual adjustment of baseline settings without exiting vehicle
  • Onboard sensors monitor G-forces and movement of vehicle chassis
  • Performs calculations based on sensor inputs, custom algorithms, and user defined settings at a rate of over 1000 times per second
  • Sends necessary damping adjustments to CDEV shocks that react in under 40 milliseconds
  • User interface provided by IIC Mobile App via Bluetooth connection to iOS device
  • Mobile app offers preconfigured “Drive Modes†as well as the ability to create custom presets
  • Also functions as a data logger for time, speed, distance, and G-force allowing you to record data from your trips

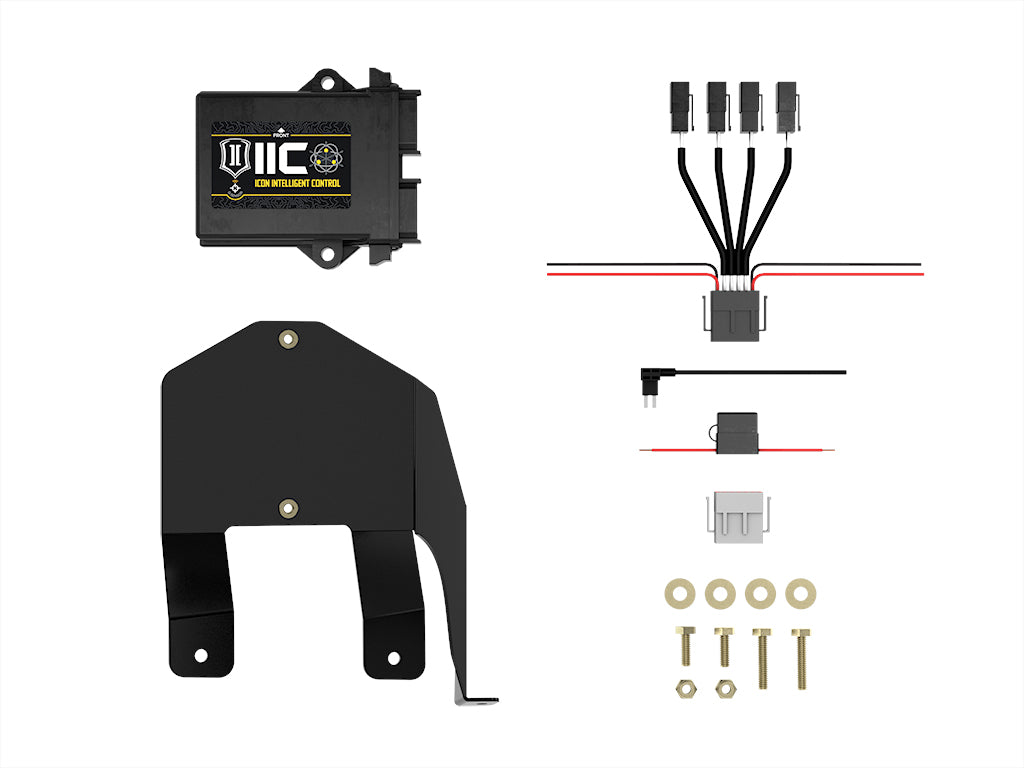

  • Application specific mounting brackets, hardware and wire harnesses

Information:

TECH NOTE: IIC currently operates 4 CDEV equipped shocks, 2 fronts (coilover or OE location) and 2 rears. Connectivity for optional CDEV secondary front shocks in OE location in addition to CDEV coilovers coming soon!

Application Summary:

Year Make/Model
2021-2023 Ford F-150
2017-2022 Ford F-250 Super Duty
2017-2022 Ford F-350 Super Duty
Year
Make
Model
Submodel
2021
Ford
F-150
King Ranch
2021
Ford
F-150
Lariat
2021
Ford
F-150
Platinum
2021
Ford
F-150
Police Responder
2021
Ford
F-150
SSV
2021
Ford
F-150
Tremor
2021
Ford
F-150
XL
2021
Ford
F-150
XLT
2017 - 2022
Ford
F-250 Super Duty
2017 - 2022
Ford
F-350 Super Duty
