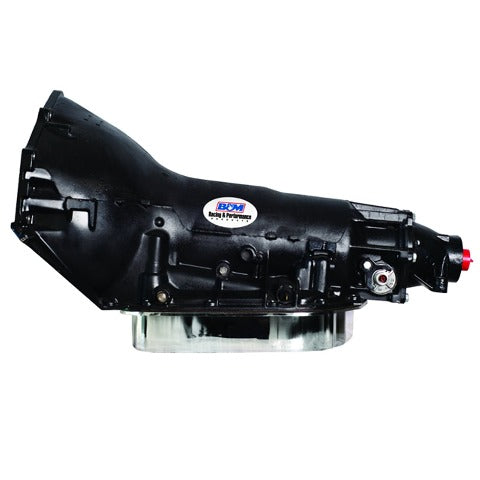

B&M 112002 S/S TRANS TH 400 (CHEV)

Street/Strip Transmission; Max 600HP/550 ft./lbs. Torque; w/Large Diameter Bushing;

---

GM TH-400 Street Strip automatic transmission (Chevrolet) with large diameter bushing for use with large diameter yoke (1-78 in. Spicer yoke part number 2-3-10431X) 600 HP maximum. Legendary B&M transmission for street use B&M's Street Strip transmission is a complete ready to run unit (less converter) for high performance street and mild strip use. The transmission provides firm shifts and features a standard shift pattern, these are the finest available for street and strip use. Includes a 2.48:1 first gear ratio, 1.48:1 second gear, rebuilt front pump utilizes B&M pressure regulator spring and shims, all new B&M high performance friction plates, new intermediate roller clutch, new kickdown band with welded anchors, machined center support with new case saver ring, all new thrust bearings and races, new adjustable modulator and silencer ring, new external electric connector and kickdown solenoid and a recalibrated valve body. Max 600 HP / 550 Ft/Lbs.

• Rebuilt Front Pump
• Rebuilt Governor
• Comes With Shift Lever
• For Late Model Mustang Applications
• Hi-Performance Friction Plates
• New Overdrive Band
• New Filter
• Recalibrated Valve Body

---

Application Summary:

Year	Make/Model
1975-1977	Buick Century
1975-1981	Buick Electra
1975-1981	Buick Estate Wagon
1975-1981	Buick LeSabre
1975-1977	Buick Regal
1975-1978	Buick Riviera
1978	Buick Skyhawk
1965-1967	Buick Skylark
1969	Buick Skylark
1987-1990	Cadillac Brougham
1975-1976	Cadillac Calais
1975-1983	Cadillac Commercial Chassis
1975-1981	Cadillac DeVille
1975-1984	Cadillac Fleetwood
1976-1978	Cadillac Seville
1975-1982	Checker Marathon
1975	Chevrolet Bel Air
1969-1974	Chevrolet Blazer
1975-1986	Chevrolet C10
1966	Chevrolet C10 Pickup
1969-1974	Chevrolet C10 Pickup
1967-1984	Chevrolet C10 Suburban
1988-1990	Chevrolet C1500
1975-1986	Chevrolet C20
1966	Chevrolet C20 Pickup
1970-1974	Chevrolet C20 Pickup
1967-1986	Chevrolet C20 Suburban
1988-1990	Chevrolet C2500
1975-1986	Chevrolet C30
1966	Chevrolet C30 Pickup
1970-1974	Chevrolet C30 Pickup
1988-1990	Chevrolet C3500
1973-1975	Chevrolet Camaro
1975	Chevrolet Caprice
1965-1968	Chevrolet Chevelle
1970-1972	Chevrolet Chevelle
1966-1967	Chevrolet Chevy II
1975-1977	Chevrolet Corvette
1965-1975	Chevrolet El Camino
1977-1990	Chevrolet G10
1973-1974	Chevrolet G10 Van
1975-1990	Chevrolet G20
1970-1974	Chevrolet G20 Van
1975-1990	Chevrolet G30
1973-1974	Chevrolet G30 Van
1975	Chevrolet Impala
1977-1984	Chevrolet K5 Blazer
1975	Chevrolet Laguna
1973-1975	Chevrolet Malibu
1975	Chevrolet Monte Carlo
1969-1975	Chevrolet Nova
1976-1980	Chevrolet P10
1975-1989	Chevrolet P20
1975-1990	Chevrolet P30
1987	Chevrolet R10
1990	Chevrolet R1500 Suburban
1987-1988	Chevrolet R20
1987-1988	Chevrolet R20 Suburban
1989	Chevrolet R2500
1989-1990	Chevrolet R2500 Suburban
1987-1988	Chevrolet R30
1989-1990	Chevrolet R3500
1966	Chevrolet Suburban
1975-1978	GMC C15
1975-1978	GMC C15 Suburban
1968-1974	GMC C15/C1500 Pickup
1968-1974	GMC C15/C1500 Suburban
1979-1986	GMC C1500
1988-1990	GMC C1500
1979-1984	GMC C1500 Suburban
1975-1978	GMC C25
1975-1978	GMC C25 Suburban
1967-1974	GMC C25/C2500 Pickup

---
