Holley 97-171 REPLACEMENT HARDWARE KIT FOR 20-132

Replacement Accessory Drive Hardware; Replacement Hardware For Kit PN[20-132/20-137/20-138]; Incl. Bolts; Spacers; Nuts;

---

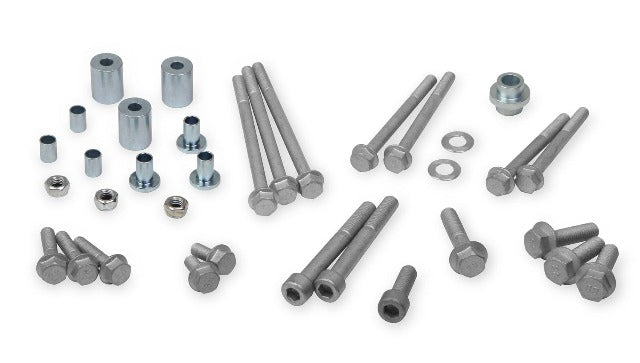

Kit contains the following replacement parts: Qty 1 - Spacer to Passenger's Side Head Bolt - M10 x 1.5 x 30 Qty 2 - Alternator Bolts - M10 x 1.5 x 80 Qty 2 - Power Steer Pump Bolts - M8 x 1.25 x 20 Qty 2 - Power Steer Pump Bolts - M8 x 1.25 x 80 Qty 3 - Passenger's Side Bracket to Spacer Bolts - M8 x 1.25 x 35 Qty 2 - Tensioner Assy to Pass Side Bracket Bolt - M10 x 1.5 x 35 Qty 1 - Idler Pulley to Pass Side Bracket Bolt - M10 x 1.5 x 35 Qty 1 - Idler Pulley to Driver's Side Bracket Bolt - M10 x 1.5 x 45 For SD5 Type AC Compressor - Qty 3 - A/C Compressor Bolts - M8 x 1.25 x 125 Qty 3 - A/C Comp Front Mounting Ear Sleeve - M10 to M8 Qty 3 - Brkt to Rear A/C Comp Ear Spacer - M8 Steel Qty 3 - Rear A/C Compressor Ear Bushing - M8 Flange Bushing Qty 3 - Rear A/C Compressor Locking Nuts - M8 x 1.25 For SD7 Type AC Compressor - Qty 2 - A/C Compressor Bolts - M8 x 1.25 x 95 Qty 2 - Brkt to Front A/C Comp Ears Spacer - M8 Thin

• Replacement Hardware For Kit PN[20-131]
• Incl. Bolts Spacers And Nuts For Dive Assembly

---

Application Summary:

Year

Make/Model

Kit

contains the following replacement parts: Qty 1-Spacer to Passenger s Side Head Bolt-M10 x 1.5 x 30 Qty 2-Alternator Bolts-M10 x 1.5 x 80 Qty 2-Power Steer Pump Bolts-M8 x 1.25 x 20 Qty 2-Power Steer Pump Bolts-M8 x 1.25 x 80 Qty 3-Passenger s Side Bracket to Spacer Bolts-M8 x 1.25 x 35 Qty 2-Tensioner Assy to Pass Side Bracket Bolt-M10 x 1.5 x 35 Qty 1-Idler Pulley to Pass Side Bracket Bolt-M10 x 1.5 x 35 Qty 1-Idler Pulley to Driver s Side Bracket Bolt-M10 x 1.5 x 45 For SD5 Type AC Compressor-Qty 3-A/C Compressor Bolts-M8 x 1.25 x 125 Qty 3-A/C Comp Front Mounting Ear Sleeve-M10 to M8 Qty 3-Brkt to Rear A/C Comp Ear Spacer-M8 Steel Qty 3-Rear A/C Compressor Ear Bushing-M8 Flange Bushing Qty 3-Rear A/C Compressor Locking Nuts-M8 x 1.25 For SD7 Type AC Compressor-Qty 2-A/C Compressor Bolts-M8 x 1.25 x 95 Qty 2-Brkt to Front A/C Comp Ears Spacer-M8 Thin

---
