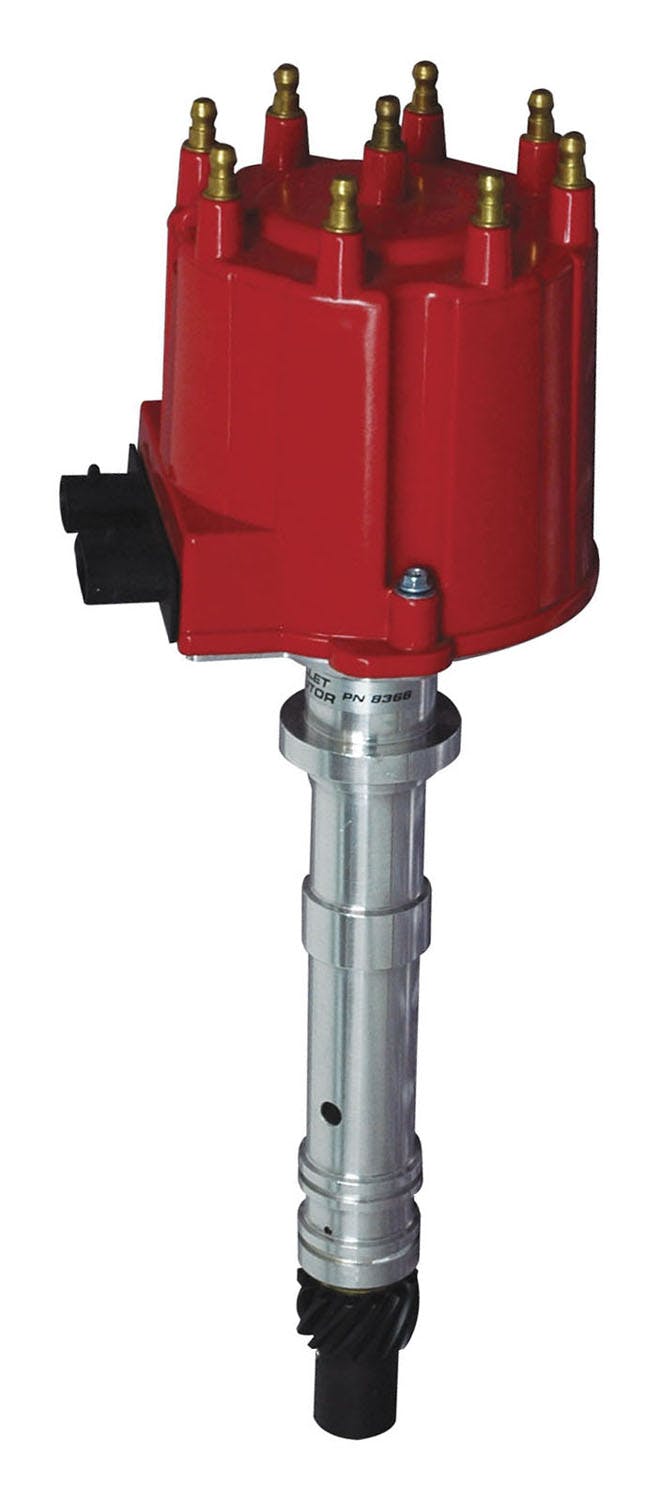

MSD Performance 8366 Distributor,V8,LateMod GM HEI, Ext Coil

Pro-Billet Distributor; Late Models; EFI; Iron Gear; Red;

---

GM late-model performance enthusiasts will be happy to see this Pro-Billet distributor. The distributor, PN 8366, is a drop-in. Replacement for GM V8s using the small cap distributor with a dual connector coil found in cars from 1987-1993 and trucks from 1987 to 1995. The entire housing is CNC-machined to exact tolerances for incredible strength (Not to mention cool looks). For improved lubrication there is an extra oil tract machined into the bottom of the housing that delivers oil directly to the cam and distributor gears. Inside, a polished steel shaft receives guidance from a sealed ball bearing and an extra-long sintered bushing adds stability. This 0.500 In. shaft also receives a QPQ coating for increased friction reduction and corrosion resistance. A factory-style ignition module is supplied with the distributor so your factory wiring will plug directly in triggering this module is the responsibility of a high output magnetic pick-up.

• Drop-in billet replacement for GM dist. w/small cap/external coil
• O-ring seals can be installed for oil press. control (Mods only)
• Supplied w/Late Model Distributor Cap And Rotor
• Legal to install in all 50 states
• Factory style ignition module accepts factory wiring
• CNC machined billet aluminum housing and billet aluminum base
• Maintenance-free magnetic pickup and precision reluctor
• Oversized steel shaft is QPQ coated
• Guided by sealed ball bearing and an extra long sintered bushing
• Special oil tract improves lubrication to the dist./cam gear

---

Application Summary:

Year	Make/Model
1977-1980	Buick Century
1978	Buick LeSabre
1977-1980	Buick Regal
1977-1979	Buick Skylark
1975	Chevrolet Bel Air
1987	Chevrolet Blazer
1975-1986	Chevrolet C10
1975-1986	Chevrolet C10 Suburban
1975-1986	Chevrolet C20
1975-1986	Chevrolet C20 Suburban
1975-1986	Chevrolet C30
1975-1987	Chevrolet Camaro
1975-1987	Chevrolet Caprice
1975-1982	Chevrolet Corvette
1984-1987	Chevrolet Corvette
1975-1987	Chevrolet El Camino
1975-1987	Chevrolet G10
1975-1987	Chevrolet G20
1975-1987	Chevrolet G30
1975-1985	Chevrolet Impala
1975-1986	Chevrolet K10
1975-1986	Chevrolet K10 Suburban
1975-1986	Chevrolet K20
1975-1986	Chevrolet K20 Suburban
1977-1986	Chevrolet K30
1975-1986	Chevrolet K5 Blazer
1975-1976	Chevrolet Laguna
1975-1983	Chevrolet Malibu
1975-1987	Chevrolet Monte Carlo
1975-1979	Chevrolet Monza
1975-1979	Chevrolet Nova
1987	Chevrolet R10
1987	Chevrolet R10 Suburban
1987-1988	Chevrolet R20
1987	Chevrolet R20 Suburban
1987	Chevrolet R30
1987	Chevrolet V10
1987	Chevrolet V10 Suburban
1987	Chevrolet V20
1987	Chevrolet V20 Suburban
1987	Chevrolet V30
1975-1978	GMC C15
1975-1978	GMC C15 Suburban
1979-1986	GMC C1500
1979-1986	GMC C1500 Suburban
1975-1978	GMC C25
1975-1978	GMC C25 Suburban
1979-1986	GMC C2500
1979-1986	GMC C2500 Suburban
1975-1978	GMC C35
1979-1986	GMC C3500
1978-1987	GMC Caballero
1975-1978	GMC G15
1979-1987	GMC G1500
1975-1978	GMC G25
1979-1987	GMC G2500
1975-1978	GMC G35
1979-1988	GMC G3500
1975-1987	GMC Jimmy
1975-1978	GMC K15
1975-1978	GMC K15 Suburban
1979-1986	GMC K1500
1979-1986	GMC K1500 Suburban
1975-1978	GMC K25
1975-1978	GMC K25 Suburban
1979-1986	GMC K2500
1979-1986	GMC K2500 Suburban
1977-1978	GMC K35
1979-1986	GMC K3500
1987	GMC R1500
1987	GMC R1500 Suburban
1987	GMC R2500
1987	GMC R2500 Suburban
1987	GMC R3500
1975-1977	GMC Sprint
1987	GMC V1500
1987	GMC V1500 Suburban
1987	GMC V2500
1987	GMC V2500 Suburban
1987	GMC V3500
1977	Oldsmobile Custom Cruiser
