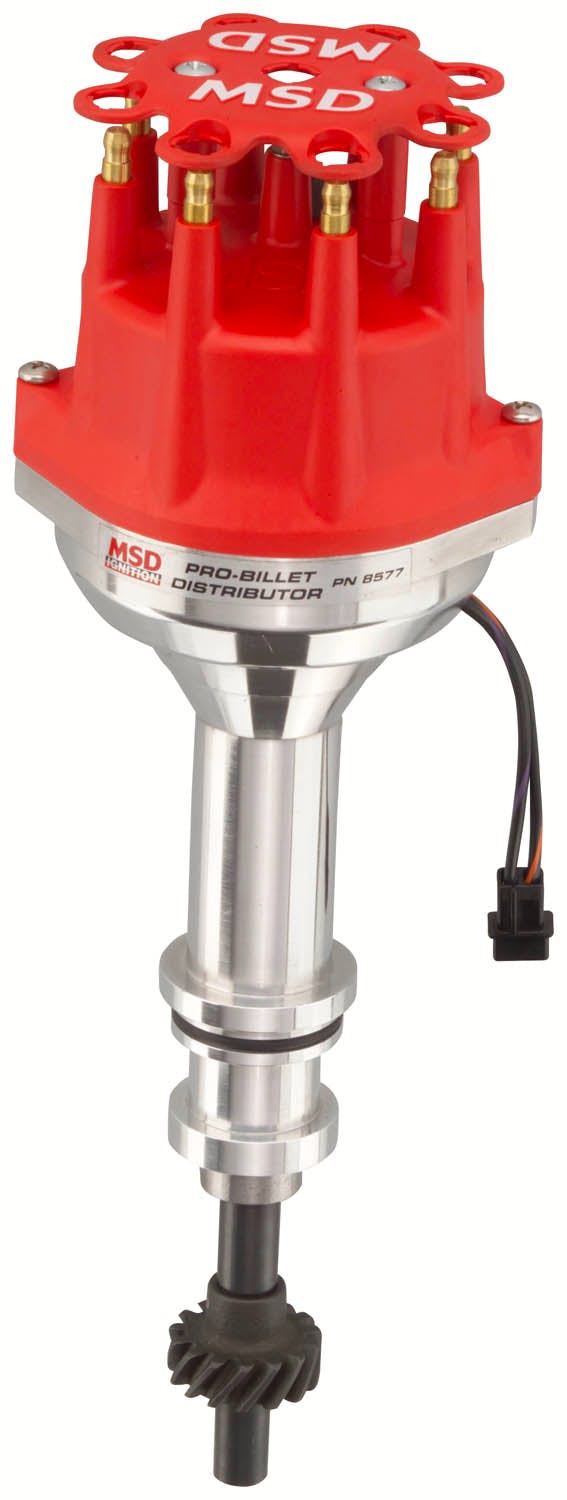

MSD Performance 8577 Dist.Ford 351C-460, ProBillet, Small Cap

MSD Pro-Billet Distributor Small Cap

SKU: MSD8577

Includes Cap/Race Rotor; Use w/MSD 6/7/8/10 Series Ignition; Small Diameter; Iron Gear; Red

MSD engineers fit all of their high-performance distributor experience into a special compact housing designed to be less obtrusive for Ford engines. The diameter of the special cap and housing is 5/8 inch, smaller than that of stock Ford distributors, providing extra room in front of the engine. The new MSD cap features spark plug-style terminals and is firmly screwed down to the housing. The distributor relies on MSD's race-proven magnetic pickup and precision reluctor to deliver accurate trigger signals to the MSD Ignition throughout high RPM. The reluctor assembly is turned by a hardened steel shaft, which rides in a sealed ball bearing for high RPM stability and endurance. Mounted to the top of this shaft is a fully adjustable mechanical advance assembly. The rate at which the chromoly assembly advances the timing is easily controlled by changing the supplied advance springs and stop bushing for total advance. Note: must be used with an MSD 6, 7, or 8-series ignition.

MSD Pro-Billet Distributor Cap Features:

• Billet housing 5/8 in. smaller dia. than stock Ford distributors
• Must Be Used with an MSD Ignition Control
• Supplied with a small-diameter cap with HEI-style terminals
• race and rotor
• Will accept PN[8441] Cap-A-Dapt
• Nylon pads ensure the smooth operation of the advanced weights
• Advance weight pins are staked and TIG-welded to the plate
• Mech. advance assem. can be locked out for crank trigger systems
• Advance plate and weights are fine blanked from chrome moly steel
• QPQ-coated polished steel shaft
• guided by sealed ball bearings
• Maintenance-free magnetic pickup and precision reluctor
• Creates stable trigger signals throughout the rpm range
• CNC-machined billet aluminum housing and billet aluminum base
