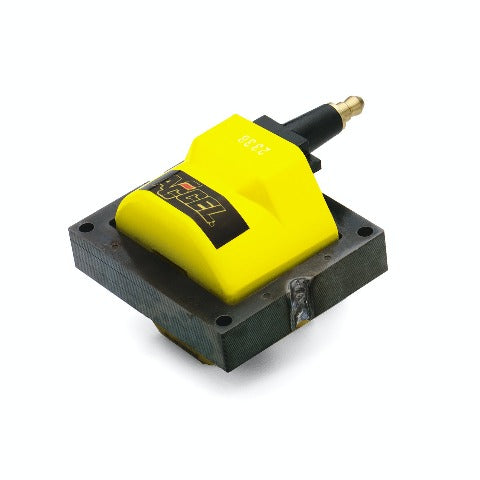

ACCEL 140011 GM 1984-95 REMOTE SUPERCOIL

SuperCoil Ignition Coil; Fits w/HEI; Remote Mount; Primary Resist 0.3 Ohms; Secondary 8.8k Ohms; Turn Ratio 134:1; Max Voltage 48000V; Yellow;

---

Engineered with optimized low resistance, high turns ratio windings around an M36 high silicone magnetic steel E-core for higher energy and voltage outputs. Results in quicker starts, improved idle quality, crisper throttle response and more high RPM power. Compatible with late model GM computer controlled remote mount HEI systems. Direct bolt-in, plug-in replacement. Can also work with CD ignition systems. Special high temperature epoxy resists shock and vibration, while increasing thermal conductivity. Brass coil wire contact increases energy transfer and resists corrosion better than aluminum. Comes complete with new mounting hardware. High dielectric strength ACCEL yellow over molded housing. Output is 48,000 volts with 0.2ohms resistance.

• 10-15% More Energy
• Direct Plug In Replacement Direct OE Fit
• Advanced Bobbin Technology
• Highly Specialized Silicone Magnetic Steel Cores
• Standard Motor Products SMP Dr-37
• MSD 8226

---

Application Summary:

Year	Make/Model
1984-1995	Buick Century
1991-1995	Buick Commercial Chassis
1984-1990	Buick Electra
1984-1995	Buick LeSabre
1991-1995	Buick Park Avenue
1988-1991	Buick Reatta
1984-1995	Buick Regal
1984-1993	Buick Riviera
1995	Buick Riviera
1991-1995	Buick Roadmaster
1984-1989	Buick Skyhawk
1984-1995	Buick Skylark
1986-1987	Buick Somerset
1985	Buick Somerset Regal
1990-1992	Cadillac Brougham
1985-1986	Cadillac Cimarron
1992-1995	Cadillac Commercial Chassis
1993-1995	Cadillac Fleetwood
1985-1995	Chevrolet Astro
1987-1995	Chevrolet Beretta
1987-1995	Chevrolet Blazer
1984-1986	Chevrolet C10
1984-1986	Chevrolet C10 Suburban
1988-1995	Chevrolet C1500
1992-1995	Chevrolet C1500 Suburban
1984-1986	Chevrolet C20
1984-1986	Chevrolet C20 Suburban
1988-1995	Chevrolet C2500
1992-1995	Chevrolet C2500 Suburban
1984-1986	Chevrolet C30
1988-1995	Chevrolet C3500
1984-1995	Chevrolet Camaro
1984-1995	Chevrolet Caprice
1984-1995	Chevrolet Cavalier
1984-1990	Chevrolet Celebrity
1984-1987	Chevrolet Chevette
1984-1985	Chevrolet Citation II
1991-1994	Chevrolet Commercial Chassis
1987-1995	Chevrolet Corsica
1984-1995	Chevrolet Corvette
1984-1987	Chevrolet El Camino
1984-1995	Chevrolet G10
1984-1995	Chevrolet G20
1984-1995	Chevrolet G30
1984-1985	Chevrolet Impala
1994-1995	Chevrolet Impala
1984-1986	Chevrolet K10
1984-1986	Chevrolet K10 Suburban
1988-1995	Chevrolet K1500
1992-1995	Chevrolet K1500 Suburban
1984-1986	Chevrolet K20
1984-1986	Chevrolet K20 Suburban
1988-1995	Chevrolet K2500
1992-1995	Chevrolet K2500 Suburban
1984-1986	Chevrolet K30
1988-1995	Chevrolet K3500
1984-1986	Chevrolet K5 Blazer
1987-1995	Chevrolet LLV
1990-1995	Chevrolet Lumina
1990-1995	Chevrolet Lumina APV
1992	Chevrolet Metro
1984-1988	Chevrolet Monte Carlo
1995	Chevrolet Monte Carlo
1985-1988	Chevrolet Nova
1984-1989	Chevrolet P20
1984-1995	Chevrolet P30
1987	Chevrolet R10
1987-1988	Chevrolet R10 Suburban
1989-1991	Chevrolet R1500 Suburban
