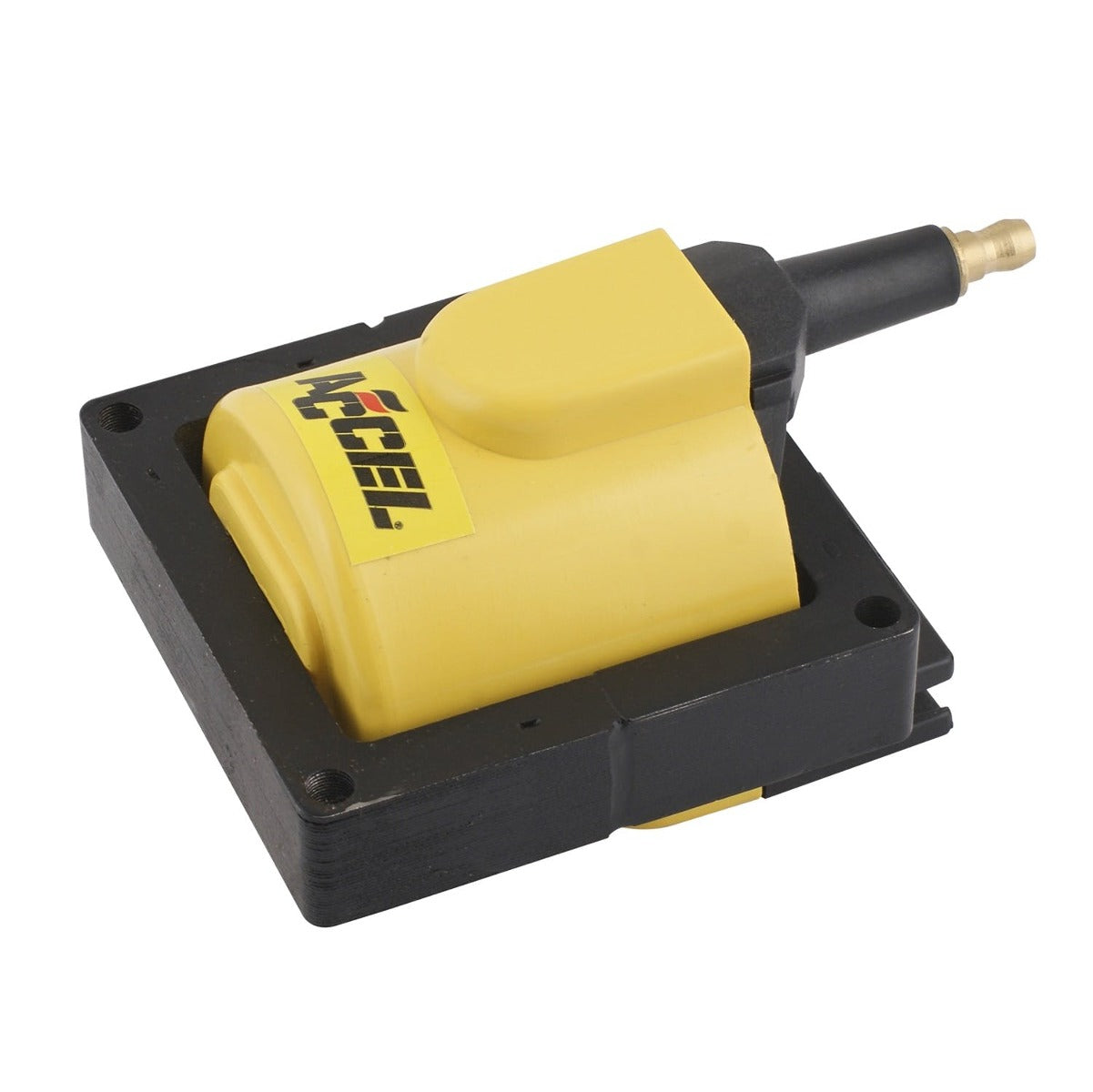

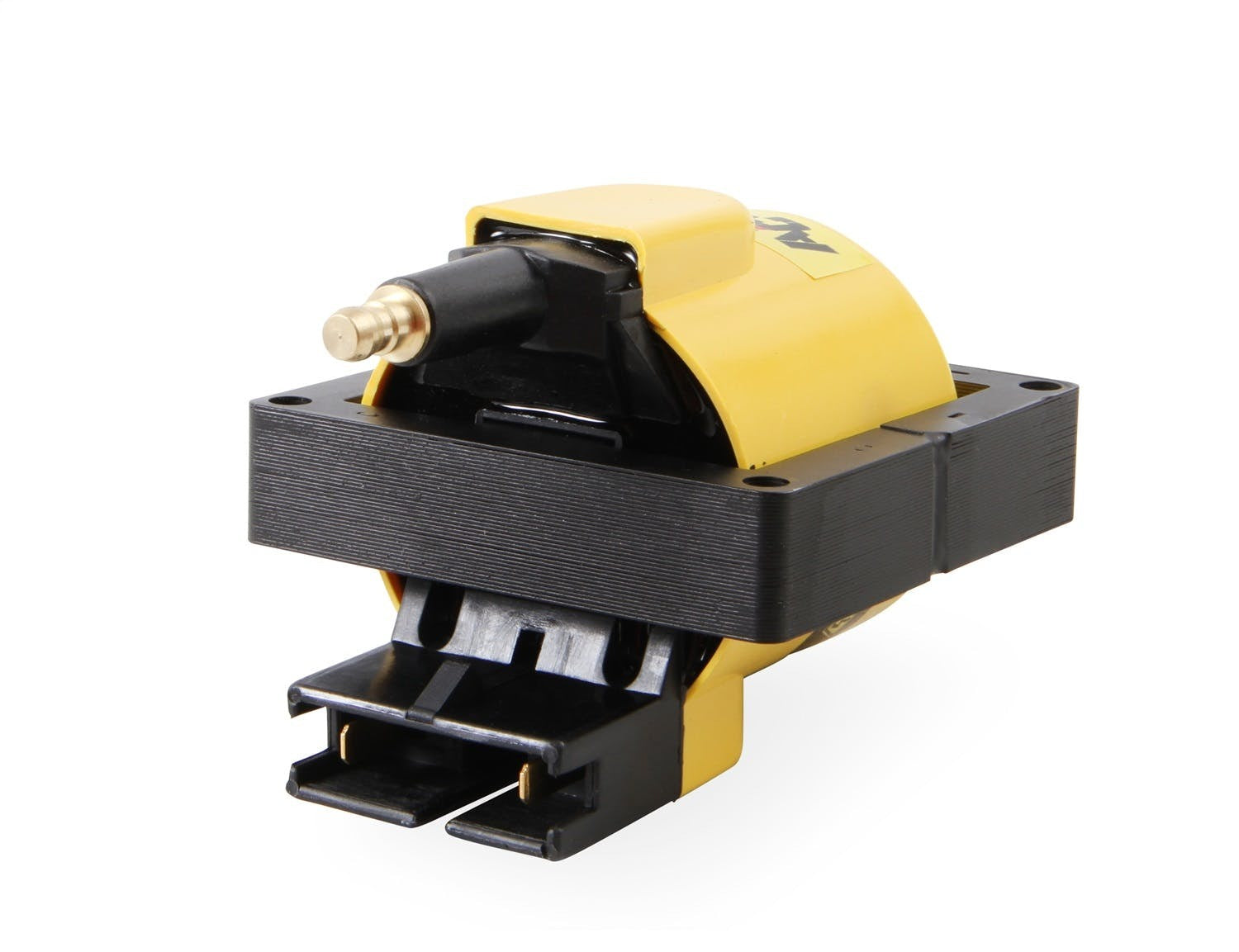

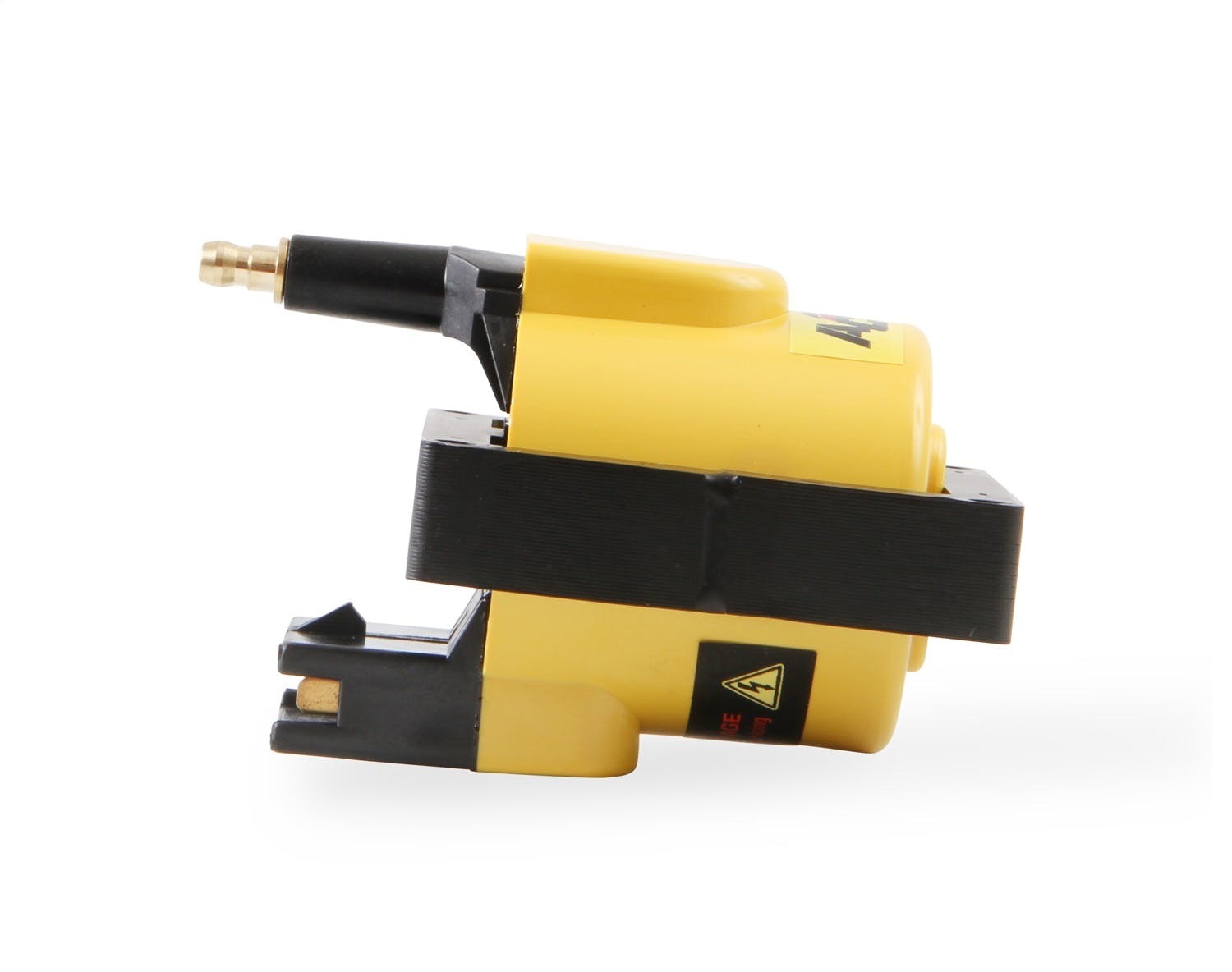

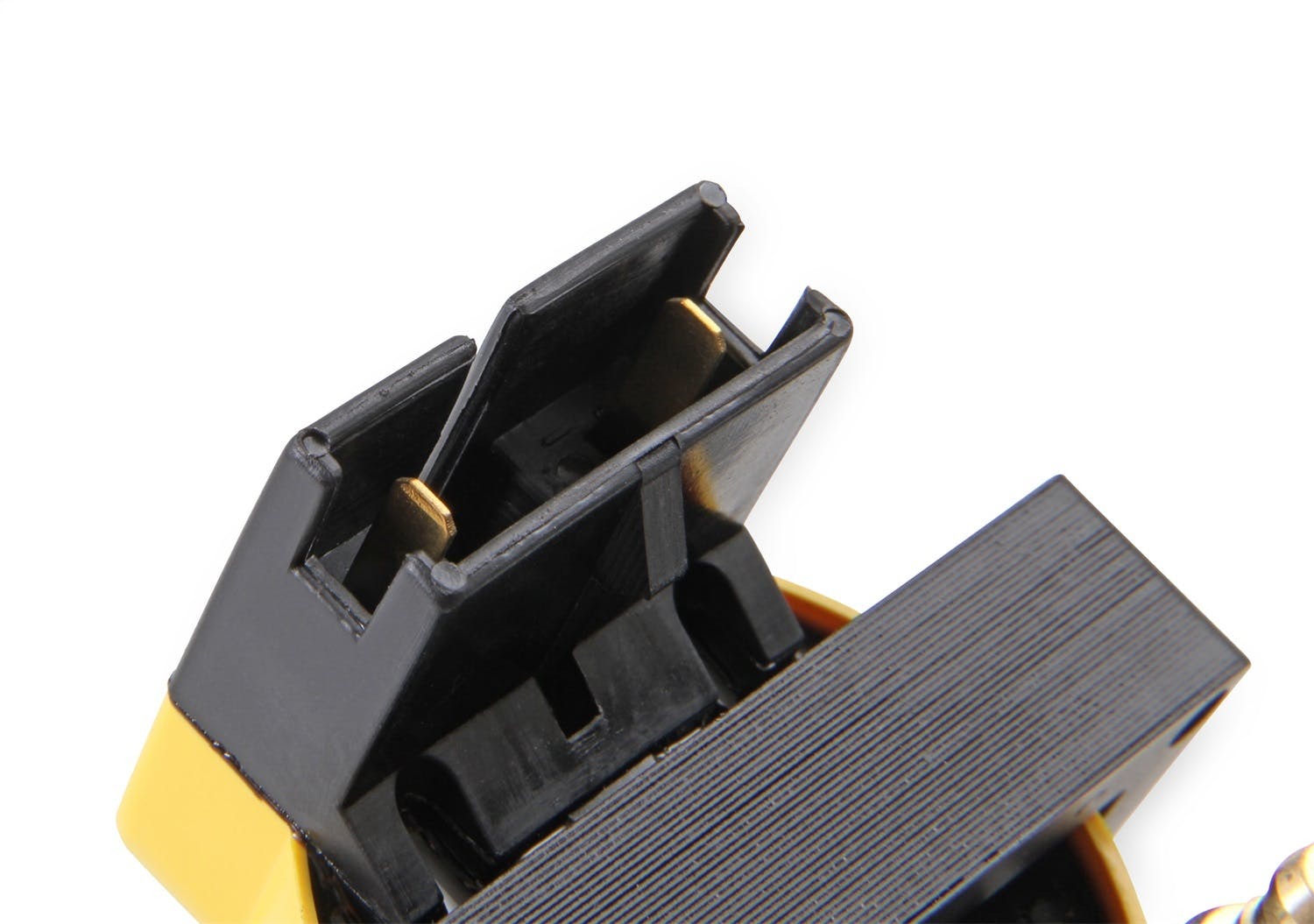

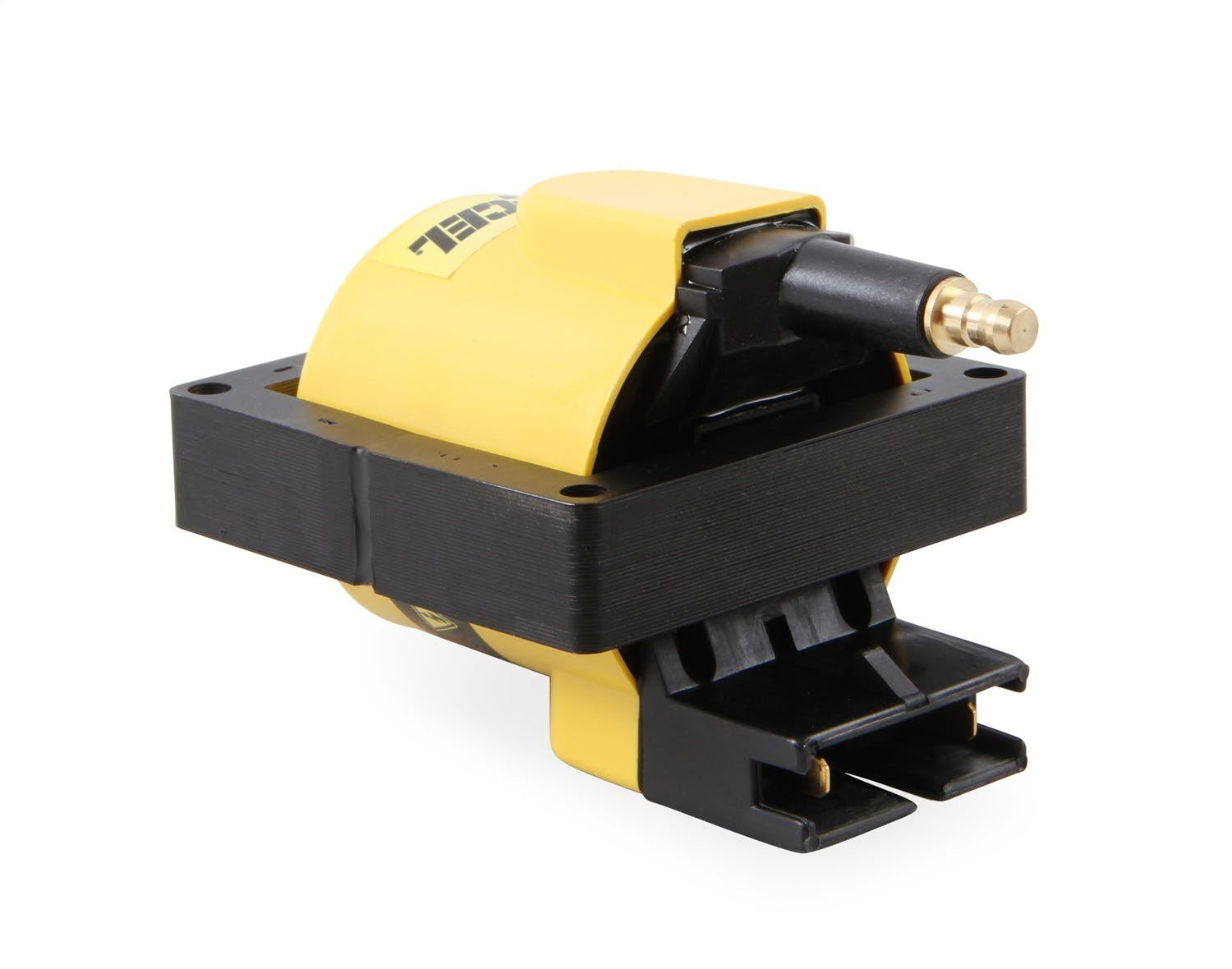

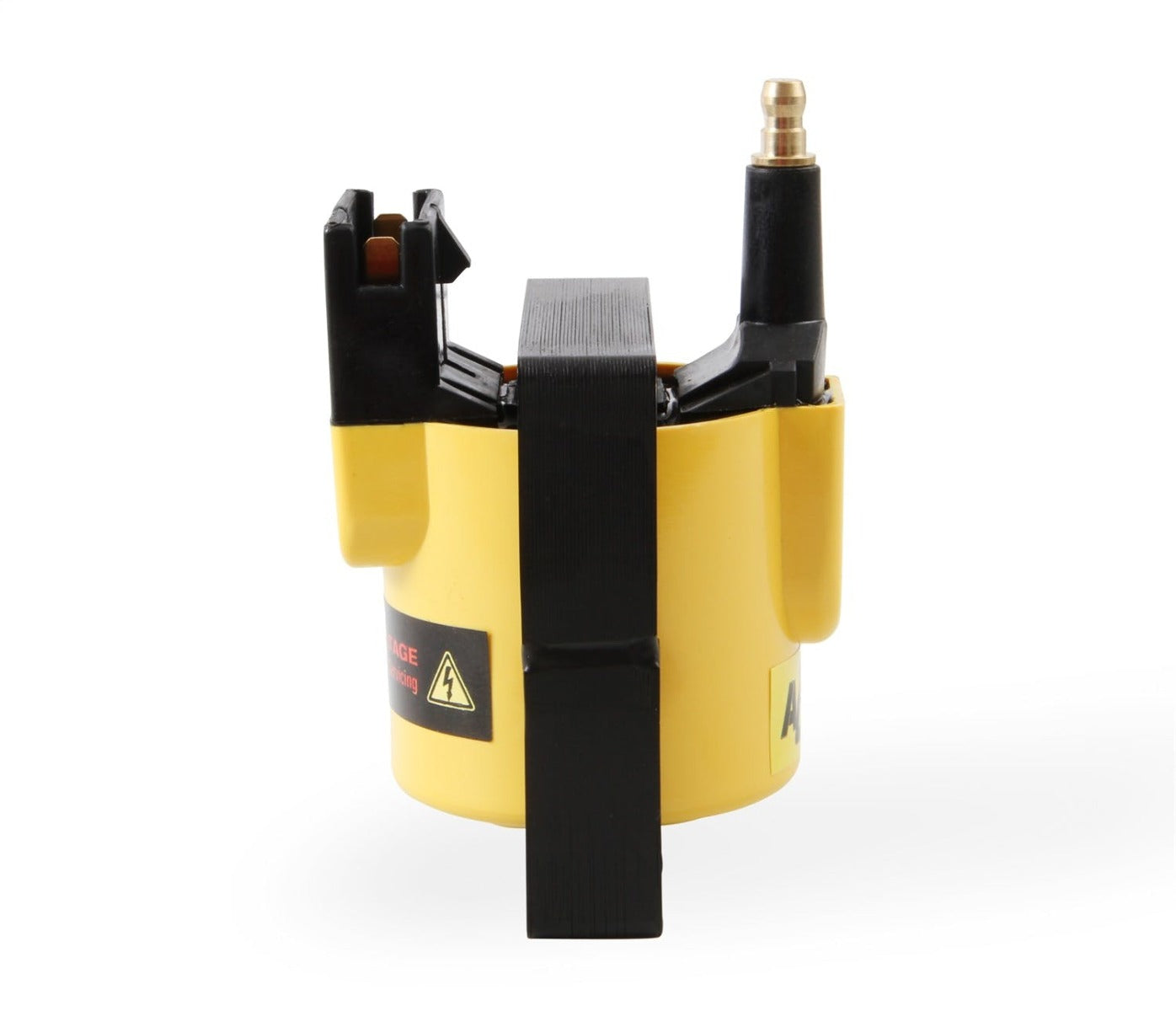

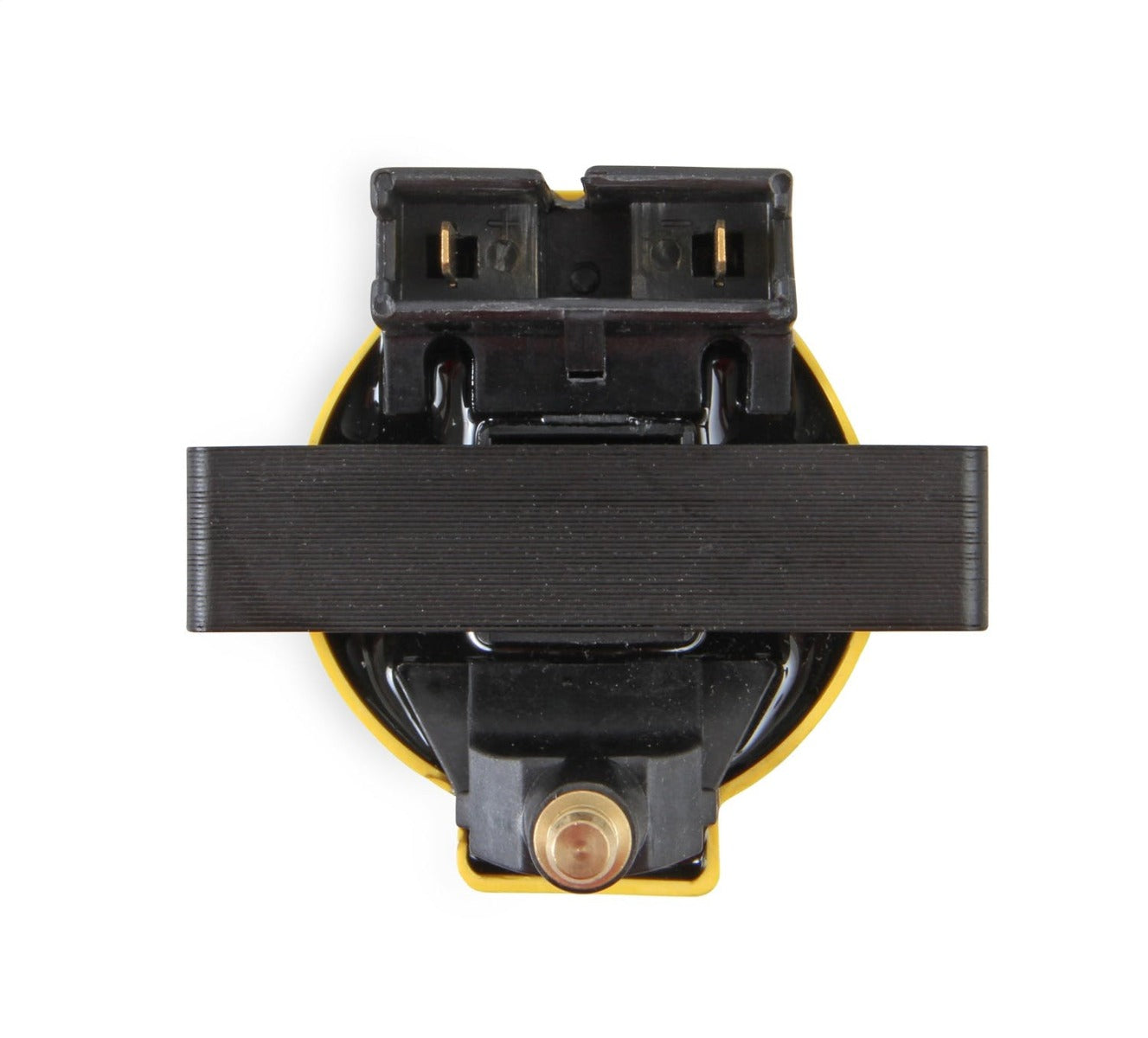

ACCEL 140012 FORD 1984-98 EEC-IV SUPERCOIL

SuperCoil Ignition Coil; EEC-IV; Primary Resist 0.2 Ohms Secondary 8.8 k Ohms; Turn Ratio 132:1; Max Voltage 48000V; Yellow;

---

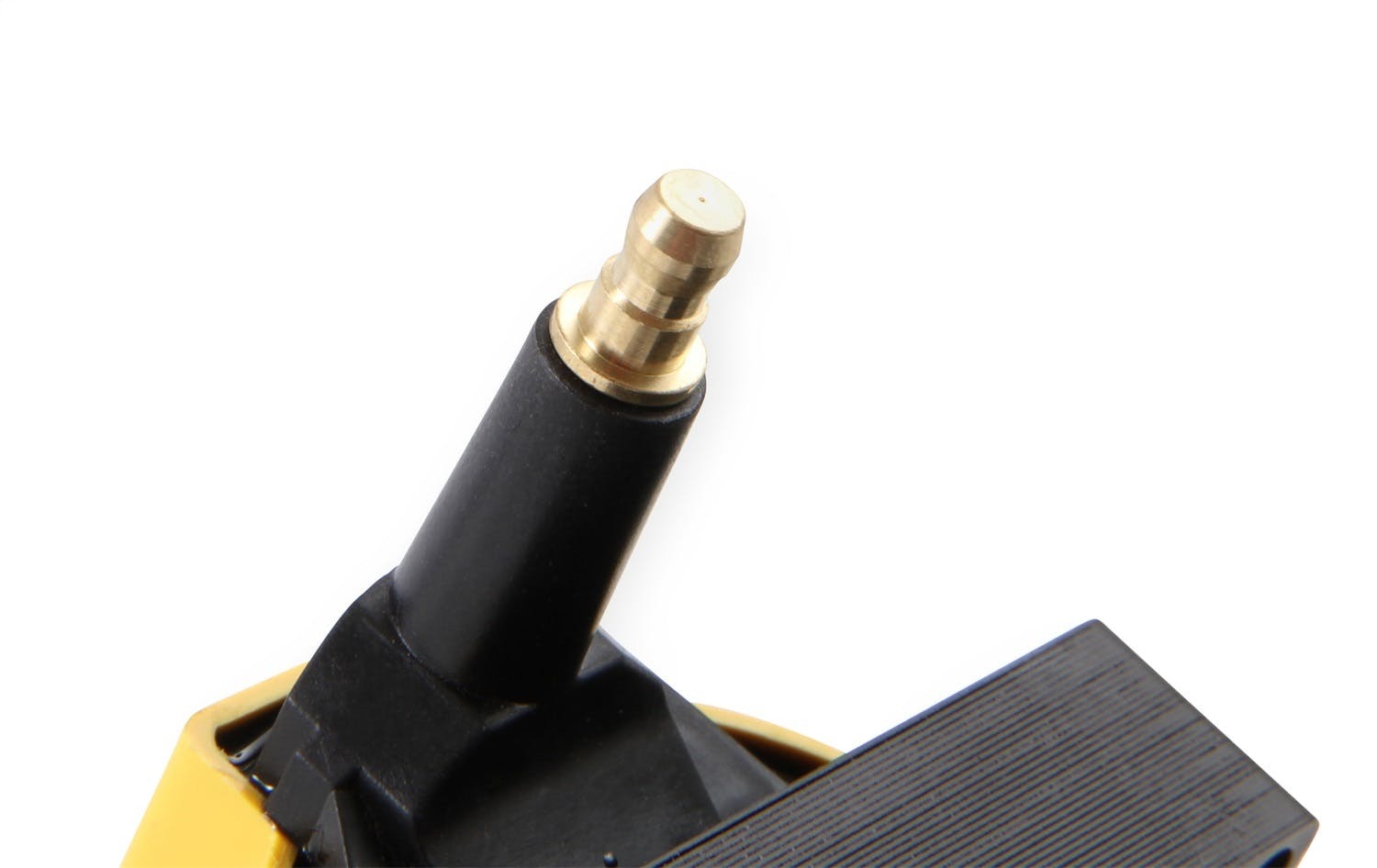

These coils feature advanced bobbin technology, highly specialized silicone magnetic steel cores, along with optimized winding, resistance and turns ratios to delivery 10-15 percent more energy than the OEM coils. Specialized high temperature epoxy resists shock and vibration, while increasing thermal conductivity. These are direct plug replacements for OEM coils. They feature bodies and, or secondary towers molded in ACCEL yellow and feature brass secondary contacts (except direct fire coil on plug applications).

• 10-15% More Energy
• Direct Plug In Replacement Direct OE Fit
• Advanced Bobbin Technology
• Highly Specialized Silicone Magnetic Steel Cores
• Standard Motor Products SMP Fd-478
• MSD 5527

---

Application Summary:

Year	Make/Model
1986-1997	Ford Aerostar
1984-1996	Ford Bronco
1987-1991	Ford Country Squire
1984-1996	Ford E-150 Econoline
1984-1996	Ford E-150 Econoline Club Wagon
1984-1996	Ford E-250 Econoline
1984-1991	Ford E-250 Econoline Club Wagon
1984-1996	Ford E-350 Econoline
1984-1996	Ford E-350 Econoline Club Wagon
1983-1990	Ford Escort
1983-1988	Ford EXP
1984-1997	Ford F-150
1984-1997	Ford F-250
1997	Ford F-250 HD
1984-1997	Ford F-350
1984-1986	Ford LTD
1987-1991	Ford LTD Crown Victoria
1983-1995	Ford Mustang
1990-1997	Ford Probe
1983-1997	Ford Ranger
1986-1995	Ford Taurus
1985-1994	Ford Tempo
1984-1995	Ford Thunderbird
1984-1994	Lincoln Continental
1984-1992	Lincoln Mark VII
1984-1990	Lincoln Town Car
1994	Mazda B3000
1994-1997	Mazda MX-6
1983-1986	Mercury Capri
1987-1991	Mercury Colony Park
1984-1995	Mercury Cougar
1984-1991	Mercury Grand Marquis
1983	Mercury LN7
1983-1987	Mercury Lynx
1984-1986	Mercury Marquis
1986-1995	Mercury Sable
1984-1994	Mercury Topaz
1988-1989	Merkur Scorpio
1985-1989	Merkur XR4Ti
