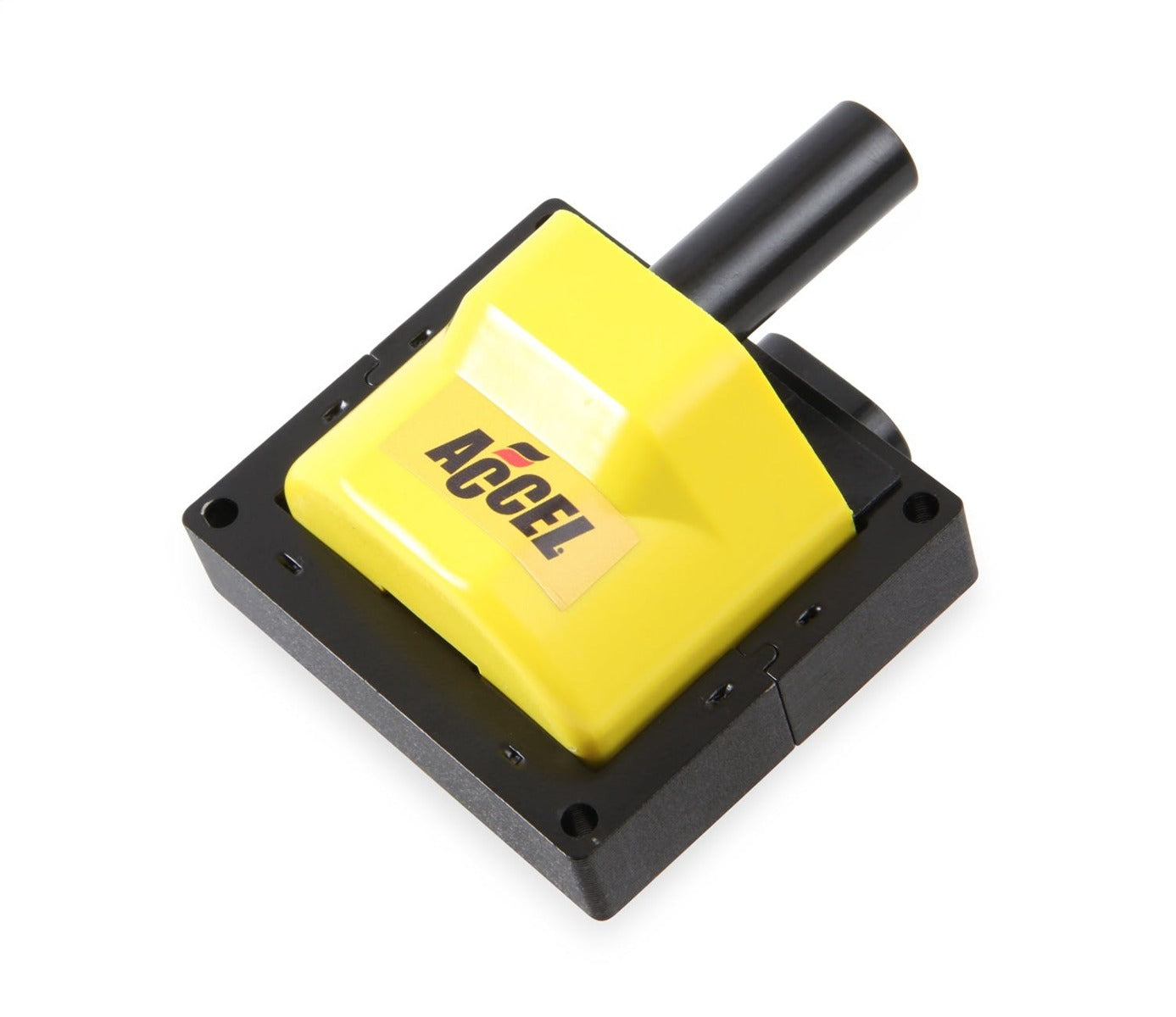

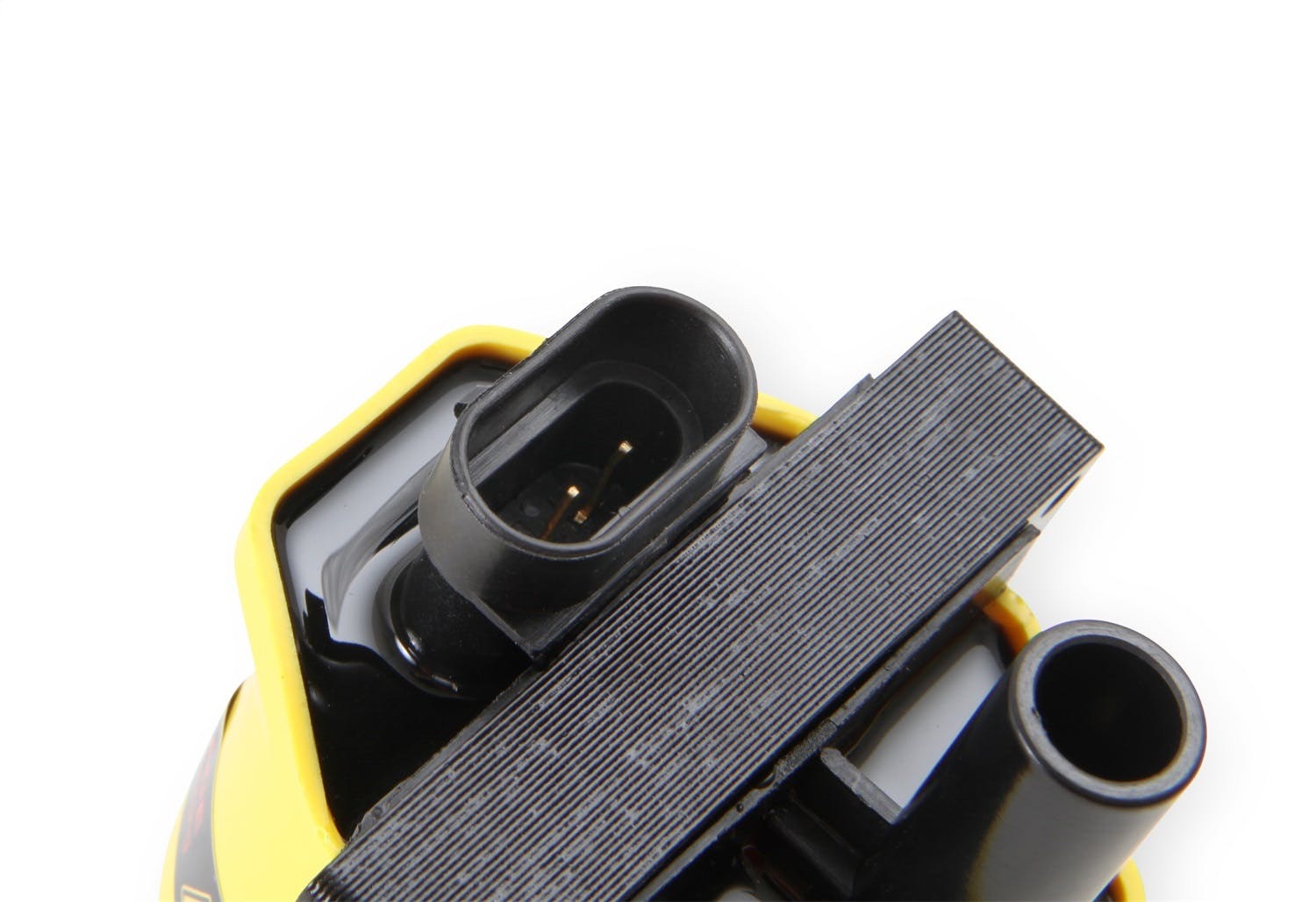

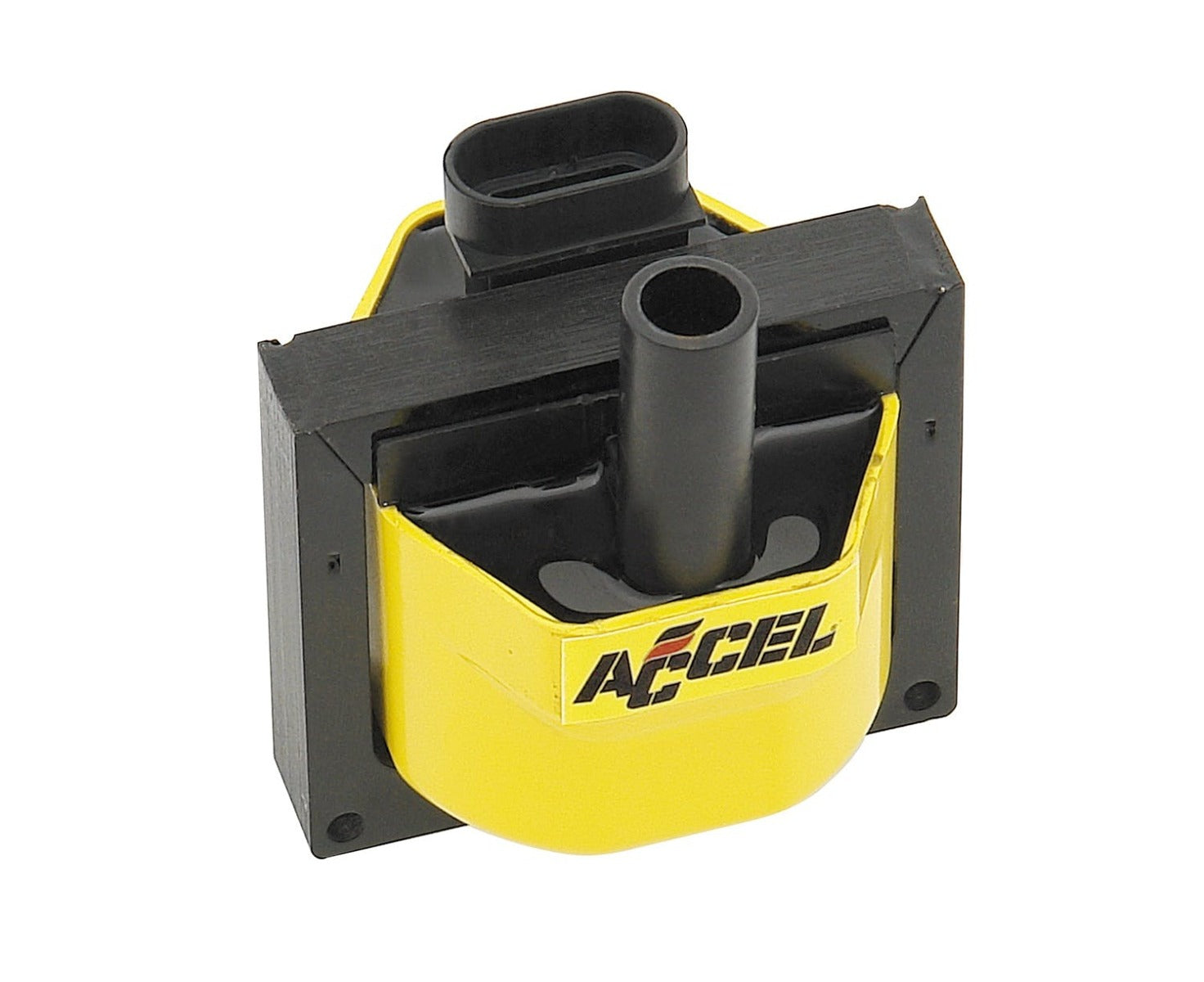

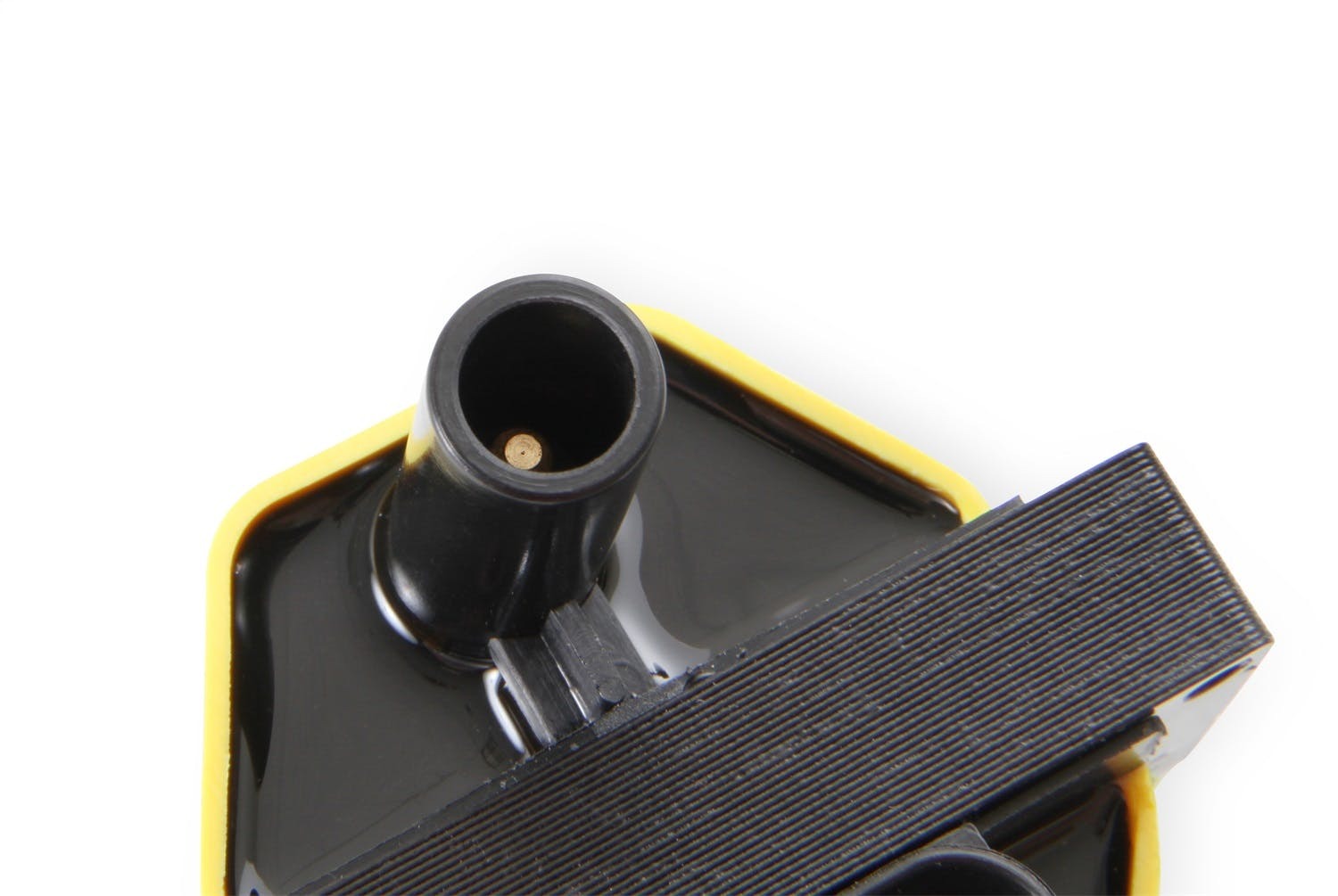

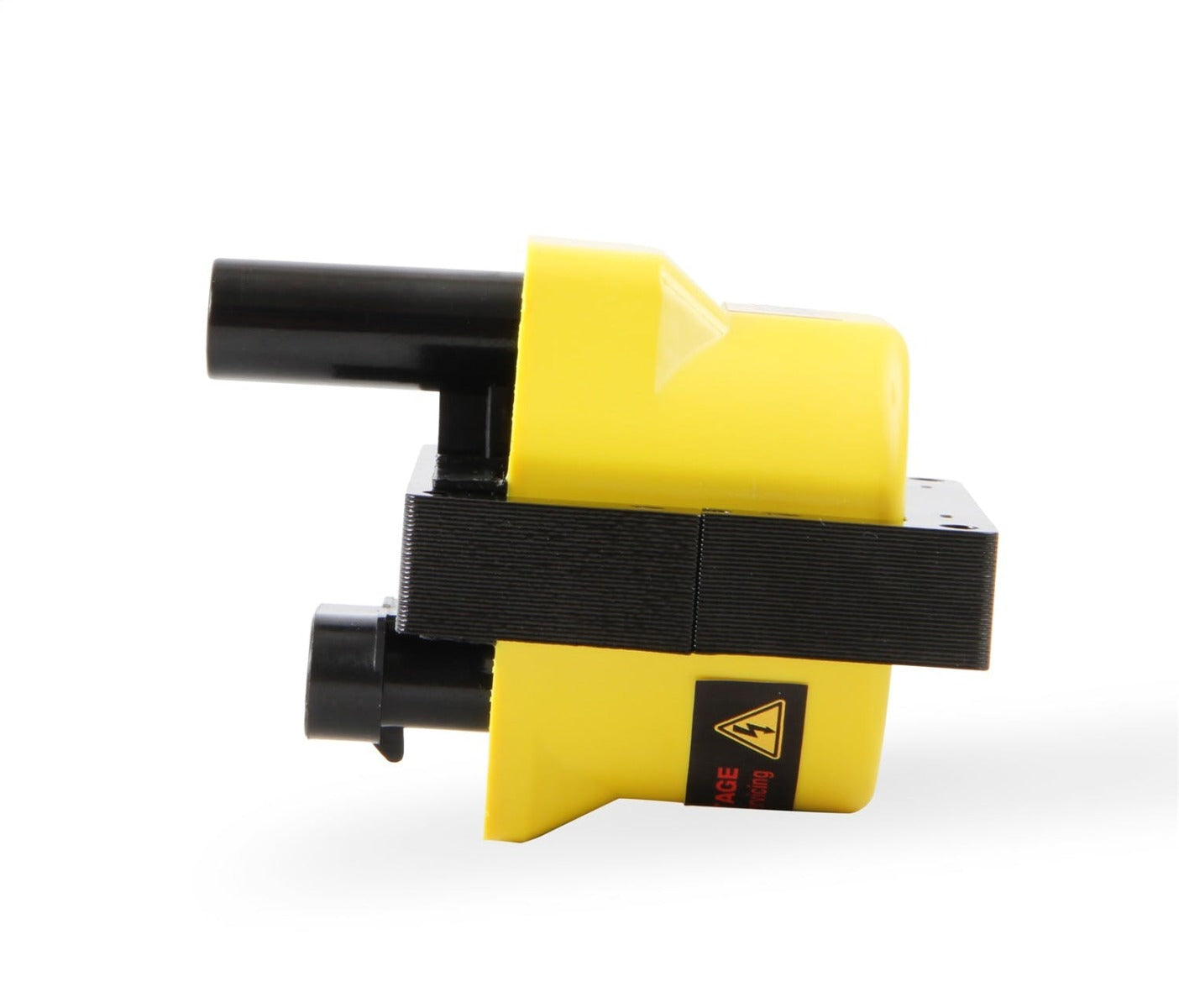

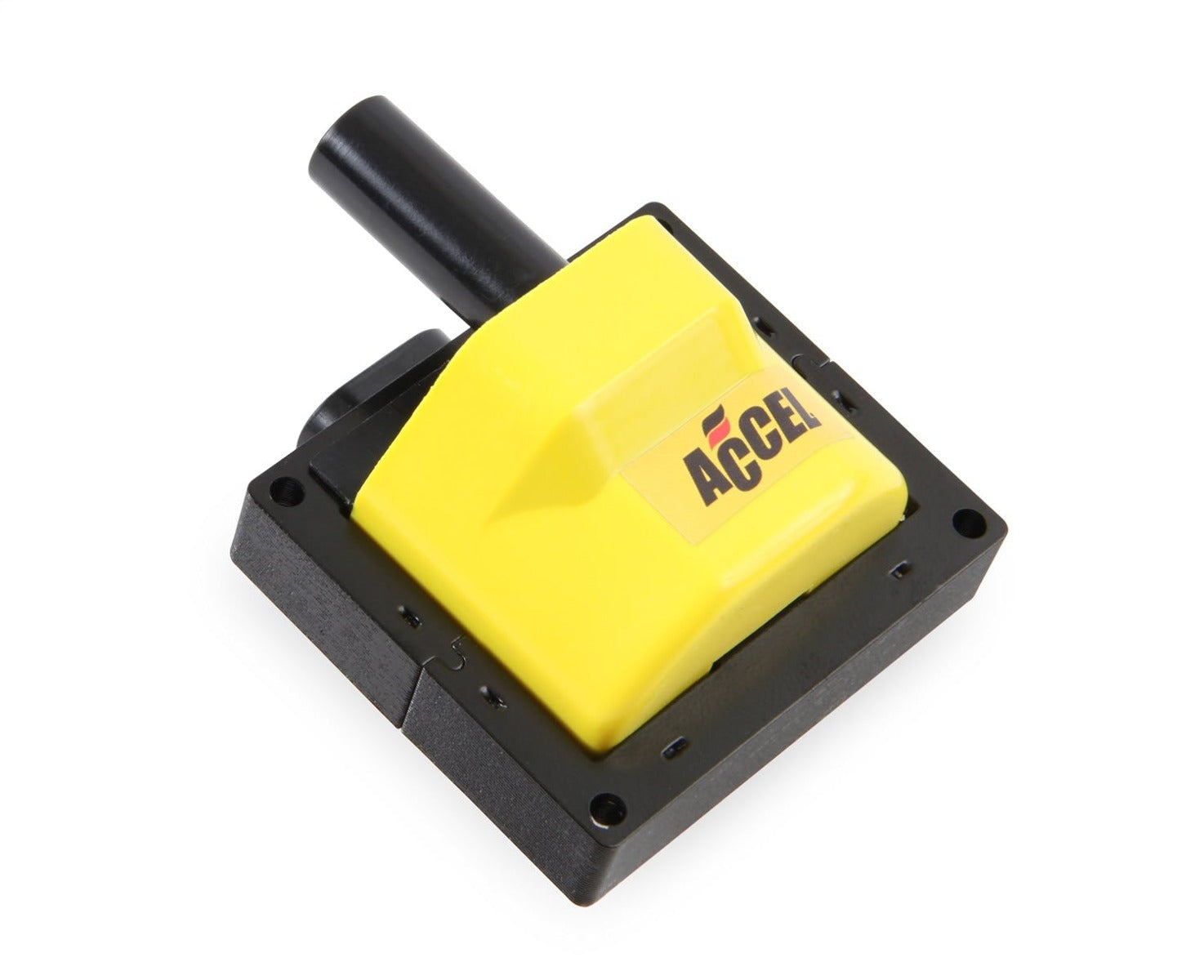

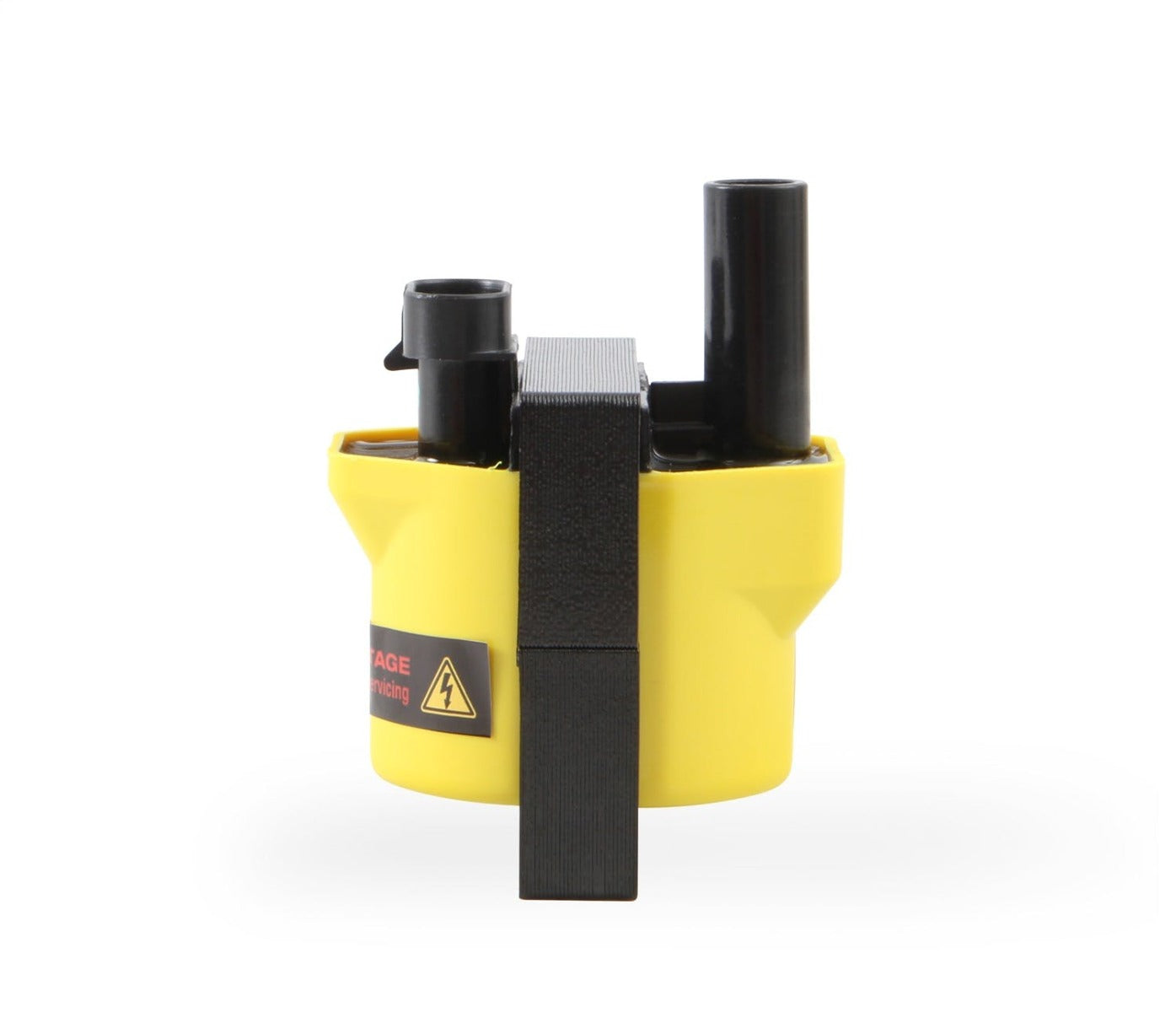

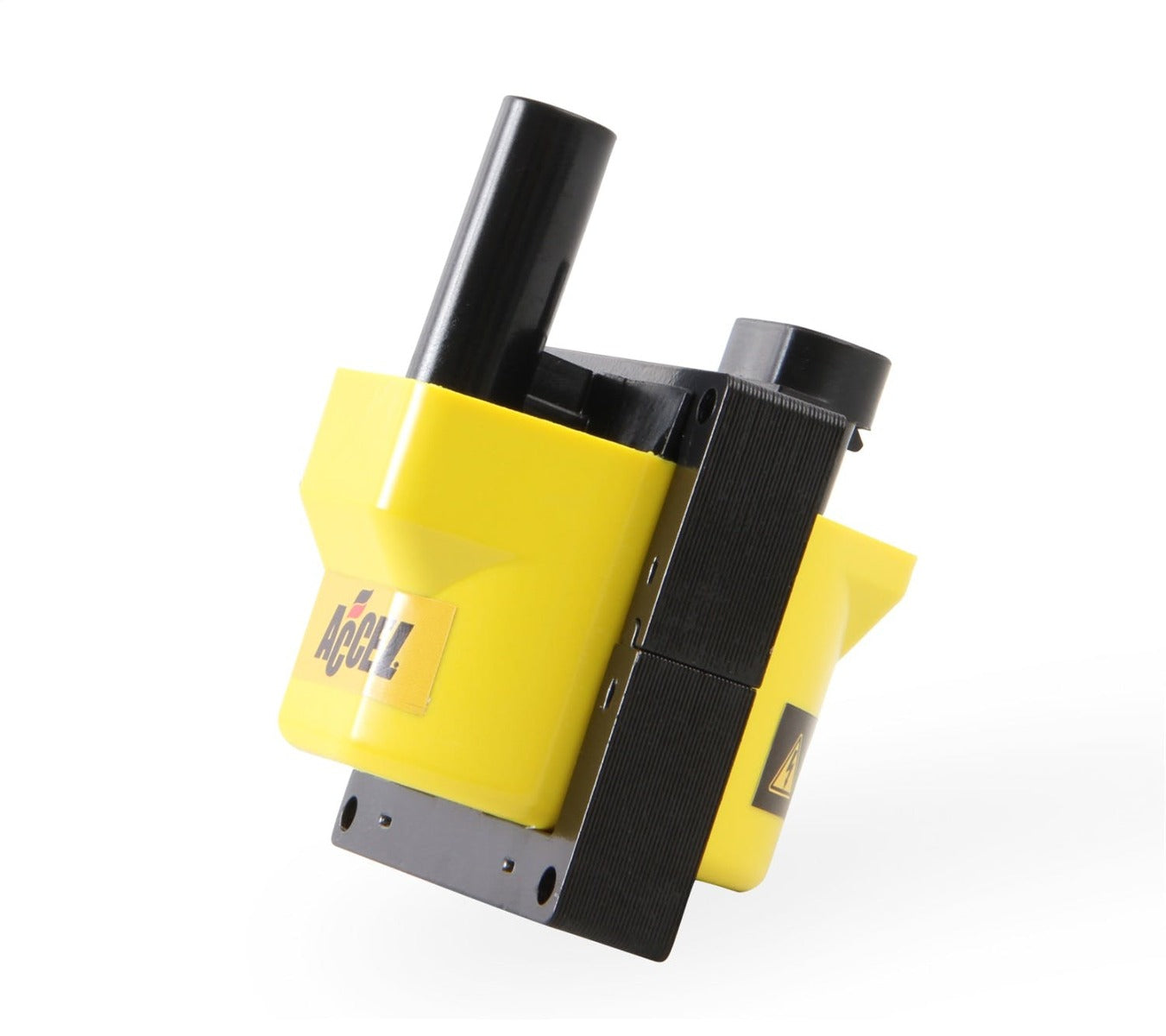

ACCEL 140024ACC GM 1996-01 REMOTE SUPERCOIL

SuperCoil Ignition Coil; Fits w/HEI Remote Mount Systems; Primary Resist 0.2 Ohms; Secondary 6.7 k Ohms; Turns Ratio 92:1; Max. Voltage 48000 Volts; Yellow;

---

Engineered with optimized low resistance, high turns ratio windings around an M36 high silicone magnetic steel E-core for higher energy and voltage outputs. Results in quicker starts, improved idle quality, crisper throttle response and more high RPM power. Compatible with late model GM computer controlled remote mount HEI systems. Direct bolt-in, plug-in replacement. Can also work with CD ignition systems. Special high temperature epoxy resists shock and vibration, while increasing thermal conductivity. Brass coil wire contact increases energy transfer and resists corrosion better than aluminum. Comes complete with new mounting hardware. High dielectric strength ACCEL yellow over molded housing. Output is 48,000 volts with 0.2ohms resistance.

• 10-15% More Energy
• Direct Plug In Replacement Direct OE Fit
• Advanced Bobbin Technology
• Highly Specialized Silicone Magnetic Steel Cores
• Standard Motor Products SMP Dr-49
• MSD 8231

---

Application Summary:

Year	Make/Model
1999-2000	Cadillac Escalade
1996-2001	Chevrolet Astro
1996-2001	Chevrolet Blazer
1996-1999	Chevrolet C1500
1996-1999	Chevrolet C1500 Suburban
1996-2000	Chevrolet C2500
1996-1999	Chevrolet C2500 Suburban
1996-2000	Chevrolet C3500
1996	Chevrolet Caprice
1996	Chevrolet Corvette
1996-2001	Chevrolet Express 1500
1996-2001	Chevrolet Express 2500
1996-2001	Chevrolet Express 3500
1996-1999	Chevrolet K1500
1996-1999	Chevrolet K1500 Suburban
1996-2000	Chevrolet K2500
1996-1999	Chevrolet K2500 Suburban
1996-2000	Chevrolet K3500
1996-1999	Chevrolet P30
1996-2001	Chevrolet S10
1999-2001	Chevrolet Silverado 1500
1996-2000	Chevrolet Tahoe
1996-1999	GMC C1500
1996-1999	GMC C1500 Suburban
1996-2000	GMC C2500
1996-1999	GMC C2500 Suburban
1996-2000	GMC C3500
1996-2001	GMC Jimmy
1996-1999	GMC K1500
1996-1999	GMC K1500 Suburban
1996-2000	GMC K2500
1996-1999	GMC K2500 Suburban
1996-2000	GMC K3500
1996-2001	GMC Safari
1996-2001	GMC Savana 1500
1996-2001	GMC Savana 2500
1996-2001	GMC Savana 3500
1999-2001	GMC Sierra 1500
1996-2001	GMC Sonoma
1996-2000	GMC Yukon
1997-2000	Isuzu Hombre
1996-2001	Oldsmobile Bravada
