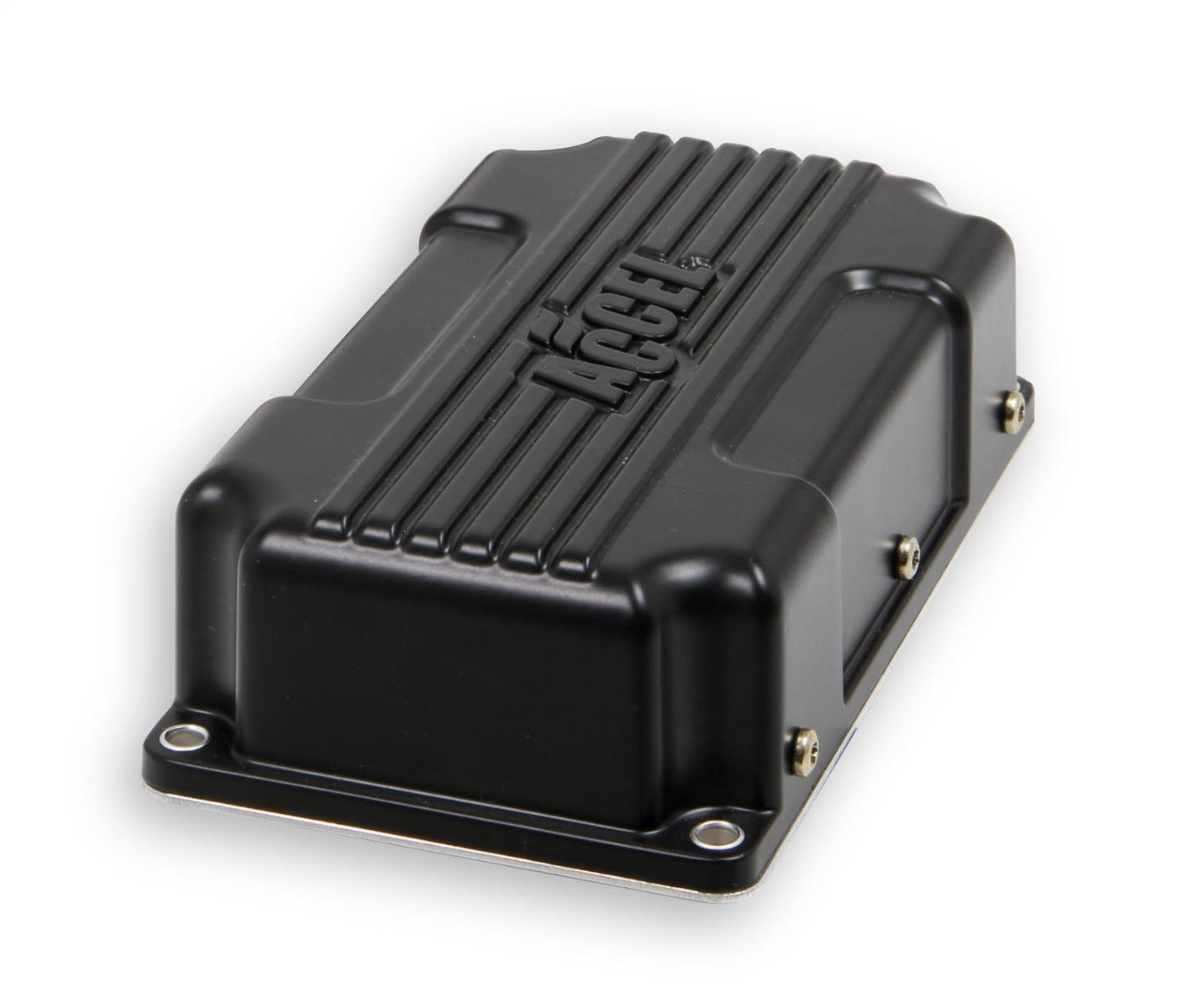

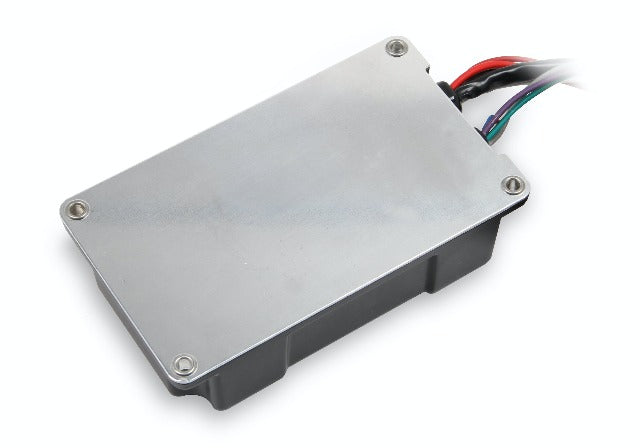

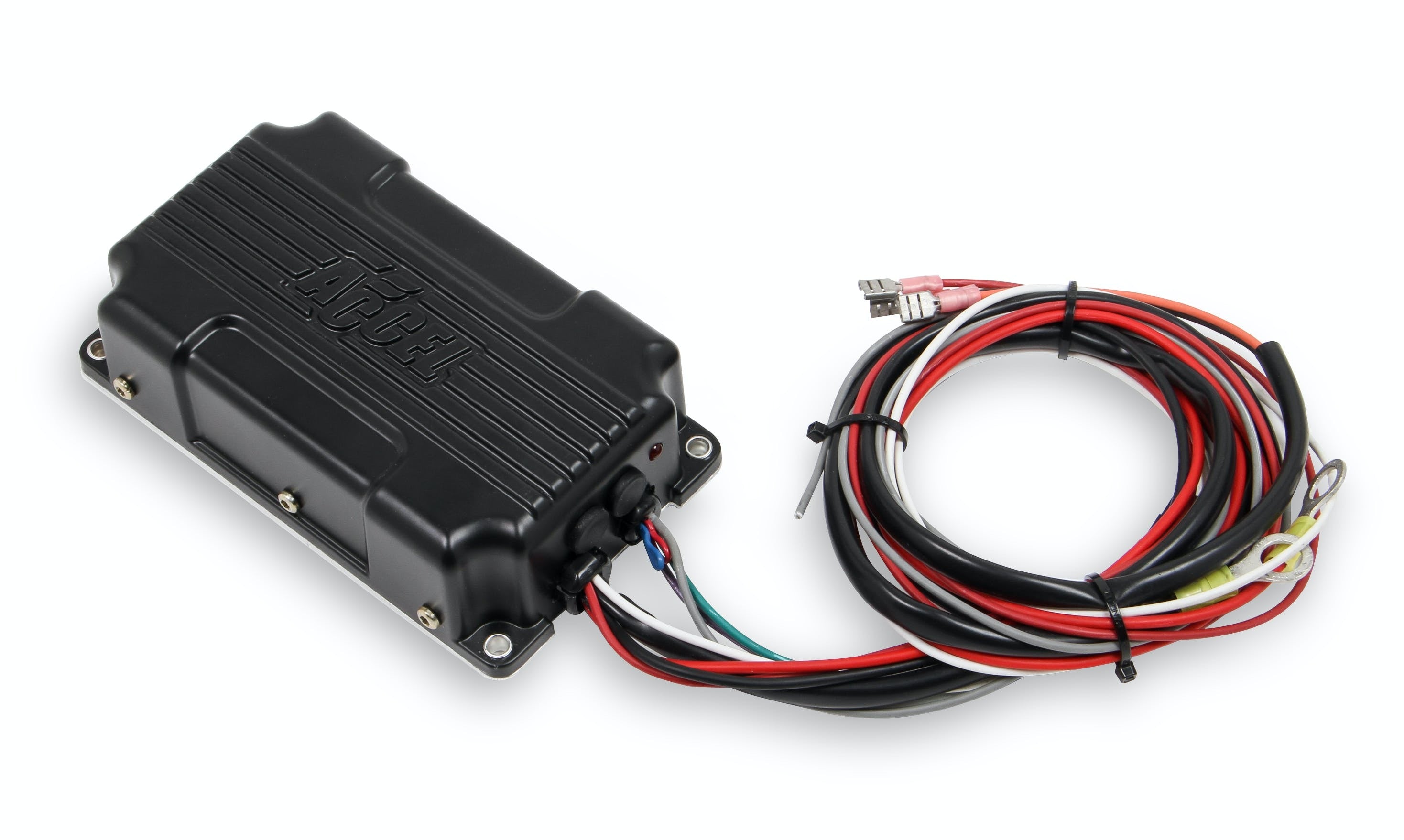

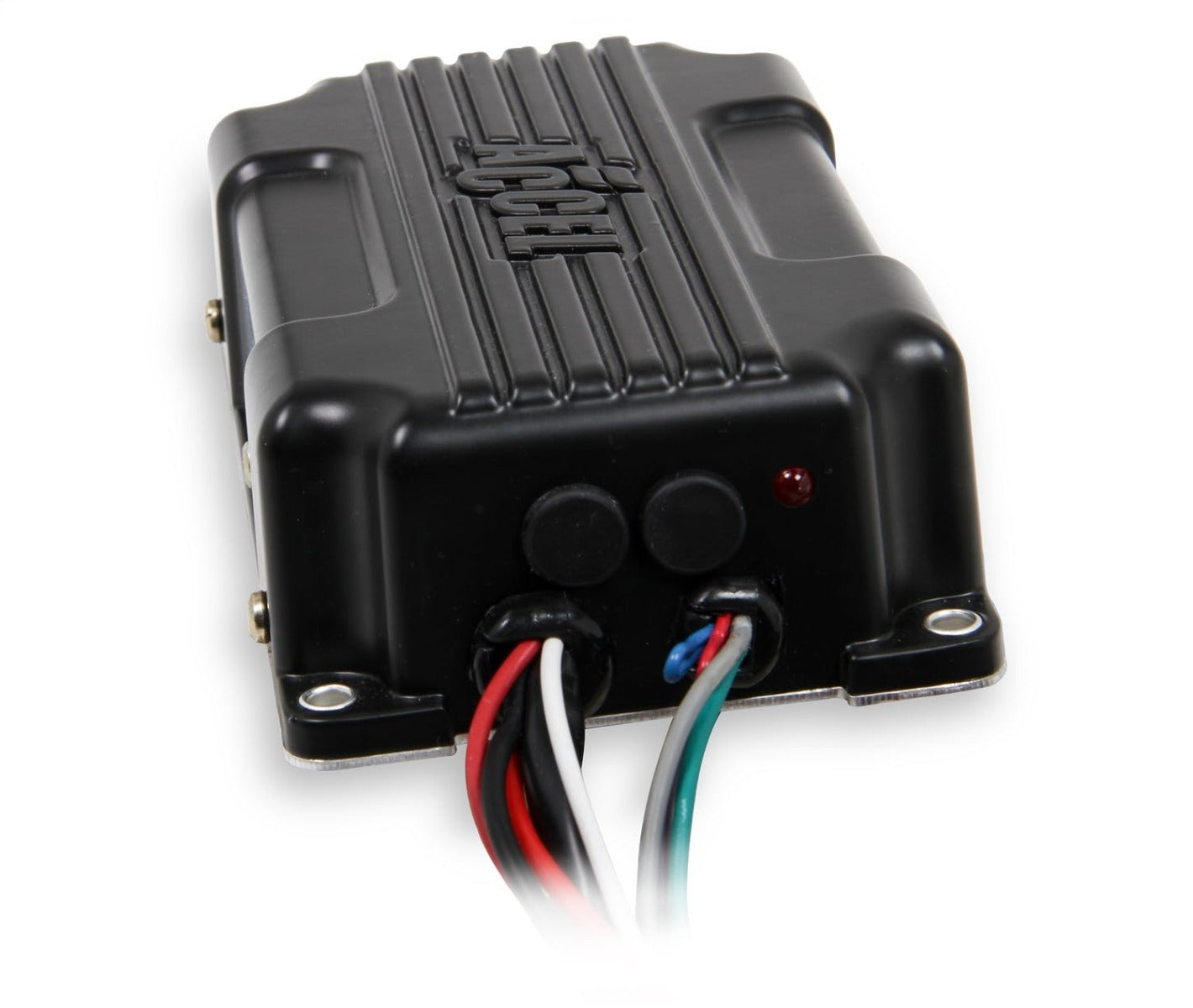

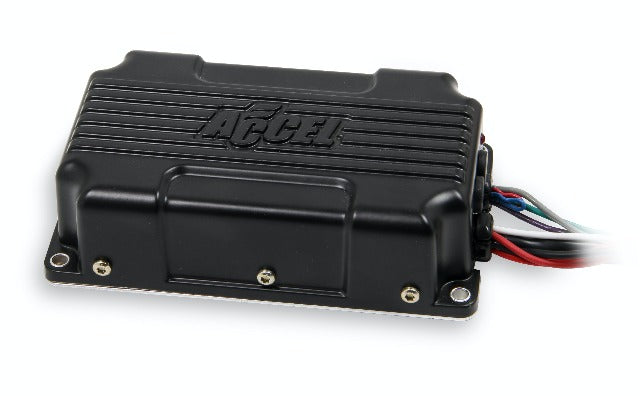

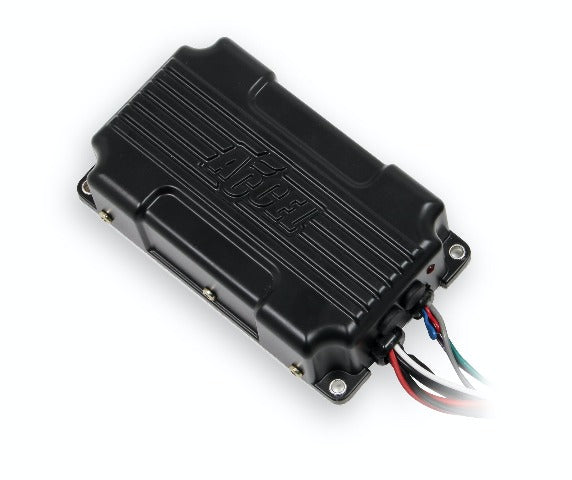

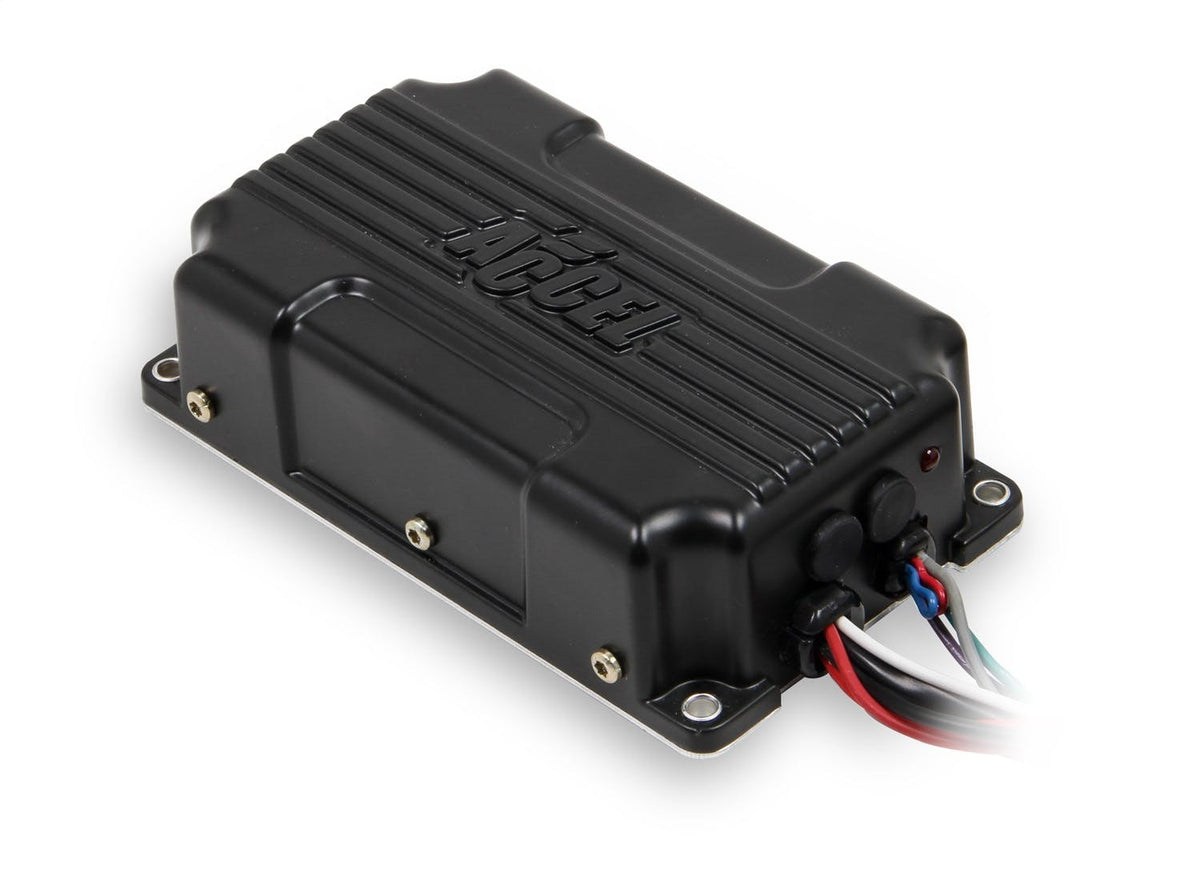

ACCEL 61212 ACCEL SUPERBOX CD IGNITION SYSTEM

SuperBox Capacitive Discharge Ignition System; Primary 435 Volts; Secondary 43000 Volts; 15000 RPM Requires 10-18 Volts/Neg. Ground; Draws 0.7 Amps Per 1000 RPM; 95mJ Per Spark;

---

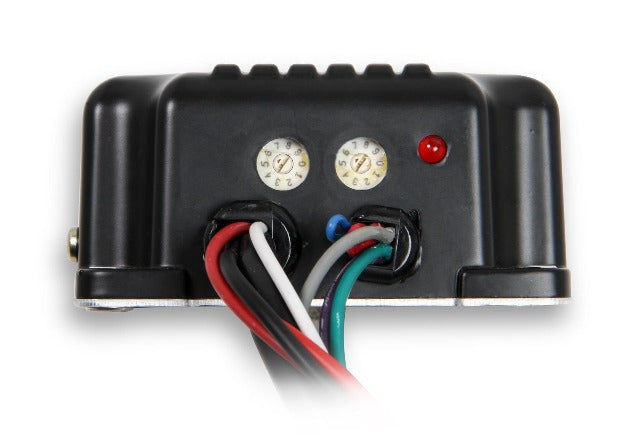

For the performance-minded person on a limited budget, the ACCEL Capacitive Discharge Ignition is the perfect upgrade. When the engine is running at low rpm, this modern capacitive-discharge ignition fires a series of multiple sparks that last for 20 degrees of crankshaft rotation, ensuring better combustion of the air/fuel mixture and creating instant throttle response and a smoother idle. The ACCEL CDI is built around a durable cast-aluminum housing, can be set for 4-, 6- or 8-cylinder applications, and easily connects to points, amplifiers, and magnetic-pickup distributors. An adjustable rev-limiter protects the engine in the event of driveline failure or the occasional missed shift, and it's fully adjustable with rotary dials in 100-rpm increments.

• Multiple Sparks For Improved Starting/Idle/Throttle Response
• Full Power Output At High RPM
• Easily Connects To Points/Amplifiers/Magnetic-Pickup Distributors
• Adjustable Rev-Limiter For Over-Rev Protection
• 4/6/8-Cylinder Applications
• Accessory Harness Available For Plug-N-Play On Most Applications

---

Application Summary:

Year	Make/Model
Please	use the same applications as MSD part number 6425
