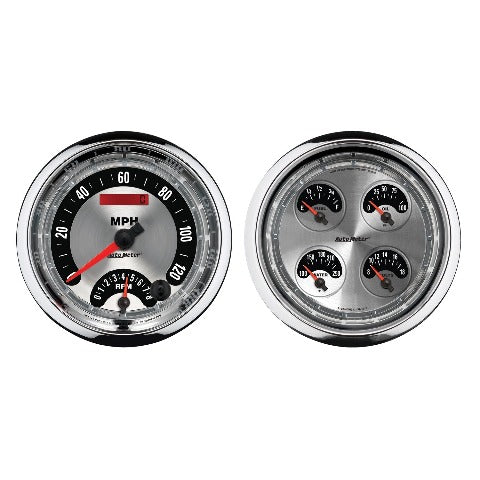

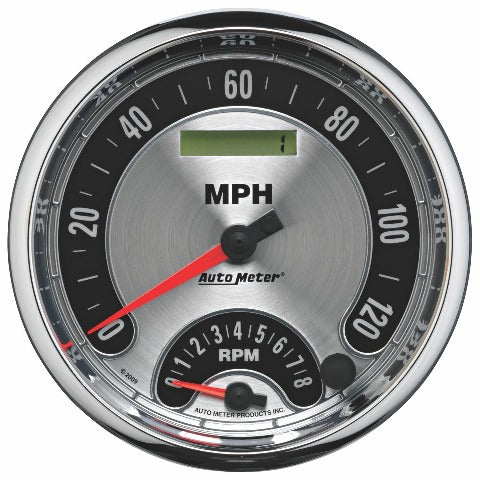

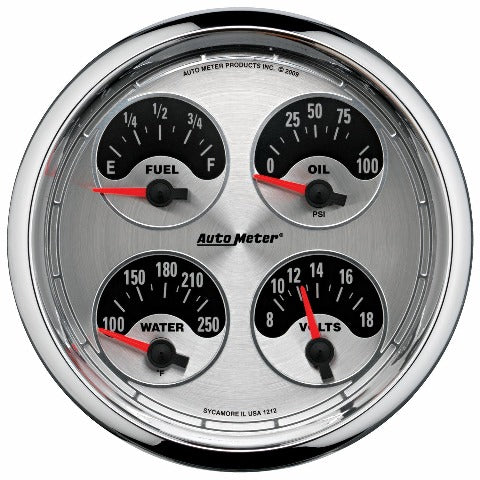

5in. QUAD GAUGE; 8K RPM/120 MPH/100 PSI/100-250 ° F/8-18V/240-33 O; AMERICAN MUSCLE

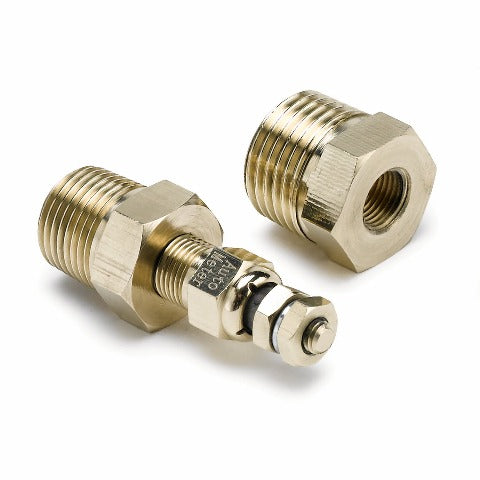

Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8 NPT temperature sender and a 1/8 NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter's 3262 fuel level sender).
- Domed Lens
- White LED Full Dial Lighting

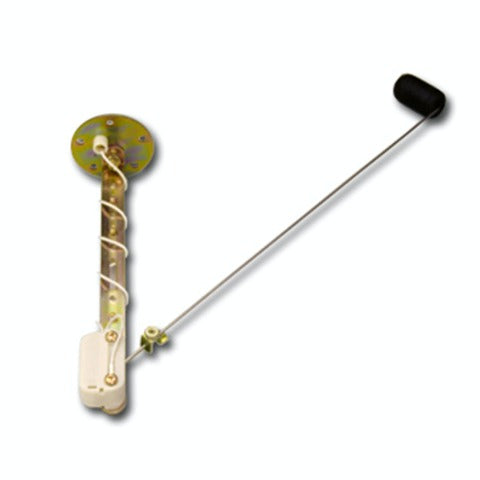

- Incl. Flue Level Sender 240E-33F Ohms

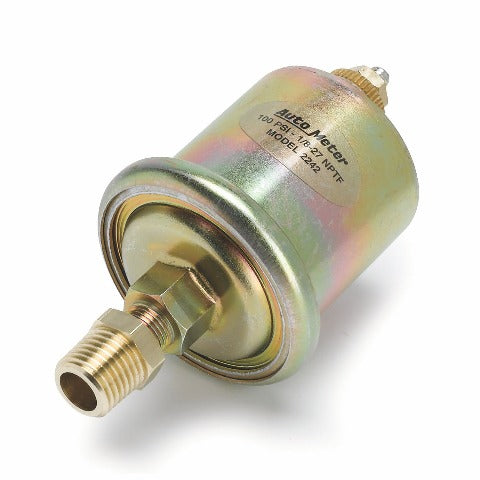

- Incl. Oil Pressure Sender
- Water Temp. Sender

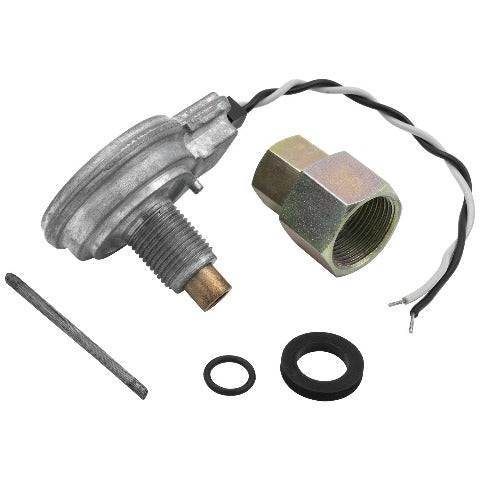

- Works w/2-Wire Hall-Effect Speed Sender
- 12 And 16 Volt Compatible
- Tachometer Is Compatible w/.5-6 Pulse Ignition Signals
- Works w/Most 1-12 Cylinder Engines
- Works w/Most 2 Wire Sine Wave And 3 Wire Hall Effect Speed Sensor
- Capable Of Registering One-Million Miles
- 4 in 1 Gauge Design Saves Valuable Real Estate
- Quality Construction
