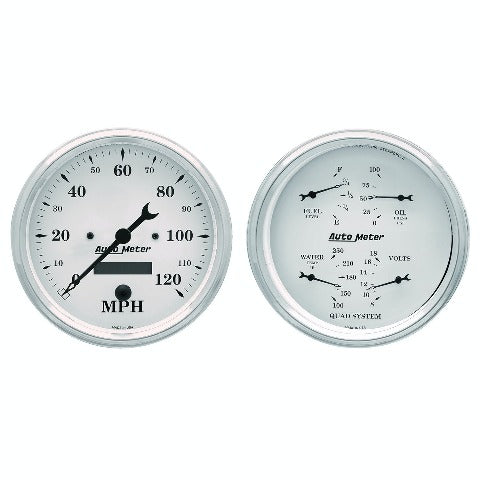

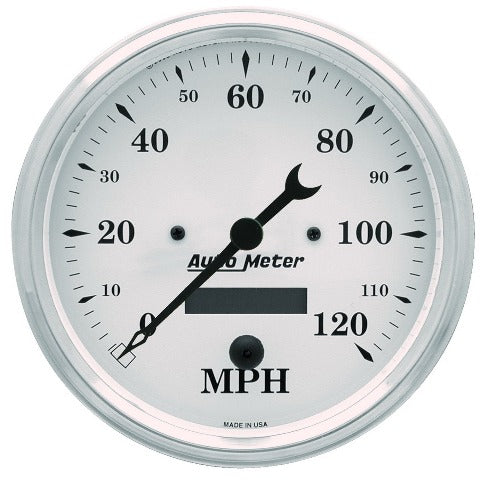

2 PC. GAUGE KIT; 5in. QUAD/SPEEDOMETER; 240-33 O; OLD TYME WHITE
Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8 NPT temperature sender and a 1/8 NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter's 3262 fuel level sender).
- Incandescent Lighting Illuminates Around Perimeter Of Dial
- Simple Push Button 2 Mile Drive Calibration
- Reprogram At Any Time To Accommodate Changes
- Features Lit LCD Odometer
- Capable Of Registering One-Million Miles
- Air-Core Electric Instruments Provide Quick And Accurate Readings
- 12 And 16V Compatible Well-Suited w/Electrical System
- Incl. Fuel Level Sender 240E/33F Ohms
- Incl. Oil Pressure Sender
- Water Temp Sender
- Incl. 2-Wire Hall-Effect Speed Sender
