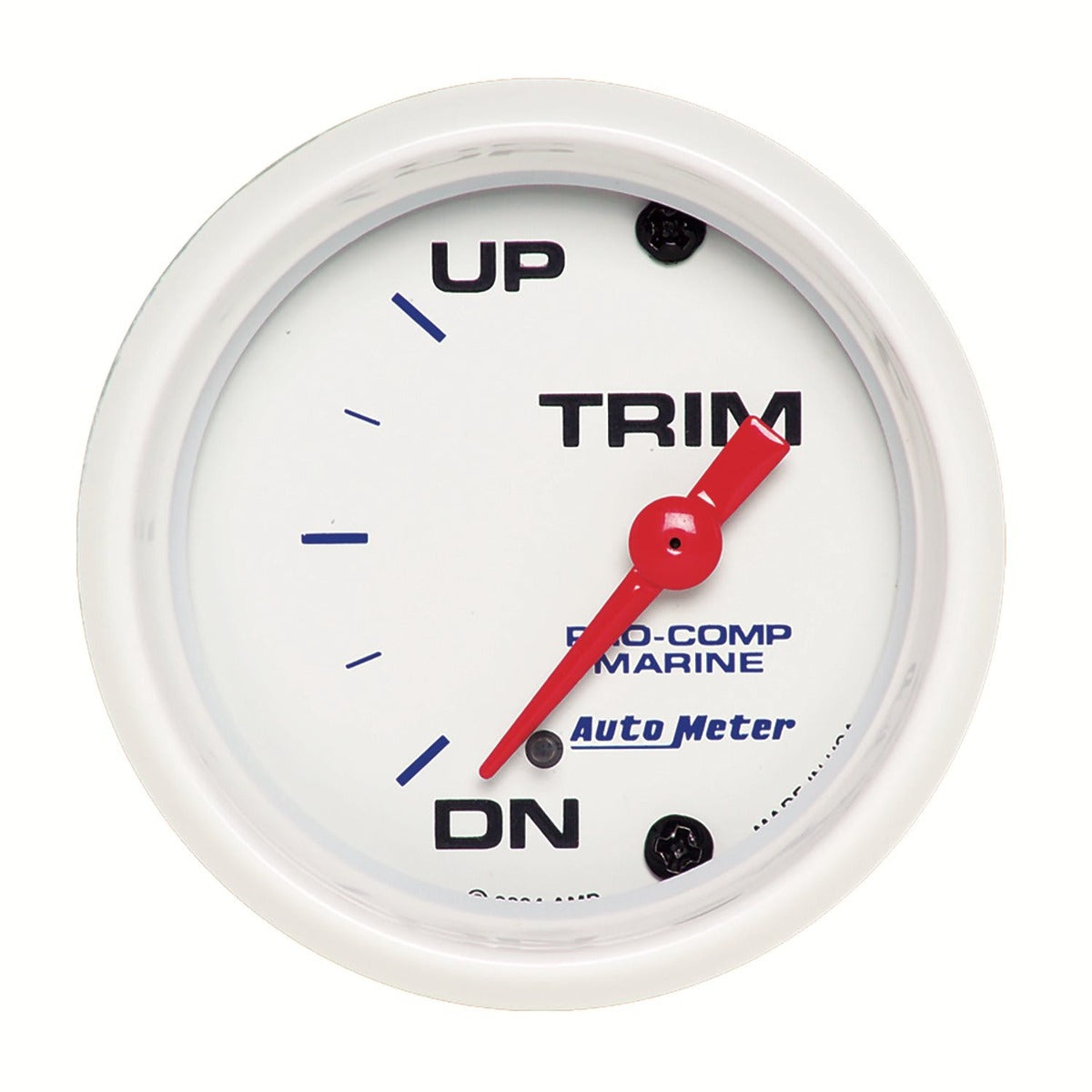

The attitude of a boat in the water can be controlled to a large extent by trimming the outdrive/propeller unit in relation to the stern of the boat. As the drive is trimmed up, the prop exerts more force downward, causing the bow to lift out of the water. As the drive is trimmed down, the force is exerted more in line with the boat hull, resulting in the bow riding lower in the water. Depending on a given trim angle, you can see increased or decreased speed, fuel economy, comfort and control at a given prop RPM. The trim gauge connects to a resistance based sender in the pivot of the outdrive. This functions much like the sender in a gas tank, with the gauge measuring resistance of the sender from totally down/in to totally up/out. This allows the operator to adjust for conditions and load quickly and easily.
  • Front Sealed Bezel Design For Added Water Resistance
  • UV Protected Paint On Dial Pointer
  • Works w/0 Ohm Down/90 Ohm Up Trim Level Sending Unit
  • 12 And 16V Compatible
  • Incl. Bulb/Socket Assembly/Red And Green Bulb Covers
  • Incl. Mounting Hardware/Instructions
  • 12 Month Limited Warranty
  • Quick And Accurate Readings
  • Incandescent Lighting Illuminates Perimeter Of Dial
