AutoMeter Products 9113 CAN BRIDGE, OBD-II DATA MODULE FOR INVISION DASH AND AUTOMETER GAUGES
AutoMeter Products 9113 CAN BRIDGE, OBD-II DATA MODULE FOR INVISION DASH AND AUTOMETER GAUGES
AutoMeter Products 9113 CAN BRIDGE, OBD-II DATA MODULE FOR INVISION DASH AND AUTOMETER GAUGES

AutoMeter Products 9113 CAN BRIDGE, OBD-II DATA MODULE FOR INVISION DASH AND AUTOMETER GAUGES

AutoMeter Products
ATM9113
Heads up — this is a Special Order item. We don't carry it on the shelf, but we can bring it in for you! Lead times vary and can be 10 weeks or more depending on the manufacturer. Give us a call or send us a message so we can check current availability and walk you through your options before you commit to an order.
$611.79
$630.33
$611.79
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
AutoMeter Products 9113 CAN BRIDGE, OBD-II DATA MODULE FOR INVISION DASH AND AUTOMETER GAUGES

AutoMeter Products

AutoMeter Products 9113 CAN BRIDGE, OBD-II DATA MODULE FOR INVISION DASH AND AUTOMETER GAUGES

$630.33 $611.79
AutoMeter Products 9113 CAN BRIDGE, OBD-II DATA MODULE FOR INVISION DASH AND AUTOMETER GAUGES
AutoMeter Products 9113 CAN BRIDGE, OBD-II DATA MODULE FOR INVISION DASH AND AUTOMETER GAUGES
AutoMeter Products 9113 CAN BRIDGE, OBD-II DATA MODULE FOR INVISION DASH AND AUTOMETER GAUGES

AutoMeter Products

AutoMeter Products 9113 CAN BRIDGE, OBD-II DATA MODULE FOR INVISION DASH AND AUTOMETER GAUGES

$630.33 $611.79
Description

AutoMeter Products CAN BRIDGE, OBD-II DATA MODULE FOR INVISION DASH AND AUTOMETER GAUGES

9113

DESCRIPTION:

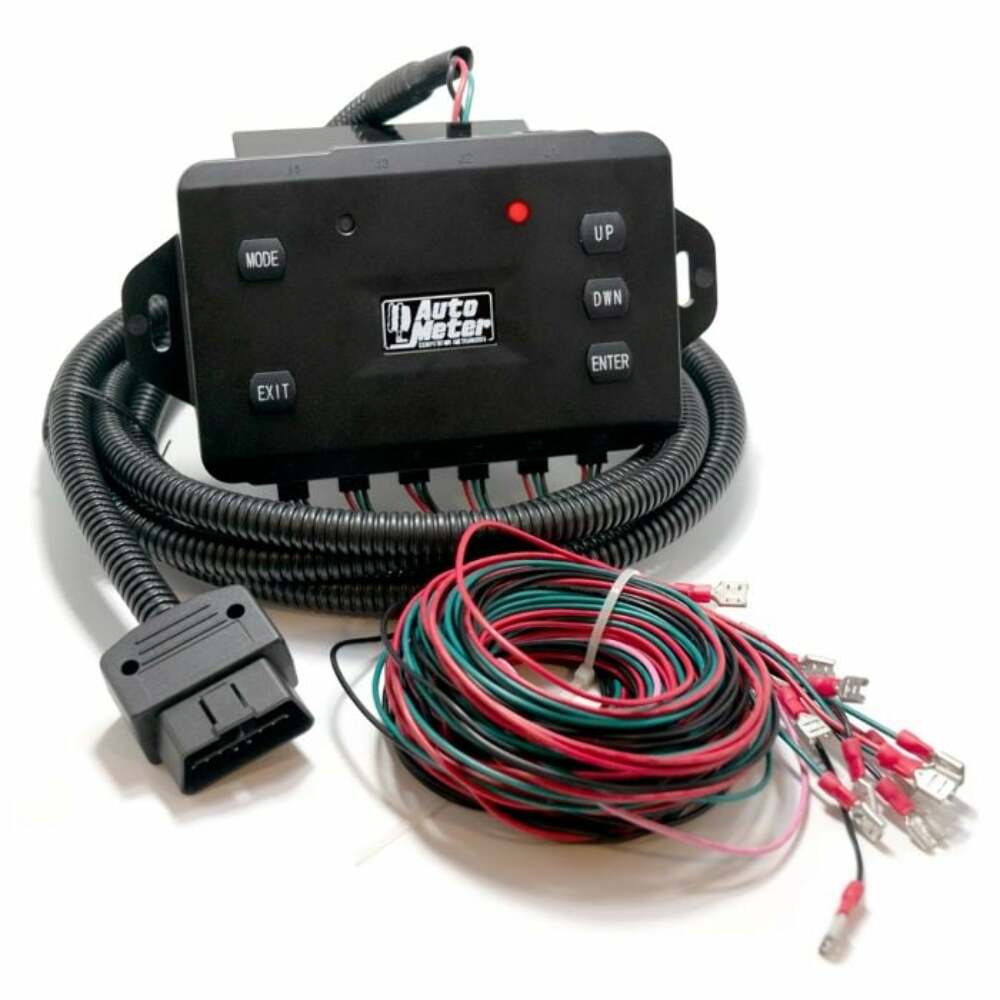

The CAN Bridge from AutoMeter is the ideal solution to streamline adding gauges or an InVision LCD dash to OBDII based engine and vehicle platforms (2008+). The intuitive CAN Bridge simply plugs into the diagnostic port and captures the existing sensor data and outputs up to six signals to drive a tachometer, speedometer, temperature, pressure (*oil pressure PID usually not available and oil pressure will require a sender), fuel level (0-90 ohm only), and volts on your vehicle. Quickly and easily setup your system to output the available parameters of your choice utilizing the module’s menu navigation buttons and OLED display. Simplify the next instrumentation installation on your ride with the advanced CAN Bridge system from AutoMeter!

Feature Points
  • Plug-n-play from OBDII to traditional round AutoMeter short sweep electric gauges, tachometers, electronic speedometers, and InVision LCD dashes
  • 6 total channels available – tachometer, speedometer, fuel level (0-90 ohm only), temp, pressure (*oil pressure PID usually not available and oil pressure will require a sender), & volts
  • Simplifies instrumentation wiring and installation – no sensors to hookup*, which means less wires to connect
  • Works with most OBD-II applications starting in 2008

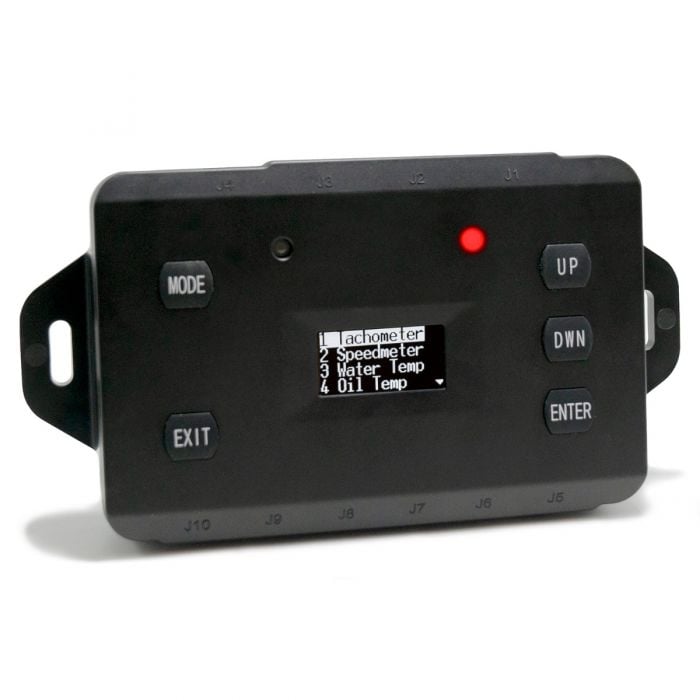

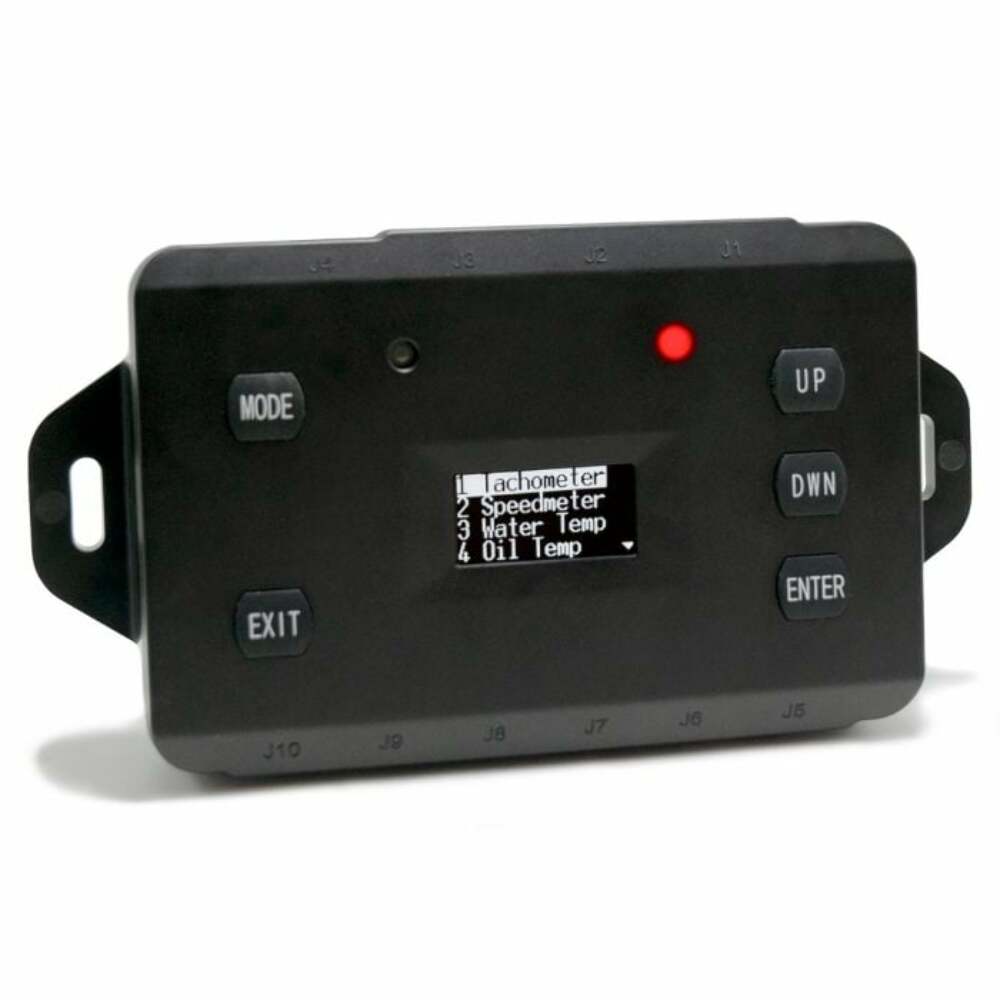

  • Module includes OLED display and five push buttons to effortlessly navigate menus and program system for operation
  • Sensor data must be present on the data stream to function, otherwise a discrete sensor must be used

Additional Information:
