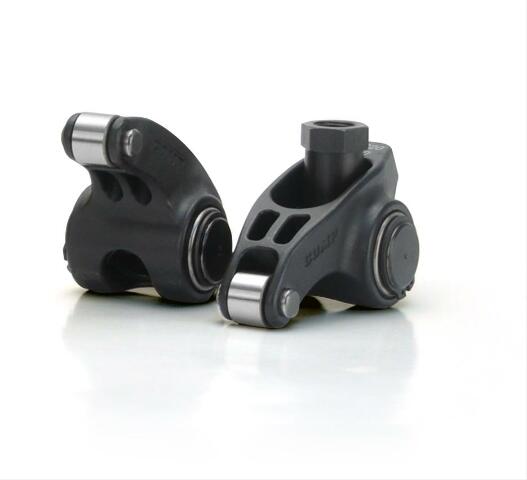

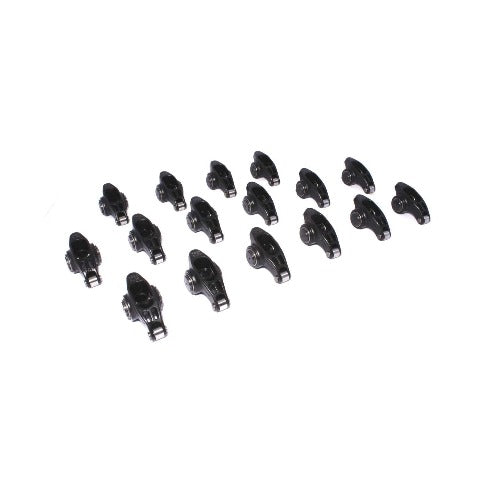

Machined from 8650 steel with a billet pushrod seat insert, these Ultra Pro Magnum XD rockers can handle up to 1,000 lbs of spring pressure. These 1820 rockers feature a 1.7 ratio for use with 7/16" stud Chevrolet 396-454 Big Block.
Built to outlast and outperform in accuracy and strength, the Ultra Pro Magnum XD rocker arms are engineered from durable 8650 steel and include a machined billet pushrod seat insert for a wide range of super accurate ratios. A unique and wide ratio range to fit almost any popular application from 1.5 to 1.8 in 0.5 in. increments for Chevy and 1.6 to 1.73 for various Ford applications is available. These Ultra Pro Magnum XD rockers are fully rebuildable and boast precision-sorted needle bearings and hardened roller tips. And, they work with most diameter springs and retainers. The XD design utilizes advanced FEA and CAD design and development to improve strength, stiffness and MOI(moment of inertia) optimization for drag and circle track applications.
- 8650 Chromemoly Steel
- 29 Percent Stronger Than Pro Magnum
- Redesigned Steel Stud Mount Rocker
- Reduced Weight And Greater Strength
- Increased High RPM Stability
- Black Oxide Exterior Finish
- Increased Retainer And Valve Spring Clearances
- Lifetime Warranty
Application Summary:
| Year |
Make/Model |
| 1963 |
Chevrolet Bel Air |
| 1965-1975 |
Chevrolet Bel Air |
| 1963 |
Chevrolet Biscayne |
| 1965-1972 |
Chevrolet Biscayne |
| 1972 |
Chevrolet Brookwood |
| 1967-1972 |
Chevrolet Camaro |
| 1966-1976 |
Chevrolet Caprice |
| 1965-1973 |
Chevrolet Chevelle |
| 1968 |
Chevrolet Chevy II |
| 1965-1974 |
Chevrolet Corvette |
| 1963 |
Chevrolet Impala |
| 1965-1976 |
Chevrolet Impala |
| 1970-1972 |
Chevrolet Kingswood |
| 1973-1975 |
Chevrolet Laguna |
| 1966-1967 |
Chevrolet Malibu |
| 1973-1975 |
Chevrolet Malibu |
| 1970-1975 |
Chevrolet Monte Carlo |
| 1969-1970 |
Chevrolet Nova |
| 1970 |
Chevrolet Townsman |
