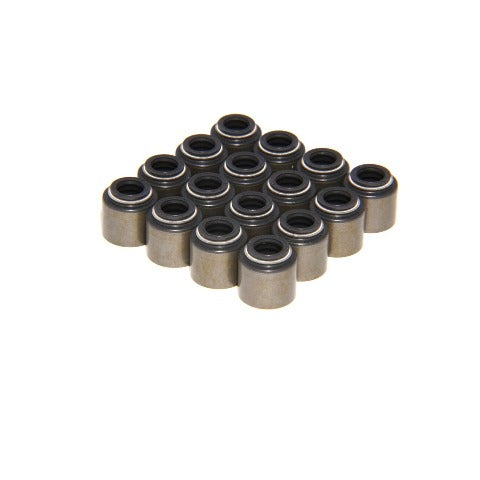

Providing the best sealing properties and spring clearance, viton valve seals are an excellent choice in performance applications. The 511 seals have a .600" OD and fit LS applications with 8mm valves and .500" OD guides.
Comp Cams(R) offers a complete line of valve stem oil seals, from the stock GM o-ring to the positive-stop PTFE seal. These seals are a must to keep unwanted oil form entering the combustion chamber through the clearance in the valve guides. The o-ring seals use the standard retainer and oil splash shield. The umbrella seal is normally used when a larger than stock diameter spring is used, and in the case of a double spring, the positive-stop PTFE seal is used. Small diameter Viton seals are also available for triple spring applications.
- Valve Stem Oil Seals
- 1 Year Limited Warranty
Application Summary:
Year |
Make/Model |
2004-2007 |
Cadillac CTS |
1998-2002 |
Chevrolet Camaro |
1997-2007 |
Chevrolet Corvette |
2006-2007 |
Chevrolet Impala |
2006-2007 |
Chevrolet Monte Carlo |
2005-2006 |
Chevrolet SSR |
2006 |
Chevrolet Trailblazer |
1998-2002 |
Pontiac Firebird |
2005-2007 |
Pontiac Grand Prix |
2004-2005 |
Pontiac GTO |
