Edelbrock 1572 SC ASSY 06 and LATER Z06 CORVETTE LS7

The Edelbrock Supercharger System part #1572 supercharger kit is for the 2006-13 LS7 Corvette Z06. This kit produces 657 horsepower and 582 ft-lbs of torque.

---

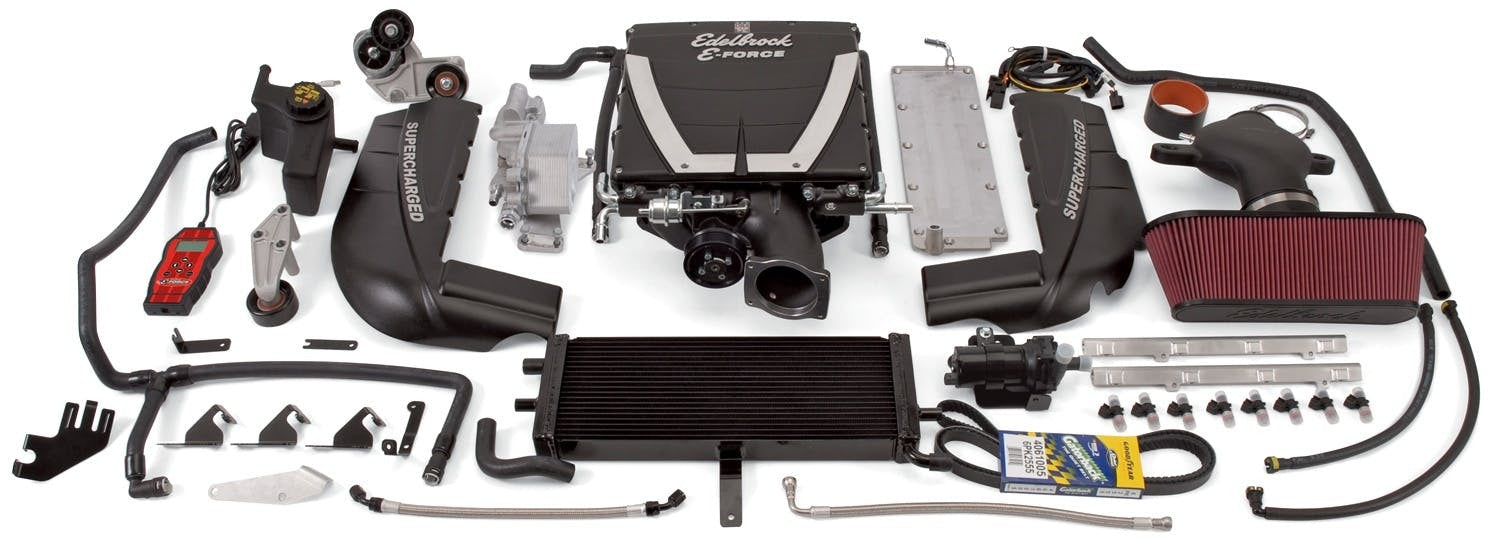

The Edelbrock supercharger Stage 1 Street System part #1572 for 2006-13 Corvette ZO6 with Dry sump increases the performance of your LS7 engine to 657 horsepower and 582 ft-lbs of torque to the flywheel. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1572 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

• 657 HP And 582 ft./lbs. Of Torque
• 12 in. Long Runners For Maximum Low End Torque
• Seamless Integration w/Dry Sump System
• Fits Under Stock Hood

---

Application Summary:

Year	Make/Model
2006-2013	Chevrolet Corvette
