Special Order

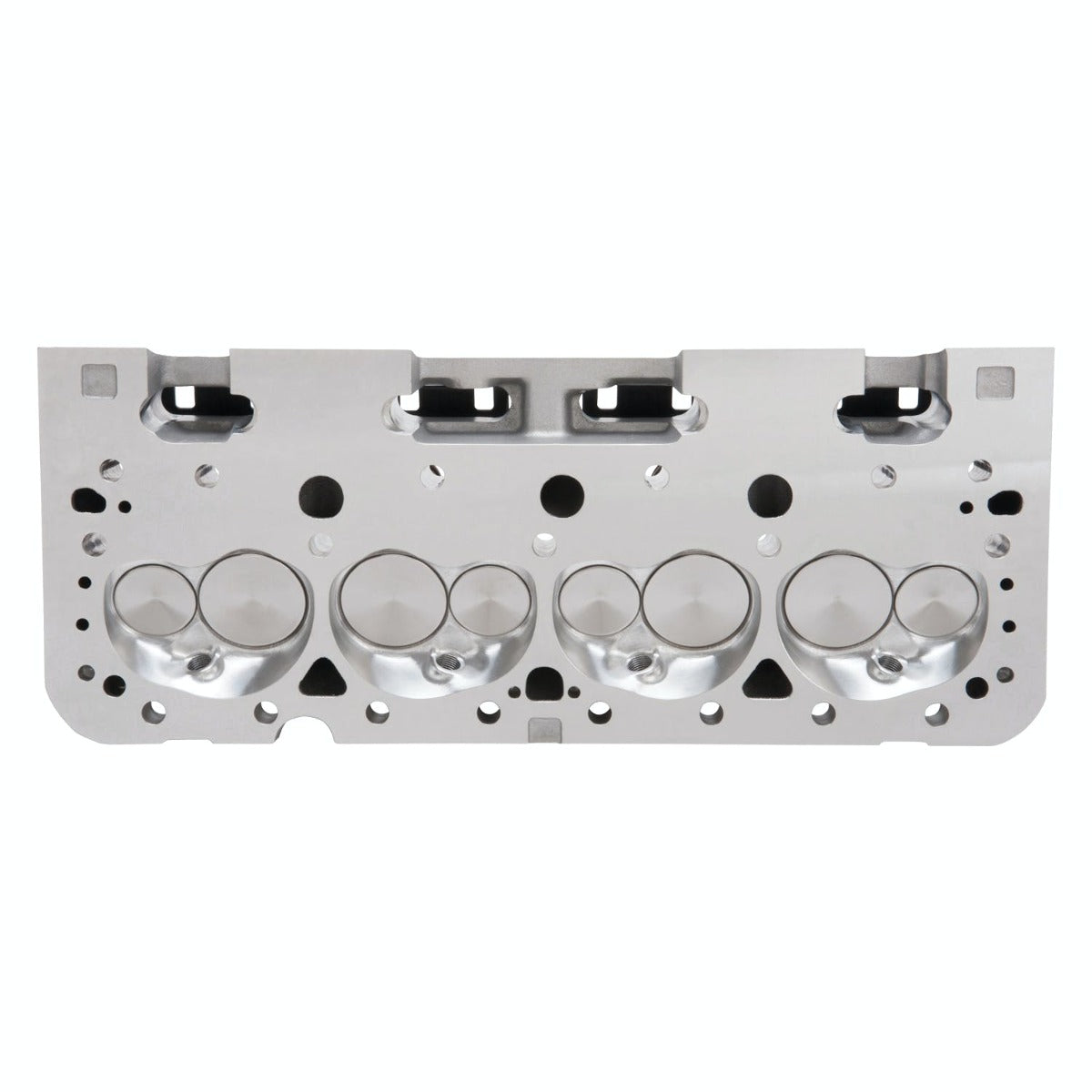

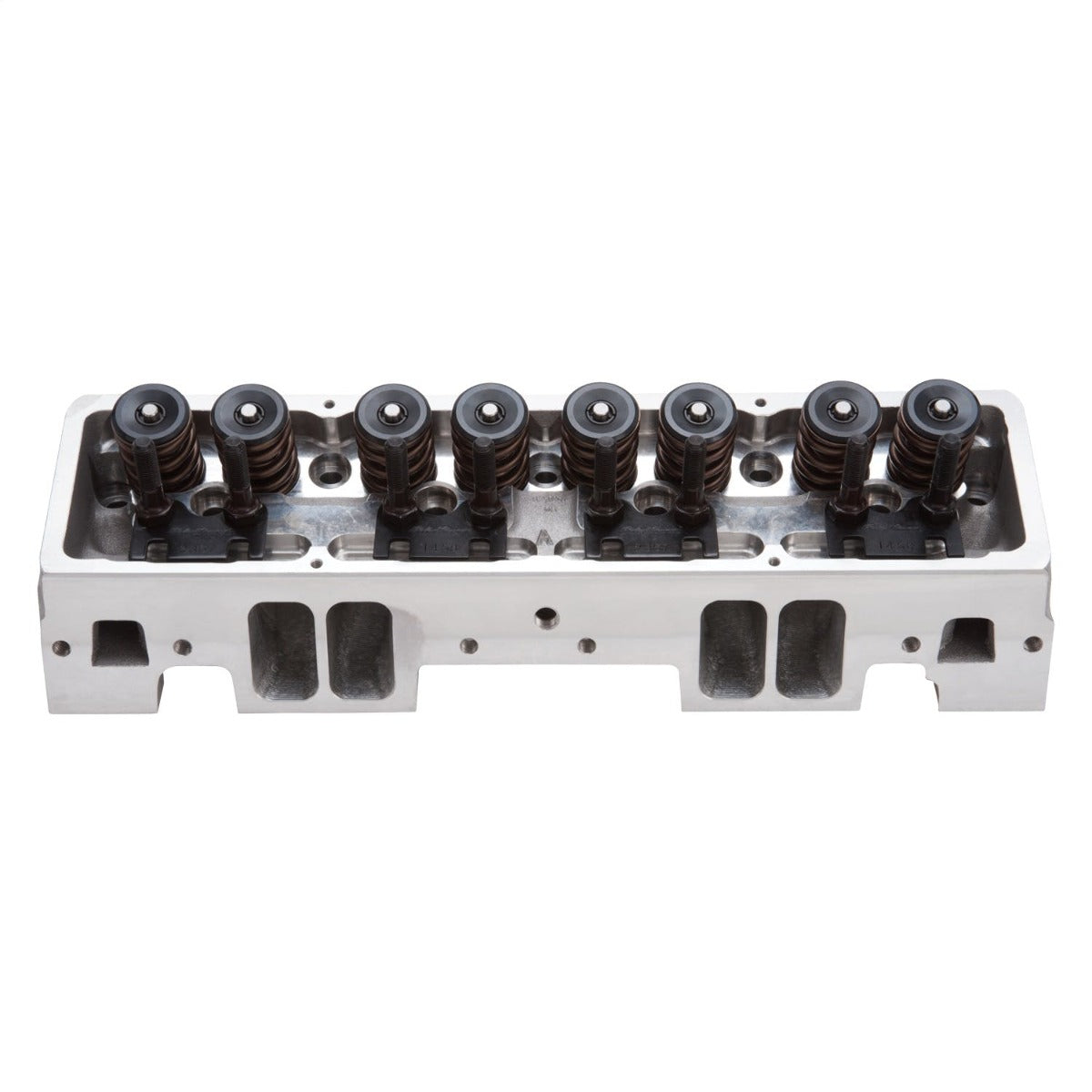

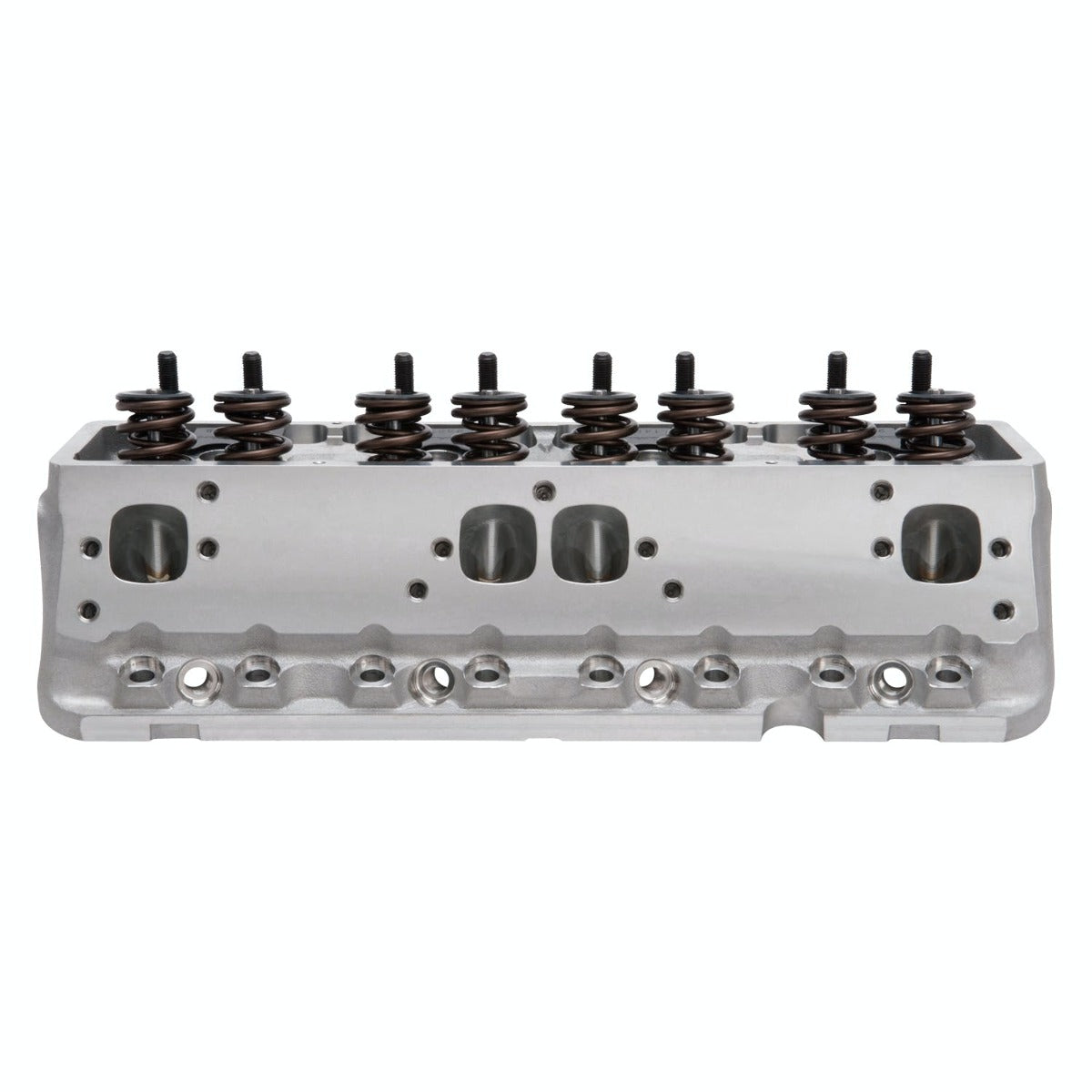

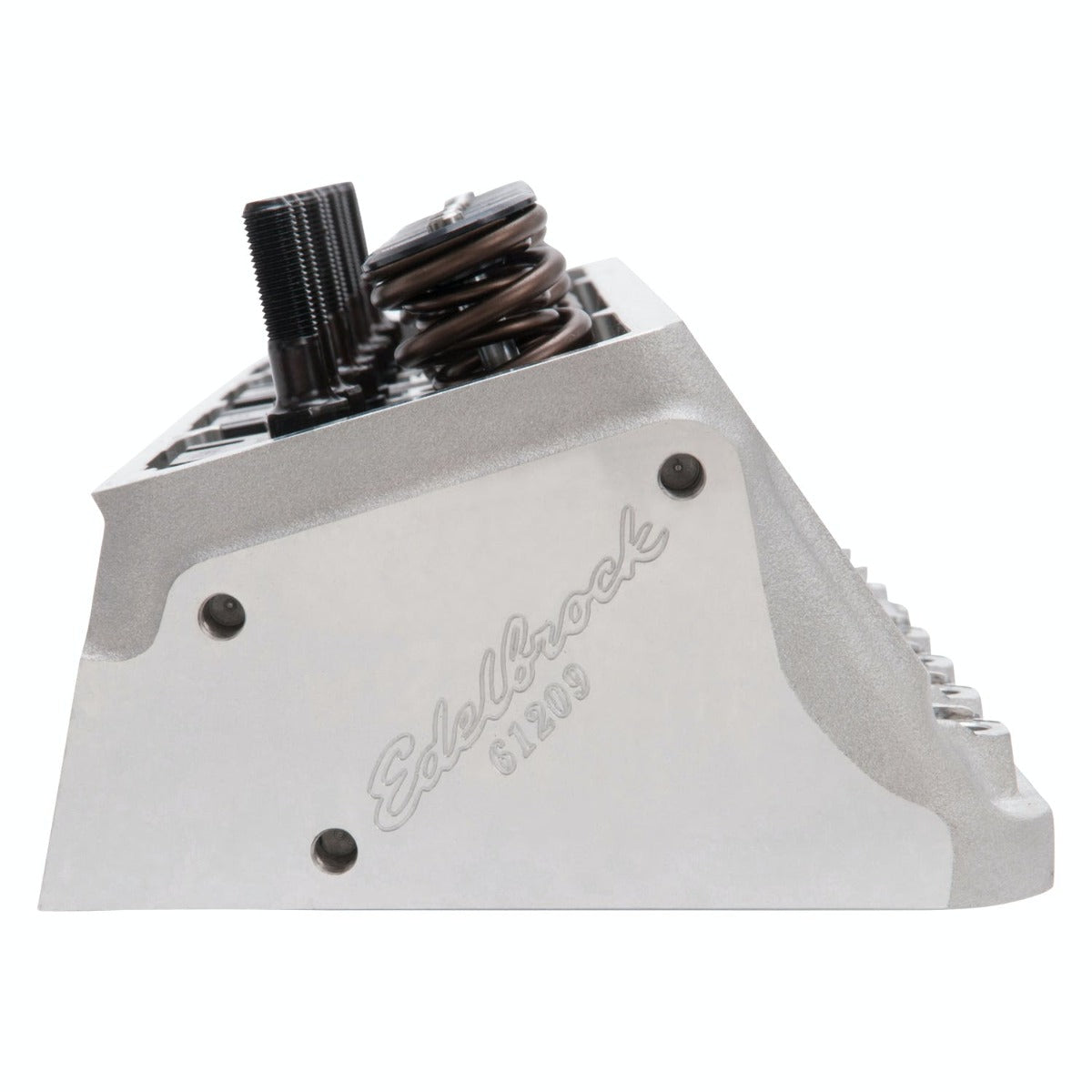

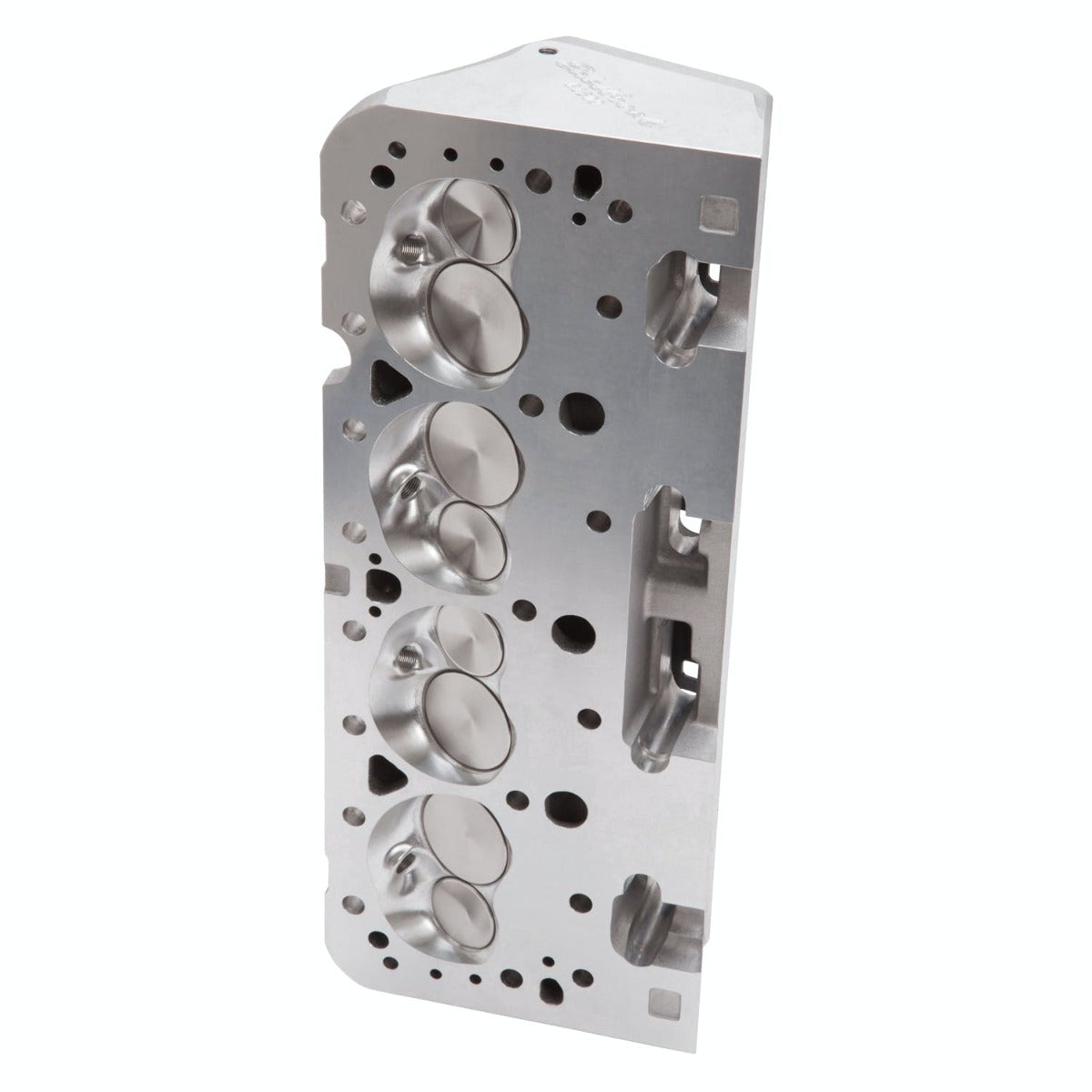

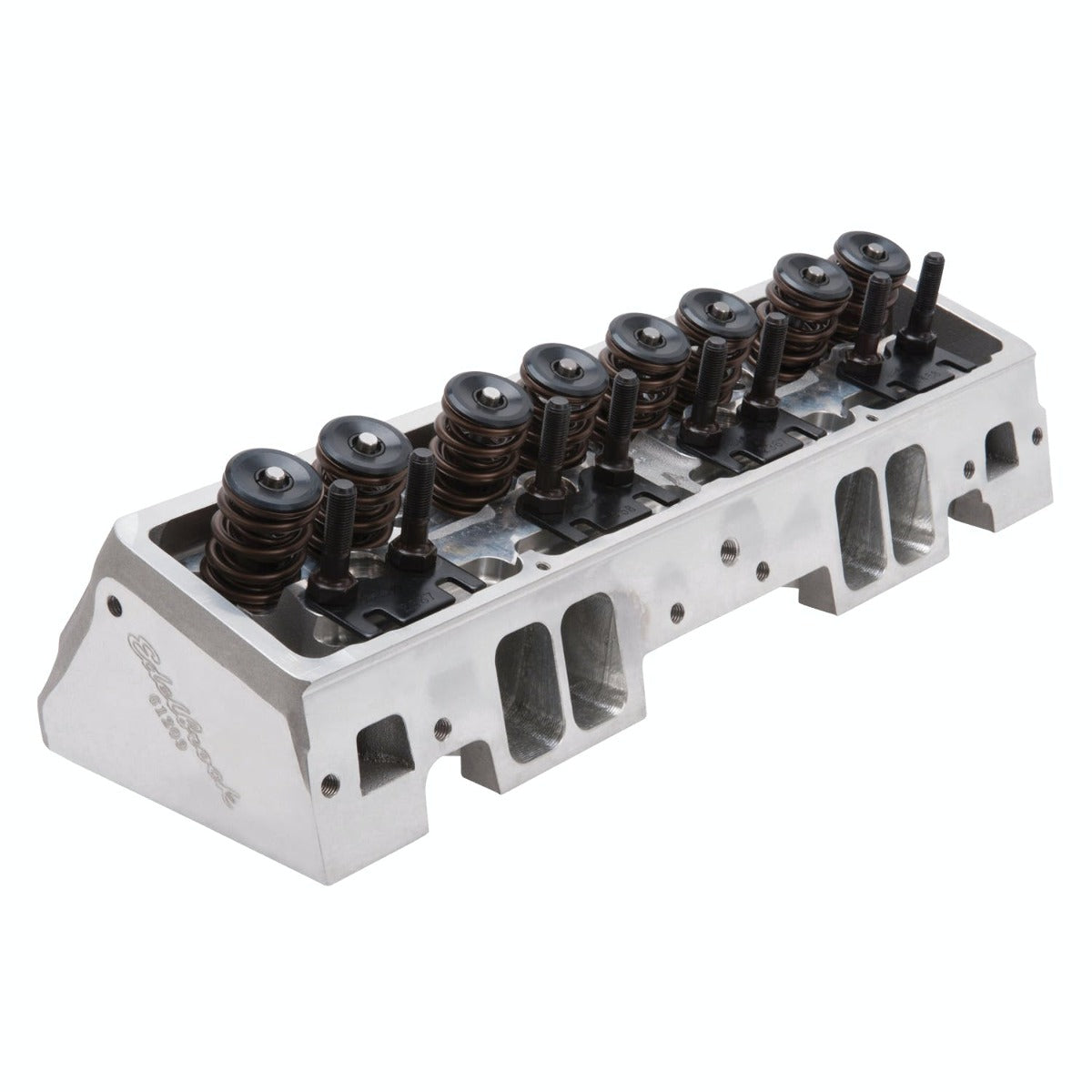

The Edelbrock part #61209 SB Chevy E-CNC 225 cylinder heads offer the ultimate performance. These cylinder heads are fully CNC ported for maximum horsepower and torque, making them ideal for high-performance's street and racing applications
The Edelbrock part #61209 Small Block Chevy E-CNC 225 cylinder head offers the ultimate performance. This cylinder head is fully CNC ported for maximum horsepower and torque, making them ideal for high-performance's street and racing applications. They also feature high-quality lightweight valve springs and heavy duty hardware for maximum lift. E-CNC S/B CHEVY FEATURES: - Features fully CNC machined intake ports, combustion chambers and exhaust ports for improved performance - Maintains the stock 23deg valve angle and intake flange bolt pattern for use with 1986 and earlier intake manifolds - Delivers up to 30-60 horsepower over Performer RPM cylinder head - #61205 & #61209 features 7/16" studs and angled spark plugs - Ideal for high Performance's street and racing applications
The Edelbrock part #61209 Small Block Chevy E-CNC 225 cylinder head offers the ultimate performance. This cylinder head is fully CNC ported for maximum horsepower and torque, making them ideal for high-performance's street and racing applications. They also feature high-quality lightweight valve springs and heavy duty hardware for maximum lift. E-CNC S/B CHEVY FEATURES: - Features fully CNC machined intake ports, combustion chambers and exhaust ports for improved performance - Maintains the stock 23deg valve angle and intake flange bolt pattern for use with 1986 and earlier intake manifolds - Delivers up to 30-60 horsepower over Performer RPM cylinder head - #61205 & #61209 features 7/16" studs and angled spark plugs - Ideal for high Performance's street and racing applications
- Fully CNC In-Chamber And Runners
- 68cc Chamber Volume
- 2.10 in. Intake/1.60 in. Exhaust Valves
- 225cc Intake Port Volume
- Heads Feature 7/16 in. Studs And Angled Spark Plugs
- Made In The U.S.A. For The Best Quality In The Market
Application Summary:
| Year | Make/Model |
|---|---|
| 1959 | Chevrolet 3B |
| 1959 | Chevrolet 3C |
| 1959 | Chevrolet 3D |
| 1959 | Chevrolet 3E |
| 1959 | Chevrolet 3F |
| 1959 | Chevrolet 3G |
| 1955-1975 | Chevrolet Bel Air |
| 1981 | Chevrolet Bel Air |
| 1958-1972 | Chevrolet Biscayne |
| 1969-1973 | Chevrolet Blazer |
| 1958-1961 | Chevrolet Brookwood |
| 1969-1972 | Chevrolet Brookwood |
| 1975-1984 | Chevrolet C10 |
| 1960-1973 | Chevrolet C10 Pickup |
| 1967-1973 | Chevrolet C10 Suburban |
| 1975-1984 | Chevrolet C10 Suburban |
| 1975-1984 | Chevrolet C20 |
| 1960-1973 | Chevrolet C20 Pickup |
| 1967-1973 | Chevrolet C20 Suburban |
| 1975-1984 | Chevrolet C20 Suburban |
| 1975-1984 | Chevrolet C30 |
| 1960-1973 | Chevrolet C30 Pickup |
| 1967-1973 | Chevrolet Camaro |
| 1975-1984 | Chevrolet Camaro |
| 1966-1984 | Chevrolet Caprice |
| 1964-1973 | Chevrolet Chevelle |
| 1963-1968 | Chevrolet Chevy II |
| 1955-1968 | Chevrolet Corvette |
| 1975-1982 | Chevrolet Corvette |
| 1984 | Chevrolet Corvette |
| 1957-1958 | Chevrolet Del Ray |
| 1959-1960 | Chevrolet El Camino |
| 1964-1984 | Chevrolet El Camino |
| 1969-1970 | Chevrolet Estate |
| 1975-1984 | Chevrolet G10 |
| 1968-1973 | Chevrolet G10 Van |
| 1975-1984 | Chevrolet G20 |
| 1967-1973 | Chevrolet G20 Van |
| 1975-1984 | Chevrolet G30 |
| 1958-1984 | Chevrolet Impala |
| 1975-1984 | Chevrolet K10 |
| 1960-1973 | Chevrolet K10 Pickup |
| 1967-1973 | Chevrolet K10 Suburban |
| 1975-1984 | Chevrolet K10 Suburban |
| 1975-1984 | Chevrolet K20 |
| 1967 | Chevrolet K20 Panel |
| 1960-1973 | Chevrolet K20 Pickup |
| 1967-1973 | Chevrolet K20 Suburban |
| 1975-1984 | Chevrolet K20 Suburban |
| 1977-1984 | Chevrolet K30 |
| 1968-1973 | Chevrolet K30 Pickup |
| 1975-1984 | Chevrolet K5 Blazer |
| 1959-1961 | Chevrolet Kingswood |
| 1969-1972 | Chevrolet Kingswood |
| 1973-1976 | Chevrolet Laguna |
| 1964-1967 | Chevrolet Malibu |
| 1973-1983 | Chevrolet Malibu |
| 1970-1984 | Chevrolet Monte Carlo |
| 1975-1979 | Chevrolet Monza |
| 1955-1961 | Chevrolet Nomad |
| 1969-1973 | Chevrolet Nova |
| 1975-1979 | Chevrolet Nova |
| 1955 | Chevrolet One-Fifty Series |
| 1957 | Chevrolet One-Fifty Series |
| 1959-1961 | Chevrolet Parkwood |
| 1955-1958 | Chevrolet Sedan Delivery |
| 1960-1966 | Chevrolet Suburban |
| 1969-1972 | Chevrolet Townsman |
| 1955-1960 | Chevrolet Truck |
