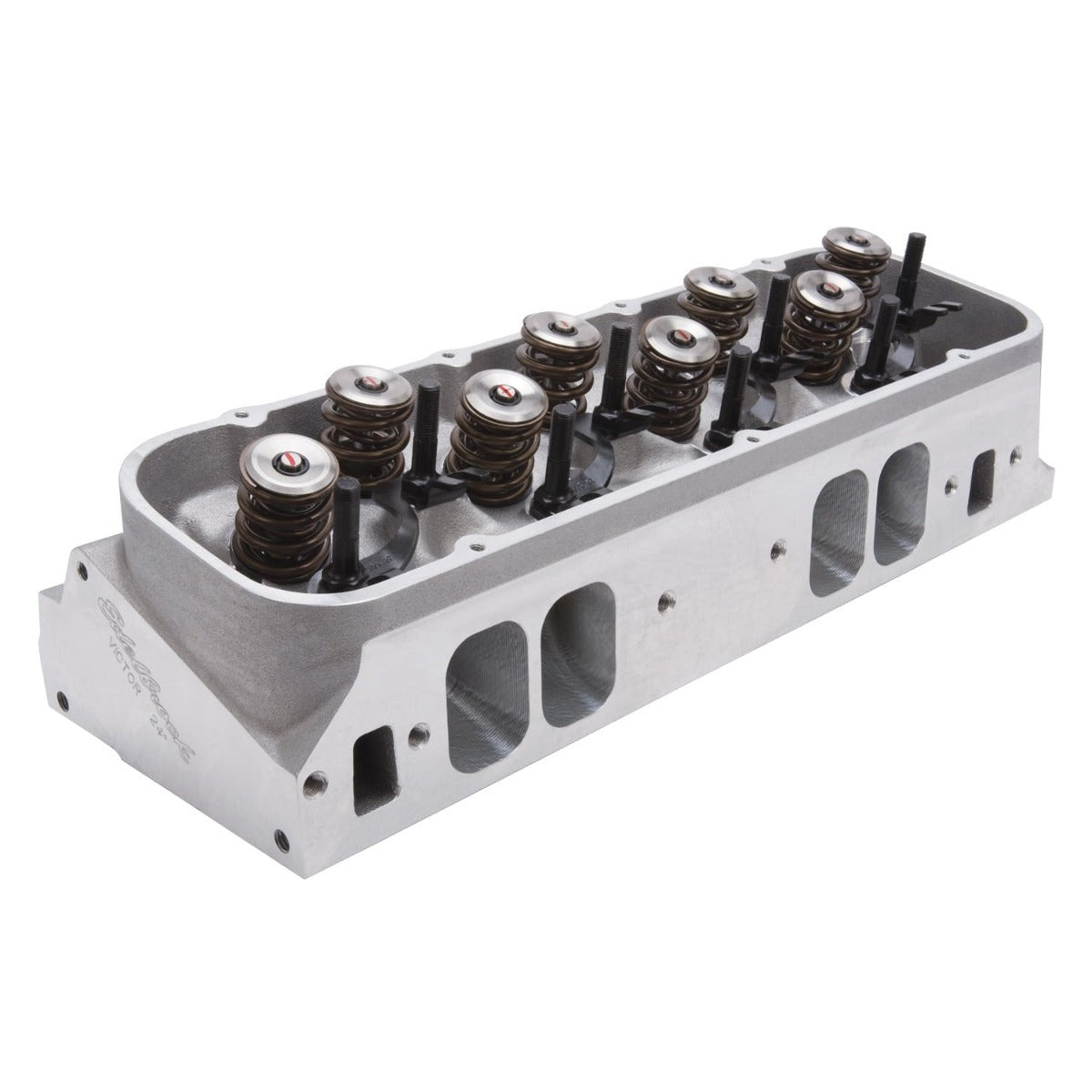

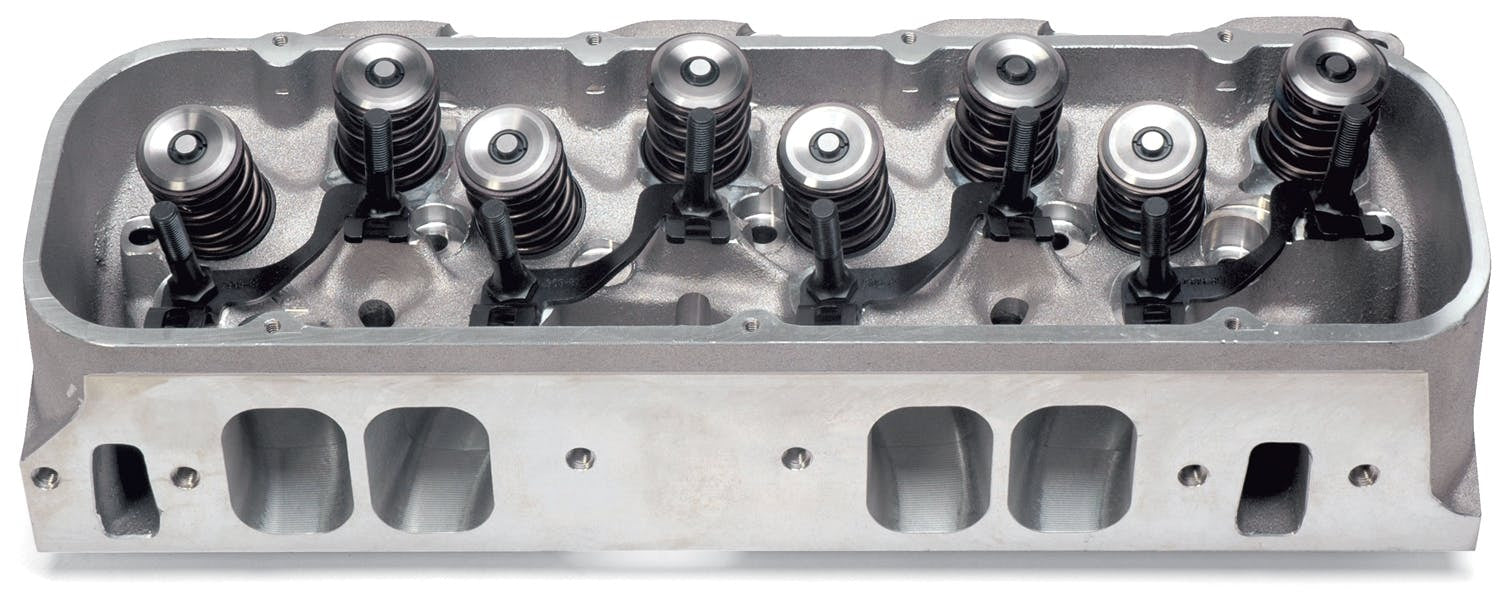

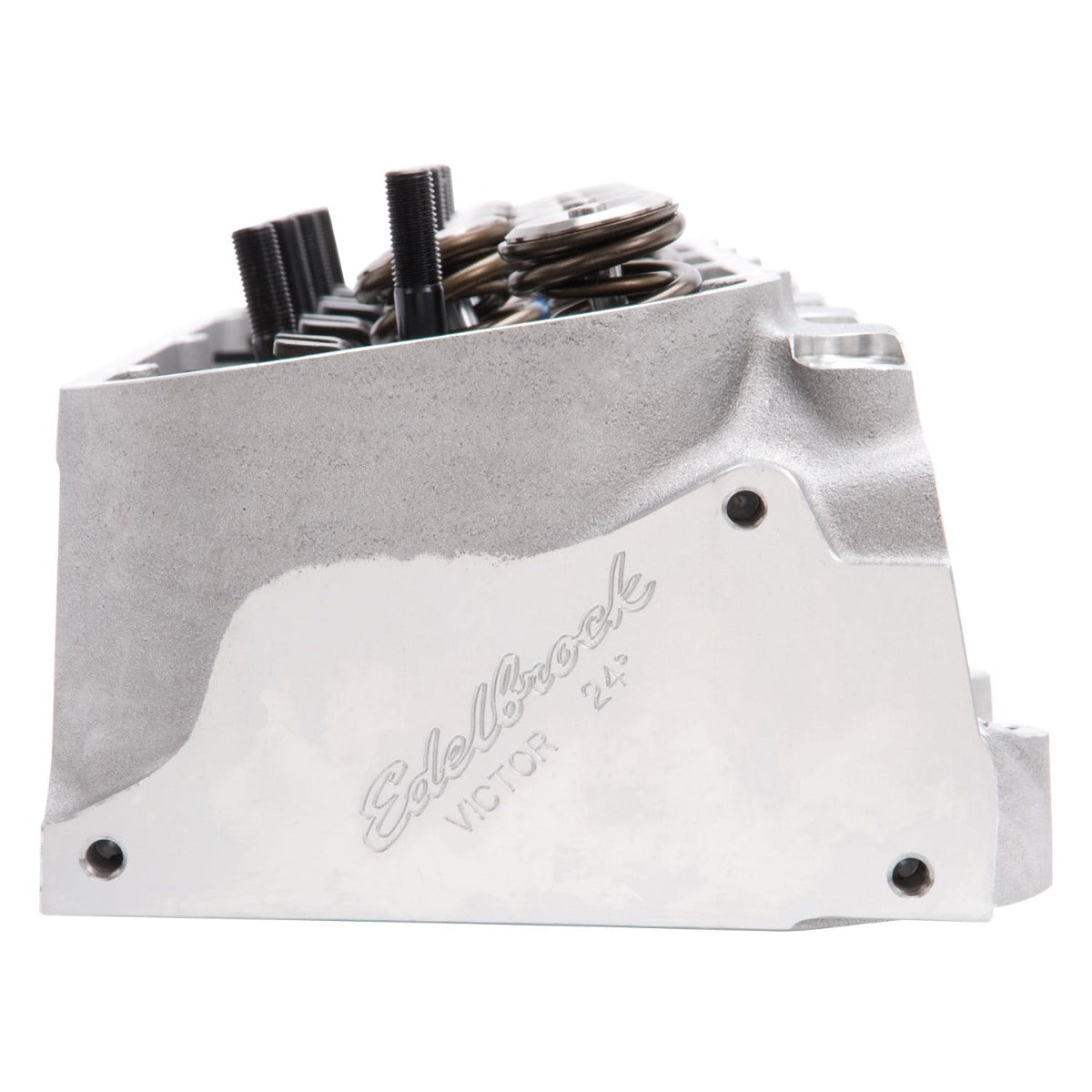

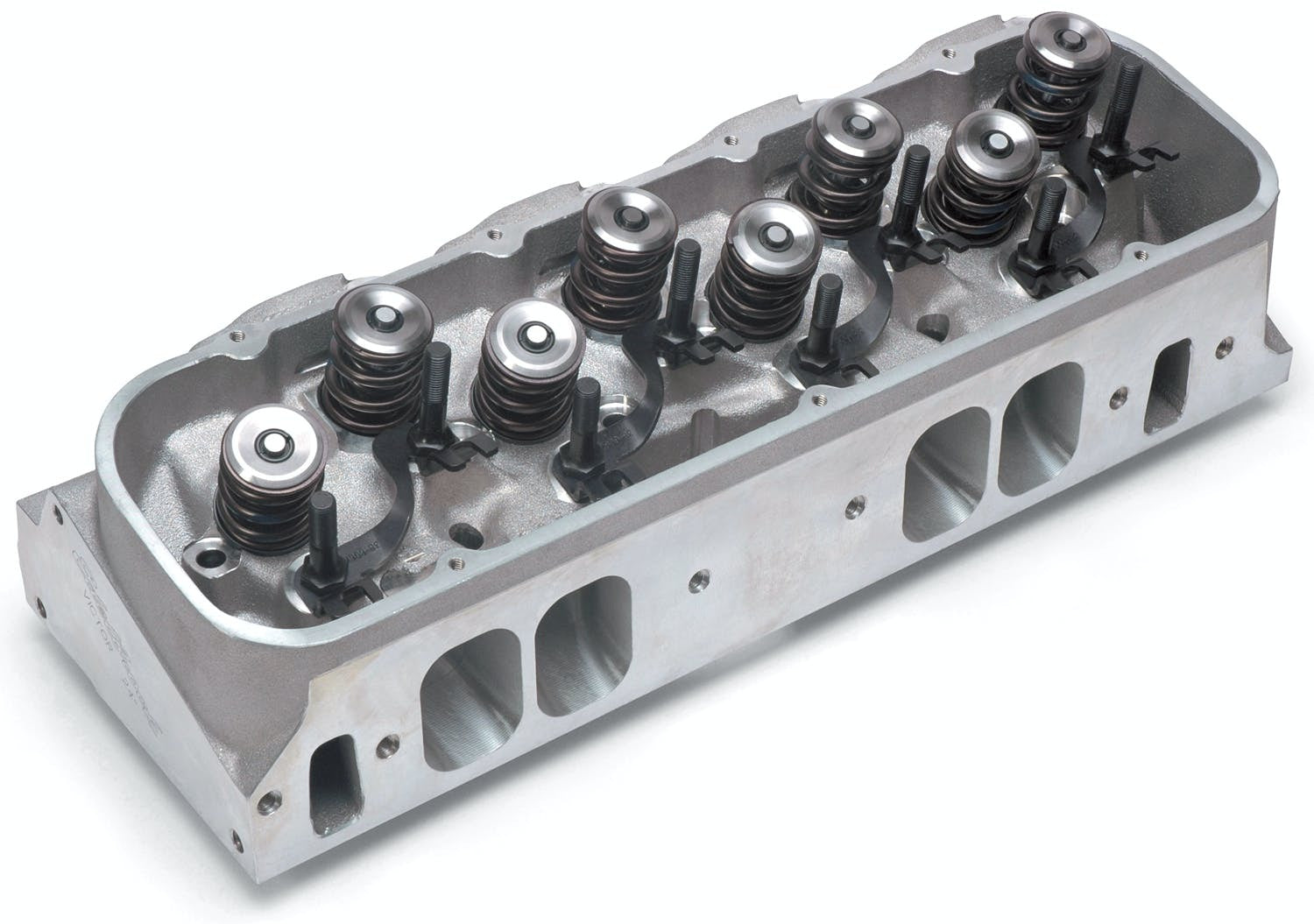

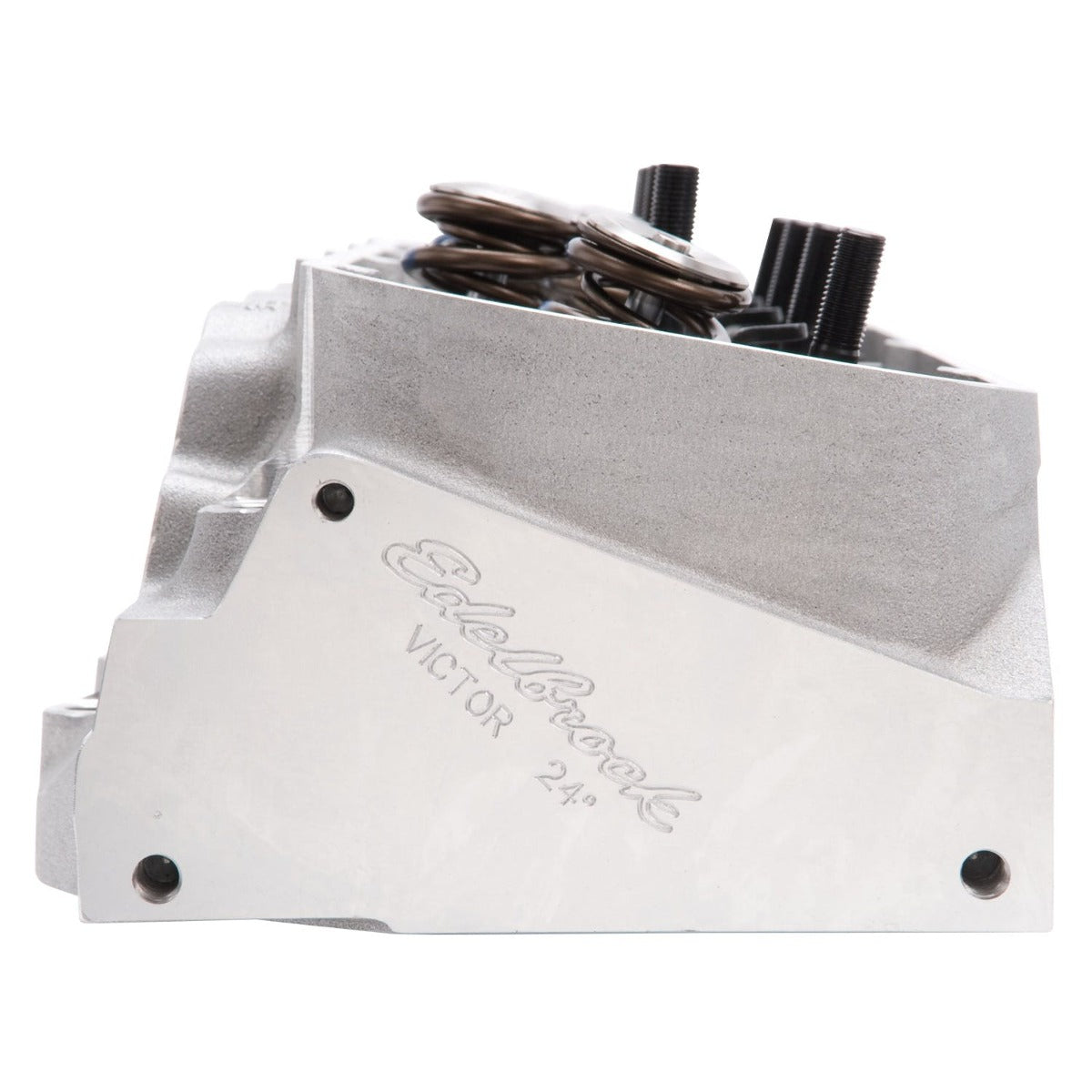

Edelbrock part #61409 Victor 24 Degree CNC rectangular port cylinder heads are designed for use with large cubic inch and/or high air demand Big Block Chevy engines with a minimum 4.47" diameter bore.

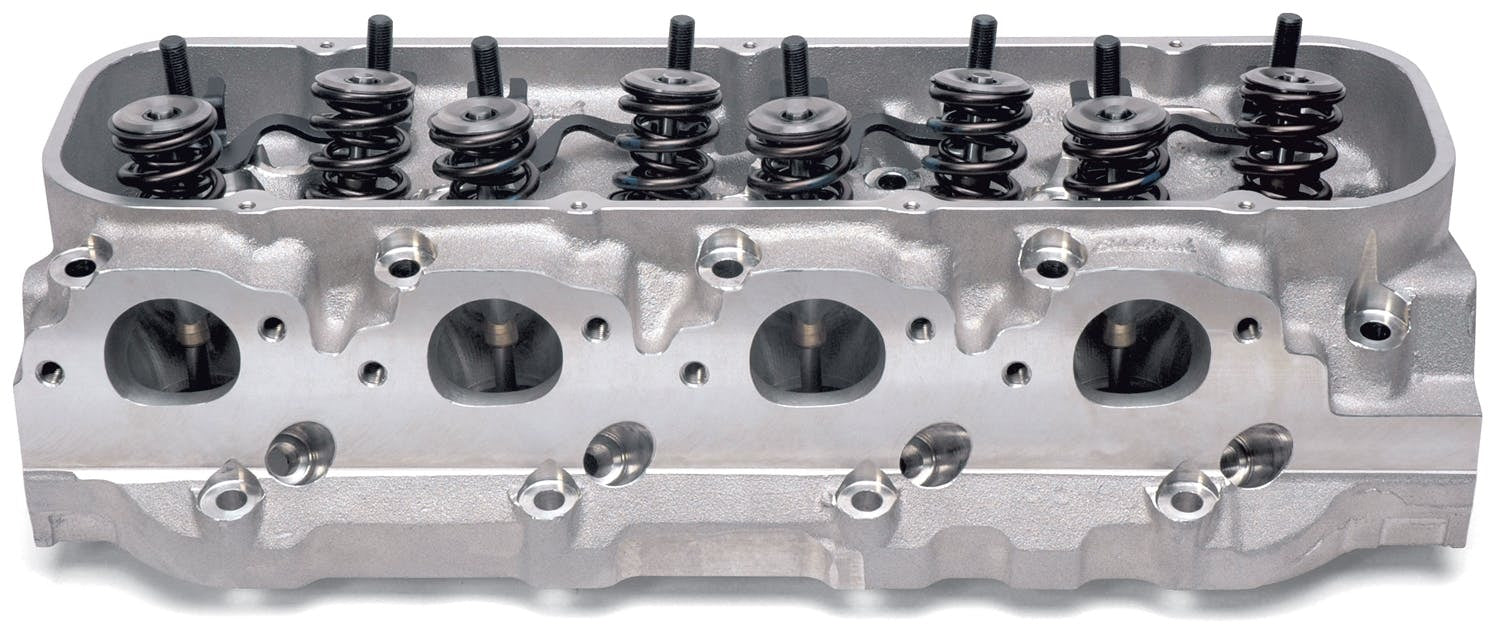

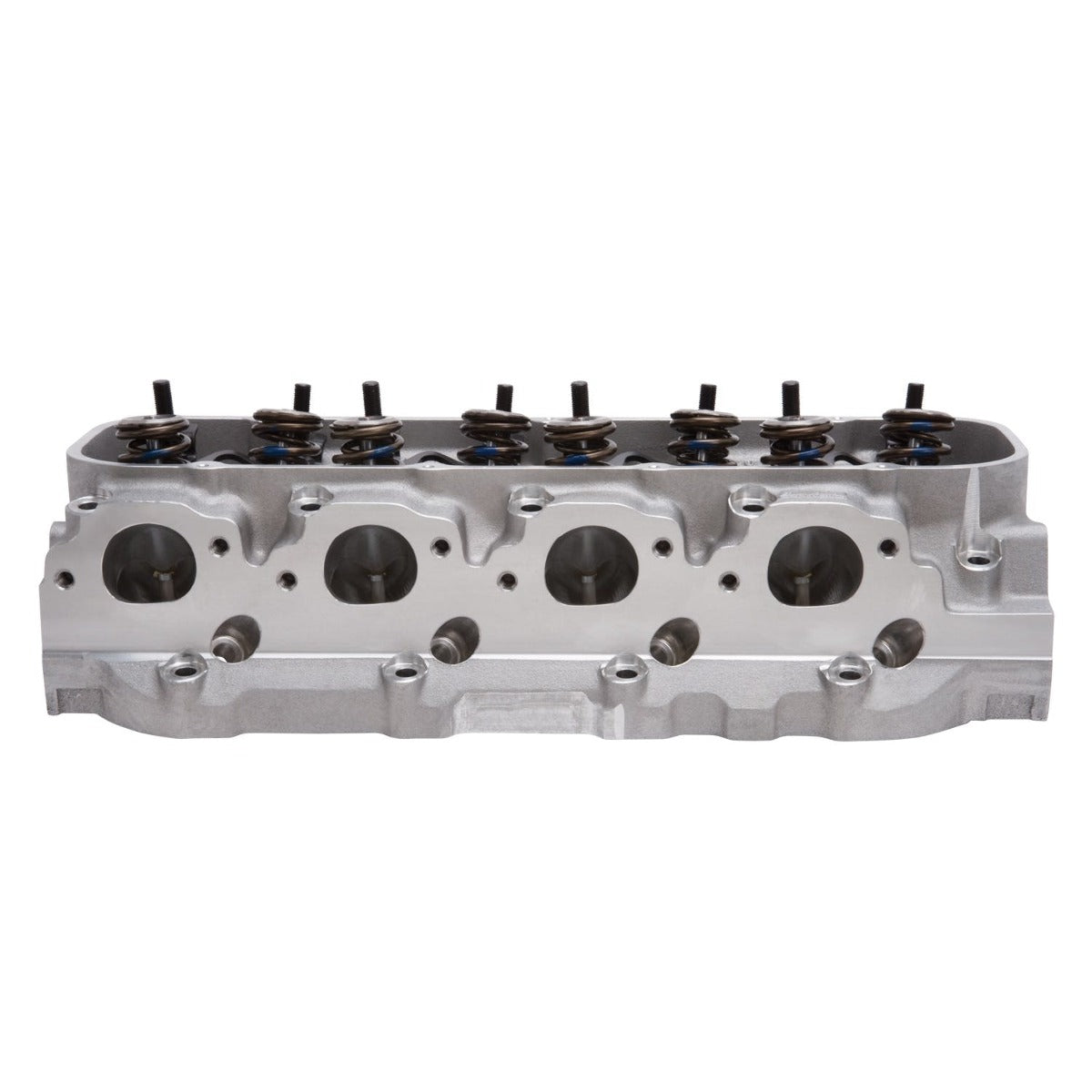

Edelbrock and Pat Musi Performance have combined efforts to produce the finest standard intake port location big-block Chevy head available. The Edelbrock #61409 Victor 24deg CNC cylinder head features an extra thick deck and extra material in the spring pockets for a heavy-duty casting that can be used with high-lift cam and heavy spring combinations. Edelbrock equips the complete cylinder head with Manley dual-spring valve springs and titanium retainers good for up to .880" lift. The port designs are large oval (367 lh / 377 rh) that produce impressive flow - out-of-the-box. The exhaust port exits are raised .750" to greatly improve exhaust flow and power. Off the shelf large oval-port intakes are available through Edelbrock.
- Designed By Pat Musi For Competition

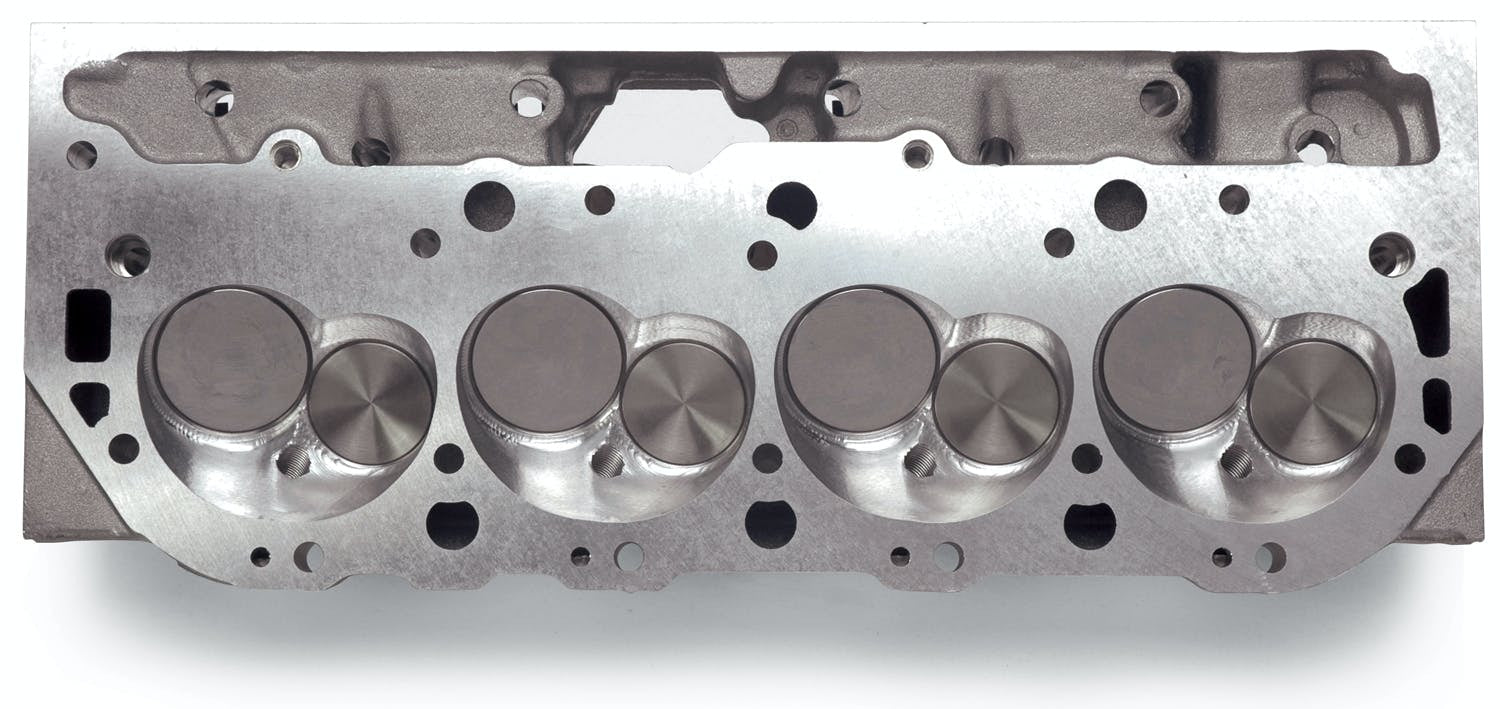

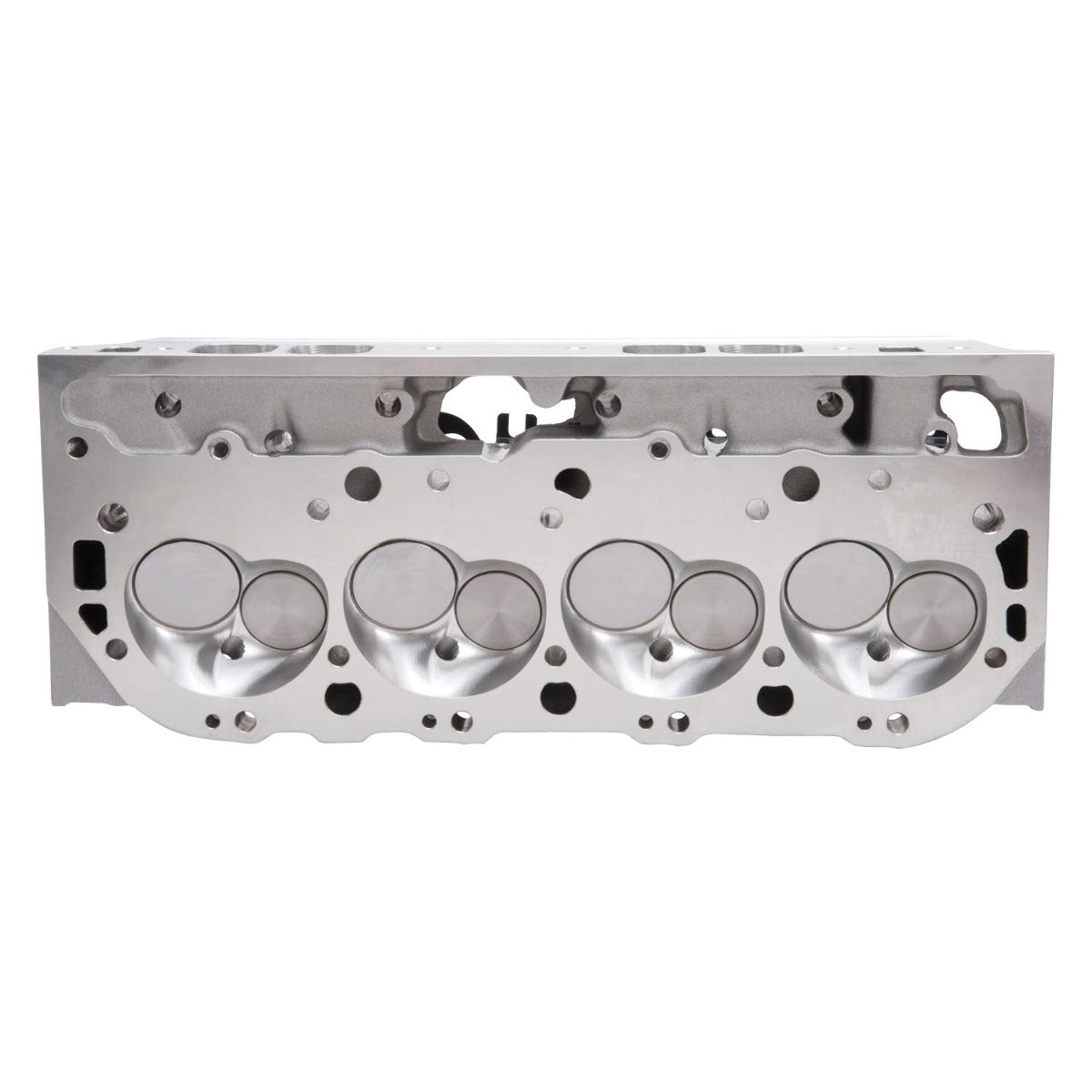

- 38cc Chamber Size
- Rolled Over Deck
- Altered Valve Locations
- Fully CNC Head Ported Intake Ports/Exhaust Throats
- Only Conventional Port Head Capable of 950+ HP
- 118cc Chamber
- 367cc-377cc Intake Port
Application Summary:
| Year |
Make/Model |
| Chevrolet:Big-Block |
Race:- |
Additional Information:
