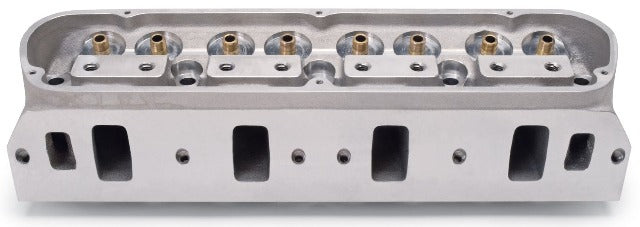

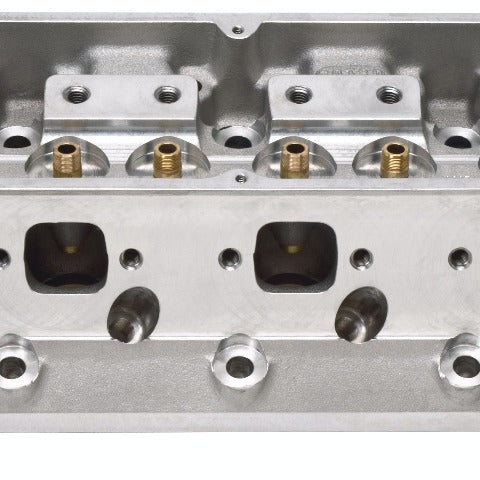

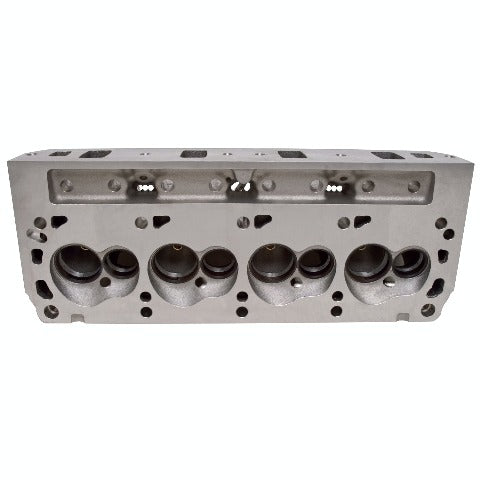

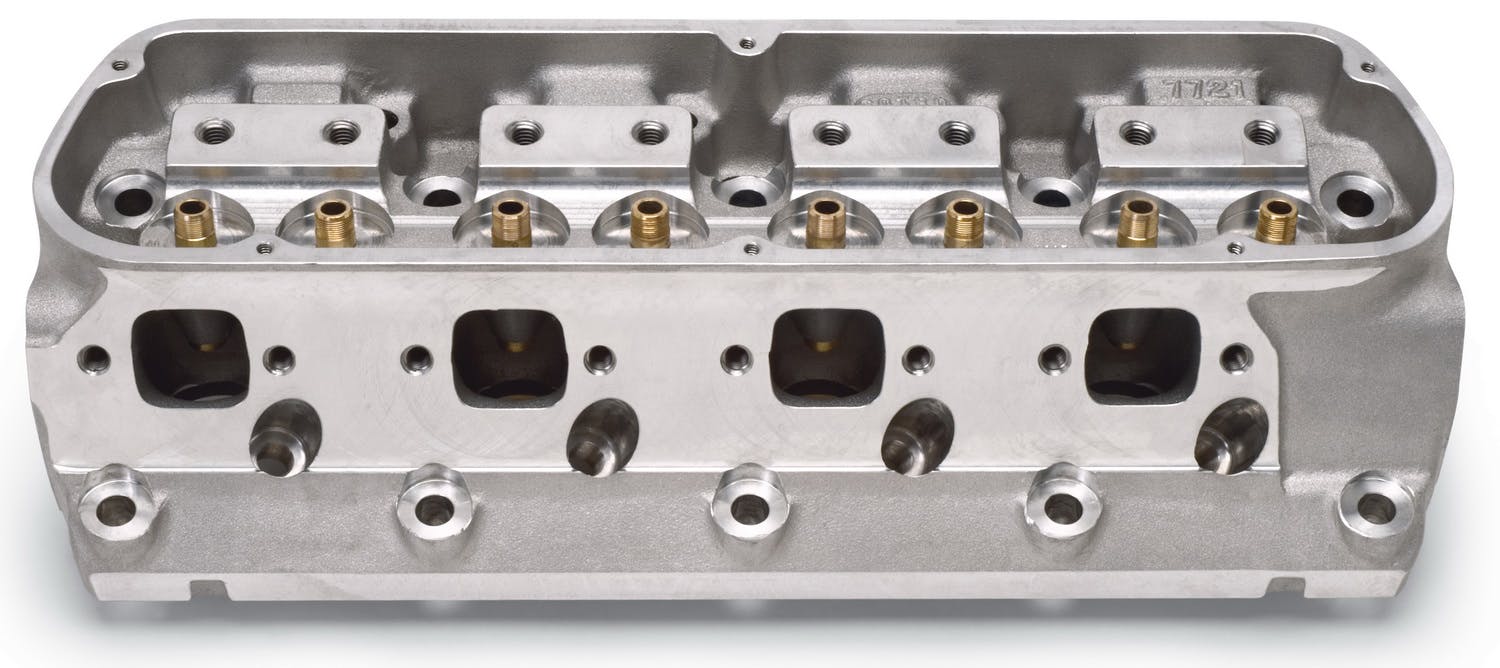

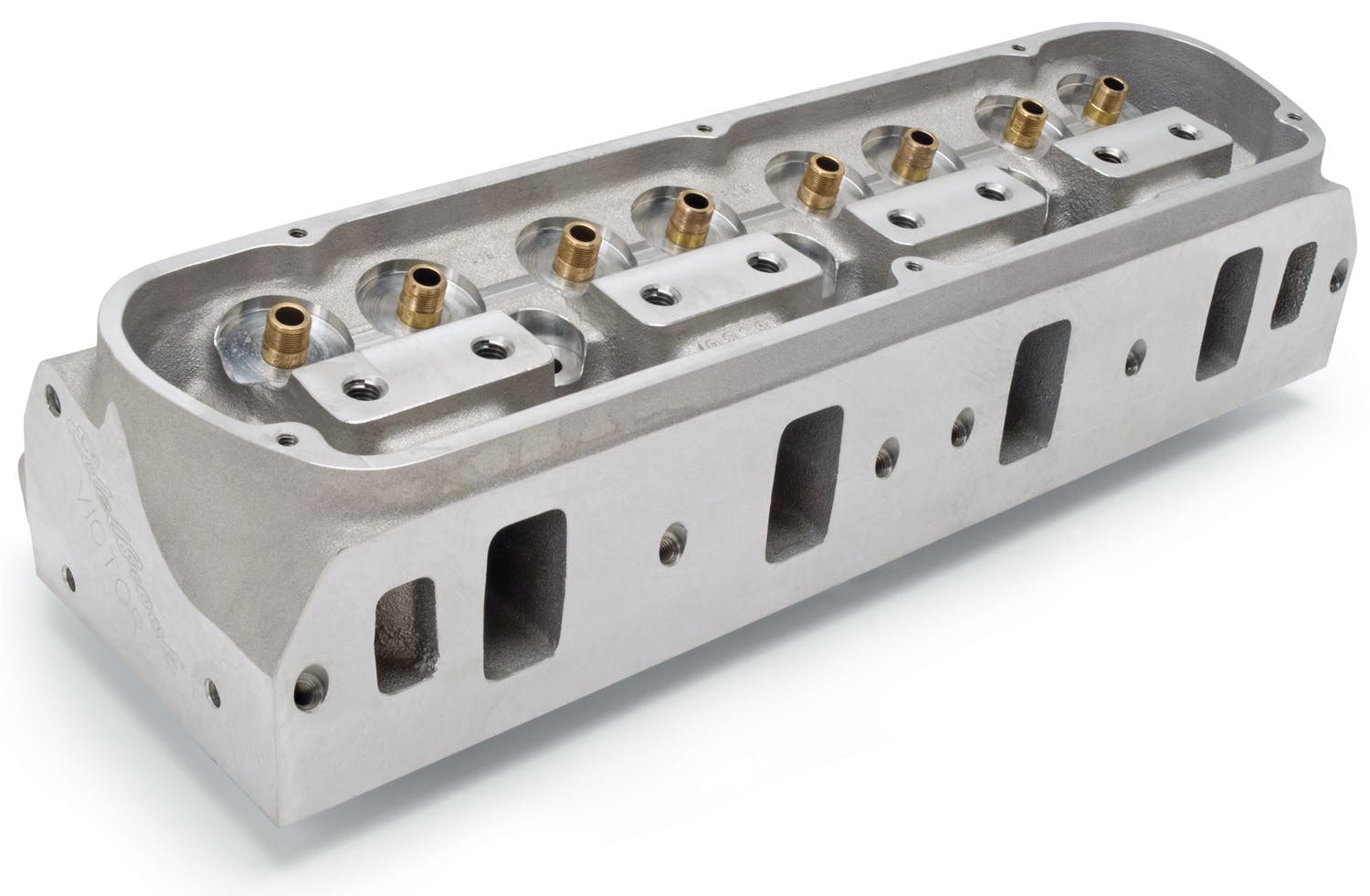

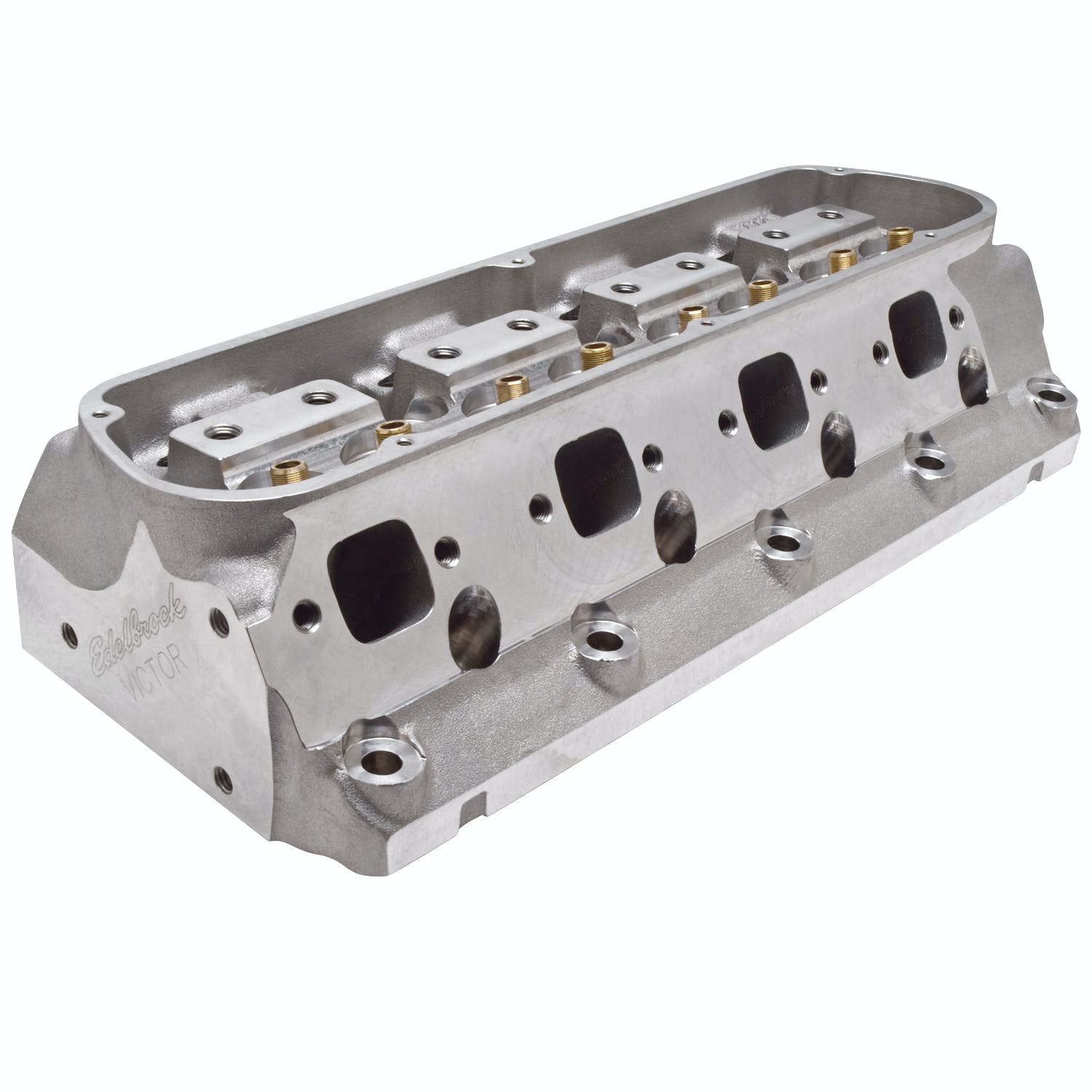

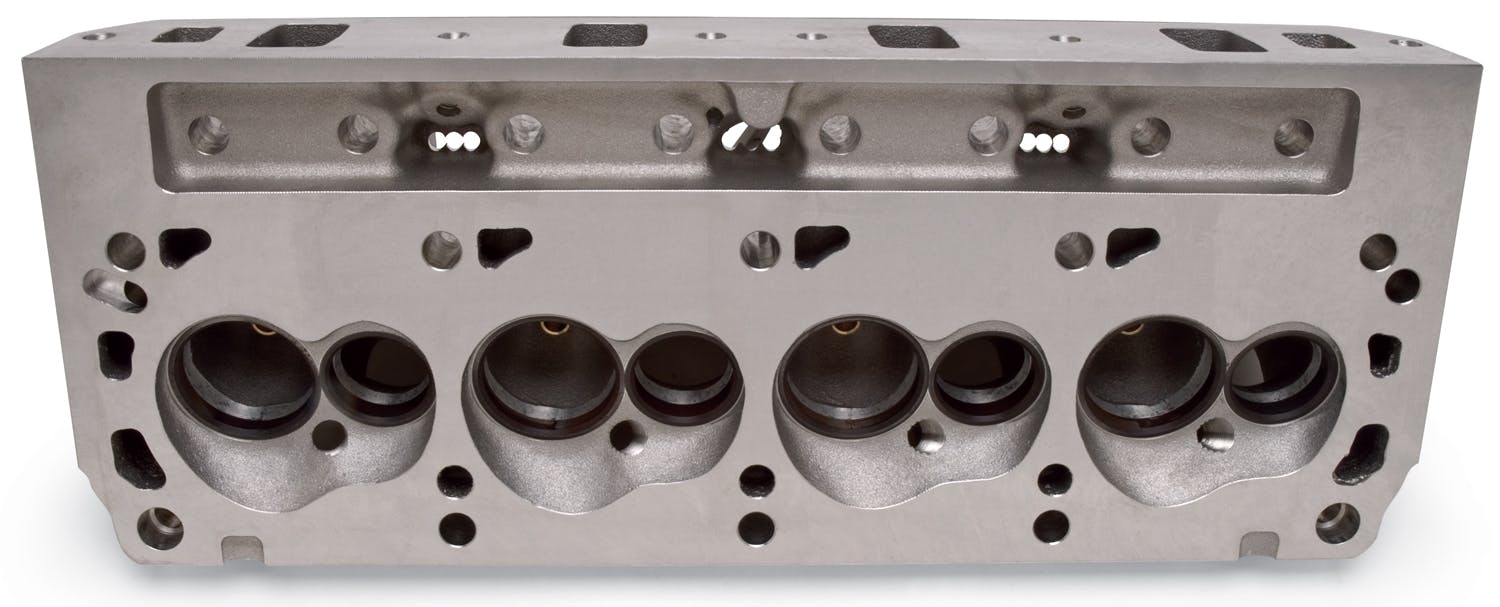

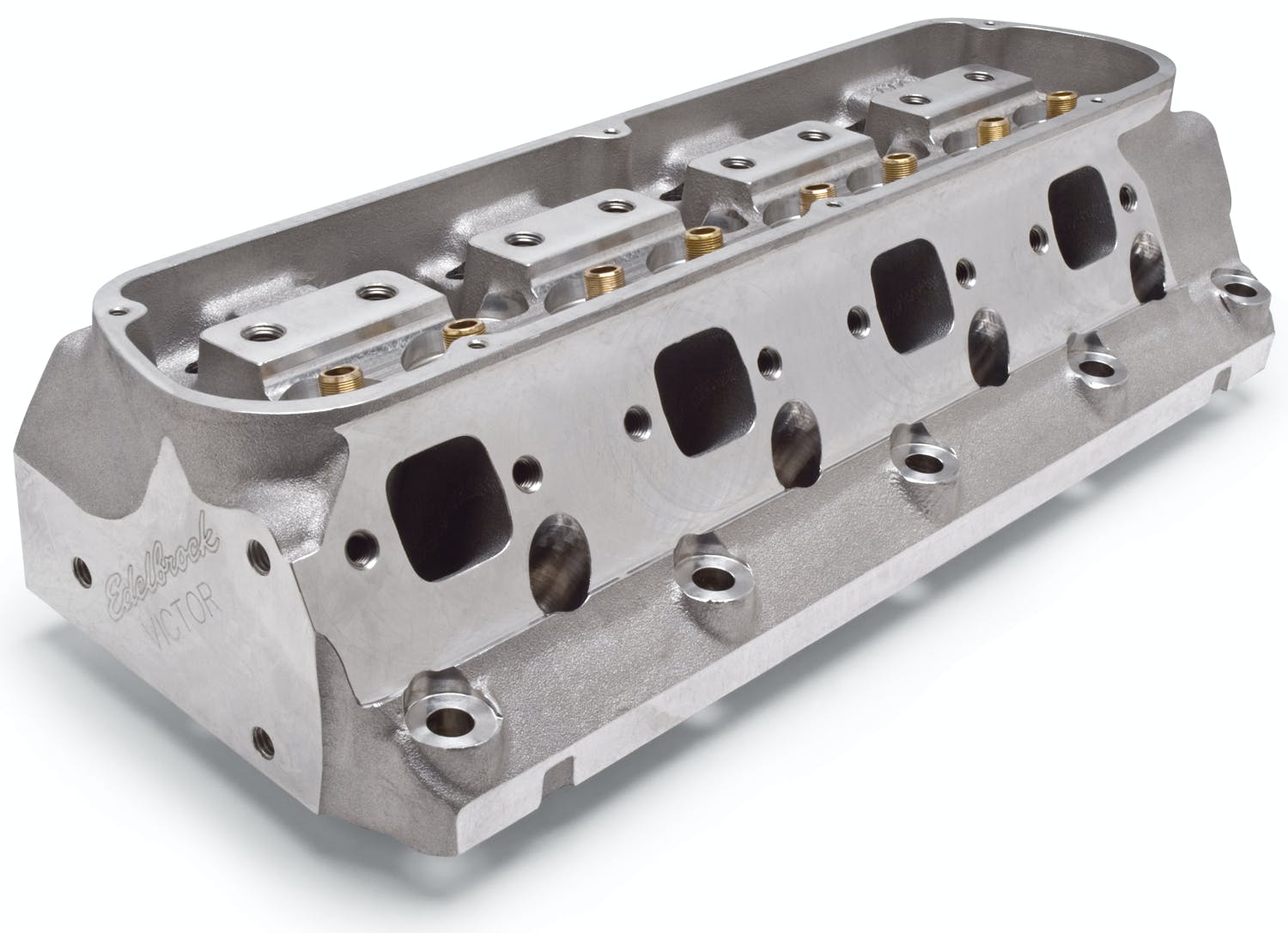

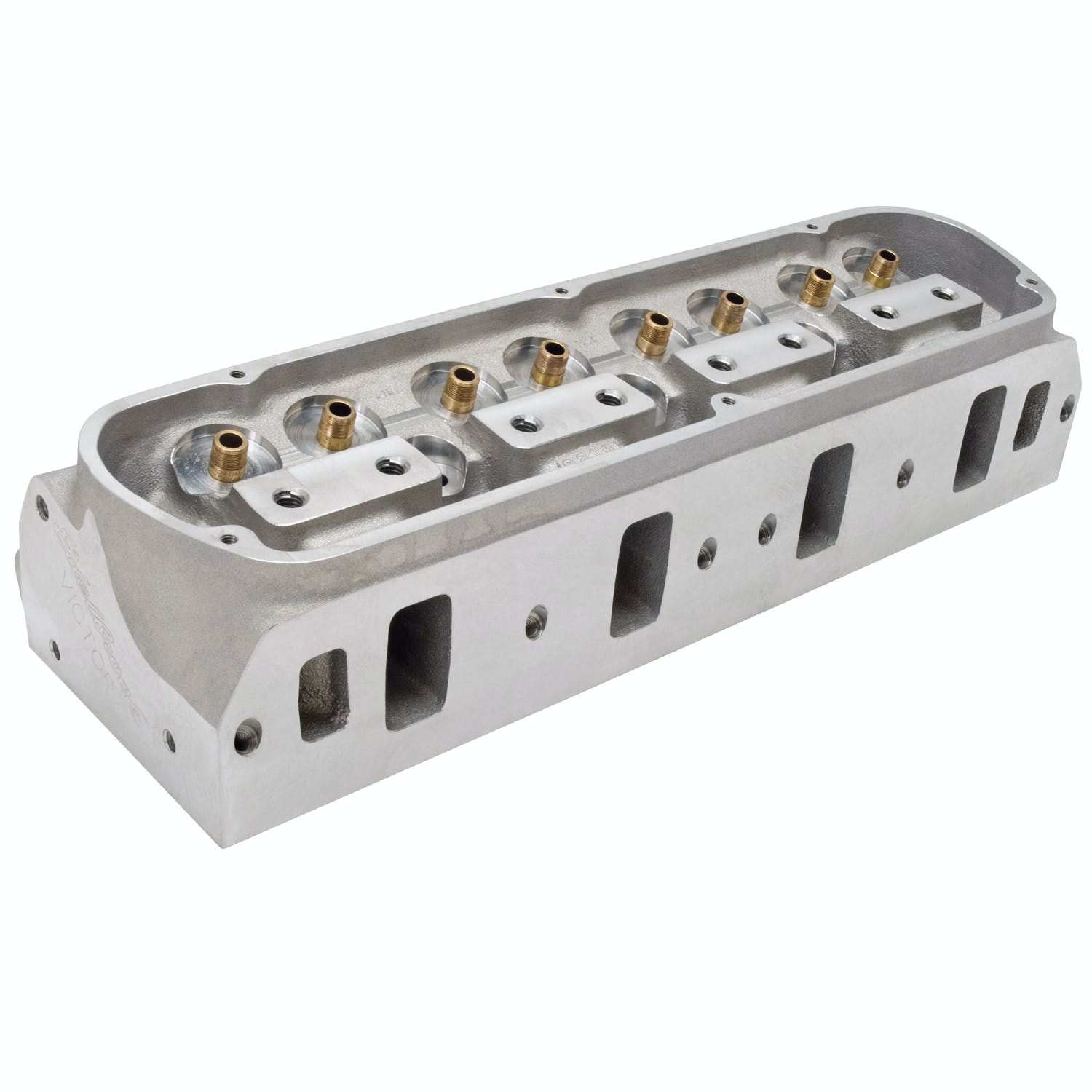

Edelbrock part #77219 Victor Semi-Finished 15 Degree is a bare cylinder head designed for S/B Ford 289-351W engines. The inline valve configuration features a 15 degree valve angle and a modern combustion chamber.
The Edelbrock part #77219 Victor 15 Deg Small Block Ford 240cc cylinder head is designed for maximum effort competition racing on 289 - 351+ cubic inch based engines. The inline valve configuration features a 15 Deg valve angle and a modern combustion chamber design allows for high compression without large piston domes. The intake ports are raised .380"; however the intake flange has been extended to maintain proper port alignment with standard intake manifolds. The exhaust ports are patterned with a 2.50" spacing and raised .520" for high flow potential. This head requires shaft mounted rockers; please contact Jesel or T&D for details. Features include 47cc combustion chambers, ductile iron interlocking valve seats, manganese-bronze valve guides and requires professional preparation. Edelbrock recommends 2.125" intake valves and 1.625" exhaust valves with 5.45" overall length.
- Designed For Ultra High Performance
- Cast With Extra Material In The Ports And Chambers
- Extended Intake Flange NASCAR Chamber Size
- Intake Ports Are Raised 0.375 in.
- Intake Port Measures 2.10 Tall 1.16 inches Wide
- NASCAR Intake Ports are As-Cast
- Max Valve Size is 2.125 in. Int. And 1.625 in. Exh.
Application Summary:
| Year |
Make/Model |
| Ford:Small-Block:289 |
(4.7L)-351W (5.8L) |
