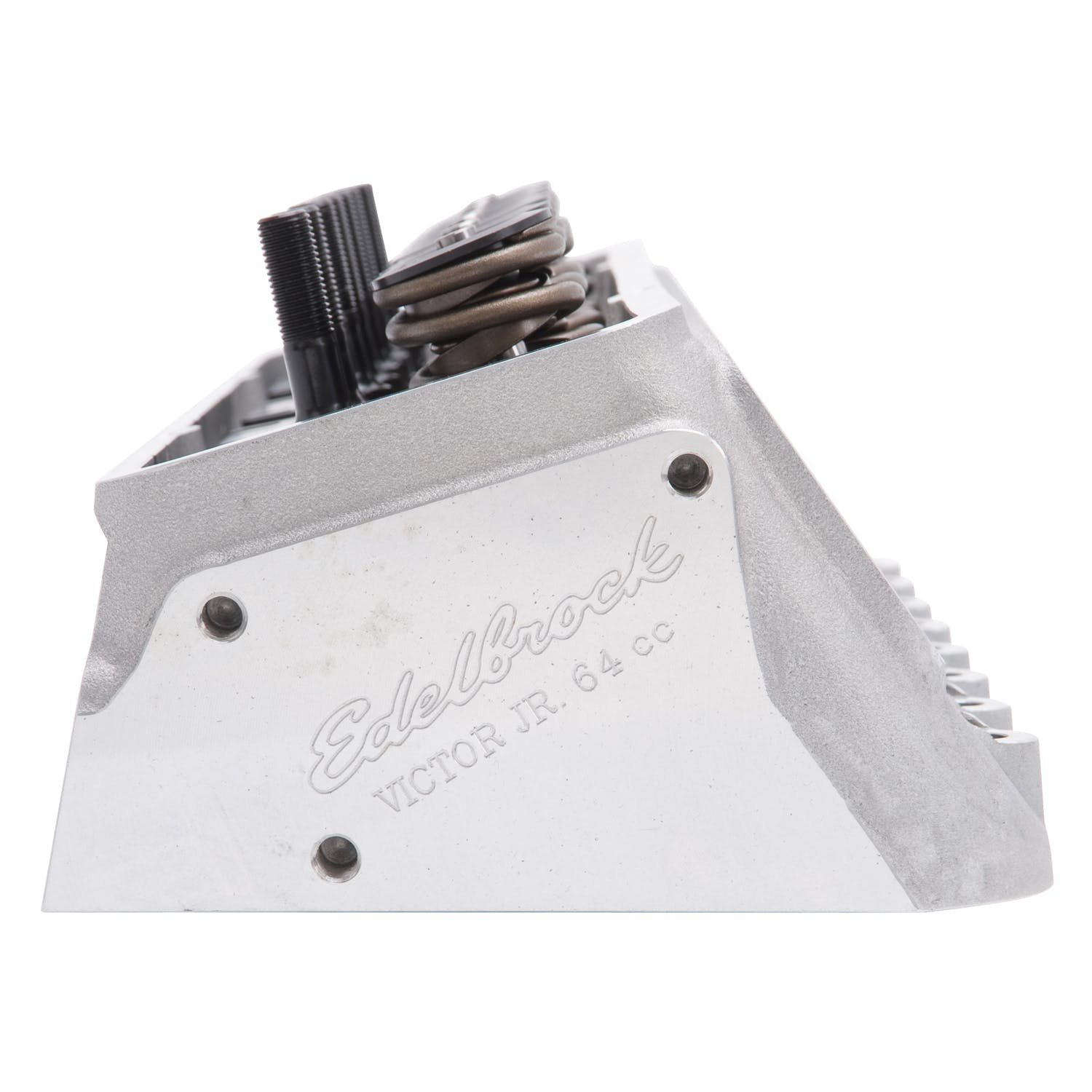

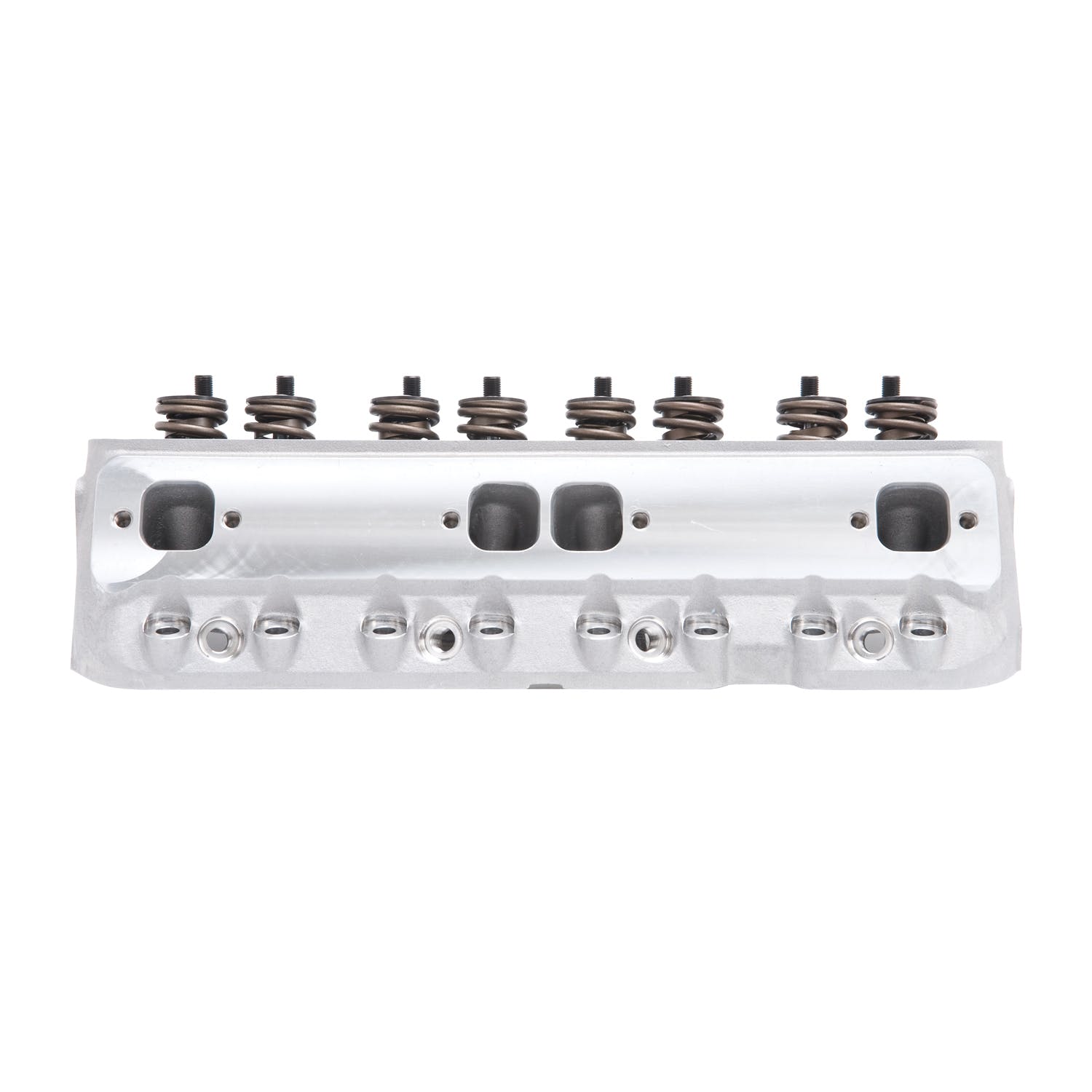

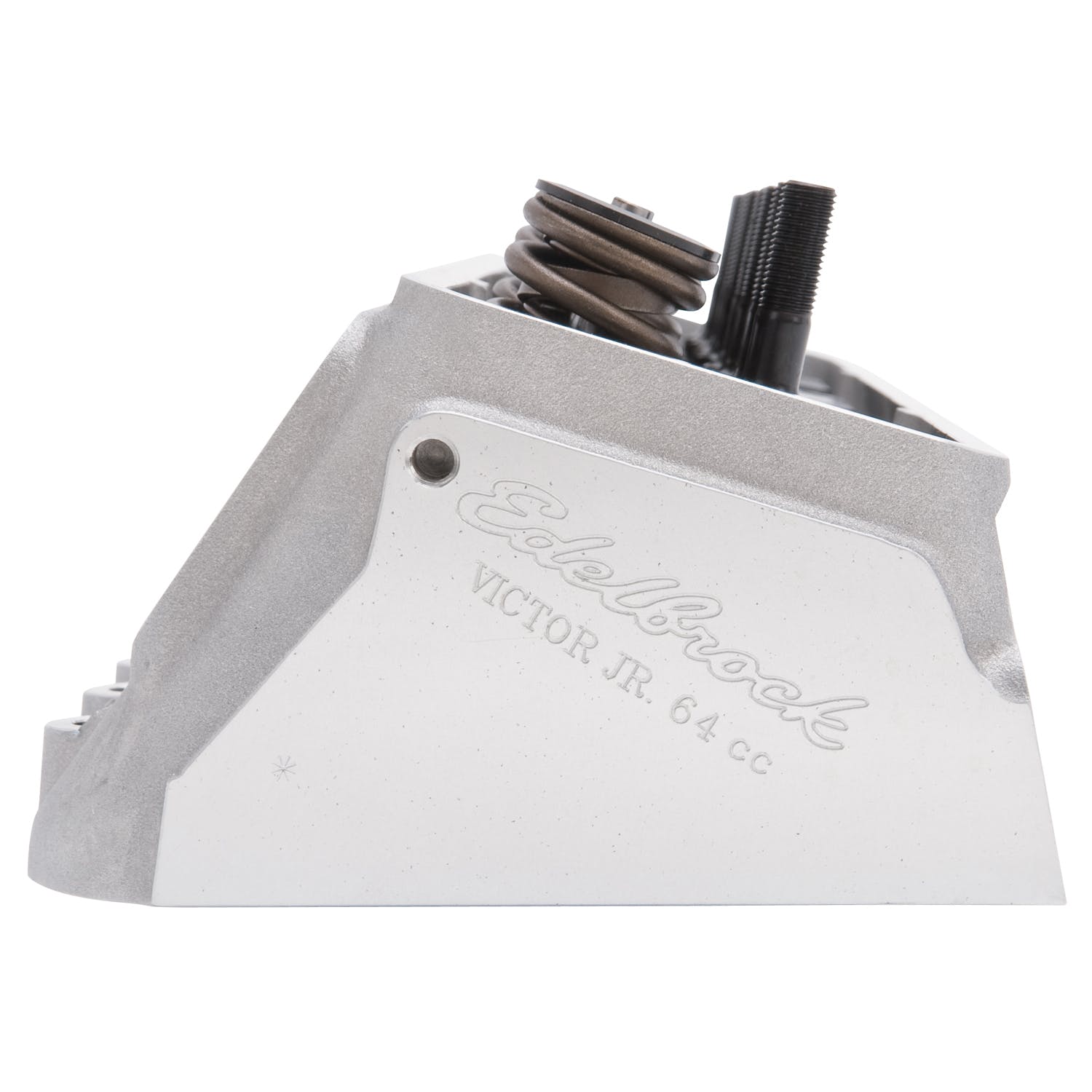

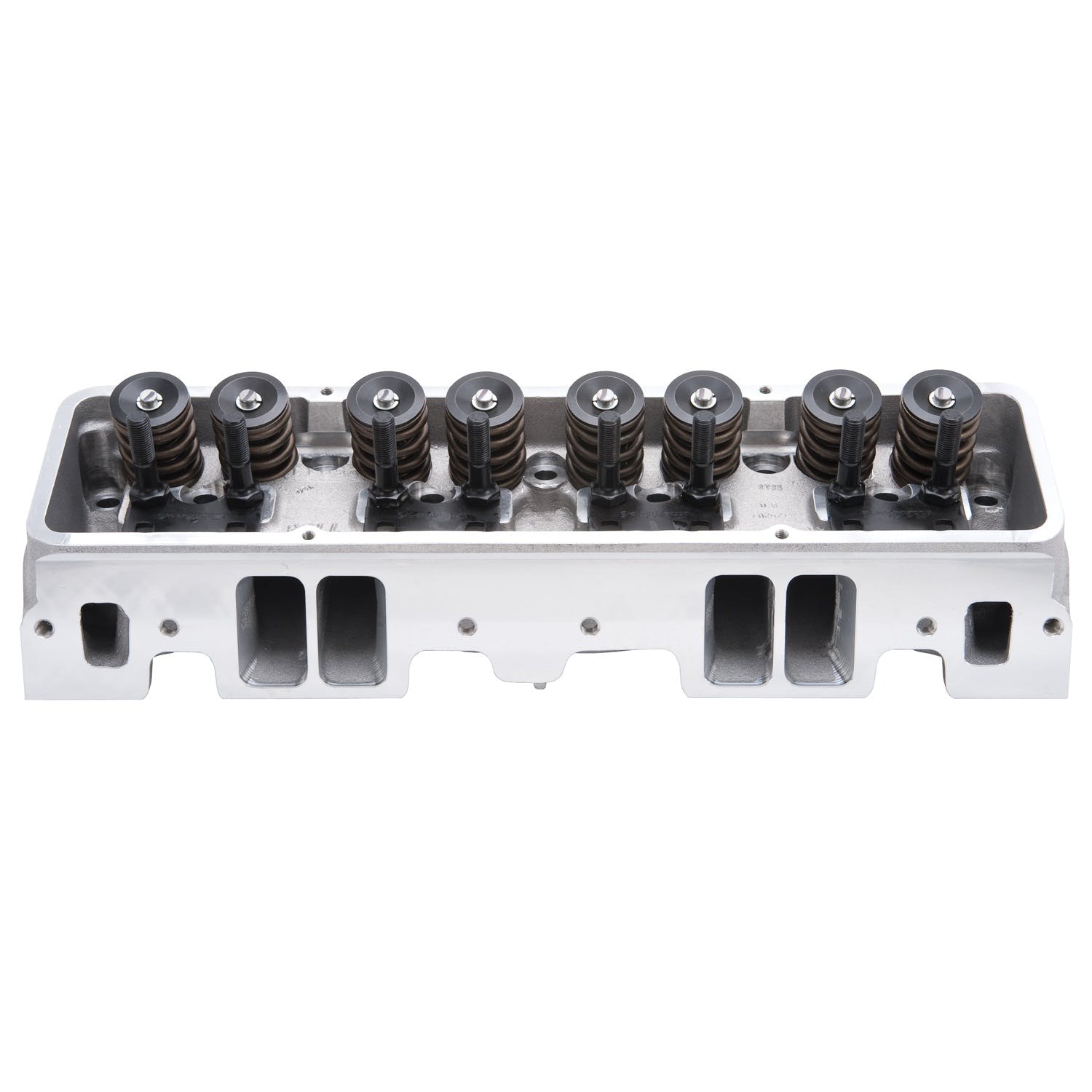

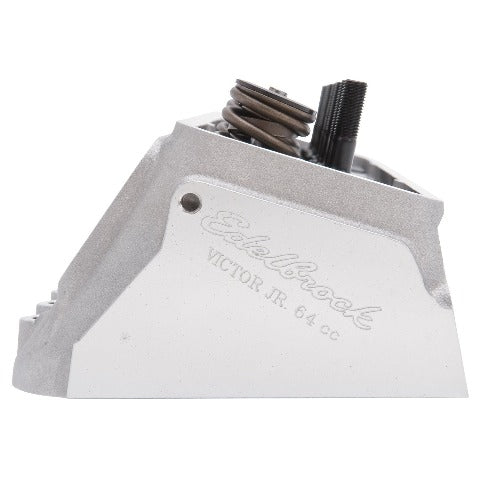

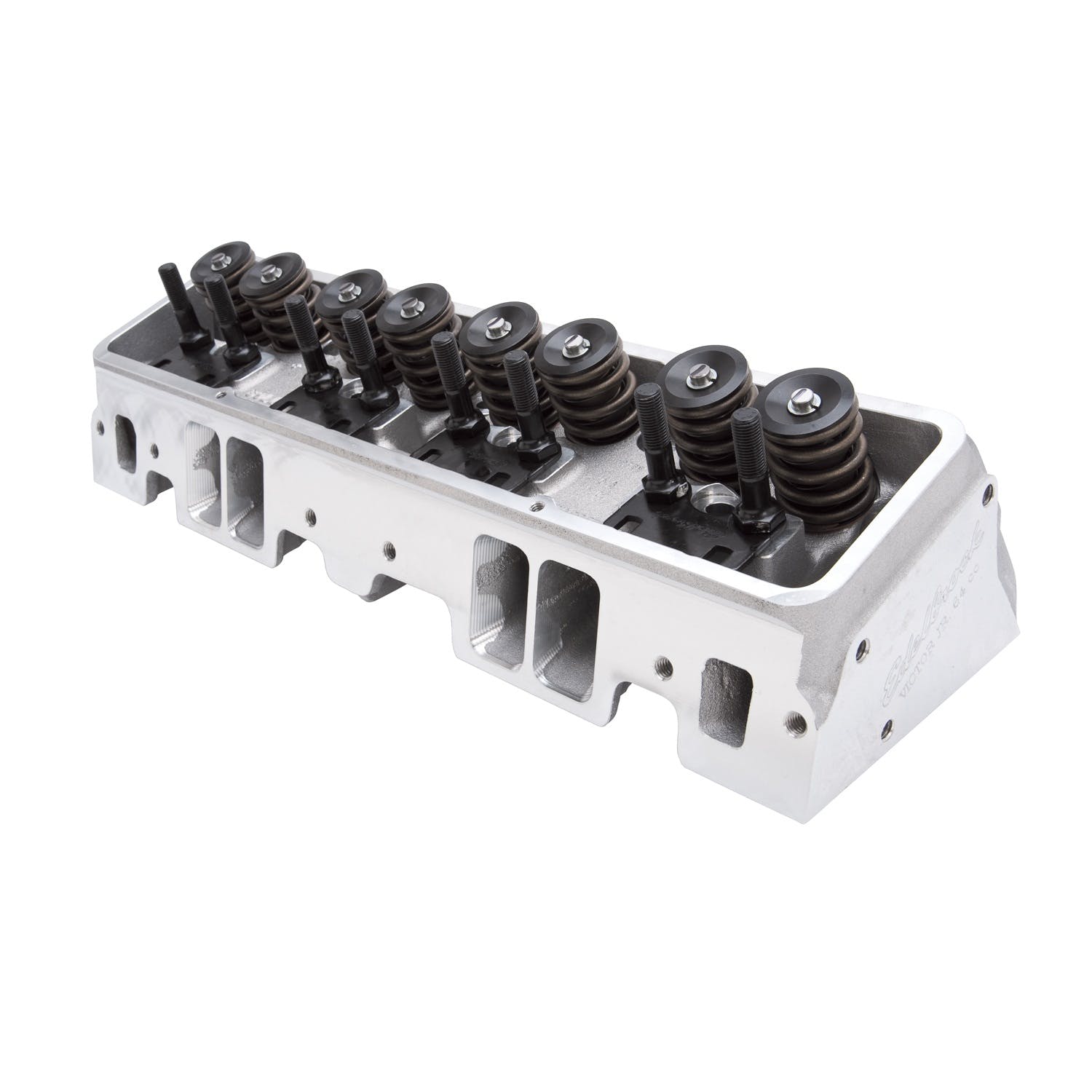

Edelbrock 77589 CYL HEAD, VICTOR JR 64cc SBC COMPLETE FOR FLAT TAPPET CAMSHAFT

Edelbrock part #77589 Victor Jr. is a complete cylinder head for Small Block Chevy 262-400 V8 engines using a hydraulic roller cam. This cylinder head offers affordable max power for competition and high-performance's street applications

---

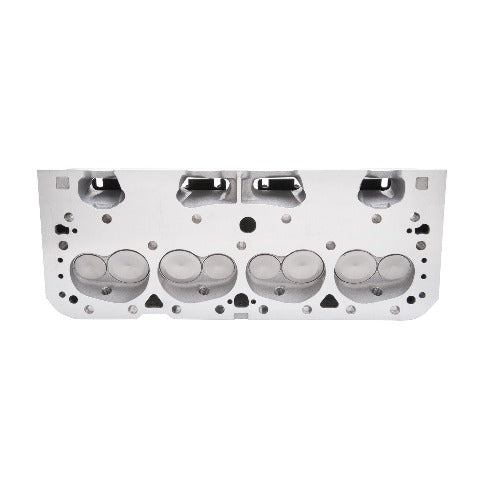

The Edelbrock part #77589 Small Block Chevy Victor Jr. 215cc cylinder head is an affordable version that will still allow for maximum power when used in competition and ultra high-performance's street applications. This cylinder head has the potential of 530-580 hp out-of-the-box, for a cost effective, race-winning set-up. These cylinder head features angled spark plug holes and accept standard 23deg valvetrain hardware. The 77589 cylinder head has a 64cc combustion chamber and come with springs for hydraulic roller camshafts. The 64cc chambers yield about 12.5:1 compression with a 12cc domed piston in a 350 V8.

• Out-of-the-Box Bolt-On Performance
• Affordable
• Top Quality
• Race-Winning Set-Up
• Accepts Standard 23 deg. Valvetrain Hardware
• 64cc Chamber Ideal for Entry Race/Hi-End Street

---

Application Summary:

Year	Make/Model
Chevrolet:Small-Block	Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)

---
