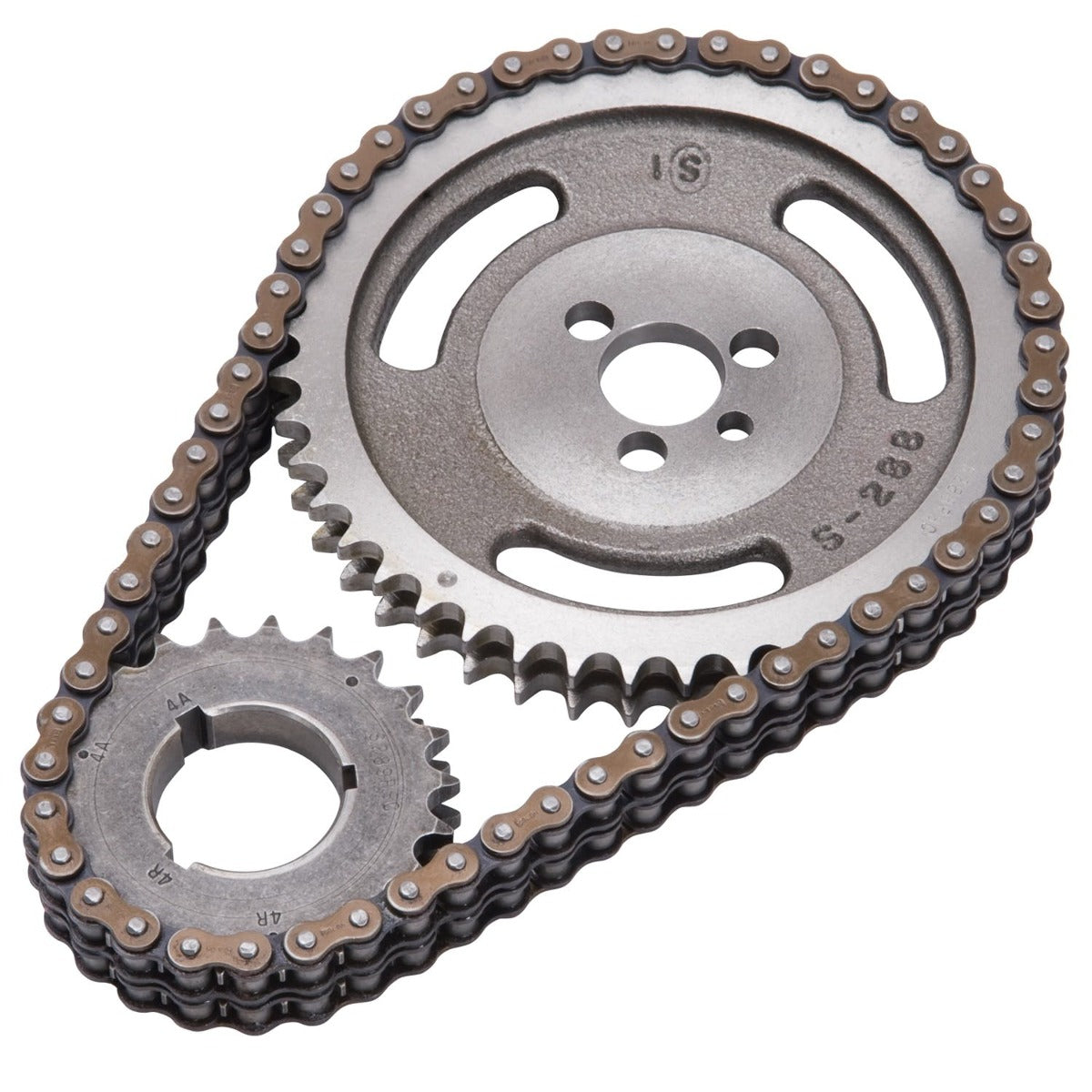

Edelbrock 7800 Performer-Link Adjustable True-Roller Timing Chain Set

Edelbrock Part #7800 Performer-Link timing chain is for use with Edelbrock or stock cams. They have a solid-bushing chain for a true bearing surface that rolls with the sprockets, eliminating chain stretch

---

Edelbrock Part #7800 Performer-Link timing chain is for use with Edelbrock or stock cams. They have a solid-bushing chain for a true bearing surface that rolls with the sprockets, eliminating chain stretch. Cam sprockets are made from 35,000 psi tensile strength cast iron. Crank sprockets are made from billet SAE-1144 steel and induction heat treated. Four Performer-Link sets are stock replacement parts and 50-state legal (see listings in bold type). All other sets have three keyway setting points to ensure accurate timing selection for early or late-model vehicles. Performer-Link timing sets are not for use above 6500 rpm. Performer roller chain sets are engineered to operate up to 6500 rpm. Never hammer directly on chain or sprockets. You can crack the hardened links and pins and cause early failures. Use a sleeve for installations that require hammering, a brass drift punch may be used if you carefully alternate blows on either side of the sprocket to avoid cocking. Never stretch the chain with a screwdriver. Check for clearance between the timing chain and block and between the chain and front cover before reassembly. Be sure that both cam and crank sprockets are exactly in line with each other. Misalignment can cause chain to break.

• Solid Bushing Chain Resists Stretching
• For Use with Stock or Edelbrock Camshafts
• Stress-Proof Steel Crank Gears
• 3 Keyway Setting Points To Ensure Accurate Timing
• True Bearing Surface Rolls with the Sprockets
• Not for OEM Hydraulic Roller-Lifter Camshaft Eng.

---

Application Summary:

Year	Make/Model
1977-1980	Buick Century
1978	Buick LeSabre
1977-1980	Buick Regal
1977-1979	Buick Skylark
1985	Chevrolet Astro
1955-1975	Chevrolet Bel Air
1958-1972	Chevrolet Biscayne
1969-1973	Chevrolet Blazer
1970	Chevrolet Brookwood
1972	Chevrolet Brookwood
1975-1986	Chevrolet C10
1961-1973	Chevrolet C10 Pickup
1968-1973	Chevrolet C10 Suburban
1975-1986	Chevrolet C10 Suburban
1975-1986	Chevrolet C20
1961-1973	Chevrolet C20 Pickup
1968-1973	Chevrolet C20 Suburban
1975-1986	Chevrolet C20 Suburban
1975-1986	Chevrolet C30
1961-1973	Chevrolet C30 Pickup
1967-1973	Chevrolet Camaro
1975-1986	Chevrolet Camaro
1966-1990	Chevrolet Caprice
1992-1995	Chevrolet Caprice
1964-1973	Chevrolet Chevelle
1963-1968	Chevrolet Chevy II
1955-1968	Chevrolet Corvette
1975-1981	Chevrolet Corvette
1958	Chevrolet Del Ray
1959-1960	Chevrolet El Camino
1964-1986	Chevrolet El Camino
1975-1986	Chevrolet G10
1968-1973	Chevrolet G10 Van
1975-1986	Chevrolet G20
1968-1969	Chevrolet G20 Van
1975-1986	Chevrolet G30
1959-1985	Chevrolet Impala
1975-1986	Chevrolet K10
1961-1970	Chevrolet K10 Pickup
1968-1973	Chevrolet K10 Suburban
1975-1986	Chevrolet K10 Suburban
1975-1986	Chevrolet K20
1961-1969	Chevrolet K20 Pickup
1968-1973	Chevrolet K20 Suburban
1975-1986	Chevrolet K20 Suburban
1977-1986	Chevrolet K30
1968-1973	Chevrolet K30 Pickup
1975-1986	Chevrolet K5 Blazer
1970-1972	Chevrolet Kingswood
1974-1976	Chevrolet Laguna
1964-1967	Chevrolet Malibu
1973-1983	Chevrolet Malibu
1970-1986	Chevrolet Monte Carlo
1975-1979	Chevrolet Monza
1969-1973	Chevrolet Nova
1975-1979	Chevrolet Nova
1955-1957	Chevrolet One-Fifty Series
1961-1966	Chevrolet Suburban
1970-1972	Chevrolet Townsman
1955-1958	Chevrolet Truck
1960	Chevrolet Truck
1955-1957	Chevrolet Two-Ten Series
1975-1978	GMC C15
1975-1978	GMC C15 Suburban
1967-1973	GMC C15/C1500 Pickup
1967-1973	GMC C15/C1500 Suburban
1979-1986	GMC C1500
1979-1986	GMC C1500 Suburban
1975-1978	GMC C25
