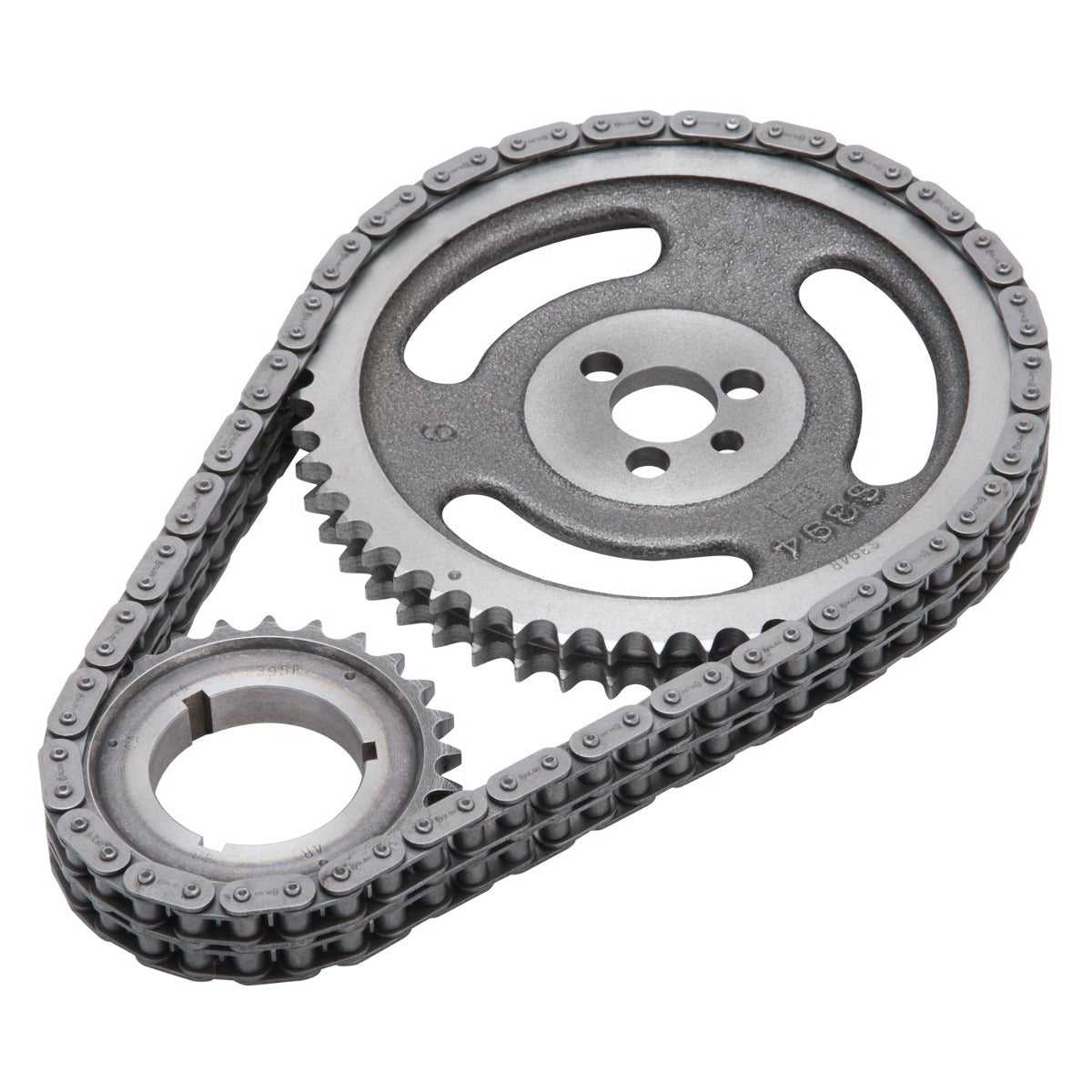

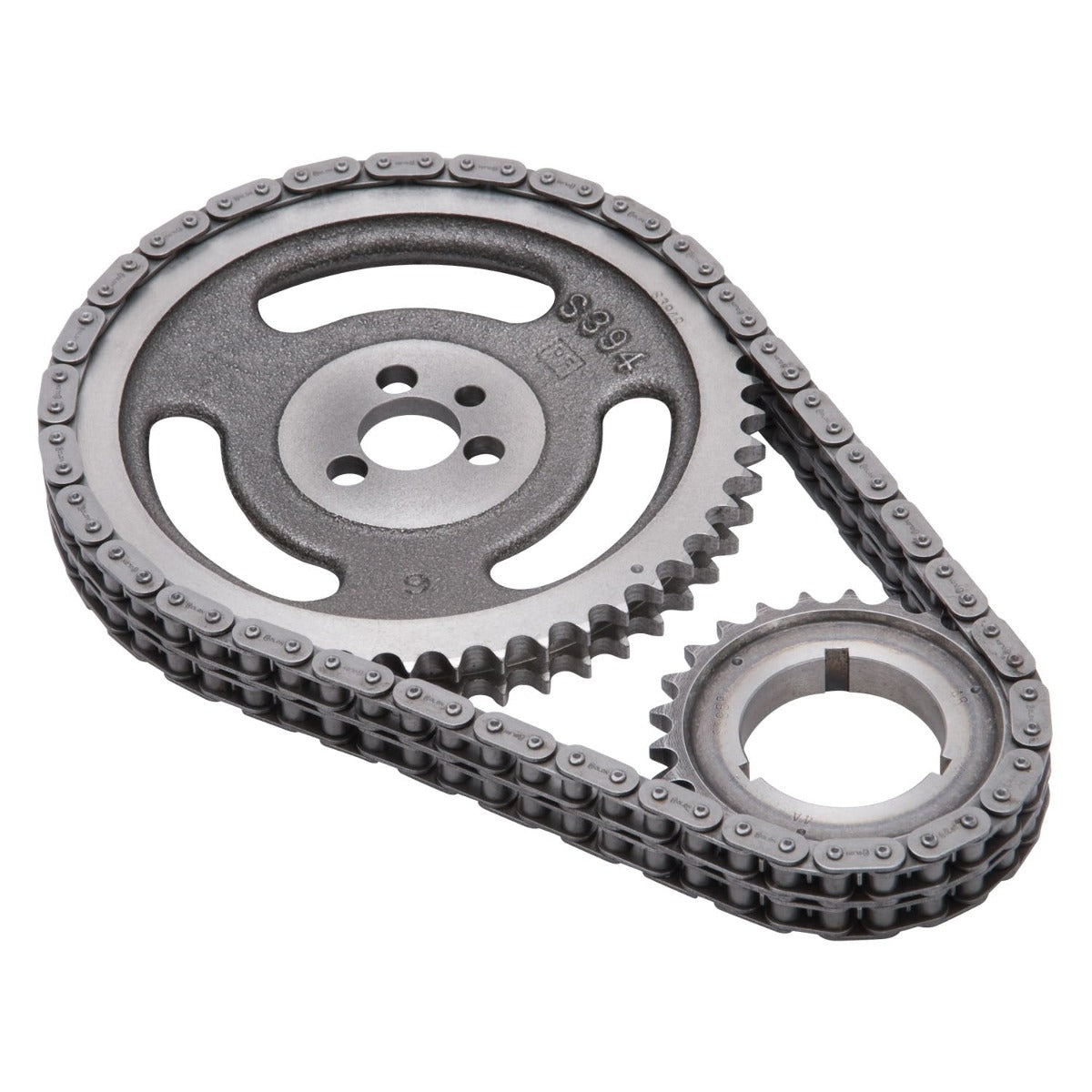

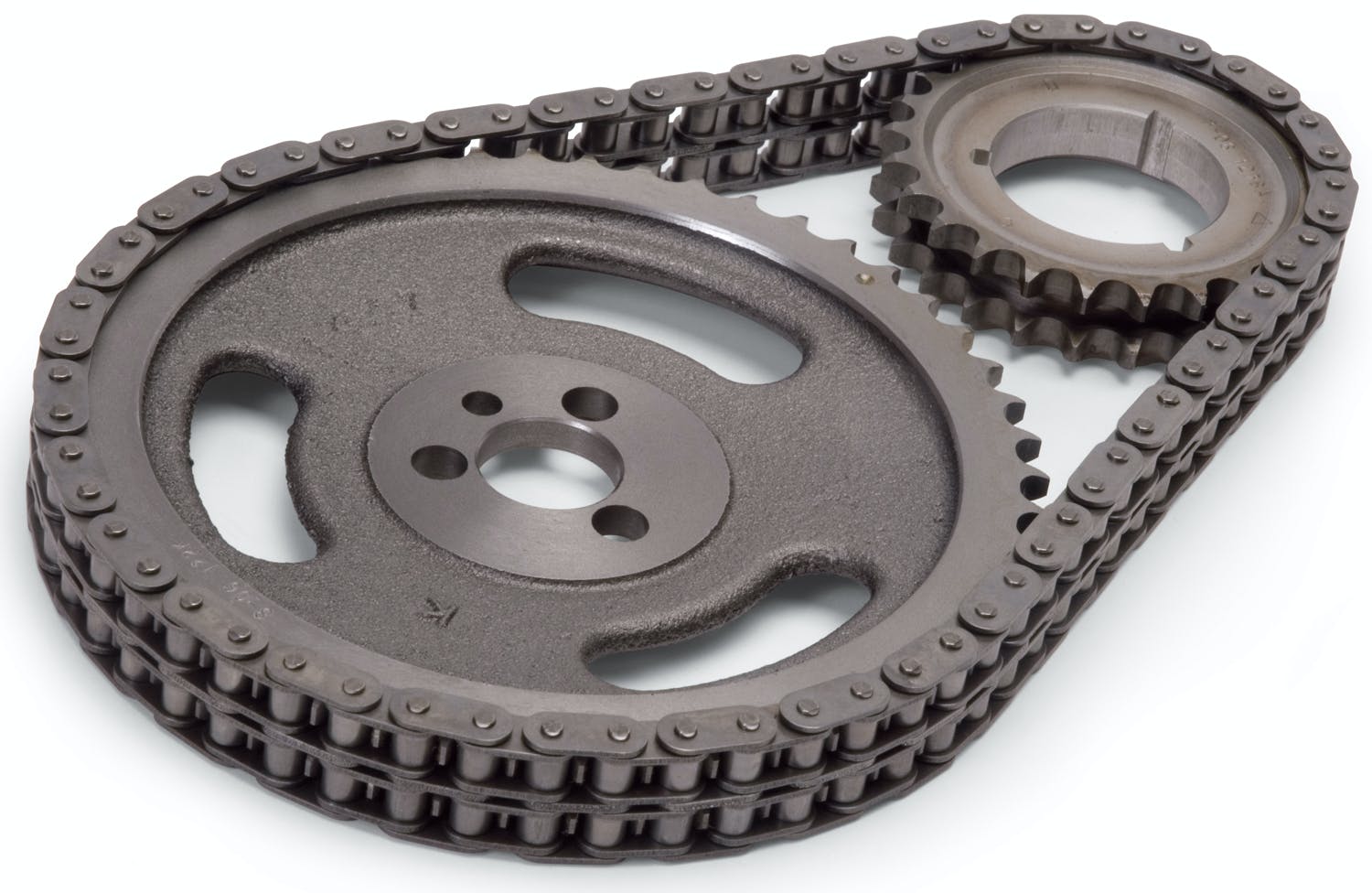

Edelbrock 7810 Performer-Link Adjustable True-Roller Timing Chain Set

Edelbrock part #7810 Performer-Link timing chain is for use with Edelbrock or stock cams. They have a solid-bushing chain for a true bearing surface that rolls with the sprockets, eliminating chain stretch

---

Edelbrock part #7810 Performer-Link timing chain is for use with Edelbrock or stock cams. They have a solid-bushing chain for a true bearing surface that rolls with the sprockets, eliminating chain stretch. Cam sprockets are made from 35,000 psi tensile strength cast iron. Crank sprockets are made from billet SAE-1144 steel and induction heat treated. Four Performer-Link sets are stock replacement parts and 50-state legal (see listings in bold type). All other sets have three keyway setting points to ensure accurate timing selection for early or late-model vehicles. Performer-Link timing sets are not for use above 6500 rpm. Performer roller chain sets are engineered to operate up to 6500 rpm. Never hammer directly on chain or sprockets. You can crack the hardened links and pins and cause early failures. Use a sleeve for installations that require hammering, a brass drift punch may be used if you carefully alternate blows on either side of the sprocket to avoid cocking. Never stretch the chain with a screwdriver. Check for clearance between the timing chain and block and between the chain and front cover before reassembly. Be sure that both cam and crank sprockets are exactly in line with each other. Misalignment can cause chain to break.

• Solid Bushing Chain Resists Stretching
• For Use with Stock or Edelbrock Camshafts
• Stress-Proof Steel Crank Gears
• 3 Keyway Setting Points To Ensure Accurate Timing
• True Bearing Surface Rolls with the Sprockets

---

Application Summary:

Year	Make/Model
1965-1975	Chevrolet Bel Air
1965-1972	Chevrolet Biscayne
1973	Chevrolet Blazer
1972	Chevrolet Brookwood
1975-1980	Chevrolet C10
1968-1974	Chevrolet C10 Pickup
1968-1980	Chevrolet C10 Suburban
1990-1993	Chevrolet C1500
1975-1986	Chevrolet C20
1968-1974	Chevrolet C20 Pickup
1968-1986	Chevrolet C20 Suburban
1991-1995	Chevrolet C2500
1992-1995	Chevrolet C2500 Suburban
1975-1986	Chevrolet C30
1968-1974	Chevrolet C30 Pickup
1988-1995	Chevrolet C3500
1967-1972	Chevrolet Camaro
1966-1976	Chevrolet Caprice
1966-1973	Chevrolet Chevelle
1968	Chevrolet Chevy II
1966-1974	Chevrolet Corvette
1966-1975	Chevrolet El Camino
1973-1974	Chevrolet G10 Van
1976	Chevrolet G20
1973-1974	Chevrolet G20 Van
1975-1976	Chevrolet G30
1988-1996	Chevrolet G30
1973-1974	Chevrolet G30 Van
1965-1976	Chevrolet Impala
1976	Chevrolet K10
1980	Chevrolet K10
1968-1969	Chevrolet K10 Pickup
1974	Chevrolet K10 Pickup
1968-1972	Chevrolet K10 Suburban
1976-1978	Chevrolet K20
1968-1969	Chevrolet K20 Pickup
1973-1974	Chevrolet K20 Pickup
1973	Chevrolet K20 Suburban
1985	Chevrolet K20 Suburban
1991-1995	Chevrolet K2500
1992-1995	Chevrolet K2500 Suburban
1977	Chevrolet K30
1980-1986	Chevrolet K30
1968-1971	Chevrolet K30 Pickup
1973-1974	Chevrolet K30 Pickup
1988-1995	Chevrolet K3500
1976-1978	Chevrolet K5 Blazer
1970-1972	Chevrolet Kingswood
1973-1975	Chevrolet Laguna
1966-1967	Chevrolet Malibu
1973-1975	Chevrolet Malibu
1970-1975	Chevrolet Monte Carlo
1969-1970	Chevrolet Nova
1987-1988	Chevrolet R20
1987-1988	Chevrolet R20 Suburban
1989	Chevrolet R2500
1989-1991	Chevrolet R2500 Suburban
1987-1988	Chevrolet R30
1989-1991	Chevrolet R3500
1970	Chevrolet Townsman
1972	Chevrolet Townsman
1987-1988	Chevrolet V20 Suburban
1990	Chevrolet V2500 Suburban
1987-1988	Chevrolet V30
1989-1991	Chevrolet V3500
1975-1978	GMC C15
1975-1978	GMC C15 Suburban
1968-1974	GMC C15/C1500 Pickup
1968-1974	GMC C15/C1500 Suburban
1979-1980	GMC C1500
