Edelbrock 9646 PUSHROD SET SBC 5/16 OD x 7.250: LONG FOR USE W/RETRO-FIT HYDRAULIC ROLLER LIFT

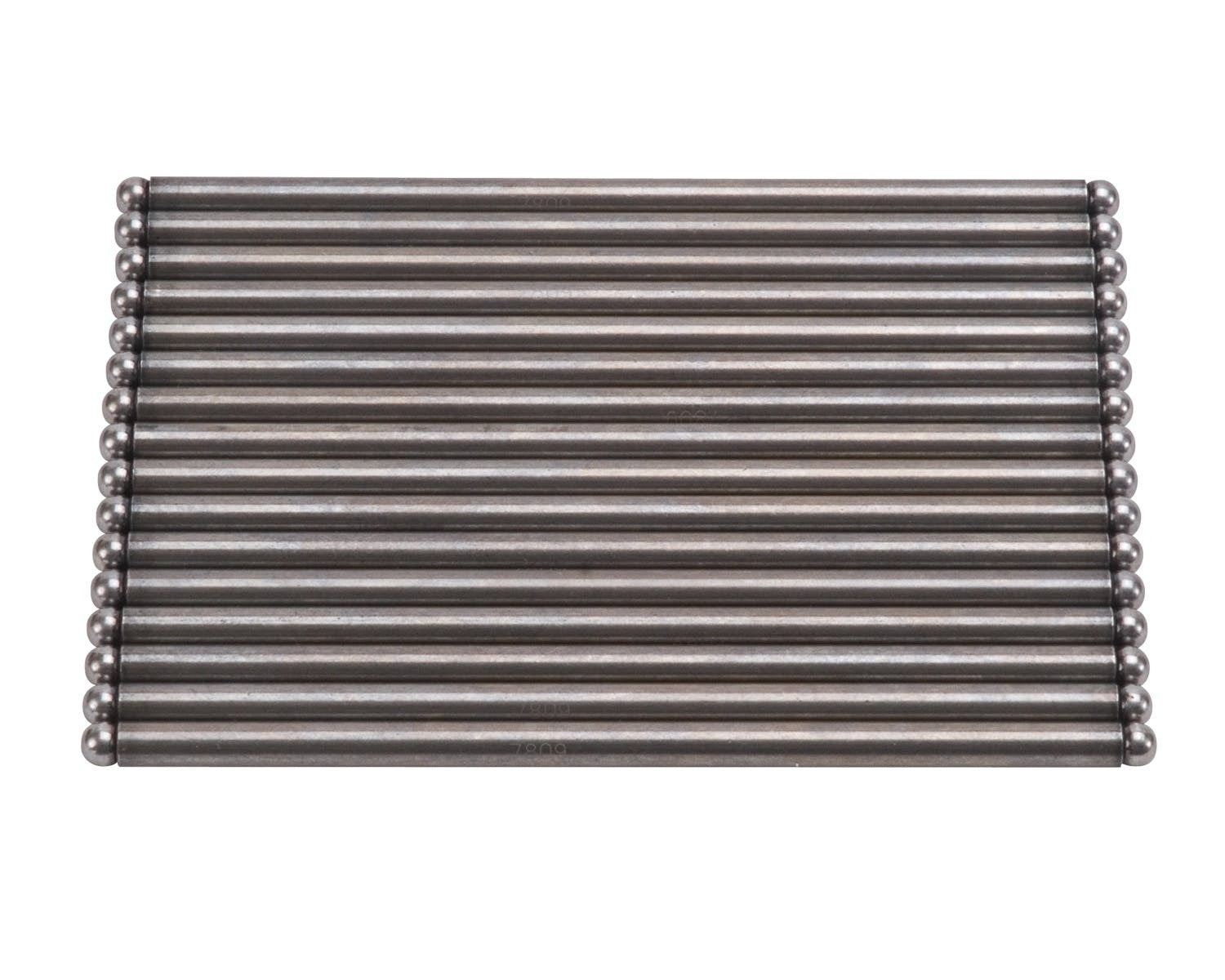

Edelbrock part #9646 Pushrods are designed for small-block Chevy V-8 engine applications. These one-piece pushrods are manufactured from high quality 4130 Chromoly steel tubing that has been surface hardened for maximum durability.

---

Edelbrock part #9646 Pushrods are designed for small-block Chevy V-8 engine applications. These one-piece pushrods are manufactured from high quality 4130 Chromoly steel tubing that has been surface hardened for maximum durability. They have precise formed wedged ends for a high quality fit with the cup seats. A black oxide finish is added for corrosion resistance. Pushrod Specifications: - For use with Edelbrock hydraulic roller lifters #97423 - Outside Diameter: 5/16" - Length: 7.250"

• Case-Hardened Tubing
• Surface Hardening
• Welded Ends
• 0.3125 in. Diameter
• Use With Or Without Hardened Steel Guide plates

---

Application Summary:

Year	Make/Model
1987-1994	Chevrolet Blazer
1988-1995	Chevrolet C1500
1992-1995	Chevrolet C1500 Suburban
1988-1995	Chevrolet C2500
1992-1995	Chevrolet C2500 Suburban
1988-1995	Chevrolet C3500
1987-1992	Chevrolet Camaro
1987-1996	Chevrolet Caprice
1987-1991	Chevrolet Corvette
1987	Chevrolet El Camino
1987-1995	Chevrolet G10
1987-1995	Chevrolet G20
1987-1996	Chevrolet G30
1988-1995	Chevrolet K1500
1992-1995	Chevrolet K1500 Suburban
1988-1995	Chevrolet K2500
1992-1995	Chevrolet K2500 Suburban
1988-1995	Chevrolet K3500
1987-1988	Chevrolet Monte Carlo
1987	Chevrolet R10
1987-1988	Chevrolet R10 Suburban
1989-1991	Chevrolet R1500 Suburban
1987-1988	Chevrolet R20
1987-1988	Chevrolet R20 Suburban
1989	Chevrolet R2500
1989-1991	Chevrolet R2500 Suburban
1987-1988	Chevrolet R30
1989-1991	Chevrolet R3500
1995	Chevrolet Tahoe
1987	Chevrolet V10
1987-1988	Chevrolet V10 Suburban
1989-1991	Chevrolet V1500 Suburban
1987	Chevrolet V20
1987-1988	Chevrolet V20 Suburban
1989-1991	Chevrolet V2500 Suburban
1987-1988	Chevrolet V30
1989-1991	Chevrolet V3500
1988-1995	GMC C1500
1992-1995	GMC C1500 Suburban
1988-1995	GMC C2500
1992-1995	GMC C2500 Suburban
1988-1995	GMC C3500
1987	GMC Caballero
1987-1995	GMC G1500
1987-1995	GMC G2500
1987-1996	GMC G3500
1987-1991	GMC Jimmy
1988-1995	GMC K1500
1992-1995	GMC K1500 Suburban
1988-1995	GMC K2500
1992-1995	GMC K2500 Suburban
1988-1995	GMC K3500
1987	GMC R1500
1987-1991	GMC R1500 Suburban
1987-1989	GMC R2500
1987-1991	GMC R2500 Suburban
1987-1991	GMC R3500
1987	GMC V1500
1987-1991	GMC V1500 Suburban
1987	GMC V2500
1987-1991	GMC V2500 Suburban
1987-1991	GMC V3500
1992-1995	GMC Yukon
1987-1992	Pontiac Firebird
1987	Pontiac Grand Prix
