FORD RANGER SPLASH (MANUAL TRANS REQUIRES 3700)

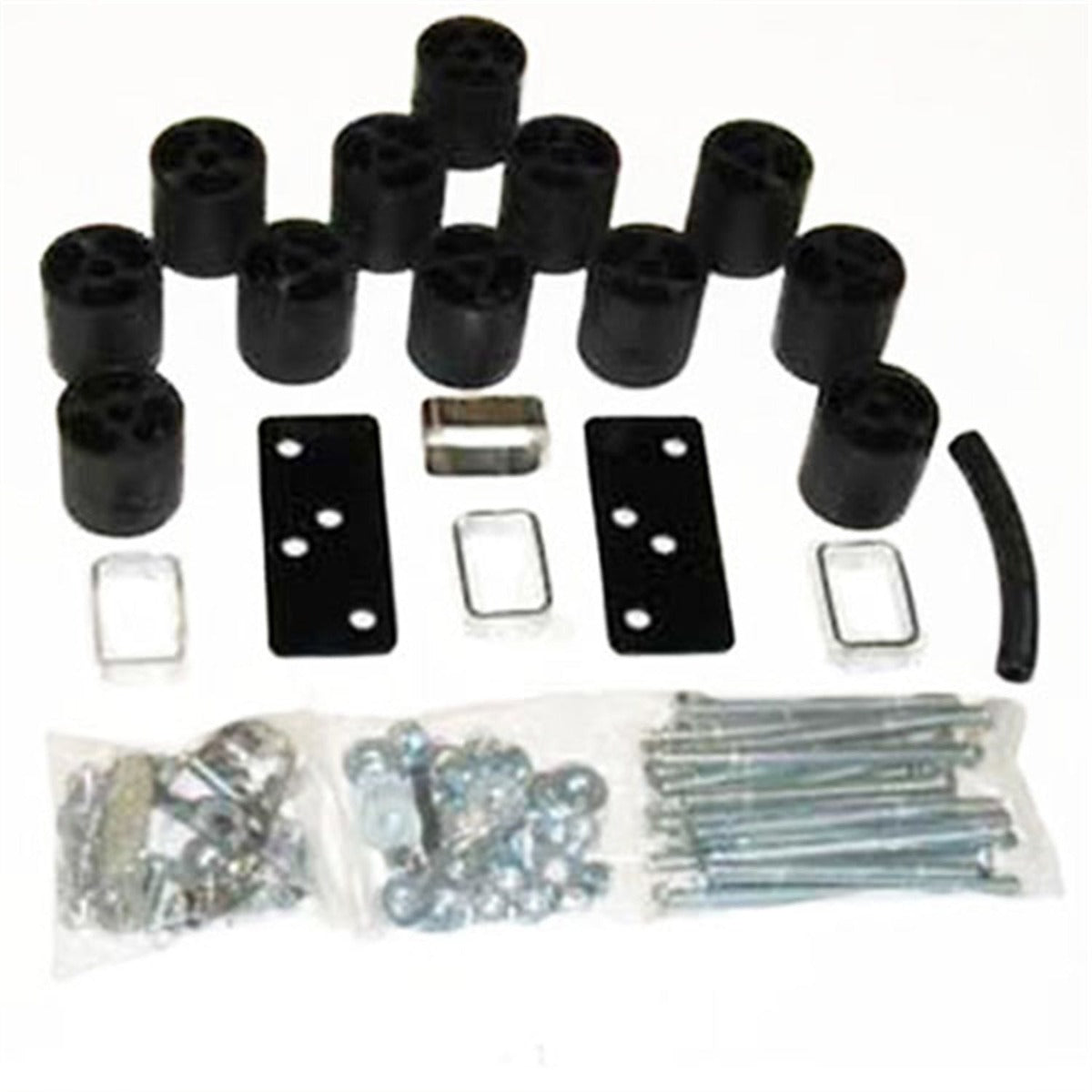

Performance Accessories 3-inch Body Lift Kit raises the vehicle for adding larger diameter tires, without altering the factory suspension system and OE ride characteristics. The kit includes high pressure fiberglass reinforced nylon lift blocks, 3/16 inch thick laser cut and powder coated relocation brackets, a CNC machined and zinc plated steering extension, high strength hardware, and extension brackets. Manual transmission requires (Shift Extension PN-3700). A set of urethane wheel-well extensions (Gap-Guards 2wd & 4wd PN-6727) are available separately, and are used to conceal any gaps between the body and frame in the wheel wells. For the rear bumper area a one piece rear bumper urethane Gap-Guard is available separately (Rear Bumper Gap-Guard PN-6738) and is used to conceal the gap between the tailgate and the rear bumper. This system can be installed in 6 to 7 hours and comes complete with everything necessary for installation. Benefits: Provides 3-inches of lift without modifying existing suspension components. Allows use of larger diameter tires and factory rims for improved ground clearance. DOES NOT alter the OEM suspension geometry or factory stability control parameters. Maintains the factory smooth ride. Keeps the trucks center of gravity lower than a comparable suspension lift. Features: Fiberglass reinforced nylon body blocks CNC machined & zinc plated steering extension Laser cut and zinc plated fittings and brackets High strength hardware included Made in the U.S.A.
- Other Parts Required For A Complete Kit
- Grade 5 Zinc Plated Hardware
- High Grade Reinforced Nylon Lift Blocks
- Custom Machined Splined Steering Shaft Extensions
- Brackets Will Not Rust
- State Of The Art CNC Equipment
- Trouble-Free Installation
- Limited Lifetime Warranty
Application Summary:
| Year |
Make/Model |
| 1993-1994 |
Ford Ranger |
| 1994-1997 |
Mazda B2300 |
| 2001-2009 |
Mazda B2300 |
| 1998-2001 |
Mazda B2500 |
| 1994-1996 |
Mazda B3000 |
| 1998-2007 |
Mazda B3000 |
| 1994-2008 |
Mazda B4000 |
