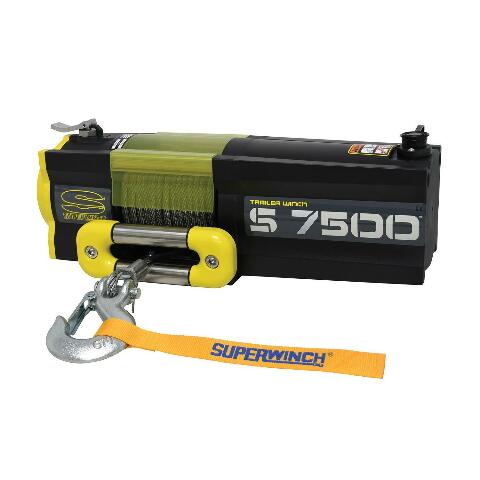

S7500 Winch; 7500 lbs; 12 Vdc; 5/16 In X 54 ft Steel Rope; 30.5 ft Handheld Remote Control; 3.6 hp; Mechanical Brake; 3-Stage Planetary; 249:1 Gear Ratio; 2-Way Fairlead;
The S7500 Winch pulls 7,500 lbs with a 3.6 hp permanent magnet motor driven through an all steel 3-stage planetary gear box. The tinted protective cover protects the cable, drum and operators fingers. Machined aluminum free-spool lever can be easily operated by foot. Innovative 2-hole drum prevents steel cable from detaching from drum.
- Rated Line Pull Of 7500 Lbs
- 3.6 Hp Permanent Magnet Motor Provides Dynamic Braking
- 3-Stage Planetary Gearing With 249:1 Ratio
- Sealed Solenoid
- Lever Style Freespool Allows Hand Or Foot Operation
- Steel Cut Gears For Better Engagement And Longevity
- Wire Rope Measures 5/16 In. X 54 Ft.
- Automatic Load Holding Brake
- Stainless Steel 2-Way Roller Fairlead
Application Summary:
| Year |
Make/Model |
| 500 |
lbs |
| 12 |
VDC |
| 5/16 |
in x 54 ft steel rope |
| 30.5 |
ft handheld remote control |
| 3.6 |
Hp |
| mechanical |
brake |
| 3-stage |
planetary |
| 249:1 |
gear ratio |
| 2-way |
fairlead |
