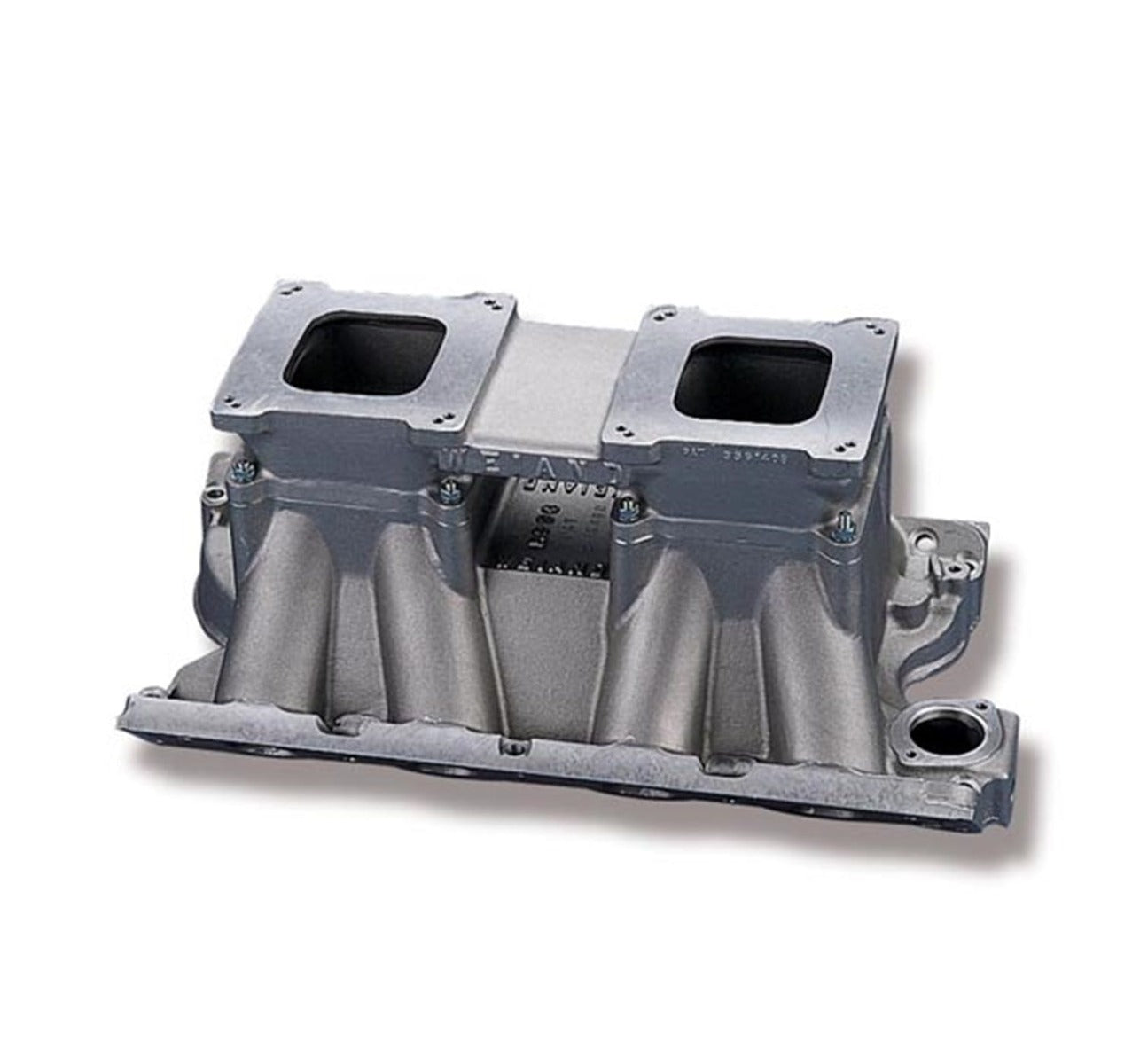

Weiand 1993 FORD 429CJ-460 D/Q HI RAM

Nostalgic Series Hi-Ram Intake Manifold; Upper; Power Band 3200-9000 RPM; Square Flange Carb Mounting; 9.93 in. Front/10.31 in. Rear Height; Satin Finish;

---

HI-RAM SERIES: These tunnel ram manifolds are used primarily in drag racing, tractor/truck pulls and performance marine applications where high RPM performance is required. The effective RPM range is between 3,200 to 9,000 RPM. The WEIAND Hi-Ram, with it''s patented D-shaped port runners and large plenum chamber, provides optimum velocity of the air/fuel mixture to the cylinder head intake ports. For maximum performance in a naturally aspirated competition application, the WEIAND Hi-Ram is the manifold of choice! This manifold is part of the Weiand Nostalgia Series of intake manifolds. Weiand Nostalgia Series intake manifolds are made using the original tooling, and may have minor appearance imperfections that do not affect the functionality of the part. These minor blemishes are a natural part of the casting process when using the original sand casting tooling. Weiand Nostalgia series intakes are proudly cast and machined in the USA. We support all areas of the vintage, show, and nostalgia car hobby, and want to continue to produce these lower volume manifolds using the original tools. There is no need to search for that vintage intake at swap meets or on the internet when you can buy the real deal new from Weiand! *** Port-match the manifold to the cylinder heads for best performance results (Cobra Jet and Super Cobra Jet heads will require significant port matching since they have larger than stock ports).

• 2 x 4 Carburetor Top
• Square Flange Carburetor Mounting
• Special D-Shaped Port Runner Design
• Large Volume Plenum
• 2800-9000 RPM Power Band
• Height Front 9.93 in.
• Rear 10.31 in.
• Port Size 2.05 in. Height x 1.83 in. Width
• Carb Flange Center-To-Center 9 11/16 in.

---

Application Summary:

Year	Make/Model
1969-1974	Ford Country Sedan
1969-1974	Ford Country Squire
1969-1972	Ford Custom
1969-1976	Ford Custom 500
1978	Ford E-100 Econoline
1975-1980	Ford E-250 Econoline
1975-1987	Ford E-250 Econoline Club Wagon
1975-1987	Ford E-350 Econoline
1977-1987	Ford E-350 Econoline Club Wagon
1975-1976	Ford Elite
1973-1974	Ford F-100
1979	Ford F-100
1975-1979	Ford F-150
1973-1979	Ford F-250
1983-1987	Ford F-250
1973-1979	Ford F-350
1983-1987	Ford F-350
1970	Ford Fairlane
1969-1974	Ford Galaxie 500
1972-1976	Ford Gran Torino
1969-1978	Ford LTD
1970-1971	Ford Mustang
1969-1974	Ford Ranch Wagon
1970-1977	Ford Ranchero
1968-1976	Ford Thunderbird
1970-1976	Ford Torino
1968-1978	Lincoln Continental
1968-1971	Lincoln Mark III
1972-1976	Lincoln Mark IV
1977-1978	Lincoln Mark V
1969-1974	Mercury Colony Park
1971	Mercury Cougar
1973-1976	Mercury Cougar
1970-1971	Mercury Cyclone
1975-1978	Mercury Grand Marquis
1969-1970	Mercury Marauder
1969-1978	Mercury Marquis
1970-1976	Mercury Montego
1969-1974	Mercury Monterey
