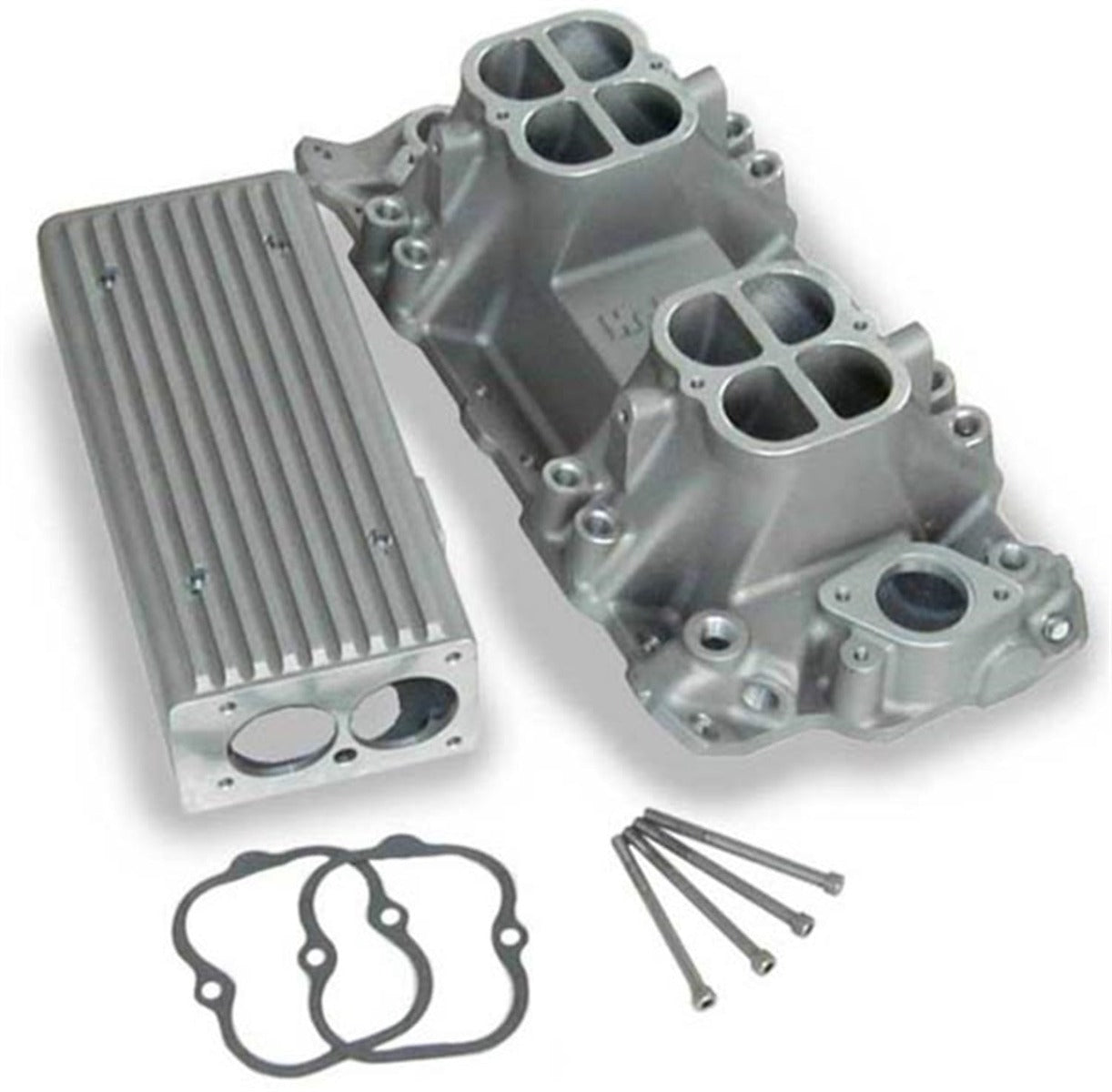

Weiand 7540 MANIFOLD, STEALTHRAM

Stealth Ram™ Intake Manifold; Lower; Power Band Idle-6500 RPM; High Rise; D-Shaped Runners; Universal Mount Bolt Design; 10.25in. Frt/Rear Height; No EGR Provision; Satin Finish;

---

The Weiand Stealth Ram(TM) intake is a revolutionary, radical departure from the ordinary. Designed to take advantage of the benefits associated with high ram manifolds, it combines aggressive race inspired looks with the drivability of EFI. Designed primarily as a component of the Holley Stealth Ram(TM)/Commander 950 EFI system, the manifold is now available for retrofit on L-98 TPI engines and other street/strip machines utilizing standard or 1987 and later aluminum Chevy cylinder heads. The manifold is designed to accept OEM and aftermarket TPI throttle bodies and includes provisions for mounting bracketry necessary for kickdown, cruise and throttle cables. Whether you are looking for more power for that late 80's Camaro or a new look for your street machine, look to Weiand. *** Use Holley 2x58mm billet throttle body (p/n 112-503 or 112-507) or stock TPI throttle body. Requires use of small cap distributor. Manifold features universal mounting bolt design engineered to accommodate both straight and angled center manifold bolts (requires P/N 90748 Weiand bolt kit for 1987 & later cast iron). Accepts stock or Lokar(R) TPI kickdown brackets. May require additional sealing modifications for high boost blow through applications. Will not fit Corvette due to manifold height

• Idle-6500 RPM Power Band
• D Shaped Runners Promote High Flow Rates w/o Turbulence
• No EGR Provisions
• 2-Piece Design Has Short Individual Runners/Large Upper Plenum
• Precision CNC Machining
• Permanent Mold Casting
• Satin Finish
• D Runners Promote High Flow w/o Turbulence

---

Application Summary:

Year	Make/Model
1977-1980	Buick Century
1978	Buick LeSabre
1977-1980	Buick Regal
1977-1979	Buick Skylark
1956-1975	Chevrolet Bel Air
1958-1972	Chevrolet Biscayne
1969-1974	Chevrolet Blazer
1987-1994	Chevrolet Blazer
1969-1972	Chevrolet Brookwood
1975-1986	Chevrolet C10
1961-1974	Chevrolet C10 Pickup
1968-1986	Chevrolet C10 Suburban
1988-1995	Chevrolet C1500
1992-1995	Chevrolet C1500 Suburban
1975-1986	Chevrolet C20
1961-1974	Chevrolet C20 Pickup
1968-1986	Chevrolet C20 Suburban
1988-1995	Chevrolet C2500
1992-1995	Chevrolet C2500 Suburban
1975-1986	Chevrolet C30
1961-1974	Chevrolet C30 Pickup
1988-1995	Chevrolet C3500
1967-1992	Chevrolet Camaro
1966-1993	Chevrolet Caprice
1964-1973	Chevrolet Chevelle
1963-1968	Chevrolet Chevy II
1958	Chevrolet Del Ray
1959-1960	Chevrolet El Camino
1964-1987	Chevrolet El Camino
1975-1995	Chevrolet G10
1968-1974	Chevrolet G10 Van
1975-1995	Chevrolet G20
1968-1974	Chevrolet G20 Van
1975-1996	Chevrolet G30
1970-1974	Chevrolet G30 Van
1959-1985	Chevrolet Impala
1975-1986	Chevrolet K10
1961-1974	Chevrolet K10 Pickup
1968-1986	Chevrolet K10 Suburban
1988-1995	Chevrolet K1500
1992-1995	Chevrolet K1500 Suburban
1975-1986	Chevrolet K20
1961-1974	Chevrolet K20 Pickup
1968-1986	Chevrolet K20 Suburban
1988-1995	Chevrolet K2500
1992-1995	Chevrolet K2500 Suburban
1977-1986	Chevrolet K30
1968-1974	Chevrolet K30 Pickup
1988-1995	Chevrolet K3500
1975-1986	Chevrolet K5 Blazer
1969-1972	Chevrolet Kingswood
1973-1976	Chevrolet Laguna
1964-1967	Chevrolet Malibu
1973-1983	Chevrolet Malibu
1970-1988	Chevrolet Monte Carlo
1975-1979	Chevrolet Monza
1969-1979	Chevrolet Nova
1956-1957	Chevrolet One-Fifty Series
1987	Chevrolet R10
1987-1988	Chevrolet R10 Suburban
1989-1991	Chevrolet R1500 Suburban
1987-1988	Chevrolet R20
1987-1988	Chevrolet R20 Suburban
1989	Chevrolet R2500
1989-1991	Chevrolet R2500 Suburban
1987-1988	Chevrolet R30
1989-1991	Chevrolet R3500
1961-1966	Chevrolet Suburban
1995	Chevrolet Tahoe
