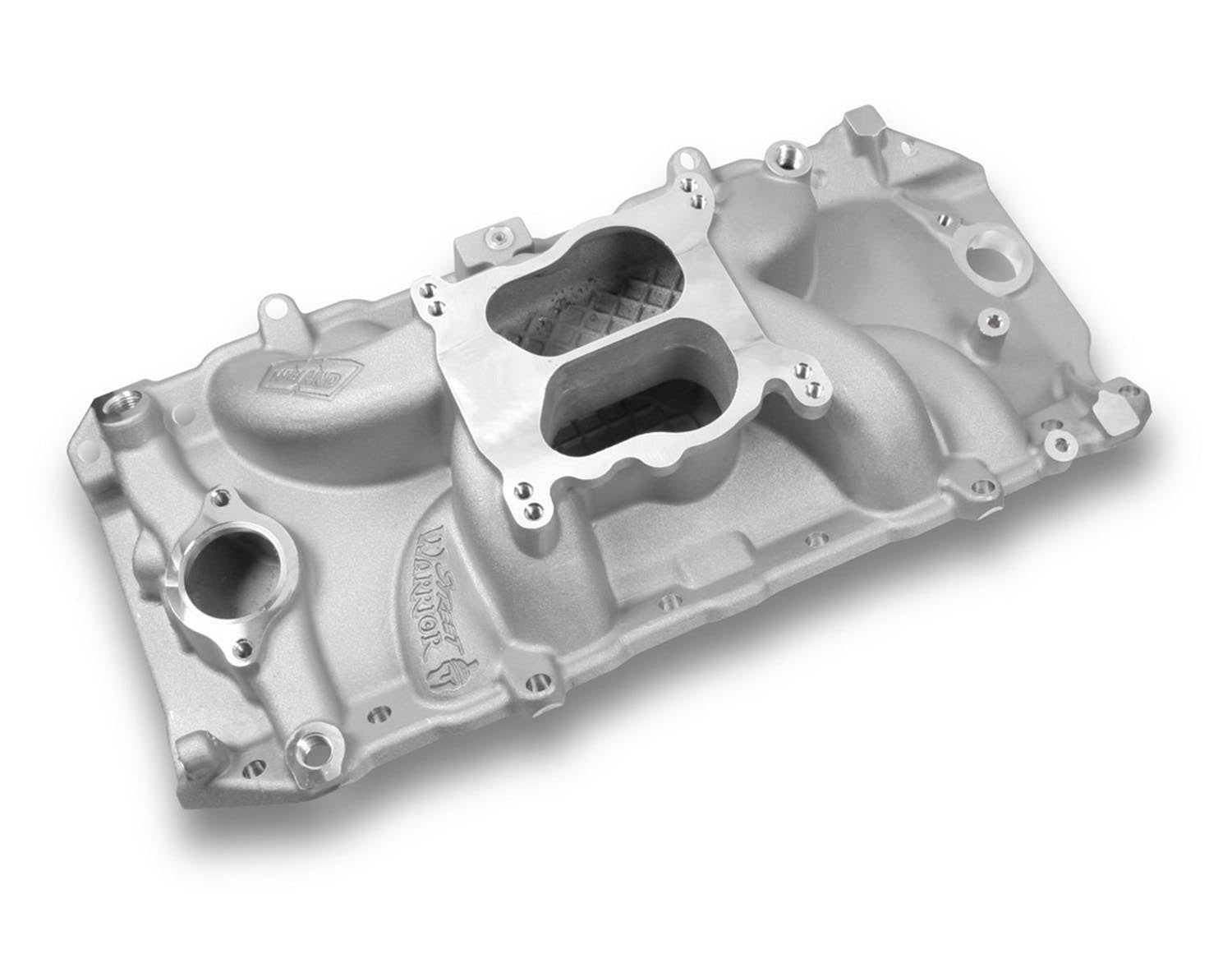

Weiand 8122WND MANIFOLD - BBC SPREAD BORE PEANUT

Street Warrior™ Intake Manifold; Lower; Power Band Idle-5500 RPM; Low Rise; w/Peanut Port Heads; Square/Spread Bore; Satin Finish;

---

Most of the intakes on the market were developed 20+ years ago when typical engines were 396-427 cubic inches. Not so anymore. With the popularity of larger engines, stroker combinations and more efficient cylinder head and cam designs came the need for intake manifolds to support these combinations. Designed with Computational Fluid Dynamics software, the Street Warrior intake rises to the challenge and delivers the performance to conquer the competition! Want maximum horsepower and torque from today's engines? Choose Street Warrior!

• Optimized Design For Todays Higher Output Big Block Engines
• Rear 5.42 in.
• Idle-5500 RPM Power Band
• Univ. Dual Pattern Carb Flange Accepts Spread/Square Bore Carbs
• Runner Geometry Optimized Uses Computational Fluid Dynamics Softw
• Sand Cast 319 Alum. Construction is CNC Machined
• Low Rise Dual Plane Design Delivers Friendly Power
• Low Rise Design Delivers Torque Across The Usable RPM Range
• Peanut Oval Port Dimensions 1.570 in. High x 1.600 in. Wide
• Height Front 4.25 in.

---

Application Summary:

Year	Make/Model
1973	Chevrolet Blazer
1975-1980	Chevrolet C10
1968-1974	Chevrolet C10 Pickup
1968-1980	Chevrolet C10 Suburban
1975-1986	Chevrolet C20
1968-1974	Chevrolet C20 Pickup
1968-1986	Chevrolet C20 Suburban
1975-1986	Chevrolet C30
1968-1974	Chevrolet C30 Pickup
1973-1974	Chevrolet G10 Van
1976	Chevrolet G20
1973-1974	Chevrolet G20 Van
1975-1976	Chevrolet G30
1973-1974	Chevrolet G30 Van
1976	Chevrolet K10
1980	Chevrolet K10
1968-1969	Chevrolet K10 Pickup
1974	Chevrolet K10 Pickup
1968-1972	Chevrolet K10 Suburban
1976-1978	Chevrolet K20
1968-1969	Chevrolet K20 Pickup
1973-1974	Chevrolet K20 Pickup
1973	Chevrolet K20 Suburban
1985	Chevrolet K20 Suburban
1977	Chevrolet K30
1980-1986	Chevrolet K30
1968-1971	Chevrolet K30 Pickup
1973-1974	Chevrolet K30 Pickup
1976-1978	Chevrolet K5 Blazer
1987-1988	Chevrolet R30
1989	Chevrolet R3500
1987-1988	Chevrolet V30
1989	Chevrolet V3500
1975-1978	GMC C15
1975-1978	GMC C15 Suburban
1968-1974	GMC C15/C1500 Pickup
1968-1974	GMC C15/C1500 Suburban
1979-1980	GMC C1500
1979-1980	GMC C1500 Suburban
1975-1978	GMC C25
1975-1978	GMC C25 Suburban
1968-1974	GMC C25/C2500 Pickup
1968-1972	GMC C25/C2500 Suburban
1974	GMC C25/C2500 Suburban
1979-1986	GMC C2500
1979-1986	GMC C2500 Suburban
1975-1978	GMC C35
1968-1974	GMC C35/C3500 Pickup
1979-1986	GMC C3500
1975-1976	GMC G25
1976	GMC G35
1973	GMC Jimmy
1976	GMC Jimmy
1976	GMC K15
1968-1969	GMC K15/K1500 Pickup
1968	GMC K15/K1500 Suburban
1970-1972	GMC K15/K1500 Suburban
1974	GMC K15/K1500 Suburban
1980	GMC K1500
1976-1978	GMC K25
1976-1977	GMC K25 Suburban
1968-1969	GMC K25/K2500 Pickup
1973-1974	GMC K25/K2500 Pickup
1968	GMC K25/K2500 Suburban
1974	GMC K25/K2500 Suburban
1968-1971	GMC K35/K3500 Pickup
1973-1974	GMC K35/K3500 Pickup
1979-1986	GMC K3500
1987-1989	GMC R3500
1987-1989	GMC V3500
