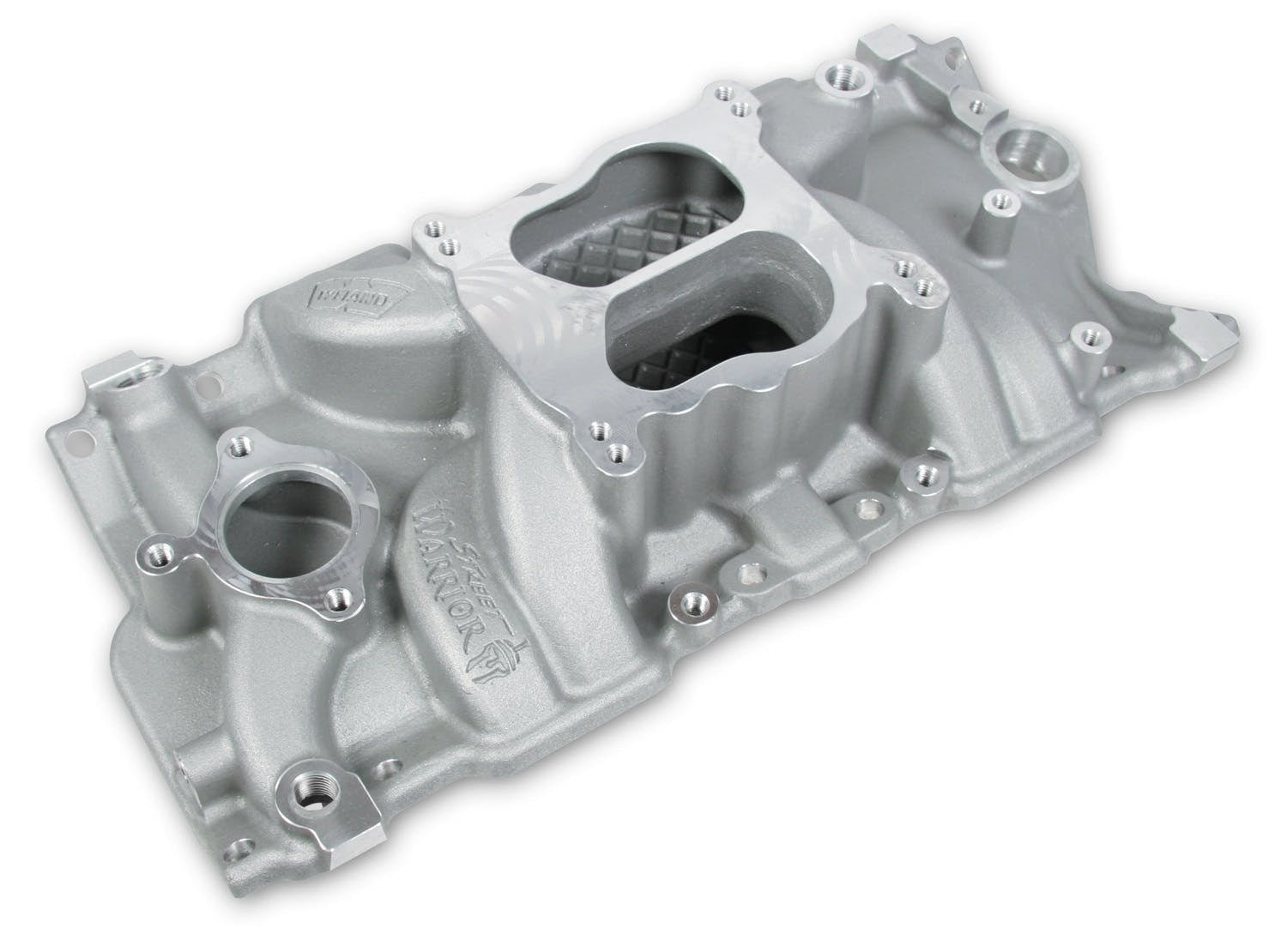

Weiand 8125 MANIFOLD - SBC SPREAD BORE

Street Warrior™ Intake Manifold; Lower; Power Band Idle-5500; Low Rise/Dual Plane; Rectangle Port; Square/Spread Bore; 3.50 in. Front H/4.50 in. Rear Height; Satin Finish;

---

Don't settle for weak performance. The all new SB Chevy Street Warrior delivers brutal low-end torque and killer horsepower throughout useable RPM range! The battleground has changed in the performance world. Most of the intakes on the market were developed 20+ years ago when typical engines were 283-350 cubic inches. Not so anymore. With the popularity of larger stroker engines and more efficient cylinder head and cam designs came the need for intake manifolds to support these combinations. Designed with Computational Fluid Dynamics software, the Street Warrior intake rises to the challenge and delivers the performance to conquer the competition! Want maximum horsepower and torque from today's engines? Choose Street Warrior! ** Designed specifically for 1955-86 and 1987 & later with aluminum heads (Corvette) Small Block Chevy Gen I engine applications

• Idle-5500 RPM Power Band
• Rear 4.50 in.
• Port Size 1.84 in. Height x 1.12 in. Width
• Satin Finish
• Optimized Design For Todays Hight Output Small Block Engines
• Univ. Dual Pattern Carb Flange Accepts Spread/Square Bore Carbs
• Runner Geometry Optimized Uses Computational Fluid Dynamics Softw
• Sand Cast 319 Alum. Construction is CNC Machined
• Low Rise Dual Plane Design Delivers Friendly Power
• Low Rise Design Delivers Torque Across The Usable RPM Range
• Height Front 3.50 in.

---

Application Summary:

Year	Make/Model
1957-1959	Chevrolet Bel Air
1958-1959	Chevrolet Biscayne
1982-1983	Chevrolet Camaro
1985-1986	Chevrolet Camaro
1957-1965	Chevrolet Corvette
1982	Chevrolet Corvette
1984-1986	Chevrolet Corvette
1958	Chevrolet Del Ray
1959	Chevrolet Impala
1982-1983	Pontiac Firebird
1985-1986	Pontiac Firebird
