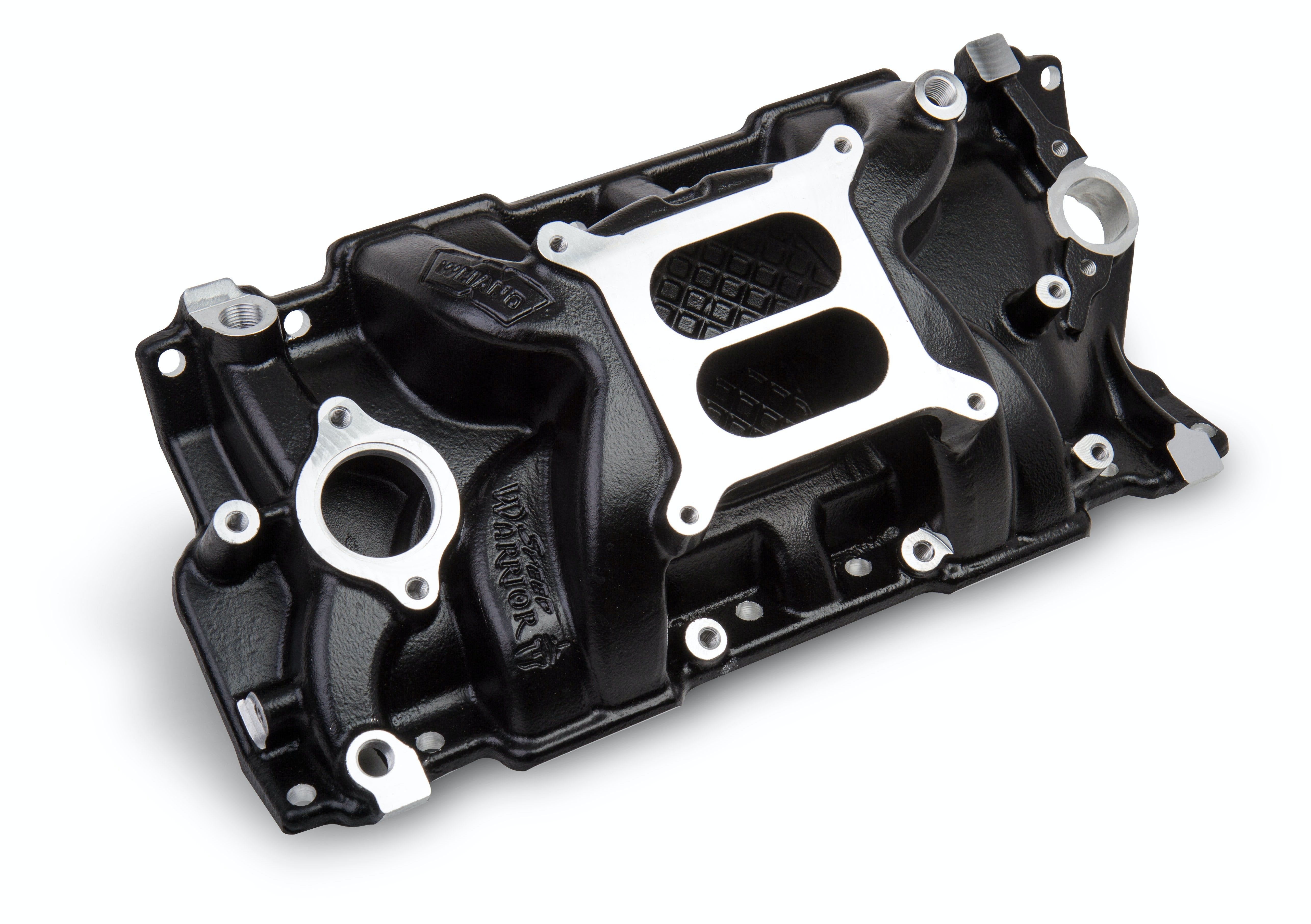

Weiand 8150BK MANIFOLD-SBC SPEED WARRIOR - BLACK

Speed Warrior™ Intake Manifold; Lower; Power Band 1500-6700 RPM; High-Rise; Square Bore Carb Flange; 4.19 in. Front H/5.27 in. Rear Height; Non-EGR; Black Finish;

---

The Weiand Speed Warrior features long, separated runners for bottom-end and mid-range power, plus a special runner design and larger plenum to flow the air needed for high-rpm horsepower. All of this usable power makes this intake perfect for your street and strip hot rod! Weiand developed the first ever aluminum intake manifold in 1937. Thirty years later Weiand developed complete blower drives for the GMC 6??"71 supercharger. Today, Weiand is still at the forefront of intake manifold and blower development as well as high flow water pumps. To make more power you have to get more air to your engine. Look to Weiand as your power source! *** Utilizes late model alternator an A/C bracket mounting provisions. Has additional vacuum tap off of runner. Recommended intake manifold gasket - Mr Gasket #'s 5821 or 101G ** Plenum depth: From the carb flange to the bottom of the upper plenum is 2-3/16. To the bottom of the lower plenum is 4-1/16.

• Black Ceramic Coating Provides Aggressive Look To Engine Comprt.
• Height Front 4.19 in.
• Rear 5.27 in.
• Port Size 1.92 in. Height x 1.16 in. Width
• Blk. Ceramic Is Heat/Corrosion Resistant For Long Life/Durability
• Provides An Easy To Clean Finish
• Precision CNC Machining
• High Rise/Dual Plane Design
• Square Bore Carburetor Flange
• Exhst Crossover For Improved Street Drivability (Std. SBC Heads)
• 1500-6700 RPM Power Band

---

Application Summary:

Year	Make/Model
1955-1975	Chevrolet Bel Air
1981	Chevrolet Bel Air
1958-1972	Chevrolet Biscayne
1969-1974	Chevrolet Blazer
1958-1961	Chevrolet Brookwood
1969-1972	Chevrolet Brookwood
1975-1986	Chevrolet C10
1966-1974	Chevrolet C10 Pickup
1967-1986	Chevrolet C10 Suburban
1975-1986	Chevrolet C20
1966-1974	Chevrolet C20 Pickup
1967-1986	Chevrolet C20 Suburban
1975-1986	Chevrolet C30
1966-1974	Chevrolet C30 Pickup
1967-1986	Chevrolet Camaro
1966-1986	Chevrolet Caprice
1964-1973	Chevrolet Chevelle
1963-1968	Chevrolet Chevy II
1955-1982	Chevrolet Corvette
1984-1986	Chevrolet Corvette
1957-1958	Chevrolet Del Ray
1959-1960	Chevrolet El Camino
1964-1986	Chevrolet El Camino
1969-1970	Chevrolet Estate
1975-1986	Chevrolet G10
1970-1974	Chevrolet G10 Van
1975-1986	Chevrolet G20
1970-1974	Chevrolet G20 Van
1975-1986	Chevrolet G30
1970-1974	Chevrolet G30 Van
1958-1985	Chevrolet Impala
1975-1986	Chevrolet K10
1966-1974	Chevrolet K10 Pickup
1967-1986	Chevrolet K10 Suburban
1975-1986	Chevrolet K20
1967	Chevrolet K20 Panel
1966-1974	Chevrolet K20 Pickup
1967-1986	Chevrolet K20 Suburban
1977-1986	Chevrolet K30
1968-1974	Chevrolet K30 Pickup
1975-1986	Chevrolet K5 Blazer
1959-1961	Chevrolet Kingswood
1969-1972	Chevrolet Kingswood
1973-1976	Chevrolet Laguna
1964-1967	Chevrolet Malibu
1973-1983	Chevrolet Malibu
1970-1977	Chevrolet Monte Carlo
1979-1986	Chevrolet Monte Carlo
1955-1961	Chevrolet Nomad
1969-1979	Chevrolet Nova
1955-1957	Chevrolet One-Fifty Series
1959-1961	Chevrolet Parkwood
1957	Chevrolet Sedan Delivery
1966	Chevrolet Suburban
1969-1972	Chevrolet Townsman
1955-1957	Chevrolet Two-Ten Series
1958	Chevrolet Yeoman
