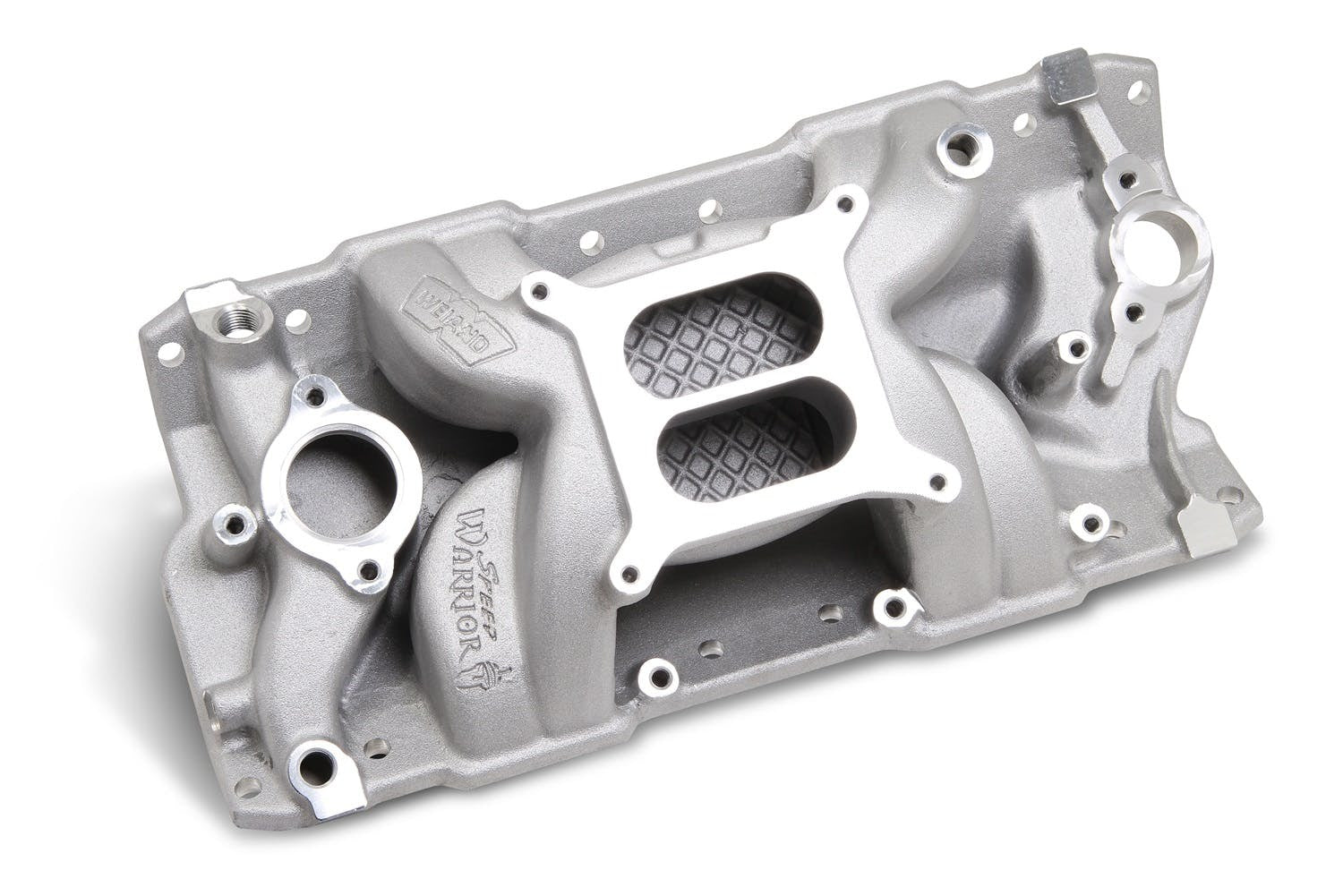

Weiand 8501WND MANIFOLD - SBC SPEED WARRIOR

Speed Warrior™ Intake Manifold; Lower; Power Band 1500-6700 RPM; High Rise; Square Bore Carb Flange; 4.19 in. Front H/5.27 in. Rear Height; Non-EGR; Satin Finish;

---

The Weiand Speed Warrior features long, separated runners for bottom-end and mid-range power, plus a special runner design and larger plenum to flow the air needed for high-rpm horsepower. All of this usable power makes this intake perfect for your street and strip hot rod! * Utilizes late model alternator an A/C bracket mounting provisions. Has additional vacuum tap off of runner. Recommended intake manifold gasket - Mr Gasket #'s 5821 or 101G

• Port Size 1.92 in. Height x 1.16 in. Width
• Rear 5.27 in.
• 1500-6700 RPM Power Band
• Square Bore Carburetor Flange
• Isolated Runners To Reduce Intake Charge Heating
• Promotes Airflow Between Hot Engine/Intake Plenum
• High Rise/Dual Plane Design
• Precision CNC Machining
• Permanent Mold Casting
• Height Front 4.19 in.

---

Application Summary:

Year	Make/Model
1977-1980	Buick Century
1978	Buick LeSabre
1977-1980	Buick Regal
1977-1979	Buick Skylark
1956-1975	Chevrolet Bel Air
1958-1972	Chevrolet Biscayne
1969-1974	Chevrolet Blazer
1987-1994	Chevrolet Blazer
1969-1972	Chevrolet Brookwood
1975-1986	Chevrolet C10
1961-1974	Chevrolet C10 Pickup
1968-1980	Chevrolet C10 Suburban
1982-1986	Chevrolet C10 Suburban
1988-1995	Chevrolet C1500
1992-1995	Chevrolet C1500 Suburban
1975-1986	Chevrolet C20
1961-1974	Chevrolet C20 Pickup
1968-1980	Chevrolet C20 Suburban
1982-1986	Chevrolet C20 Suburban
1988-1995	Chevrolet C2500
1992-1995	Chevrolet C2500 Suburban
1975-1986	Chevrolet C30
1961-1974	Chevrolet C30 Pickup
1988-1995	Chevrolet C3500
1967-1992	Chevrolet Camaro
1966-1993	Chevrolet Caprice
1964-1973	Chevrolet Chevelle
1963-1968	Chevrolet Chevy II
1956-1972	Chevrolet Corvette
1974-1982	Chevrolet Corvette
1984-1991	Chevrolet Corvette
1958	Chevrolet Del Ray
1959-1960	Chevrolet El Camino
1964-1980	Chevrolet El Camino
1982-1987	Chevrolet El Camino
1975-1995	Chevrolet G10
1968-1974	Chevrolet G10 Van
1975-1995	Chevrolet G20
1968-1974	Chevrolet G20 Van
1975-1980	Chevrolet G30
1982-1996	Chevrolet G30
1970-1974	Chevrolet G30 Van
1959-1985	Chevrolet Impala
1975-1986	Chevrolet K10
1961-1974	Chevrolet K10 Pickup
1968-1980	Chevrolet K10 Suburban
1982-1986	Chevrolet K10 Suburban
1988-1995	Chevrolet K1500
1992-1995	Chevrolet K1500 Suburban
1975-1986	Chevrolet K20
1961-1974	Chevrolet K20 Pickup
1968-1980	Chevrolet K20 Suburban
1982-1986	Chevrolet K20 Suburban
1988-1995	Chevrolet K2500
1992-1995	Chevrolet K2500 Suburban
1977-1986	Chevrolet K30
1968-1974	Chevrolet K30 Pickup
1988-1995	Chevrolet K3500
1975-1980	Chevrolet K5 Blazer
1982-1986	Chevrolet K5 Blazer
1969-1972	Chevrolet Kingswood
1973-1976	Chevrolet Laguna
1964-1967	Chevrolet Malibu
1973-1983	Chevrolet Malibu
1970-1988	Chevrolet Monte Carlo
1975-1979	Chevrolet Monza
1969-1979	Chevrolet Nova
