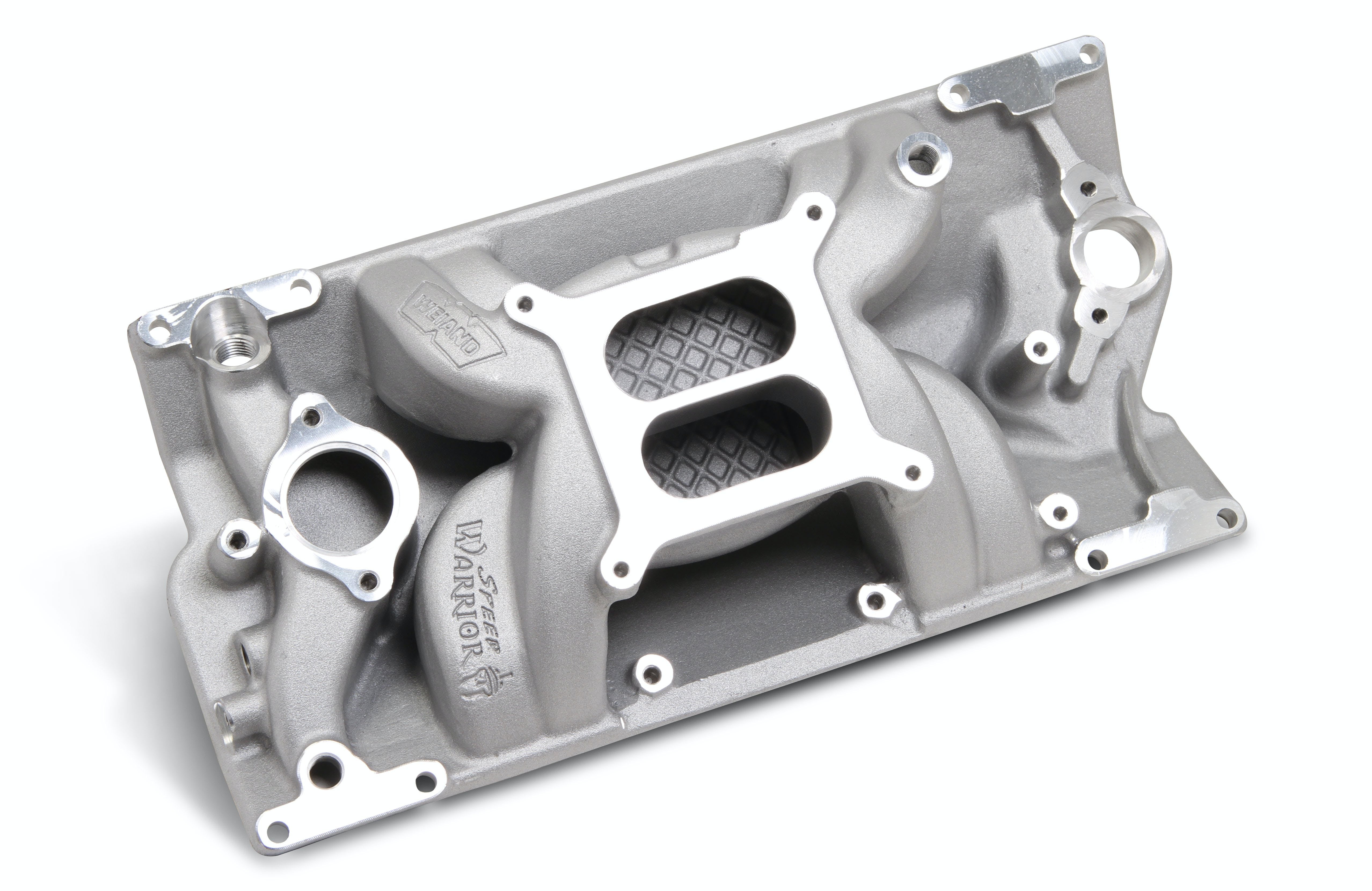

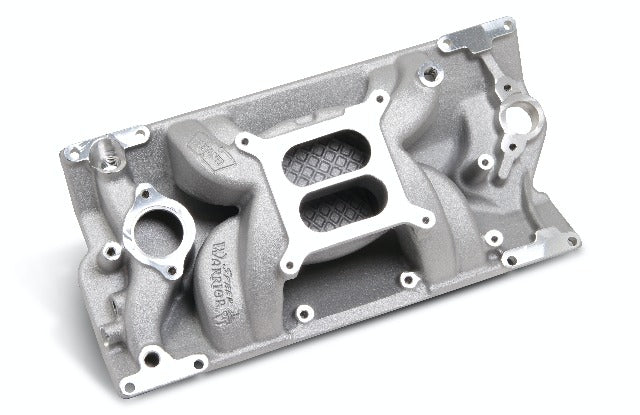

Weiand 8502 MANIFOLD - SBC VORTEC SPEED WARRIOR

Speed Warrior™ Intake Manifold; Upper; Power Band 1500-6700 RPM; HighRise; w/Vortec Cylinder Heads; Square Bore Carb; 4.19 in. Front H/5.27 in. Rear Height; Non-EGR; Satin Finish;

---

The Weiand Speed Warrior features long, separated runners for bottom-end and mid-range power, plus a special runner design and larger plenum to flow the air needed for high-rpm horsepower. All of this usable power makes this intake perfect for your street and strip hot rod! * Utilizes late model alternator an A/C bracket mounting provisions. Has additional vacuum tap off of runner. Recommended intake manifold gasket - Mr Gasket #'s 5821 or 101G

• Precision CNC Machining
• Permanent Mold Casting
• High Rise/Dual Plane Design
• Isolated Runners To Reduce Intake Charge Heating
• Promotes Airflow Between Hot Engine and Intake Plenum
• Square Bore Carburetor Flange
• 1500-6700 RPM Power Band
• Height Front 4.19 in.
• Rear 5.27 in.
• Port Size 2.05 in. Height x 1.02 in. Width

---

Application Summary:

Year	Make/Model
1997-1999	Chevrolet C1500
1999	Chevrolet C1500 Suburban
1996-2000	Chevrolet C2500
1999	Chevrolet C2500 Suburban
1997-2000	Chevrolet C3500
1996	Chevrolet Express 1500
1998-2002	Chevrolet Express 1500
1996	Chevrolet Express 2500
1998-2002	Chevrolet Express 2500
1996	Chevrolet Express 3500
1998-2002	Chevrolet Express 3500
1997-1999	Chevrolet K1500
1999	Chevrolet K1500 Suburban
1996-2000	Chevrolet K2500
1999	Chevrolet K2500 Suburban
1997-2000	Chevrolet K3500
1999-2000	Chevrolet Tahoe
1998-1999	GMC C1500
1996-2000	GMC C2500
1997-2000	GMC C3500
1997-1999	GMC K1500
1996-2000	GMC K2500
1997-2000	GMC K3500
