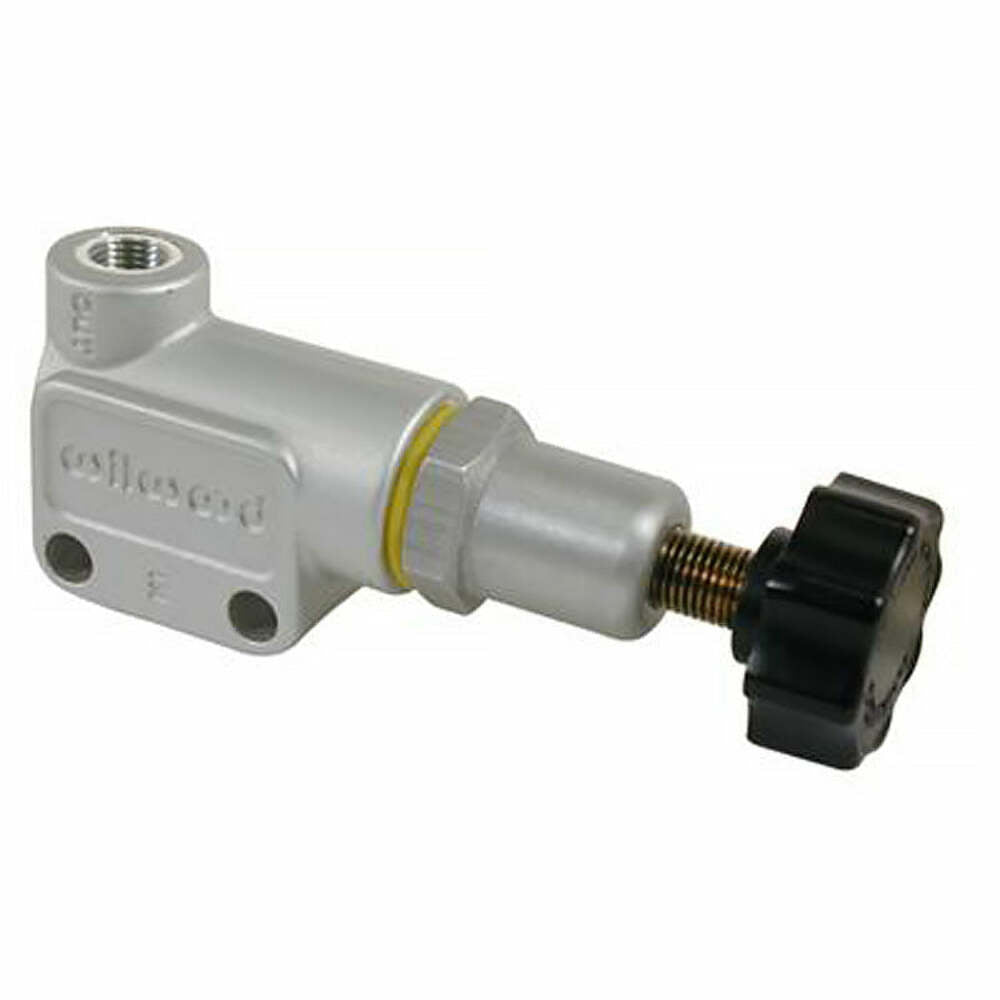

Wilwood Brakes VALVE,PROPORTIONING,COMPACT-ASSEMBLY 260-12627
Wilwood Brakes VALVE,PROPORTIONING,COMPACT-ASSEMBLY 260-12627

Wilwood Brakes VALVE,PROPORTIONING,COMPACT-ASSEMBLY 260-12627

Wilwood Brakes
wwb260-12627
This is a SPECIAL ORDER part. This item can be brought in either with a stock order or on its own. Contact us today to discuss available options BEFORE ordering.
$75.10
$68.27
$75.10
Wilwood Brakes VALVE,PROPORTIONING,COMPACT-ASSEMBLY 260-12627

Wilwood Brakes

Wilwood Brakes VALVE,PROPORTIONING,COMPACT-ASSEMBLY 260-12627

$68.27 $75.10
Wilwood Brakes VALVE,PROPORTIONING,COMPACT-ASSEMBLY 260-12627
Wilwood Brakes VALVE,PROPORTIONING,COMPACT-ASSEMBLY 260-12627

Wilwood Brakes

Wilwood Brakes VALVE,PROPORTIONING,COMPACT-ASSEMBLY 260-12627

$68.27 $75.10
Description

Wilwood Brakes VALVE,PROPORTIONING,COMPACT-ASSEMBLY

260-12627

VALVE,PROPORTIONING,COMPACT-ASSEMBLY KNOB TYPE,M10x1 BF,IN/ OUT,WILWOOD

The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 150-1200 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. Adjuster knob with fine thread tuning provides precise pressure adjustment. This adjustment lets you fine tune the front to rear braking balance by proportionally decreasing the rear brake line pressure. Valves weigh only 5.2 ounces and have two .25" side mounting holes spaced 1.00" apart. This valve varies from our standard Knob Style Proportioning valve, as the inlet and outlet ports are 10MM X 1 bubble flare seats and do not require tube nut adapters to directly install tubing with bubble flare 10MM x 1 nuts.
