Description

Wilwood Brakes HAND BRAKE,ASSEMBLY,11:1 RATIO

340-14769

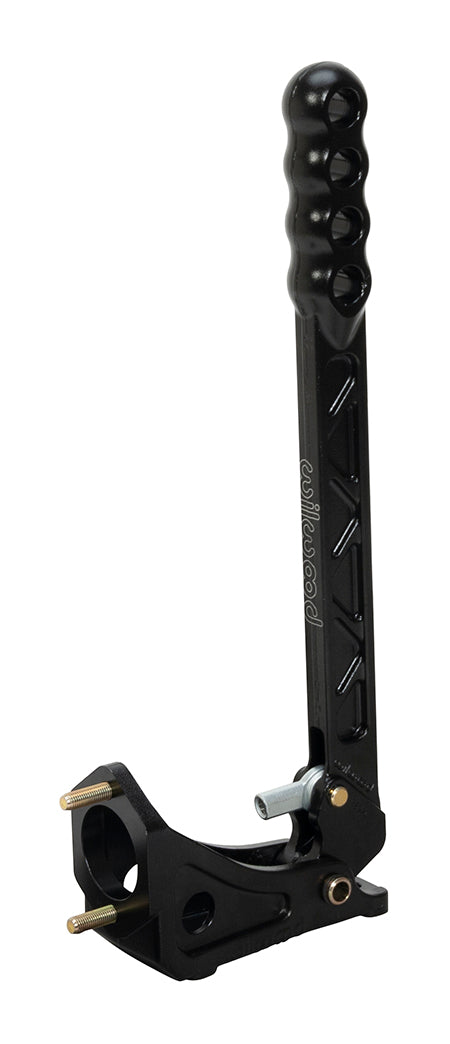

HAND BRAKE,ASSEMBLY,11:1 RATIO VERTICAL

Wilwood handbrake lever assemblies provide a lightweight, high-leverage component for drift cars, drag race cars and rally cars or any application where hand-actuation of one or more brake calipers is employed. With a lightweight aluminum forged 11:1 ratio "H" beam lever with ergonomic grip in a choice of vertical or horizontal static lever positioning Accepts any vertical flange master cylinder with 2.25" mount centers. Finished an a durable long lasting e-coat finish for corrosion resistance.



Pedal Type
Material Aluminum
Finish Black E-coat
Pedal Description
Mount Loc Floor
Mount Facing Vertical
Balance Bar No

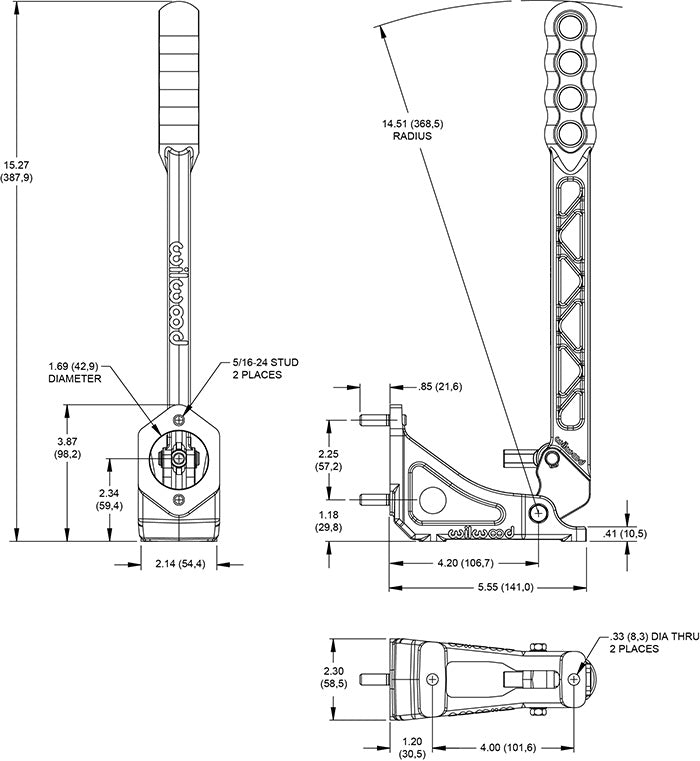

Mount Length (in) 15.30
Pedal Ratio & Length
Pedal 1 Ratio 11.0 to 1
Pedal 2 Ratio
Pedal 1 Length (in) 14.51
Fitment
