QA1 HK43-GMF1RN QA1 HK43-GMF1RN Level 3 Handling Kit with Narrowed 9in. Housing 67-69 GM F Body

HK43-GMF1RN

QA1 HK43-GMF1RN Level 3 Handling Kit with Narrowed 9in. Housing, 67-69 GM F Body

Complete Suspension Kit: Upgraded performance for street and track; QA1 MOD Shocks: Fine-tune your ride height and handling for a perfect stance and performance in any driving scenario; Custom 9" Rear Housing: Supports up to 800HP; Lightweight Front Suspension: Enhances control and reduces flex; Easy Installation: Bolt-on with minimal welding required

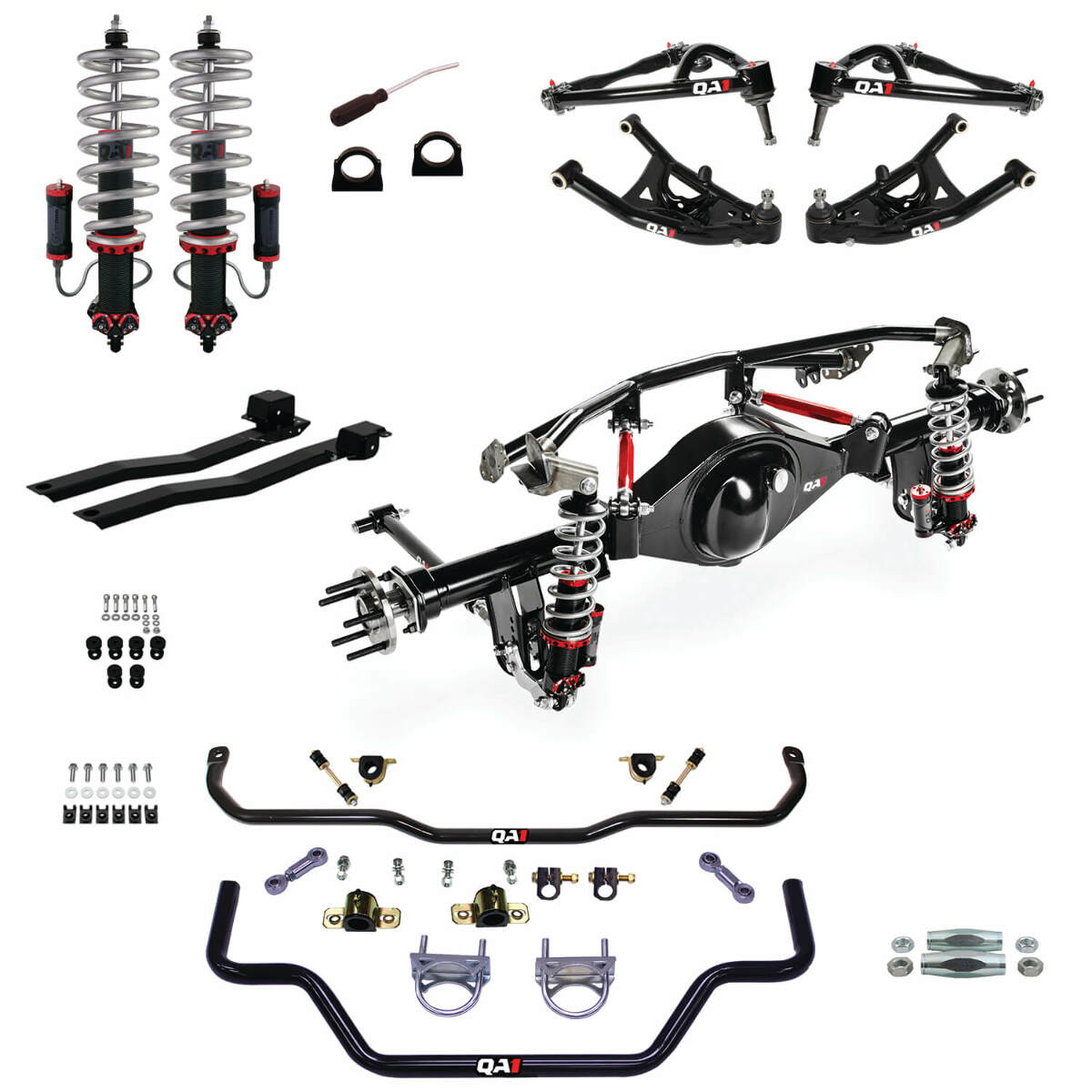

PRODUCT OVERVIEW QA1's Handling Kit is the premier suspension upgrade for 67-69 F-Body Camaro or Firebird owners seeking exceptional handling. This kit replaces the front and rear suspension with QA1 MOD series 4-way adjustable coilovers and a narrowed QA1 9" rear housing and four-link optimized for wider wheels and tires. HUGE HANDLING GAINS Experience superior handling with lightweight control arms that improve geometry and reduce flex. The adjustable four-link design eliminates wheel hop and improves traction and handling. Front and rear sway bars and subframe connectors minimize roll in tight corners. AGGRESSIVE STANCE Factory springs limit stance but QA1's MOD series coilovers and 4-link offer 2 inches of front adjustability and -3 to +2 inches in the rear for ideal ride height. The kit allows for massive 11-inch-wide wheels and 315mm tires on '67-'68 cars and 12-inch-wide wheels with 335 tires on 69 models when using mini tubs. PERFORMANCE 9" REAR HOUSING Strength: Fabricated center section with 3" OD .25" wall axle tubes support 800HP and 31 spline axles are rated to 650HP Features: Standard options include powder coat drain and fill plugs jack pad and all necessary hardware Specs: Narrowed wheel mounting width: 54-3/4" (narrowed 2.5" per side for mini tubs) Big Ford "New Style Torino Axle Flanges" with 2.5" axle offset Bolt pattern: 5x4-3/4" for easy wheel compatibility Wheel studs: 1/2" x 3" for alloy wheels Requires third member for Ford 9" housings with 31 spline axles EASY INSTALL The QA1 Handling Kit features a straightforward installation. The rear crossmember needs minimal MIG welding and all other components are direct bolt-in. MADE IN THE USA Components manufactured in the USA FITMENT NOTES Narrowed housing is recommended for custom offset wheels and mini tubs Verify wheel and tire fitment on the vehicle Mini tubs required for maximum tire width Some welding may be necessary Exhaust modifications may be needed
