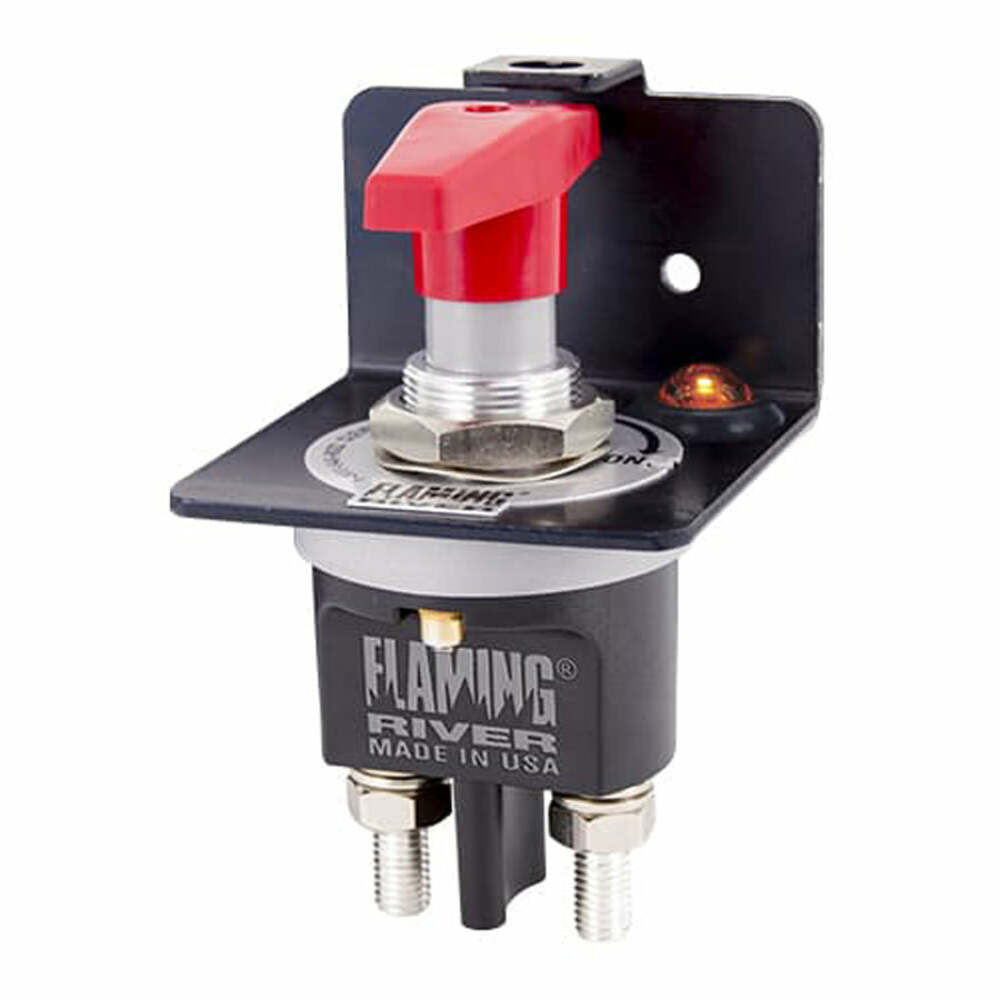

Flaming River The Big Switch 500 Lockout Bracket with LED
FR1046LED

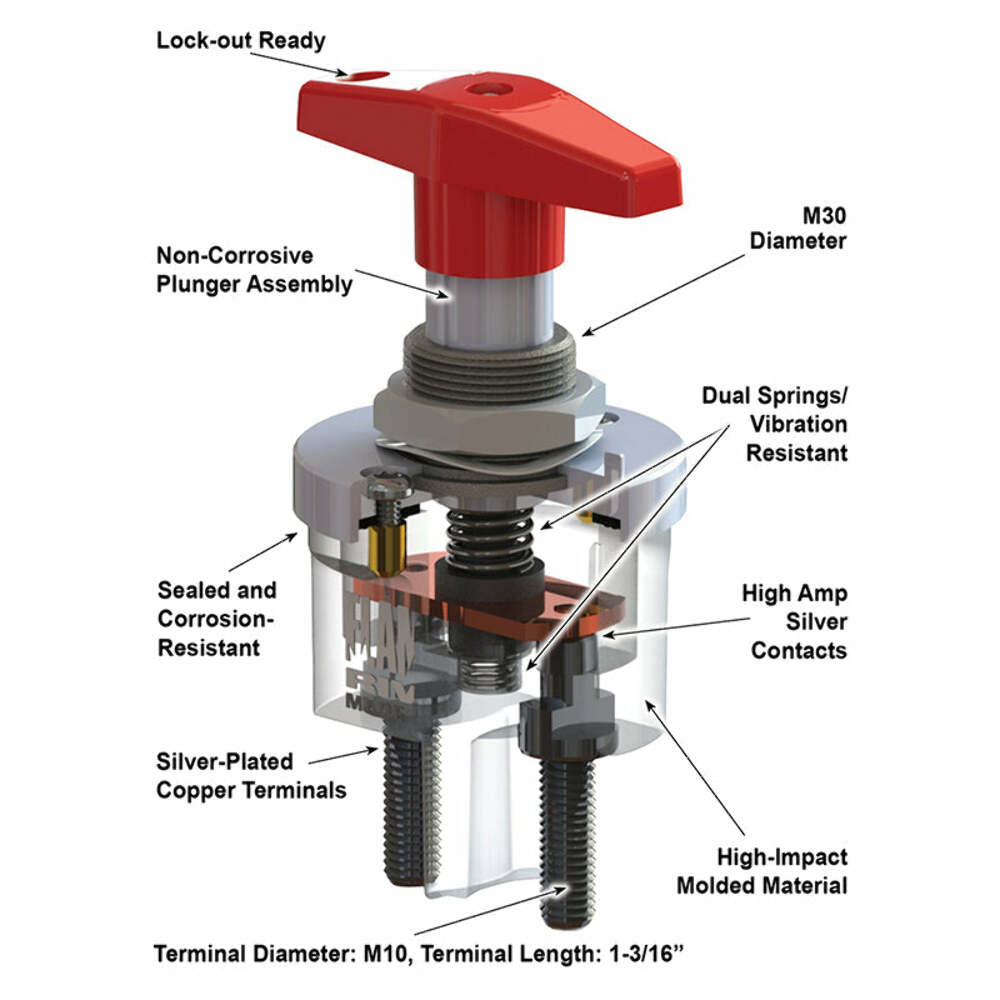

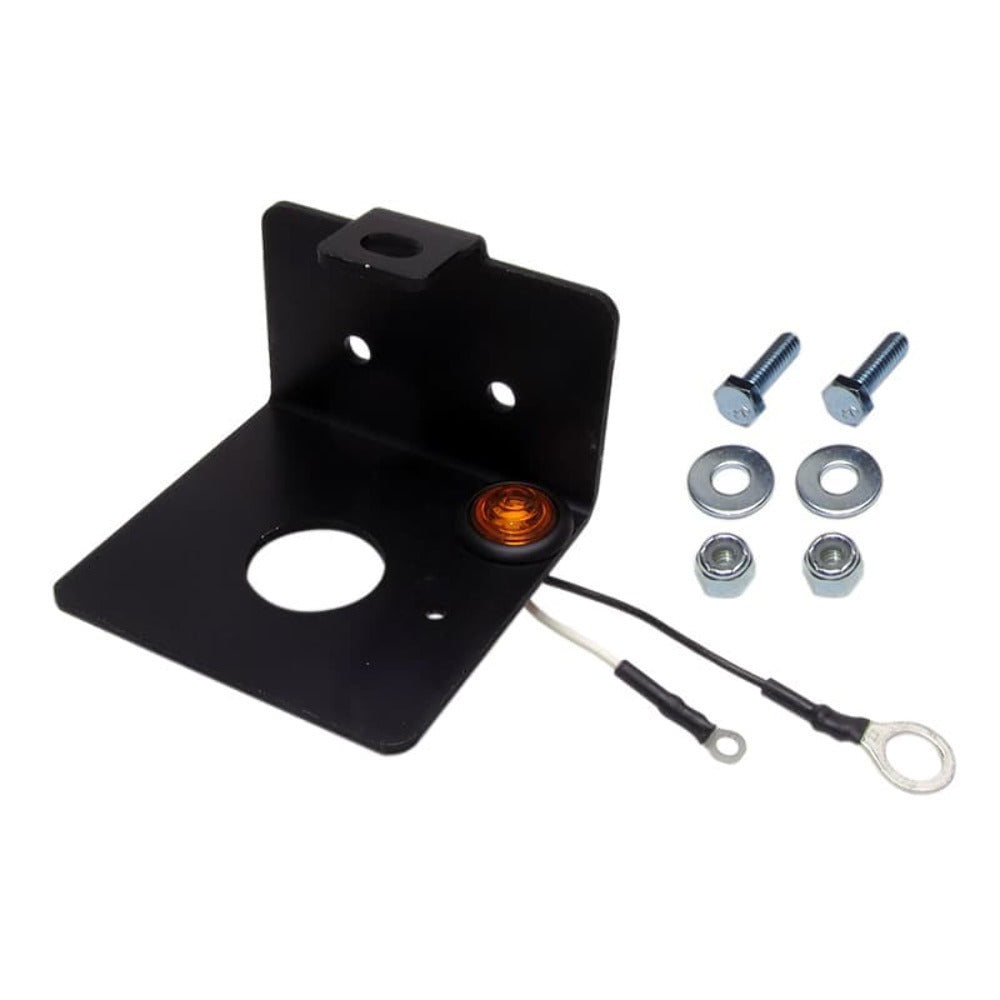

The Big Switch 500 is a heavy-duty switch which boasts a 500 Amp continuous rating due to its unique internal silver tin oxide pads and silver-plated terminals. The rugged body is made from glass-filled nylon for impact resistance and extreme temperature resistance. The Big Switch 500 can withstand extreme vibration; making it ideal for both the racing and heavy-duty trucking markets. The FR1046LED comes with our LED lock-out bracket for compliance with OSHA lock-out/tag-out regulation 1910.147 and convenient system power ON/OFF indication.
| Part No. |
FR1046LED |
| Max Continuous Current |
500 Amps |
| Water Resistant |
Yes |
| Operating Temperature Range |
-40°C to +80°C / -40°F to +176°F |
| Contact Terminals |
Silver-Tin Oxide Plated Copper |
| Available Stud Length |
1.18" (approx. 1-3/16 in) |
| LED On/Off Indicator |
Yes |
| Lock-Out Capability |
Yes |
| Max Tightening Torque |
11-13 ft. lbs. |
| Mounting Bracket Included |
Yes |
| Stud Diameter |
M10 |
| Voltage |
12/24V |
