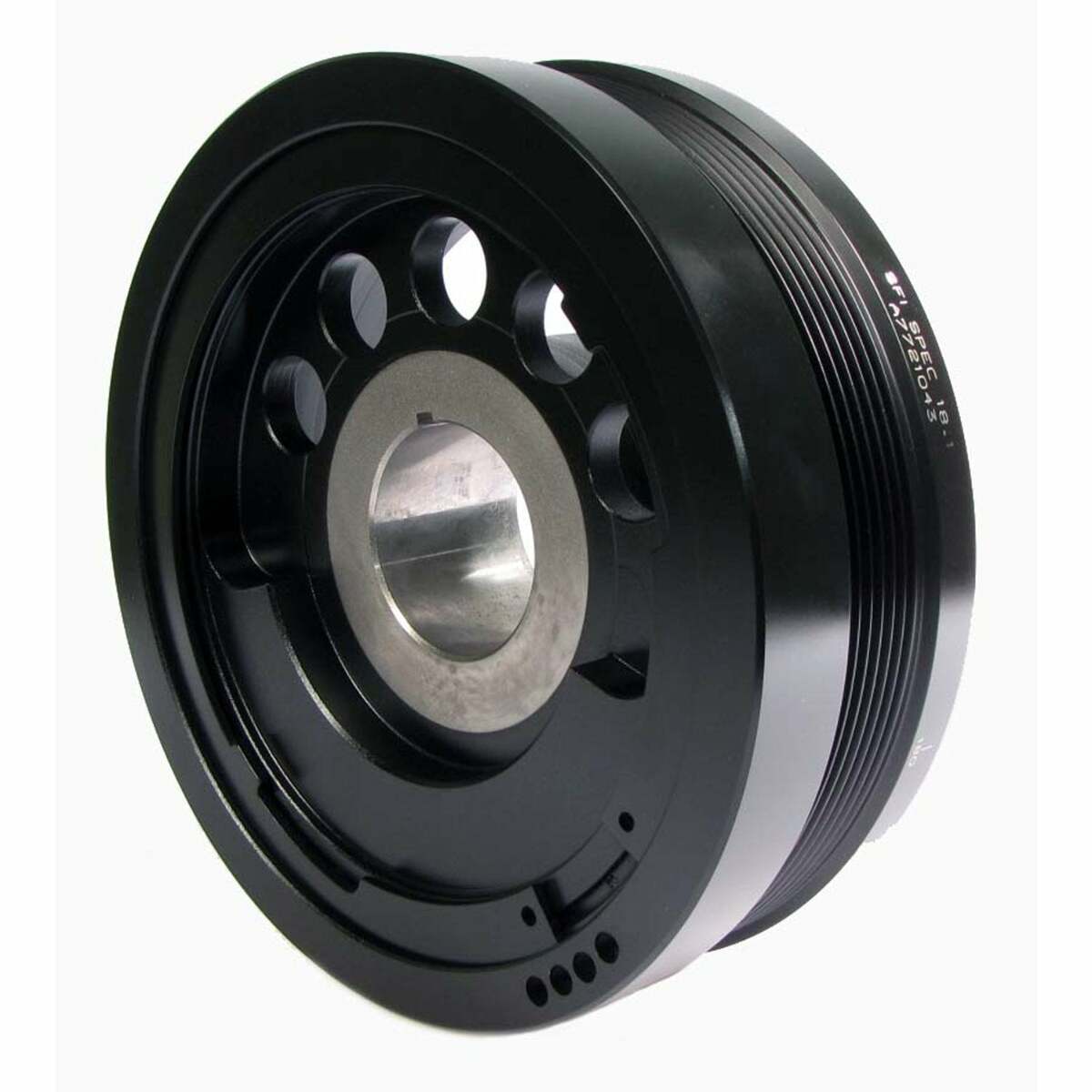

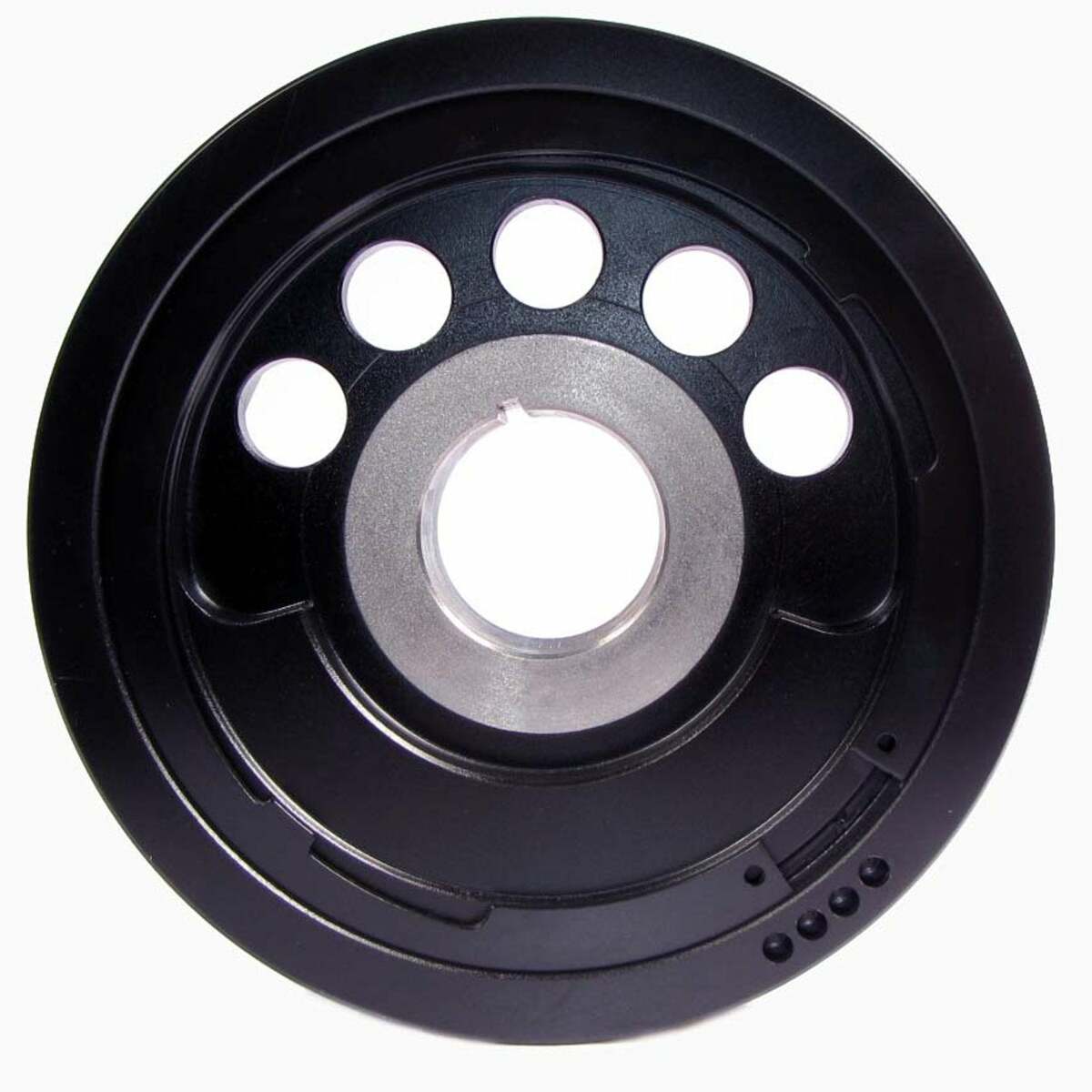

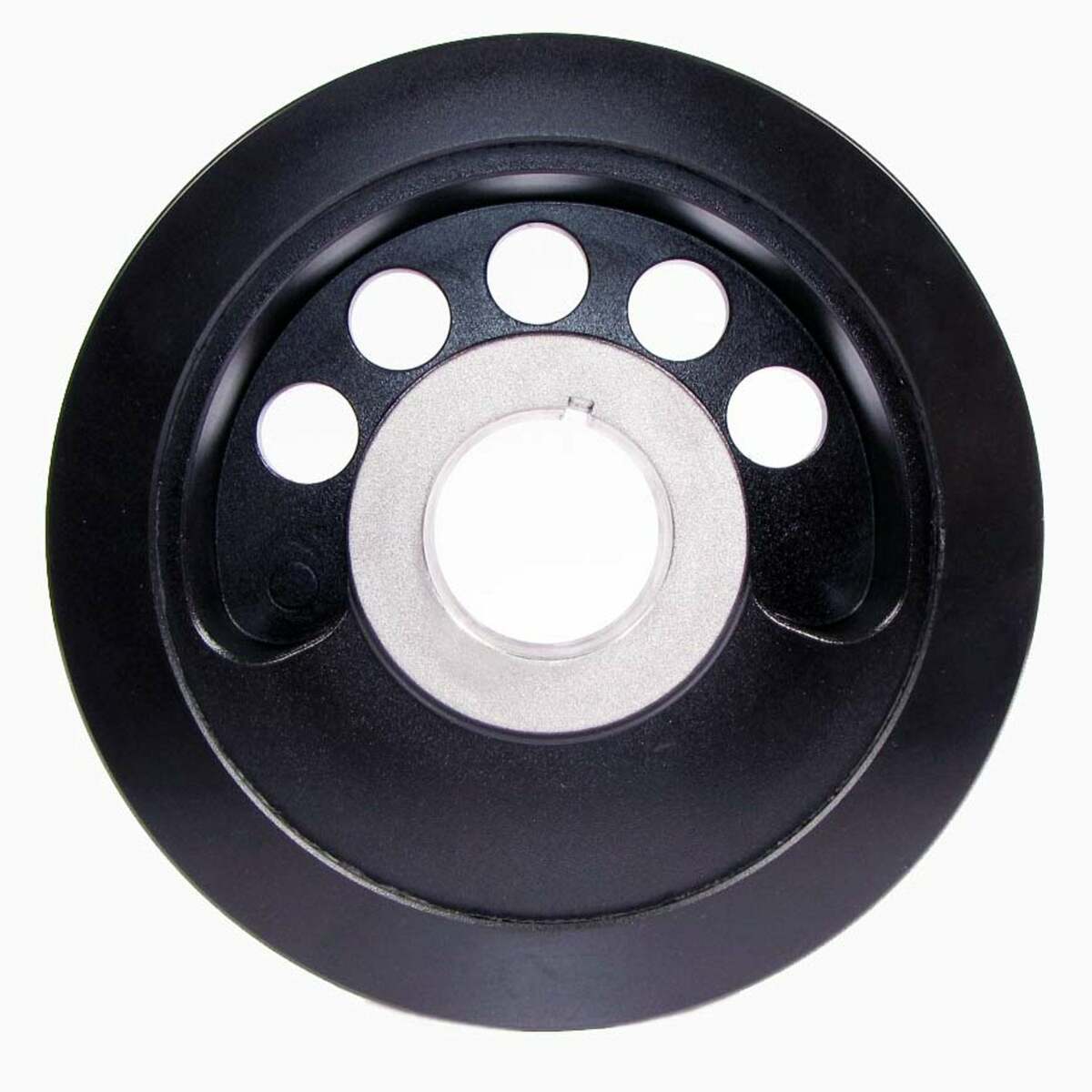

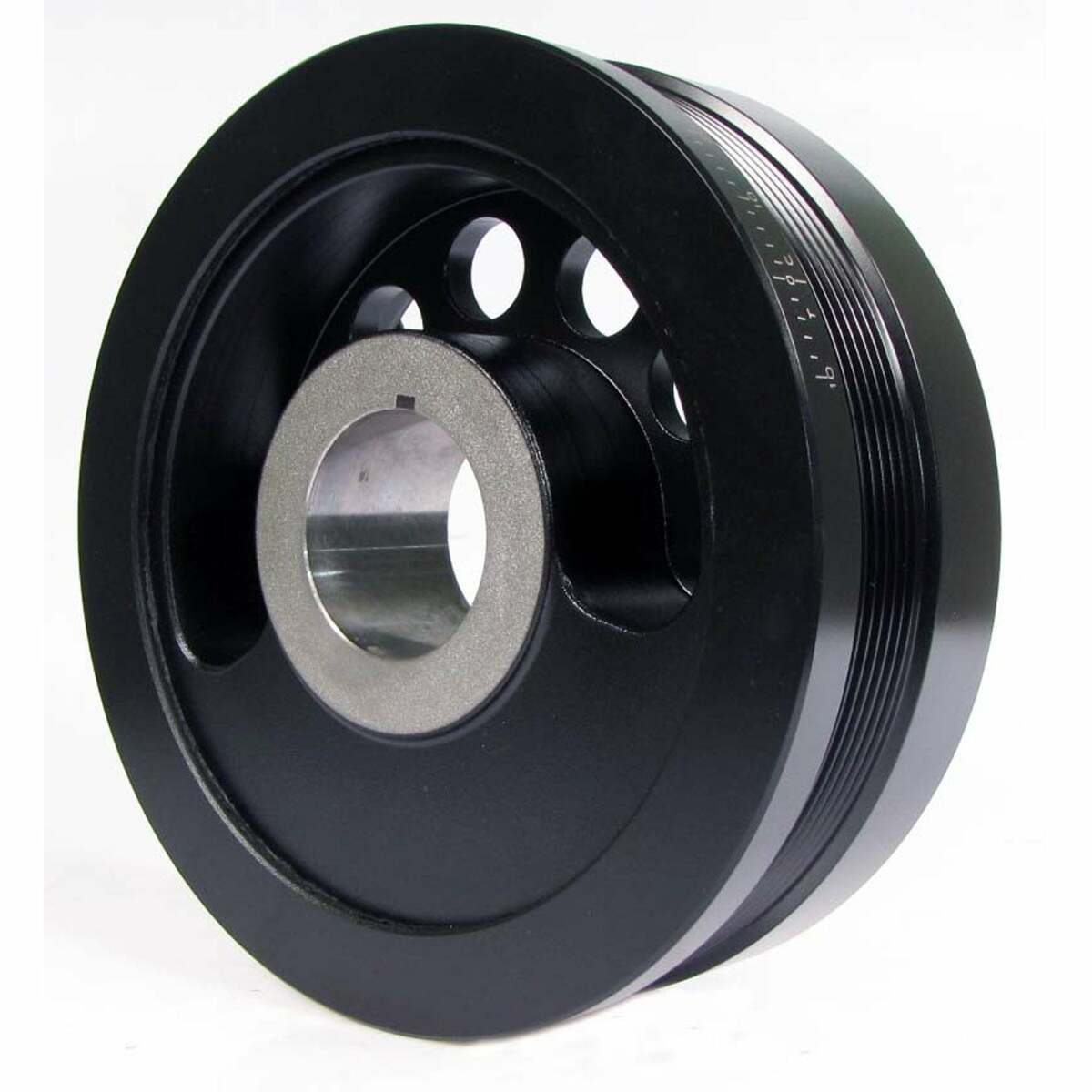

PowerBond Diesel Performance Harmonic Balancers Designed as a high performance alternative for diesel-powered passenger trucks, PowerBond by Dayco Diesel Performance harmonic balancers feature a strong billet steel ring and hub construction with ultra-reliable PowerBond Race Series pressure-bonded technology and are SFI approved for race use. PowerBond Diesel Performance Balancers meet and exceed SFI 18.1 standards.
Property | Description |
---|---|
Part # | PB1649DP |
Overall OD (mm) | 198.00 |
Overall OD (In) | 7.796 |
Overall Width (mm) | 68.75 |
Overall Width (In) | 2.707 |
Nose OD (mm) | 0.00 |
Nose OD (In) | 0 |
Crank Bore (mm) | 49.01 |
Crank Bore (In) | 1.930 |
Ring Width (mm) | 66.50 |
Ring Width (In) | 2.619 |
Bolt Hole Quantity | 0 |
Counterweight Balance | Hub weighted |
No of Integrated Pulleys | 1 |
Pulley Type 1 | Serpentine |
Grooves, Pulley Type 1 | 6 |
Pulley Type 2 | |
Grooves, Pulley Type 2 | |
Pulley Type 3 | |
Grooves, Pulley Type 3 | |
Pulley OD 1 (mm) | 192.000 |
Pulley OD 1 (In) | 7.560 |
Pulley OD 2 (mm) | |
Pulley OD 2 (In) | |
Pulley OD 3 (mm) | |
Pulley OD 3 (In) | |
Crank Trigger/Exciter Plate | N |
SFI Certified | Y |
Comments | Nose O.D. not applicable |

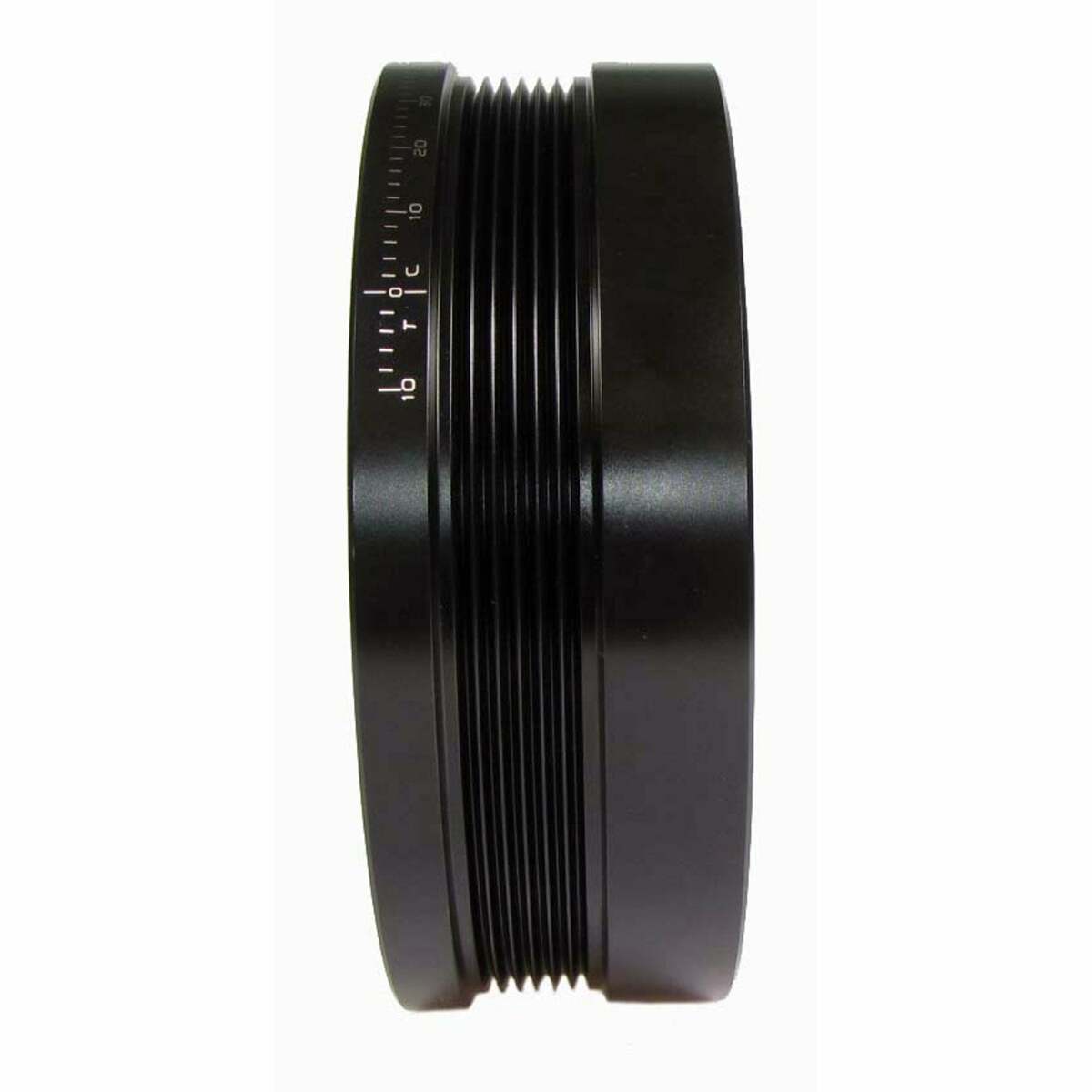

Timing Marks | Y |
Hardware Included | N |
Balancer Hub Material Type | Steel |
Balancer Outer Ring Mat Type | Steel |
Woodruff Key Included | 29.98 |
