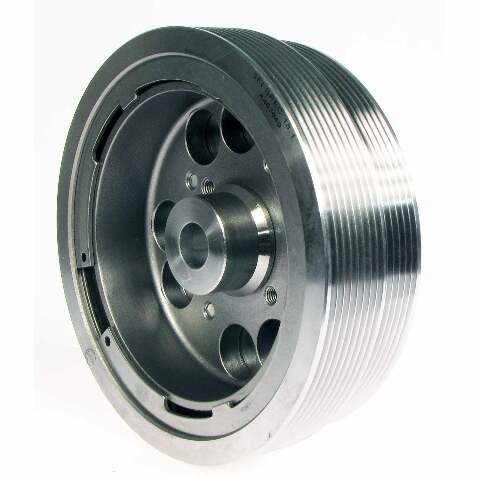

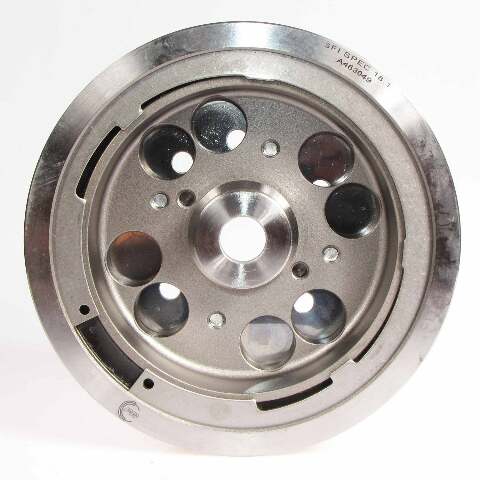

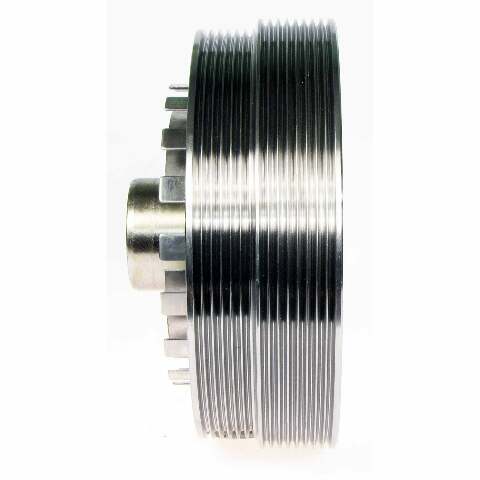

PowerBond Supercharger Performance Harmonic Balancers PowerBond Supercharger Performance harmonic balancers are designed for high performance supercharged engines with high-pressure bonded dampening runners for maximum torque resistance. They feature twin key ways for secure crank mounting and their design is SFI 18.1 approved.
| Property | Description |
|---|---|
| Part # | PBO81197SC5 |
| Overall OD (mm) | 185.00 |
| Overall OD (In) | 7.284 |
| Overall Width (mm) | 95.60 |
| Overall Width (In) | 3.764 |
| Nose OD (mm) | 49.12 |
| Nose OD (In) | 1.934 |
| Crank Bore (mm) | 34.87 |
| Crank Bore (In) | 1.373 |
| Ring Width (mm) | 57.58 |
| Ring Width (In) | 2.267 |
| Bolt Hole Quantity | 9 |
| Counterweight Balance | Neutral, no counterweight |
| No of Integrated Pulleys | 2 |
| Pulley Type 1 | Serpentine |
| Grooves, Pulley Type 1 | 6 |
| Pulley Type 2 | Serpentine |
| Grooves, Pulley Type 2 | 8 |
| Pulley Type 3 | |
| Grooves, Pulley Type 3 | |
| Pulley OD 1 (mm) | 176.200 |
| Pulley OD 1 (In) | 6.938 |
| Pulley OD 2 (mm) | 185.000 |
| Pulley OD 2 (In) | 7.284 |
| Pulley OD 3 (mm) | |
| Pulley OD 3 (In) | |
| Crank Trigger/Exciter Plate | Y |
| SFI Certified | Y |
| Comments | |
| Timing Marks | N |
| Hardware Included | N |
| Balancer Hub Material Type | Steel |
| Balancer Outer Ring Mat Type | Steel |
| Woodruff Key Included | 10.23 |
