JVC

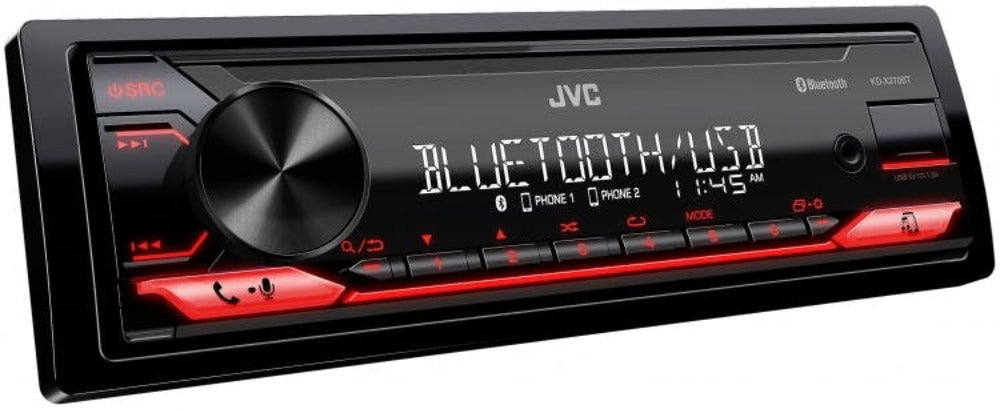

KD-X270BT
JVC quality made simple
When you think of playing music on your Android phone, do you think of Spotifyand reg; or Pandoraand reg; first? JVC's KD-X270BT digital media receiver makes control of those terrific music apps easy with an info-packed, high-contrast LCD display that fares well even when the sun is doing its worst. Built-in Bluetooth means you can pair two phones for quick hands-free calling. And when it comes to streaming audio, JVC's Streaming DJ feature lets you pair five phones so everybody can chime in with their favorite song on the road.
Connect your smartphone
With a Bluetooth connection to your Android, you can control Pandoraand reg; or Spotifyand reg; through this receiver and access basic controls on the screen display. JVC's Remote Control app lets you use your compatible smartphone's touchscreen to control the action using finger swipes and gestures.
Play stored music files
JVC builds a USB port into the front of this receiver to make charging your smartphone easy. Play stored music files from your smartphone or plug in a flash drive to play MP3, WAV, WMA, and even FLAC files with higher resolution than CD.
Expand your system
If you're planning to expand your car audio system in the future, the KD-X270BT includes a set of preamp outputs. You can use the 13-band graphic EQ, time alignment, bass boost, loudness control, high- and low-pass filters, and subwoofer level control to tune according to your tastes. Much of today's music uses compression which can sometimes muddle the sound, and JVC's K2 technology helps bring back the depth and detail for all your digital music sources.
Bluetooth note: Use of this receiver's Bluetooth features will depend upon your phone's Bluetooth capabilities.
Product highlights:
General Features:
- digital media receiver with AM/FM tunerand (does not play CDs)
- built-in Bluetooth for audio streaming and hands-free calling (mic included)
- detachable face with 1.5 line display (red illumination)
- USB 1.5A connection charges devices quickly
- plays MP3, WMA, WAV, AAC, and high-res FLAC files through USB
Smartphone Features:
- control 2 phones at once
- voice recognition dialing
- wirelessly control PANDORA and Spotify from your Android device
Audio Features:
- high- and low-pass filters
- K2 technology improves the digital sound for most music sources
- sound-shaping tools get more out of your digital music library
- 13-band graphic EQ and time alignment
Expandability:
- inputs: front USB, front auxiliary input
- outputs: 2-channel preamp outputs (2.5-volt rear/sub)
Other Information:
- built-in amplifier (22 watts RMS/50 peak x 4 channels)
- compatible with most factory steering wheel audio controls (adapter required)
- warranty: 1 year
- MFR # KD-X270BT
What's in the box:
- Digital media receiver (10A fuse)
- Face (attached)
- Sleeve (installed)
- Trim ring (installed)
- Wiring harness
- Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
- 2 Radio removal tools
- Face-fixing screw
- Quick Start Guide
- Warranty Information
- Face-fixing screw note
Features and amp; specs
Expandability | ||
---|---|---|
Aux Input | Front | |
Audio/video Input | --- | |
USB Input | Front | |
Backup Camera Input | No | |
Second Camera Input | No | |
CarPlay | No | |
Android Auto | No | |
Siri Control | No | |
Alexa Voice Control | N | |
Android Control | Yes | |
Memory Card Slot | USB memory | |
Bluetooth Compatible | Built-in | |
Satellite Radio Ready | No | |
HD Radio | No | |
Navigation | --- | |
iPod Compatibility | ||
Full Size | N/A | |
Nano | N/A | |
Touch | N/A | |
iPhone | N/A | |
General | ||
RMS Power (CTA-2006) | N/A | |
RMS Power (Manufacturer) | 22 watts | |
Peak Output | 50 watts | |
RMS Power Bandwidth | 20-20kHz | |
Preamp Outputs | 2-channel | |
Sub Preamp Outputs | No | |
Switchable Rear Preamp Outputs | Yes | |
Video Screen | No | |
Navigation App Compatible (iOS) | ||
Navigation App Compatible (Android) | ||
Preamp Voltage | 2.5 volts | |
Screen Size | --- | |
Display Color | White | |
Key Button Color | Red | |
EQ Bands | 13 | |
Wireless Remote | Optional | |
Steering Wheel Control Compatible | Adapter required | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Tuner | ||
FM Sensitivity | 8.2 dBf | |
European Tuning | Yes | |
Seek/Scan | Seek | |
Radio Data System | Yes | |
File Playback | ||
Music File Playback | MP3,WMAq,WAV,FLAC | |
High-res Playback | FLAC (96kHz) | |
Second Camera Input Lane Watch | N |
