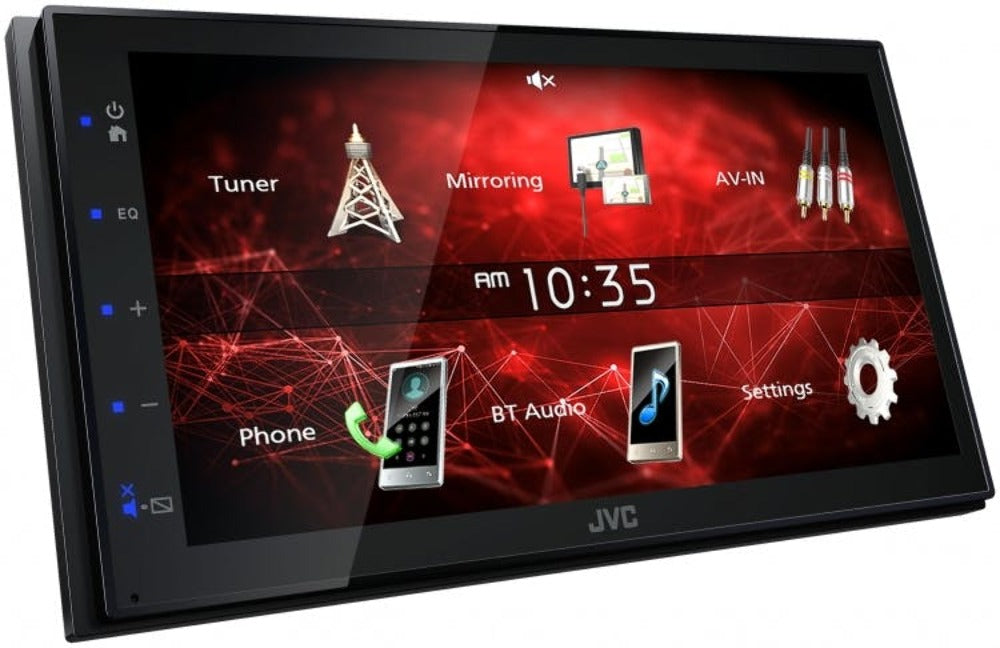

JVC

KW-M150BT


Feature-packed short chassis

A 6.75" capacitive touchscreen display, smartphone integration, and a nice price makes JVC's KW-M150BT multimedia receiver a big step up from a factory radio. Count on hands-free calling, music streaming, and playback of music and video files stored on a USB flash drive as well. For Androidand trade; users, the big fun of this receiver is controlling your compatible Android device via screen-mirroring when the parking brake is engaged. And with an incredibly shallow chassis (3" deep), the KW-M150BT beats installation woes by being a better fit in challenging dashboards.

Mirror, mirror in your dash

With the parking brake engaged and the mirroring app installed on your Android device, you'll see a mirror image of your smartphone's screen on the JVC's display. Opening and controlling apps works the same way it does on your phone.

Bluetooth calling and streaming

Built-in Bluetoothand reg; lets you wirelessly pair your phone with theand KW-M150BT for hands-free calling and music-streaming from your favorite music service.

Add an optional backup cam

JVC provides a dedicated input for adding a backup cam. And if you have high-def video files loaded onto a flash drive, this JVC will play them in bright, clear detail when you're parked.

Shape-sculpting tools

Make the most of JVC'sand 13-band equalizer, deep crossover settings, and built-in digital time alignment. You'll have solid tools to highlight the depth and detail for all your digital music sources. The KW-M150BT also includes 2-volt RCA preamp outputs that provide a clean signal when it's time to add amplifiers to your system.

Bluetooth note: Use of this receiver's Bluetooth features will depend upon your phone's Bluetooth capabilities.

Product highlights:

    General Features:
    • digital multimedia player with AM/FM tunerand (does not play CDs)
    • plays media loaded with MP3, WMA, FLAC, and AAC music files
    • 6.75" capacitive touchscreen display
    • fits double-DIN (4" tall) dash openings
    Smartphone Features:
    • Android screen-mirroring via USB
    • built-in Bluetooth for hands-free calling and music streaming
    • built-in iPhone control and rapid Android charging via USB port
    Audio/Video Features:
    • plays USB memory devices
    • 13-band graphic EQ with digital time alignment
    • high- and low-pass filters
    Expandability:
    • inputs: rear USB input; backup camera input; rear A/V input (RCA)
    • outputs: rear video output; 5-channel preamp outputs (2-volt front, rear, mono sub)
    Other Information:
    • wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
    • built-in amplifier (16 watts RMS/45 peak x 4 channels)
    • compatible with most factory steering wheel audio controls (adapter required)
    • warranty: 1 year
    • MFR # KW-M150BT

    What's in the box:

    • Digital media receiver w/ fixed 6.8" touchscreen monitor (15A fuse)
    • Sleeve (attached)
    • Trim ring
    • Power harness
    • Speaker harness
    • 6.5' Light-green parking brake wire (pre-installed)
    • Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
    • 2 Radio removal tools
    • Trim-ring removal tool
    • 6 Pan-head ISO-mount screws
    • 6 Flat-head ISO-mount screws
    • Quick Start Guide
    • Warranty card

    Features and amp; specs

    Expandability
    AUX Input RCA (rear)
    Audio/video Input RCA (rear)
    USB Input Rear
    Backup Camera Input Yes
    Second Camera Input No
    CarPlay No
    Android Auto No
    Siri Control No
    Alexa Voice Control N
    Android Control Yes
    Memory Card Slot USB Memory
    Bluetooth Compatible Built-in
    Satellite Radio Ready No
    HD Radio No
    Navigation No
    iPod Compatibility
    Full size No
    Nano No
    Touch No
    iPhone 5 and up
    General
    RMS Power (CTA-2006) N/A
    RMS Power (Manufacturer) 16 watts
    Peak Output 45 watts
    RMS Power Bandwidth 20-20kHz
    Preamp Outputs 5-channel
    Sub Preamp Outputs Yes
    Switchable Rear Preamp Outputs No
    Video Screen Yes
    Navigation App Compatible (iOS) N/A
    Navigation App Compatible (Android) N/A
    Preamp Voltage 2 volts
    Screen Size 6.75
    Display Color
    Key Button Color Blue
    EQ Bands 13
    Wireless Remote Optional
    Steering Wheel Control Compatible Adapter required
    Parts Warranty 1 Year
    Labor Warranty 1 Year
    Tuner
    FM Sensitivity 16.2 dBf
    European Tuning Yes
    Seek/Scan Seek
    Radio Data System Yes
    File Playback
    Music File Playback MP3,WMA,AAC,FLAC,WAV
    High-res Playback FLAC/WAV (up to 24-bit/192kHz)
    Second Camera Input Lane Watch N
