JVC
KW-M560BT
Make the most of your phone
Everything you need for the road is in your smartphone, right? JVC'sand KW-M560BT multimedia receiver puts all the goodness front and center on a 6.75" touchscreen display with Android Autoand trade; and Apple CarPlayand trade;. Plus, you'll get a variety of music sources, hands-free calling, serious sound-shaping tools, and plenty of outputs for aftermarket amps and subs.
Onboard Android Auto and Apple CarPlay
With your iPhoneand reg; or Androidand trade; smartphone connected to theand KW-M560BT via USB, you'll gain touchscreen or voice control access to a variety of apps supported by Android Auto and CarPlay.
- Android Auto: When you connect a compatible Android device, Android Auto integrates the Android platform into your driving experience in a non-distracting way. You'll have voice control access to Google Maps, weather, music, your phone, text messages, plus easy access to many of your favorite apps.
Bluetooth for calling and streaming
Bluetooth makes it easy to stream music wirelessly and make hands-free calls. This JVC lets you quickly switch between two paired phones and mdash; handy for vehicles with more than one driver. When it comes to streaming audio, you can also control this car stereo directly from your phone using JVC's free Remote app.
SiriusXM
If AM/FM radio isn't enough, you can add an optional SiriusXM tuner and seriously expand the scope of your entertainment choices. It's a beautiful thing to drive for hours with a station that you love.
Add a backup cam
If you're installing a stereo, it's also a great time to add a backup cam, and this JVC gives you a dedicated camera input. And if the kids in the back need a bit of distraction, you can feed them some video by connecting additional monitors to this receiver's video output.
Your dream sound
Take advantage of JVC's sound-sculpting controls, including a 13-band graphic equalizer and time alignment to get you the best seat in the house.
Bluetooth note: Use of this receiver's Bluetooth features will depend upon your phone's Bluetooth capabilities.
Product highlights:
General Features:
- digital multimedia receiver with AM/FM tuner
- 6.75" capacitive touchscreen
- finger movements control volume level and forward/back
- fits double-DIN dash openings
Smartphone Features:
- Android Auto and Apple CarPlay compatible
- control and charging of Apple devices using the USB connection
- Siri Eyes Free Control
- Android mirroring via USB
- built-in Bluetooth for hands-free calling and audio streaming with dual phone connection
Audio/Video Features:
- plays USB memory devices
- 13-band equalizer with digital time alignment
- high-pass, low-pass, and subwoofer crossover adjustments
Expandability:
- compatible with optional SiriusXM satellite radio tuner
- inputs: rear USB input, rear A/V input (mini), backup camera input
- outputs: rear video output (RCA), 5-channel preamp outputs (2-volt front, rear, subwoofer)
Other Information:
- wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
- compatible with most factory steering wheel audio controls (adapter required)
- built-in amp (21 watts RMS/45 peak x 4 channels)
- optional wireless remote control
- warranty: 2 years (1 year for Canada)
- MFR # KW-M560BT

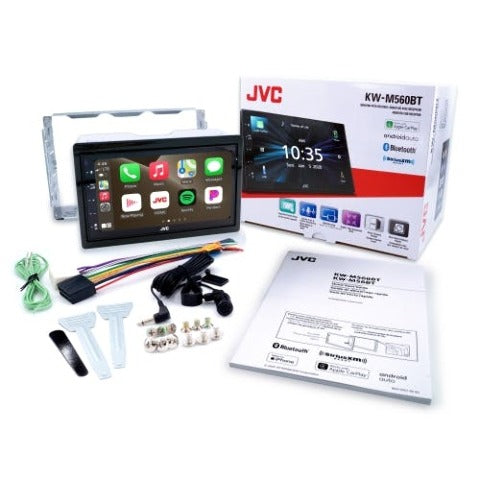

What's in the box:
- Digital media receiver w/ fixed 6.75" touchscreen monitor (15A fuse)
- Sleeve (attached)
- Trim ring
- Power harness
- Speaker harness
- 6.5' Light-green parking brake wire (pre-installed)
- Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
- 2 Radio removal tools
- Trim-ring removal tool
- 6 Pan-head ISO-mount screws
- 6 Flat-head ISO-mount screws
- Quick Start Guide
- Warranty card
- Important Notice on Software
- "Information" sheet
Features and amp; specs
| Expandability | ||
|---|---|---|
| AUX Input | Mini (rear) | |
| Audio/video Input | Mini (rear) | |
| USB Input | Rear | |
| Backup Camera Input | Yes | |
| Second Camera Input | No | |
| CarPlay | Yes | |
| Android Auto | Yes | |
| Siri Control | CarPlay only | |
| Alexa Voice Control | N | |
| Android Control | Yes | |
| Memory Card Slot | USB memory | |
| Bluetooth Compatible | Built-in | |
| Satellite Radio Ready | SiriusXM 2.0 | |
| HD Radio | No | |
| Navigation | Optional | |
| iPod Compatibility | ||
| Full size | No | |
| Nano | No | |
| Touch | No | |
| iPhone | 5 and up | |
| General | ||
| RMS Power (CTA-2006) | N/A | |
| RMS Power (Manufacturer) | 21 watts | |
| Peak Output | 45 watts | |
| RMS Power Bandwidth | 20-20kHz | |
| Preamp Outputs | 5-channel | |
| Sub Preamp Outputs | Yes | |
| Switchable Rear Preamp Outputs | No | |
| Video Screen | Yes | |
| Navigation App Compatible (iOS) | Apple, Google, Waze | |
| Navigation App Compatible (Android) | Google, Waze | |
| Preamp Voltage | 2 volts | |
| Screen Size | 6.75 | |
| Display Color | ||
| Key Button Color | Blue | |
| EQ Bands | 13 | |
| Wireless Remote | Optional | |
| Steering Wheel Control Compatible | Adapter required | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
| Tuner | ||
| FM Sensitivity | 16.2 dBf | |
| European Tuning | Yes | |
| Seek/Scan | Seek | |
| Radio Data System | Yes | |
| File Playback | ||
| Music File Playback | MP3,WMA,AAC,WAV,FLAC | |
| High-res Playback | FLAC,WAV (up to 24-bit/192kHz) | |
| Second Camera Input Lane Watch | N | |
