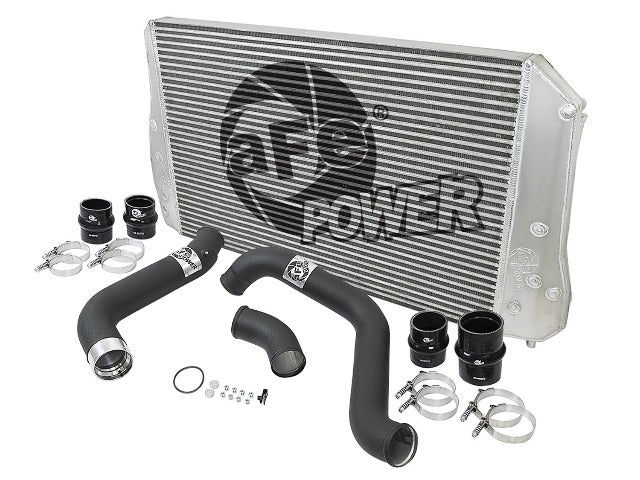

BladeRunner GT Series Intercooler Kit w/ Tubes Black GM Diesel Trucks 17-19 V8-6.6L (td) L5P

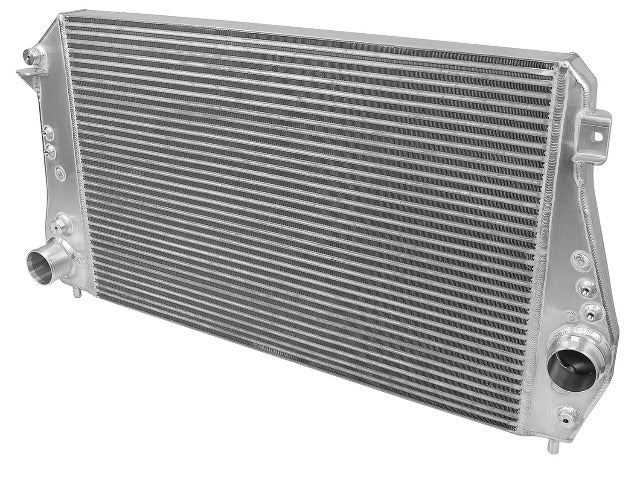

This BladeRunner GT Series Intercooler with tubes represents the next generation of intercoolers by utilizing a 2-5/8in bar and plate core design and larger tubes to outflow stock by 10%.

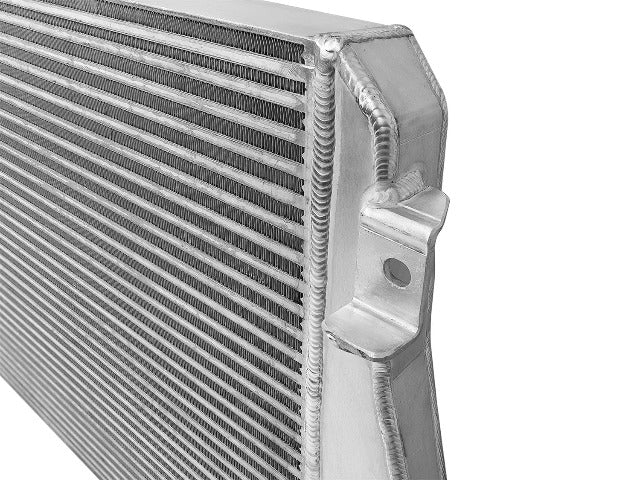

End Tanks: The unique BladeRunner end tanks are constructed out of 3/16in TIG-Welded aluminum plates.
2-5/8in Bar and Plate Core Design: The use of the bar and plate core design allows for greater airflow and increased heat dissipation over the stock tube and fin design.

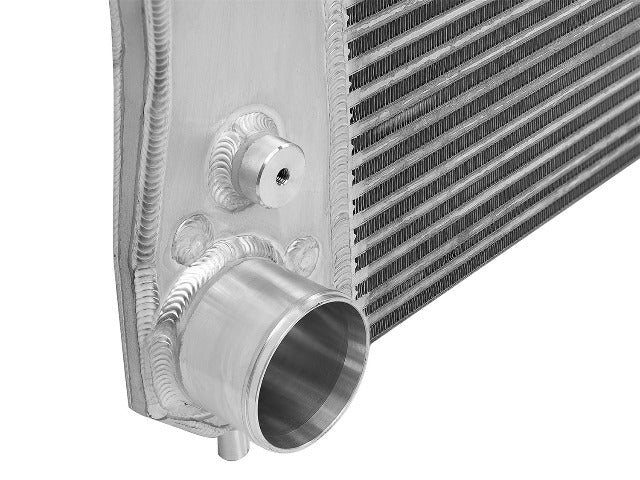

Billet Aluminum Inlet/Outlet: This BladeRunner Intercooler uses billet aluminum inlet and outlet for superior strength and durability.
TIG-Welded: 100% TIG-Welded by certified craftsmen for race proven strength and durability.

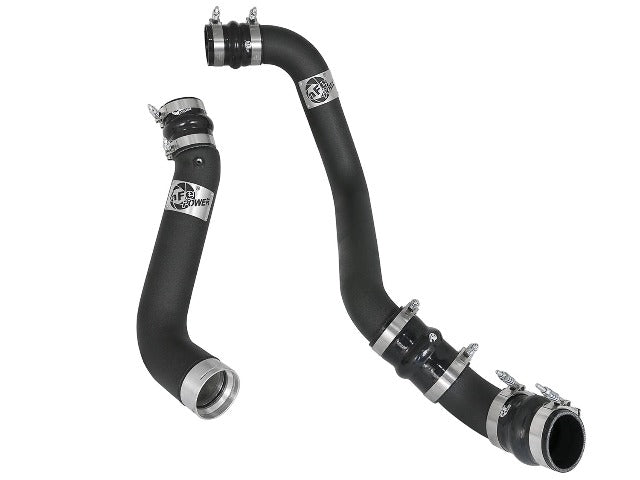

Flow and Performance: aFe Power's BladeRunner intercooler tubes are constructed from 3in hot side and 3-1/2in cold side mandrel-bent aluminum tubing for maximum flow. The high-temp wrinkle-black powder-coat insulates the tubes from engine heat and protects them from corrosion. Smooth transition bends decrease turbulence and minimize pressure loss, increasing horsepower, torque and lowering EGT's.

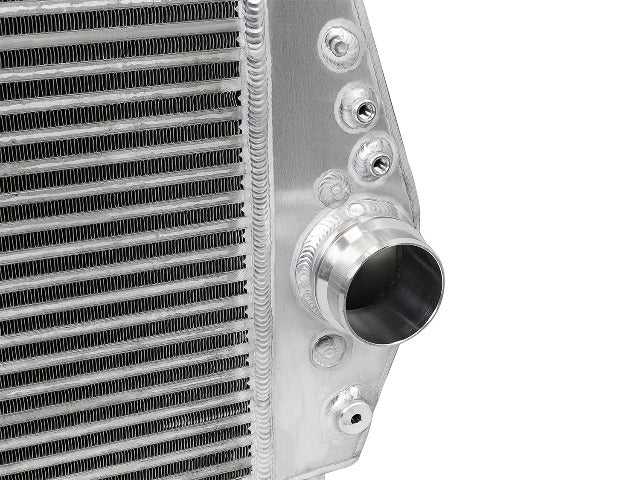

Auxiliary Ports: This intercooler features four (4) 1/8 IN NPT ports on the back side of the intercooler for sensors or water methanol injection and two (2) 1/8 IN NPT ports on the bottom for draining condensation or oil build up. In addition, one (1) 1/8in NPT port is provided on each tube.

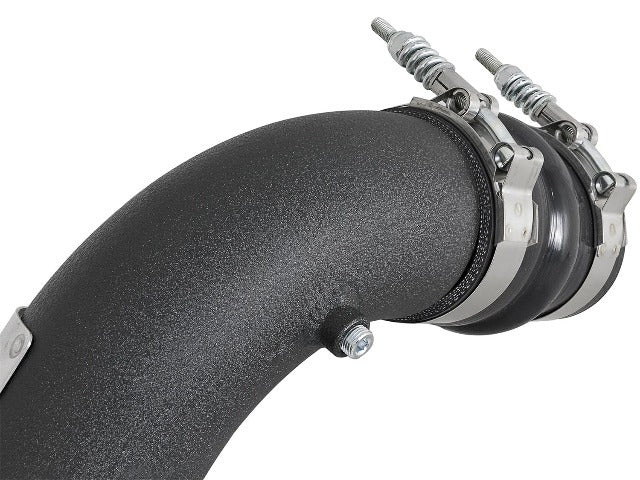

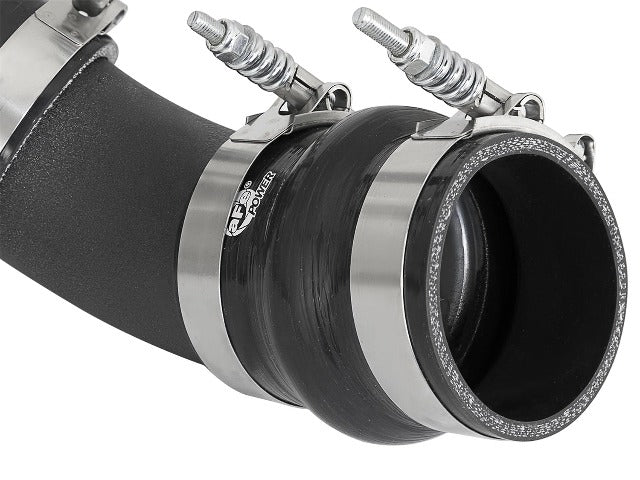

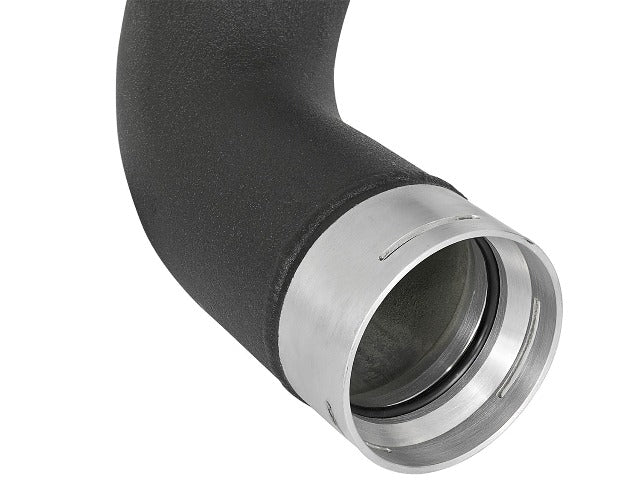

Perfect Fit: Factory mounting locations, quality stainless steel spring-loaded T-Bolt clamps and heavy-duty 5-ply polyester reinforced silicone couplings ensure a secure install. The cold side tube includes a factory-style quick connect with an O-ring seal for a quick and simple install and retains the factory air temp sensor for a hassle-free installation.
Custom Appearance: The intercooler tubes are badged with an aluminum laser-cut aFe Power logo.
- 10% flow increase over stock
- Incl. Hardware For A Hassle Free Installation
- Reduces Intake Air Temperatures
- 2-5/8 IN bar and plate core design
- Billet aluminum inlet/outlet
- Factory-style quick connect fittings
- 100% TIG-Welded for Strength and Durability
- Powdercoat Wrinkle-Black For Heat Resistance
- 1/8 in. NPT Ports Provided For Sensors/Water Methanol Injection
- 5 Ply Polyester Reinforced Silicone Couplings for Strength
- Incl. Stainless Steel Spring Loaded T-Bolt Clamps For Secure Fit
Application Summary:
| Year |
Make/Model |
| 2017-2019 |
Chevrolet Silverado 2500 HD |
| 2017-2019 |
Chevrolet Silverado 3500 HD |
| 2017-2019 |
GMC Sierra 2500 HD |
| 2017-2019 |
GMC Sierra 3500 HD |
