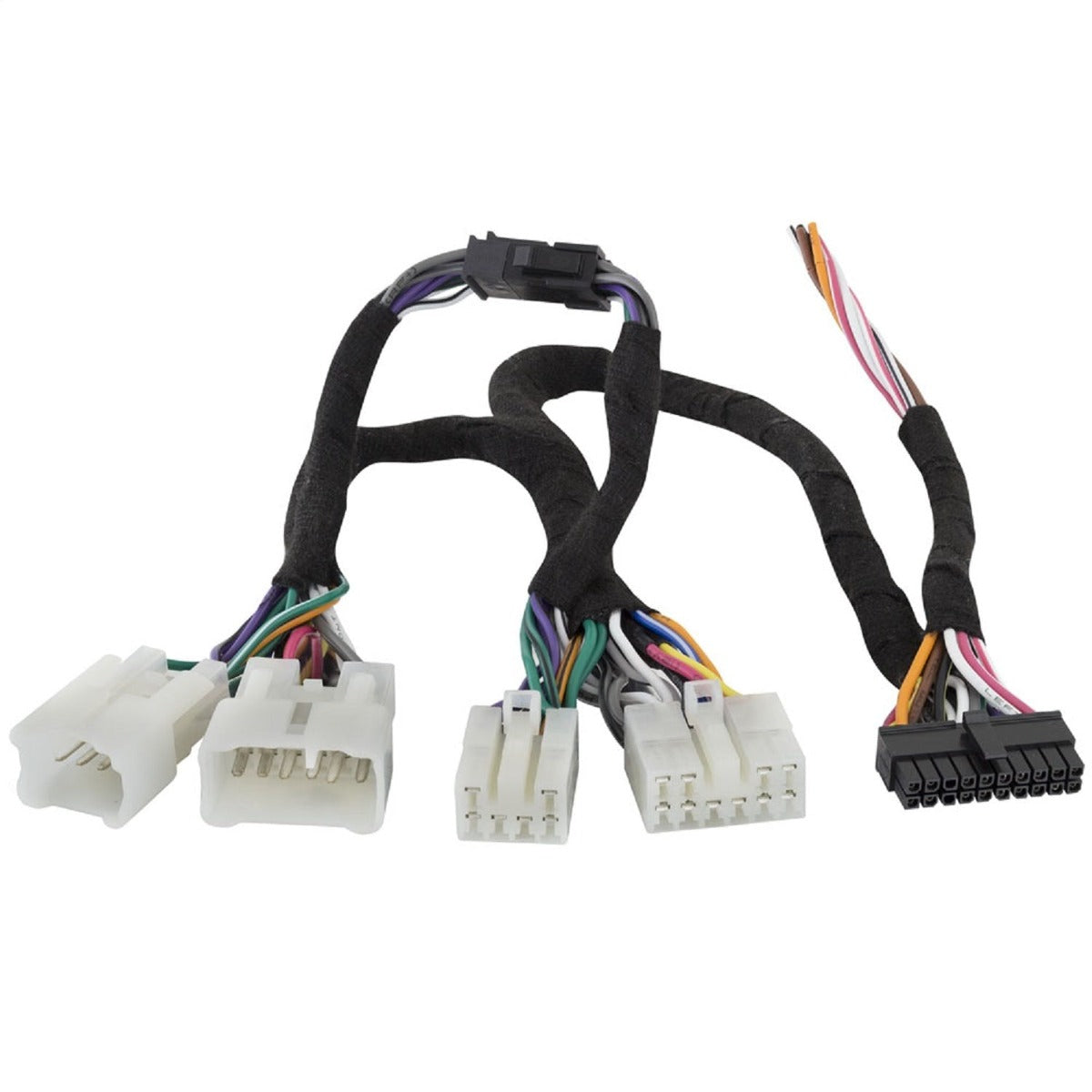

Plug-N-Play Harness For AX-DSP; For Standard Audio Only;

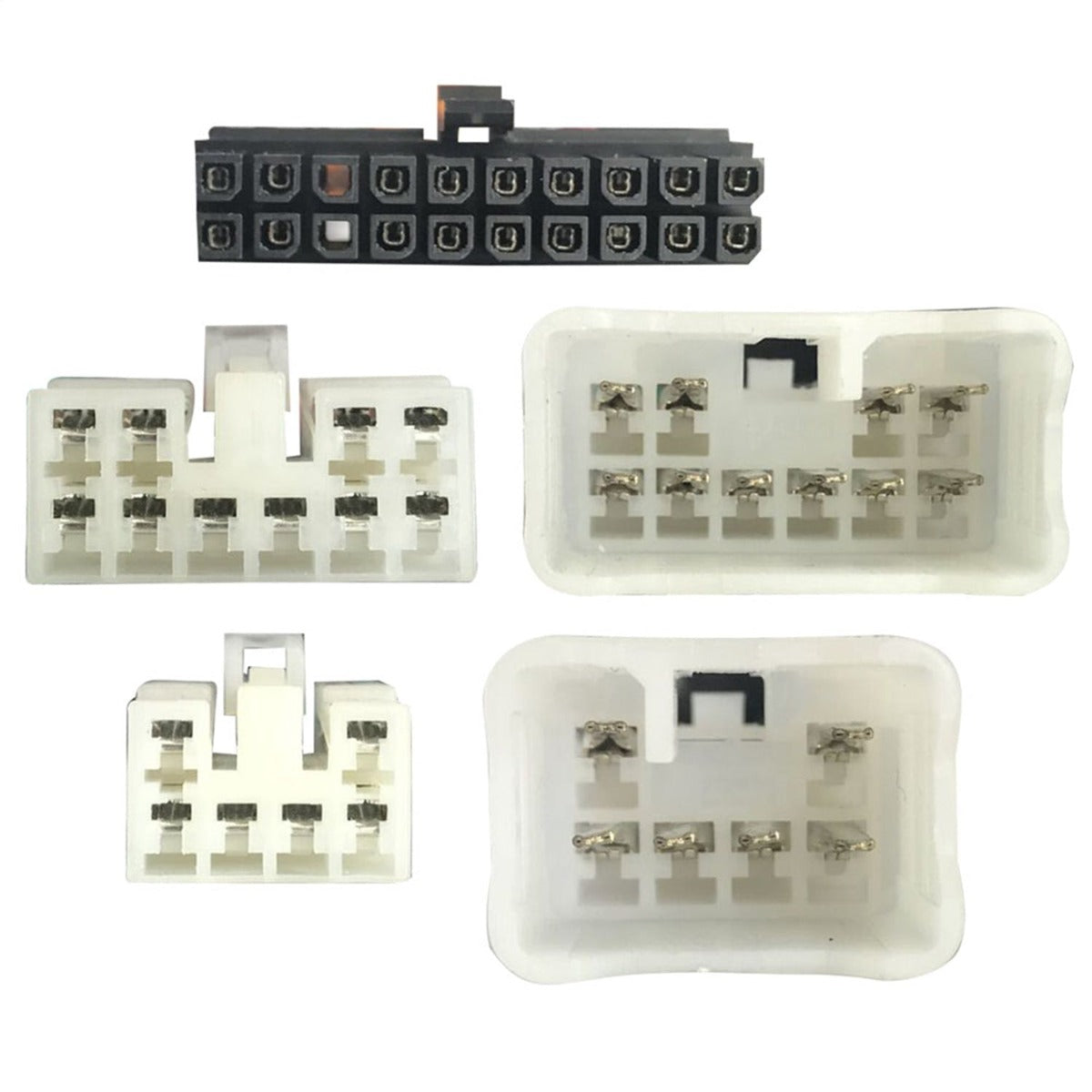

AXXESS has developed a cost effective option for customers wanting to retain their factory radio and improve vehicle sound quality. These plug-n-play harness work with the AX-DSP (SOLD SEPERATELY). The Axxess T-harness is a basic and simple plug-n-play harness for easy installation of the AX-DSP (sold separately) for vehicle specific applications. Most T-harnesses created by Axxess will either have a 4-pin or 8-pin harness, with the speaker wires pinned. If you are installing a 4-channel amplifier with the AX-DSP, leave these connectors disconnected. The only reason for connecting these harnesses together would be if the AX-DSP is being used for aDDINg a subwoofer amplifier only. Some T-harnesses require additional wiring and/or installation steps. Refer to the following page for a pinout legend for the 20-pin harness, and also additional wiring and notes.
- T-Harness For Select Toyota Vehicles
- Must Used With Ax-Dsp Digital Signal Processor Sold Separately
- For Standard Audio Vehicles Only
- When Programming General Must Be Selected From The Vehicle Type
Application Summary:
| Year |
Make/Model |
| 2016 |
Scion iM |
| 2012-2015 |
Scion iQ |
| 2010-2016 |
Scion tC |
| 2010-2015 |
Scion xB |
| 2010-2014 |
Scion xD |
| 2013-2017 |
Subaru BRZ |
| 2014-2018 |
Subaru Forester |
| 2012-2017 |
Subaru Impreza |
| 2012-2018 |
Subaru Legacy |
| 2012-2018 |
Subaru Outback |
| 2016-2017 |
Subaru WRX |
| 2013-2015 |
Subaru XV Crosstrek |
| 2010-2016 |
Toyota 4Runner |
| 2011-2016 |
Toyota Avalon |
| 2018 |
Toyota C-HR |
| 2012-2016 |
Toyota Camry |
| 2012-2017 |
Toyota Corolla |
| 2011-2014 |
Toyota FJ Cruiser |
| 2013-2016 |
Toyota Highlander |
| 2011-2013 |
Toyota Matrix |
| 2010-2017 |
Toyota Prius |
| 2012-2016 |
Toyota Prius C |
| 2012-2016 |
Toyota Prius V |
| 2012-2016 |
Toyota RAV4 |
| 2013-2016 |
Toyota Sequoia |
| 2011-2016 |
Toyota Sienna |
| 2012-2016 |
Toyota Tacoma |
| 2014-2016 |
Toyota Tundra |
| 2013-2015 |
Toyota Venza |
| 2012-2016 |
Toyota Yaris |
