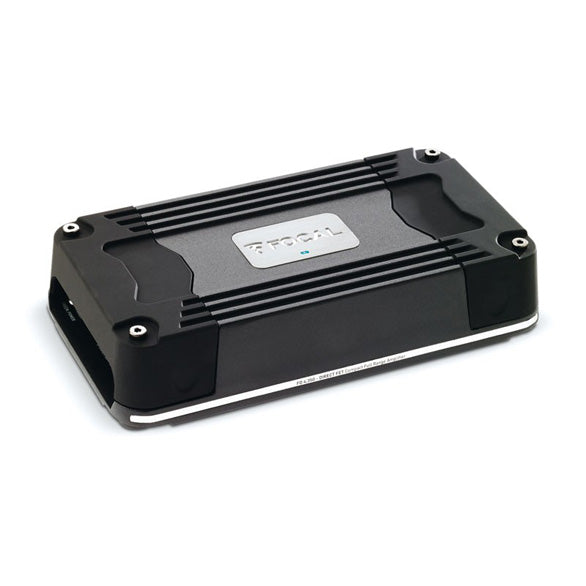

FOCAL COMPACT 4-CHANNEL CLASS D AMPLIFIER

FDS4.350

The FDS 4.350 is the 4-channel model (4 x 58 Watts RMS) and the most versatile of the range. It can operate in 4-, 3- or 2-channel mode. In most cases, it will be used to amplify a car’s front and rear speaker drivers. It can also be used to drive front speaker drivers and a small subwoofer, for a small installation which stays simple and integrated.

Features:

• 4/3/2-channel D Class amplifier
• RCA low-level inputs
• Compact

Technical specifications:

• D Class amplifier - 4/3/2 channels
• CEA power (4 ohms): 4x58 W rms
• Maximum power (2 ohms): 4x100W rms
• Maximum power (bridged 4 ohms): 2x200W rms
• Configurable filters High Pass / Low Pass : 40Hz-400Hz

• Full range mode

• Protections: Short circuit / low impedance / reversal of polarity / DC / power drop / heat protection
• Dimensions (LxHxW):  (199x108x43mm)
• Weight: 1.9lbs
